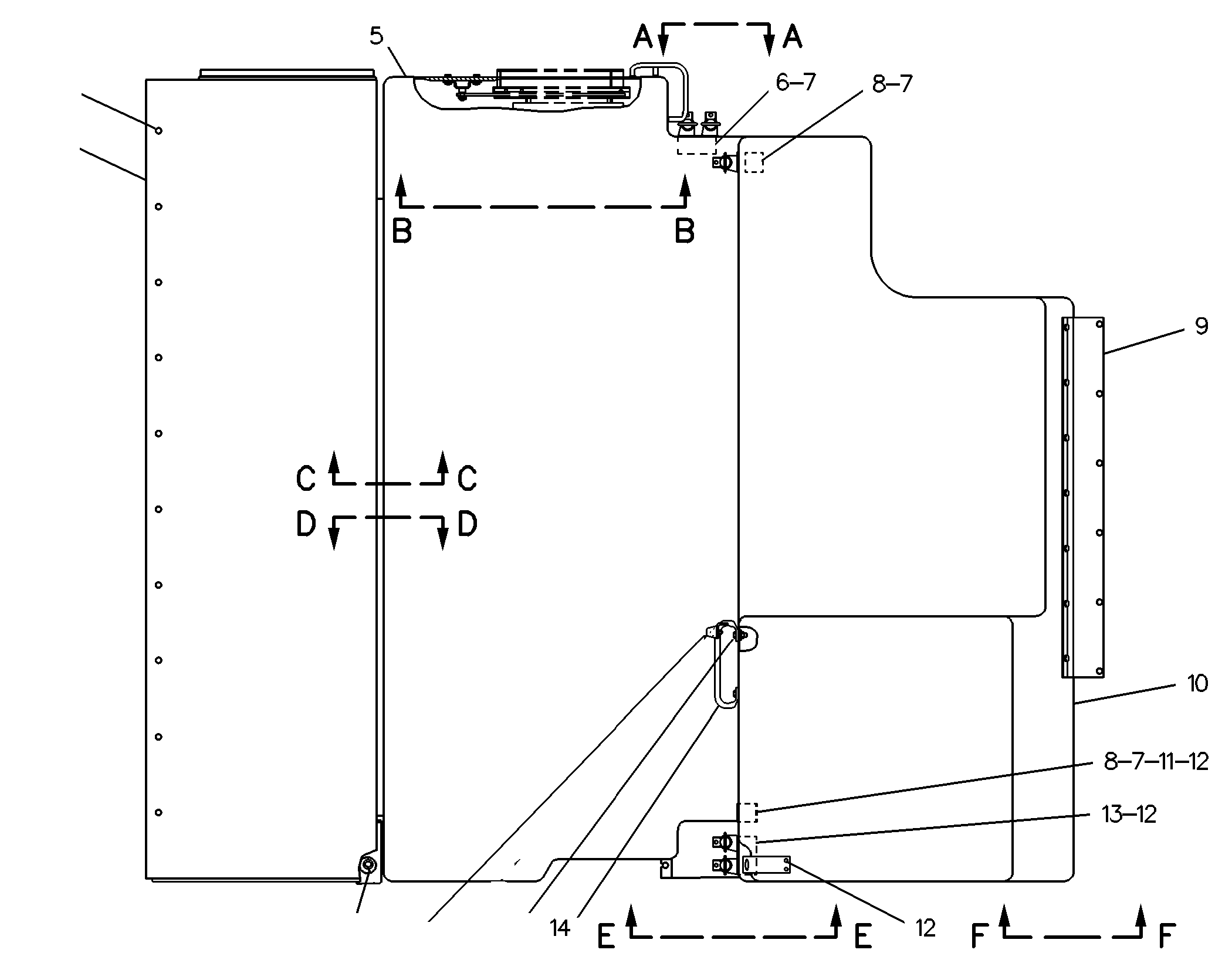

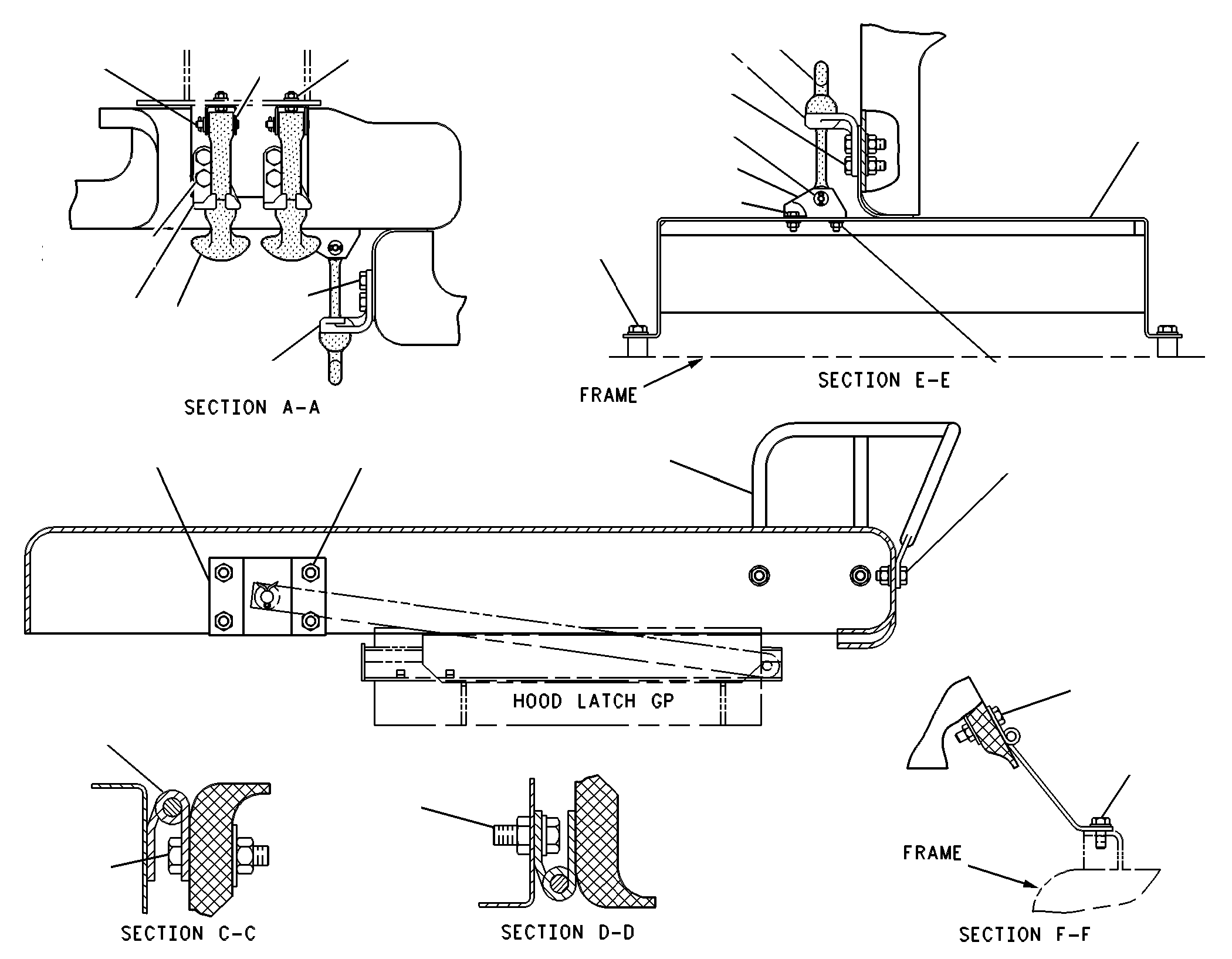

8X-0202 HOOD GP-TRUCKS/N 4AR1-UP

Group No: 8X-0202
Part NumberPart NameQty
10104721 HOOD AS1
8T34902 NUT-WELD (M10X1.5-THD)6
8T41363 BOLT (M10X1.5X25-MM)10
8T4222WASHER-PLATED (11X32X2.5-MM THK)10
8T49564 BOLT (M12X1.75X35-MM)2
5T72615 HOOD AS1
9D84546 BRACKET1
7D86357 RIVET14
9M2307WASHER (5.2X19X2-MM THK)14
2G95068 BRACKET3
8W42879 HINGE1
5T726410 HOOD AS1
2G950611 BRACKET1
7D863512 RIVET14
9M2307WASHER (5.2X19X2-MM THK)14
9D845413 BRACKET1
6G126214 HANDHOLD AS1
5G081715 BUMPER-CONICAL10
1B4202NUT (5/16-24-THD)1
8T4224WASHER-HARD (8.8X16X2-MM THK)1
7T833116 MOUNT AS2
8T6868BOLT (M12X1.75X80-MM)2
5P107617 WASHER-HARD (13.5X30X4-MM THK)2
8T424418 NUT (M12X1.75-THD)4
7G883919 SPACER (13.5X57X6-MM THK)4
7X0590WASHER-HARD (13.5X44.5X6-MM THK)2
8T413320 NUT (M10X1.5-THD)26
8T412121 WASHER-HARD (11X21X2.5-MM THK)27
8T419622 BOLT (M10X1.5X35-MM)10
8T420523 WASHER-HARD (7.2X14.5X2-MM THK)15
3B460724 PIN-COTTER5
2M5795PIN-CLEVIS5
9M276025 ANCHOR5
5C955326 BOLT (M6X1X16-MM)10
5C2890NUT (M6X1-THD)10
9M383727 BRACKET-CATCH5
9M383528 LATCH-RUBBER5
8X441629 BRACKET AS1
8T349030 NUT-WELD (M10X1.5-THD)4
8T413631 BOLT (M10X1.5X25-MM)19
1P092632 GUARD AS-CONTROL1
8W463733 HINGE1
8T418234 BOLT (M10X1.5X45-MM)13
8T4222WASHER-PLATED (11X32X2.5-MM THK)13
103068735 SUPPORT AS1
6V963236 NUT-WELD (M6X1-THD)4
5V0120BAR2
8T413737 BOLT (M10X1.5X20-MM)4
7X772938 WASHER (11X25X3-MM THK)6
