System And Components

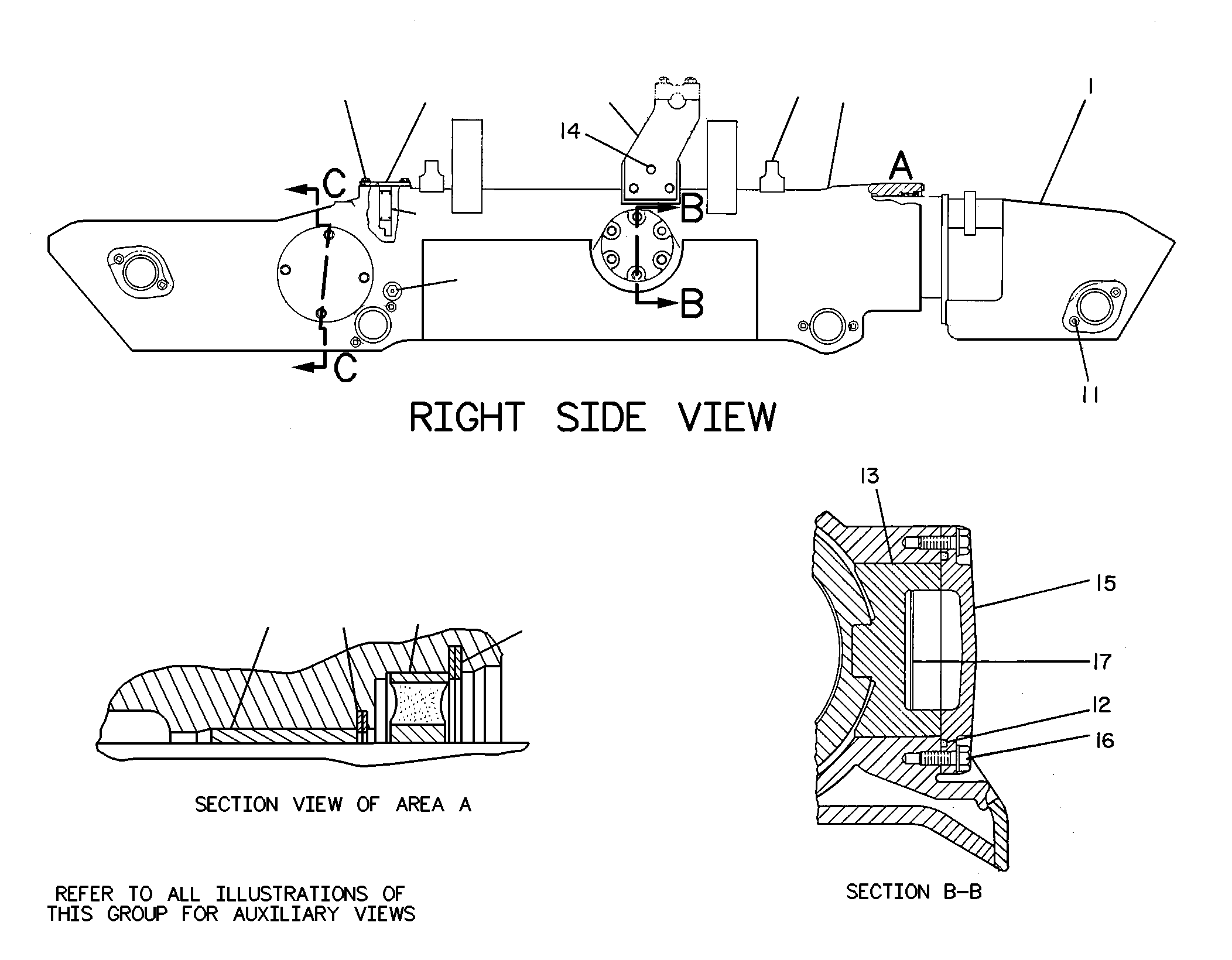

9P-8017 FRAME GP-TELESCOPING RECOILS/N 8HB479-UP
Group No: 9P-8017

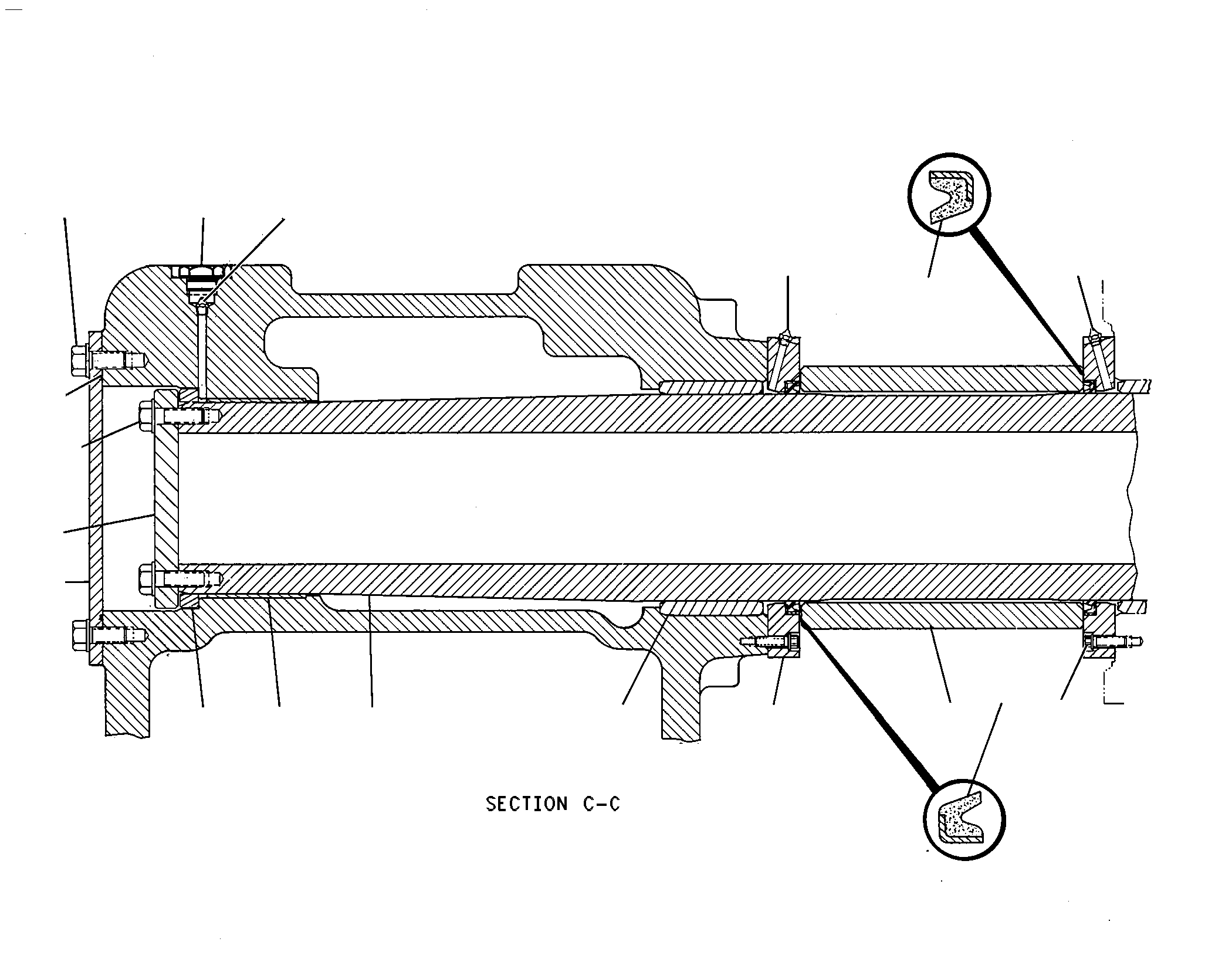

| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9W9655 | 1 FRAME AS-TRACK ROLLER | 2 | |
| 6V0709 | PLATE-WARNING (RECOIL SPRING) | 1 | |
| 4B4158 | SCREW-DRIVE (NO 4X0.25-IN) | 4 | |
| 9P7990 | SLEEVE-WEAR | 1 | |
| 8E2818 | 2 FRAME AS-REAR ROLLER (LH) | 1 | |
| 8E2817 | FRAME AS-REAR ROLLER (RH) | 1 | |
| 9P0501 | 3 HOOK | 2 | |
| 5P7179 | 4 PLATE-WARNING (RECOIL SPRING OIL) | 4 | |
| 9N1995 | RIVET-POP | 8 | |
| 6T0740 | 5 COVER AS | 2 | |
| 5P7179 | PLATE-WARNING (RECOIL SPRING OIL) | 2 | |
| 9N1995 | RIVET-POP | 4 | |
| 3S1223 | SEAL-O-RING | 2 | |
| 5P2566 | 6 BOLT (1/2-13X1.5-IN) | 8 | |
| 5P1076 | WASHER-HARD (13.5X30X4-MM THK) | 8 | |
| 4T2069 | 7 PLUG-DRAIN | 2 | |
| 2H3932 | SEAL-O-RING | 2 | |
| 9X4586 | 8 SEAL AS | 2 | |
| 8E2819 | 9 RING-RETAINING | 2 | |
| 9G0296 | 10 BEARING | 2 | |
| 9G7516 | 11 PLUG | 32 | |
| 2K4472 | 12 SEAL-O-RING | 4 | |
| 6T8801 | 13 GUIDE AS | 4 | |
| 6T8258 | FILM-WARNING (RECOIL SPRING) | 1 | |
| 7X0408 | 14 BOLT (1-8X3.5-IN) | 12 | |
| 8T5361 | WASHER-HARD (28X49X5-MM THK) | 12 | |
| 6P8931 | 15 COVER | 4 | |
| 7X0345 | 16 BOLT (5/8-11X1.75-IN) | 24 | |
| 8T4122 | WASHER-HARD (17X32X3.5-MM THK) | 24 | |
| 6T8258 | 17 FILM-WARNING (RECOIL SPRING) | 4 | |
| 7T8004 | 18 RING-RETAINING | 2 | |
| 6T6911 | 19 PLATE | 4 | |
| 8T4122 | 20 WASHER-HARD (17X32X3.5-MM THK) | 24 | |
| 8T9393 | 21 BOLT (5/8-11X1.5-IN) | 8 | |
| 7X0346 | 22 BOLT (5/8-11X2-IN) | 16 | |
| 7G9709 | 23 BUSHING | 2 | |
| 6T6820 | 24 SHAFT-PIVOT | 1 | |
| 6Y0210 | 25 BUSHING | 2 | |
| 3T0837 | 26 RETAINER | 4 | |
| 6T5662 | 27 SPACER | 2 | |
| 1T0720 | 28 BOLT-12 POINT HEAD (3/8-16X1.25-IN) | 24 | |
| 6V3325 | 29 SEAL-LIP TYPE | 4 | |
| 3B8489 | 30 FITTING-GREASE | 6 | |
| 6B5262 | 31 PLUG | 2 | |
| 2A3398 | GASKET | 2 | |
| 8F6230 | 32 SEAL-O-RING | 2 | |
| 3T0625 | 33 PLATE | 2 | |
| 6T6670 | 34 PLATE | 2 | |
| 7T4132 | 35 RING-THRUST | 2 |
