System And Components

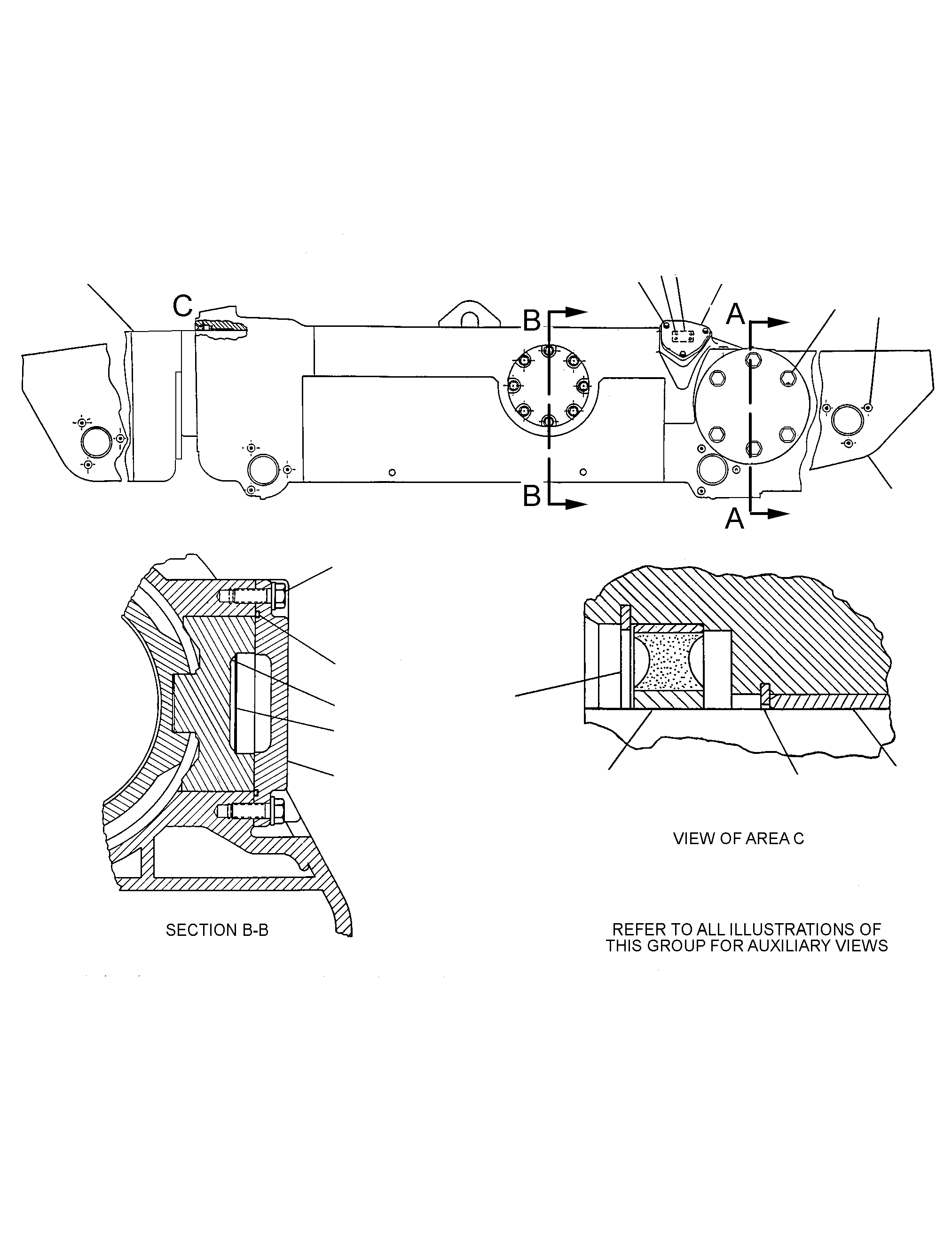

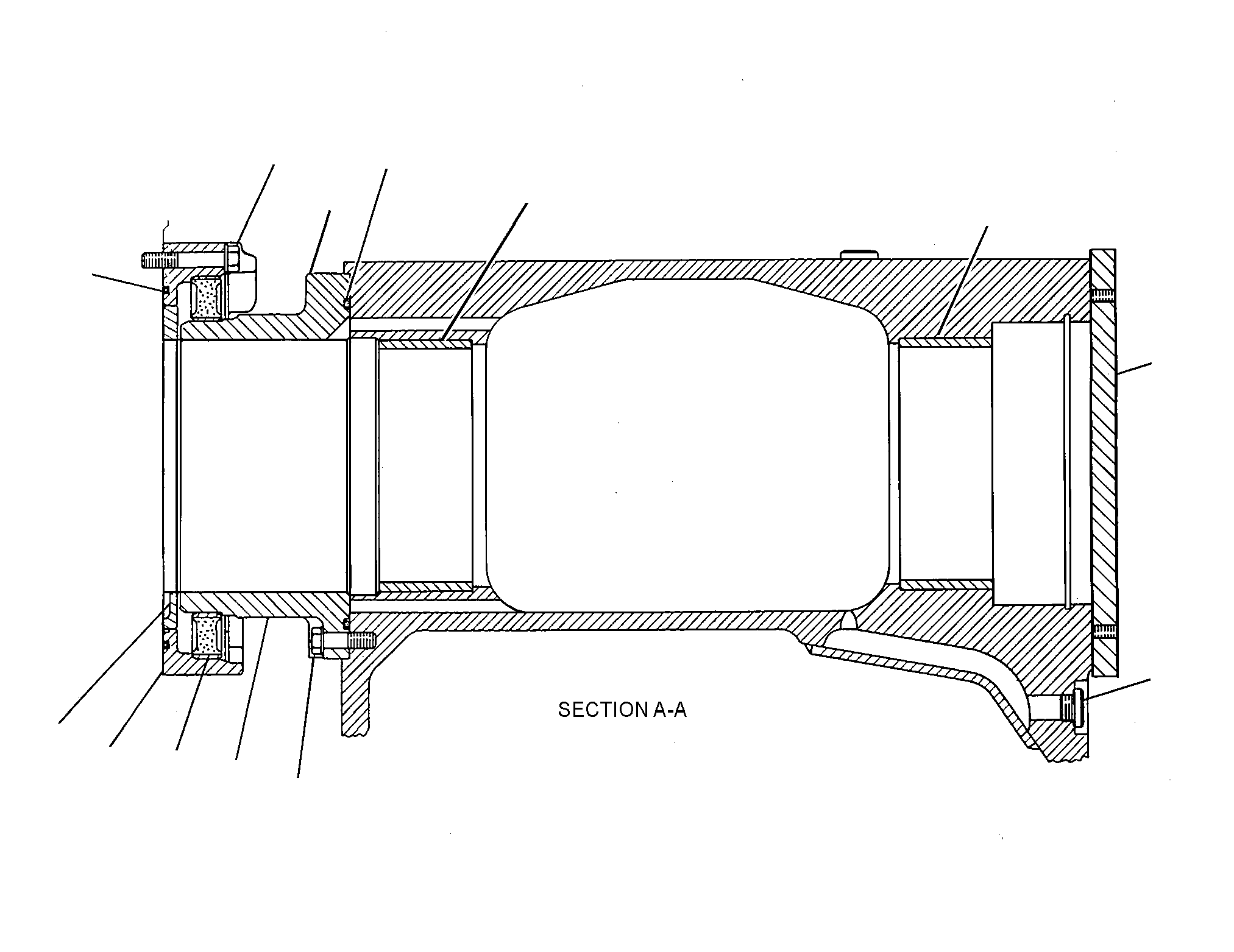

6Y-2742 FRAME GP-TELESCOPING RECOIL -LHS/N 4HK1-UP
Group No: 6Y-2742
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2224093 | 1 FRAME AS-TRACK ROLLER (REAR, LH) | 1 | |
| 6T4176 | 2 BUSHING | 1 | |
| 6T4177 | 3 BUSHING | 1 | |
| 7X0399 | 4 BOLT (1-8X1.25-IN) | 6 | |
| 8T5361 | 5 WASHER-HARD (28X49X5-MM THK) | 6 | |
| 7T8330 | 6 COVER | 1 | |
| 3S1223 | 7 SEAL-O-RING | 1 | |
| 5P9891 | 8 PLATE-WARNING (HIGH PRESSURE CYLINDER) | 1 | |
| 4B4158 | 9 SCREW-DRIVE (NO 4X0.25-IN) | 4 | |
| 8C4436 | 10 BOLT (1/2-13X1.375-IN) | 3 | |
| 8T4223 | 11 WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 2032449 | 12 FRAME AS-FRONT | 1 | |
| 6V0709 | PLATE-WARNING (RECOIL SPRING) | 1 | |
| 4B4158 | SCREW-DRIVE (NO 4X0.25-IN) | 4 | |
| 1389907 | SLEEVE-WEAR | 1 | |
| 8T9399 | 13 BOLT (3/4-10X2.25-IN) | 16 | |
| 8T4994 | 14 WASHER-HARD (20X36.5X3.5-MM THK) | 16 | |
| 1J2890 | 15 SEAL-O-RING | 2 | |
| 7T1331 | 16 GUIDE AS | 2 | |
| 6V9480 | 17 FILM-WARNING (HIGH PRESSURE, READ OMM) | 1 | |
| 8P4693 | 18 COVER | 2 | |
| 3T7494 | 19 BEARING | 1 | |
| 7X2627 | 20 RING-RETAINING | 1 | |
| 9X4590 | 21 SEAL AS | 1 | |
| 7X2628 | 22 RING-RETAINING | 1 | |
| 9G7516 | 23 PLUG | 24 | |
| 8F9960 | 24 SEAL-O-RING | 1 | |
| 7X0351 | 25 BOLT (5/8-11X3.75-IN) | 9 | |
| 8T4122 | 26 WASHER-HARD (17X32X3.5-MM THK) | 18 | |
| 2032448 | 27 RETAINER AS | 1 | |
| 7T3479 | 27A PLATE-THRUST | 1 | |
| 7T0192 | 27B RETAINER | 1 | |
| 8T1115 | 27C SEAL-PIVOT SHAFT | 1 | |
| 2032447 | 27D RETAINER | 1 | |
| 6Y6583 | 28 COVER | 1 | |
| 5P9217 | 29 SEAL-O-RING | 1 | |
| 7X0347 | 30 BOLT (5/8-11X2.25-IN) | 9 | |
| 4T2069 | 31 PLUG-DRAIN (RECOIL SPRING OIL) | 3 | |
| 2H3932 | 32 SEAL-O-RING | 3 |
