System And Components

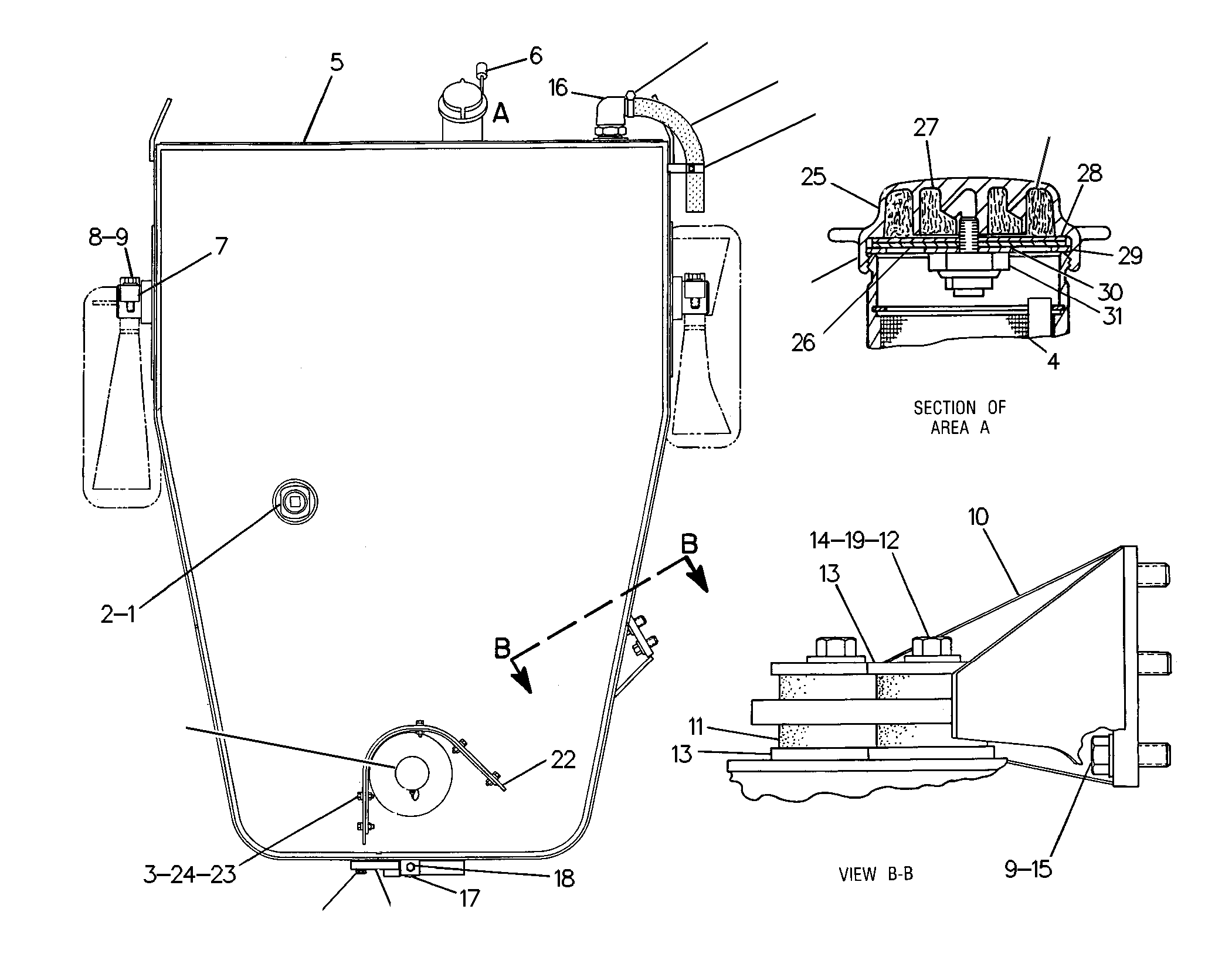

115-2012 TANK GP-FUEL -VIMSS/N 7EK1-414
Group No: 115-2012
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2G0244 | 1 GAUGE GP-FUEL LEVEL | 1 | |
| 7V6480 | SCREW-PAN HEAD (6-32X6.35-MM) | 2 | |
| 8W5331 | 2 SENSOR GP-FUEL LEVEL (FLOAT)(FLOAT) | 1 | |
| 6V8801 | 3 NUT (3/8-16-THD) | 5 | |
| 9P7121 | 4 STRAINER-FUEL (ULTRASONIC) | 1 | |
| 1152500 | 5 TANK AS | 1 | |
| 5P8502 | 6 PADLOCK GP | 1 | |
| 8Y6364 | SLEEVE | 1 | |
| 5P8500 | KEY | 2 | |
| 6G5294 | 7 CAP | 2 | |
| 5P6712 | 8 BOLT-LOCKING (3/4-10X3-IN) | 4 | |
| 8X2232 | SHIM PACK (INCLUDES 8-SHIMS)(EACH INCLUDES 8 SHIMS) | 4 | |
| 5P8248 | 9 WASHER-HARD (20X36.5X3.5-MM THK) | 10 | |
| 8W5364 | 10 BRACKET AS | 1 | |
| 5D5654 | 11 MOUNTING | 4 | |
| 1D4614 | 12 BOLT (3/4-10X5-IN) | 2 | |
| 9D9438 | 13 WASHER (21X111X10-MM THK) | 4 | |
| 1K6870 | 14 LOCKNUT (3/4-10-THD) | 2 | |
| 0L1178 | 15 BOLT (3/4-10X2-IN) | 6 | |
| 6G7803 | 16 VENT AS | 1 | |
| 3B0551 | 17 PLUG-PIPE | 1 | |
| 1H8306 | 18 SCREW-PURGE (1/2-20X1.625-IN) | 1 | |
| 7X0582 | 19 WASHER-HARD (20X44.5X6-MM THK) | 4 | |
| 2G9000 | 20 VALVE AS-TANK (FAST FILL FUEL) | 1 | |
| 9D0630 | 21 CAP-DUST (FUEL TANK) | 1 | |
| 8W3602 | 22 DEFLECTOR | 1 | |
| 4L6454 | 23 BOLT (3/8-16X1-IN) | 5 | |
| 8T2561 | 24 WASHER-HARD (10.5X28.5X5-MM THK) | 5 | |
| 7T2036 | 25 CAP AS-FILLER (FUEL) | 1 | |
| 3F4134 | 26 BAFFLE (FUEL TANK FILL CAP) | 1 | |
| 4B5949 | 27 FILTER ELEMENT-FUEL (FUEL CAP) | 1 | |
| 4B5423 | 28 GASKET | 1 | |
| 7T2037 | 29 GASKET | 1 | |
| 7B2002 | 30 WASHER (10.2X44.5X3-MM THK) | 1 | |
| 7T2009 | 31 VALVE AS | 1 | |
| 4B1663 | 32 FILTER ELEMENT-FUEL (FUEL CAP) | 1 | |
| 8P0408 | 33 CAP-FILLER (FUEL TANK) | 1 | |
| 5M3062 | 34 BOLT (3/8-16X0.75-IN) | 1 | |
| 7D7233 | CLIP (LOOP)(SLOT) | 1 | |
| 8T4896 | 35 WASHER-HARD (10.2X18.5X2.5-MM THK) | 9 | |
| 1152241 | 36 PLATE | 1 | |
| 6V5051 | SEAL-O-RING | 1 | |
| 8T2502 | 37 BOLT (3/8-16X1.125-IN) | 4 | |
| 9M7958 | 38 CLAMP-HOSE | 1 | |
| 0386027 | 39 HOSE AS | 1 | |
| 5T8645 | KIT-VENT (FUEL TANK)(FUEL TANK) | 1 |
