System And Components

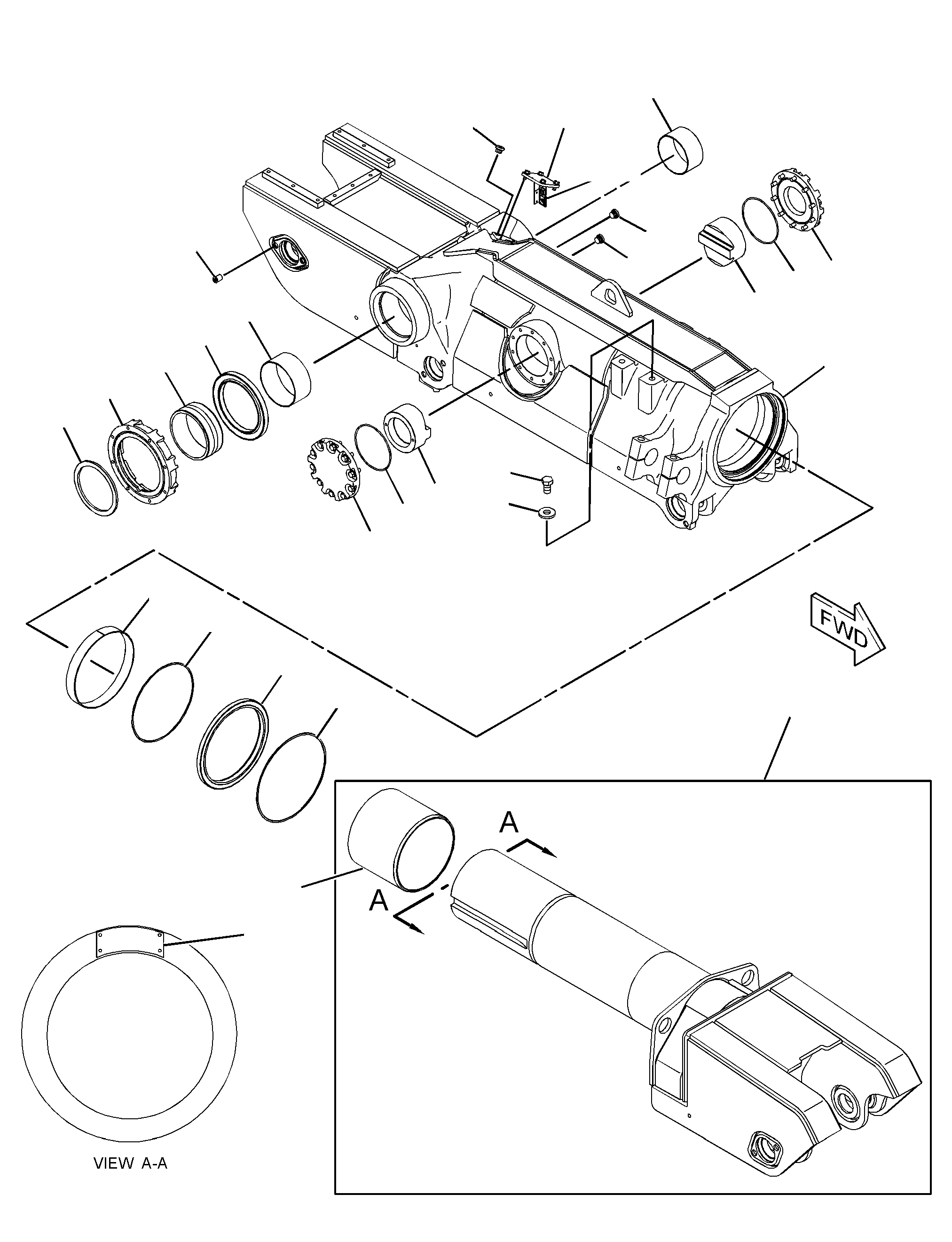

8E-6252 FRAME GP-TELESCOPING RECOIL -LHS/N 3SK1-UP
Group No: 8E-6252
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9W9540 | 1 FRAME AS | 1 | |
| 9W9551 | 1A BUSHING | 1 | |
| 6V0709 | 1B PLATE-WARNING (RECOIL SPRING) | 1 | |
| 4B4158 | 1C SCREW-DRIVE (NO 4X0.25-IN) | 4 | |
| 8T4223 | 2 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 2567215 | 3 FRAME AS (LH) | 1 | |
| 7T8006 | 4 RING-RETAINING | 1 | |
| 9X4588 | 5 SEAL AS | 1 | |
| 7G1952 | 6 BEARING | 1 | |
| 4T2069 | 7 PLUG-DRAIN (PIVOT SHAFT OIL) | 3 | |
| 2H3932 | 8 SEAL-O-RING | 3 | |
| 9G7516 | 9 PLUG | 16 | |
| 9W5575 | 10 COVER AS | 1 | |
| 2531344 | 10A PLATE-WARNING (HIGH PRESSURE CYLINDER) | 2 | |
| 9N1995 | 10B RIVET-POP | 6 | |
| 5H6734 | 12 SEAL-O-RING | 1 | |
| 8T8917 | 13 BOLT (1/2-13X1.25-IN) | 4 | |
| 8E2827 | 14 RING-RETAINING | 1 | |
| 7T4130 | 15 GUIDE AS | 2 | |
| 2525158 | FILM-WARNING (COMPRESSED SPRING, READ OMM) | 1 | |
| 7T4145 | 16 SLEEVE | 1 | |
| 7X0345 | 17 BOLT (5/8-11X1.75-IN) | 20 | |
| 8T4122 | 18 WASHER-HARD (17X32X3.5-MM THK) | 20 | |
| 7T4131 | 19 COVER | 2 | |
| 7T4133 | 20 PLATE-THRUST | 1 | |
| 8T0208 | 21 SEAL-PIVOT SHAFT | 1 | |
| 5P3092 | 22 SEAL-O-RING | 2 | |
| 9W2380 | 23 RETAINER | 1 | |
| 7T4134 | 24 BUSHING | 1 | |
| 7G9709 | 25 BUSHING | 1 | |
| 2526375 | 26 WASHER-HARD (31X74X10-MM THK) | 4 | |
| 7X0420 | 27 BOLT (1.125-7X50.8-MM) | 4 |
