System And Components

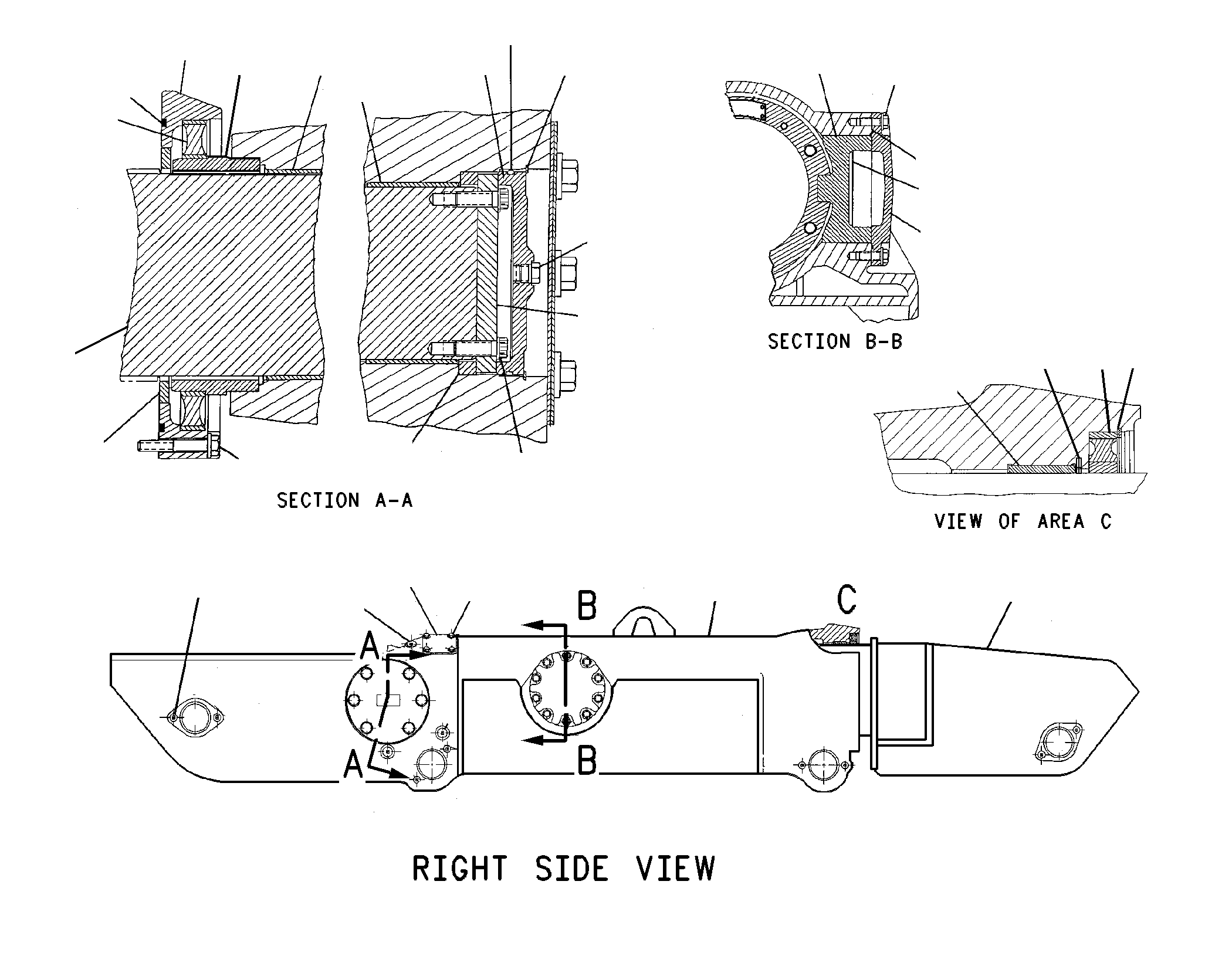

156-4202 FRAME GP-TELESCOPING RECOILS/N 3KR1331-1609
Group No: 156-4202
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1564205 | 1 FRAME AS | 2 | |
| 7G1958 | BUSHING | 1 | |
| 6V0709 | PLATE-WARNING (RECOIL SPRING) | 1 | |
| 4B4158 | SCREW-DRIVE (NO 4X0.25-IN) | 4 | |
| 1564203 | 2 FRAME AS-REAR (LH)(LH) | 1 | |
| 1564204 | 3 FRAME AS-REAR (RH)(RH) | 1 | |
| 7T8006 | 4 RING-RETAINING | 2 | |
| 9X4588 | 5 SEAL AS | 2 | |
| 7G1952 | 6 BEARING | 2 | |
| 4T2069 | 7 PLUG-DRAIN | 6 | |
| 2H3932 | 8 SEAL-O-RING | 6 | |
| 9G7516 | 9 PLUG | 32 | |
| 9W5575 | 10 COVER AS | 2 | |
| 5P7179 | 11 PLATE-WARNING (RECOIL SPRING OIL) | 2 | |
| 9N1995 | RIVET-POP | 6 | |
| 3H9675 | PIN-SPRING | 1 | |
| 5H6734 | 12 SEAL-O-RING | 2 | |
| 8T8917 | 13 BOLT (1/2-13X1.25-IN) | 8 | |
| 8T4223 | 14 WASHER-HARD (13.5X25.5X3-MM THK) | 24 | |
| 7T4129 | 15 GUIDE AS | 4 | |
| 6V9481 | 16 FILM-WARNING (RECOIL SPRING) | 1 | |
| 6V8849 | 17 BOLT-12 POINT HEAD (3/4-10X3-IN) | 24 | |
| 7T4132 | 18 RING-THRUST | 2 | |
| 8T9389 | 19 BOLT (1/2-13X2.75-IN) | 16 | |
| 7T4133 | 20 PLATE-THRUST | 2 | |
| 8T0208 | 21 SEAL-PIVOT SHAFT | 2 | |
| 4D4508 | 22 SEAL-O-RING | 2 | |
| 9W2380 | 23 RETAINER | 2 | |
| 7T4134 | 24 BUSHING | 2 | |
| 7G9709 | 25 BUSHING | 2 | |
| 8E2901 | 26 PLATE-THRUST | 2 | |
| 9M5894 | 27 SEAL-O-RING | 2 | |
| 1P9254 | 28 RING-RETAINING | 2 | |
| 9S4185 | 29 PLUG (3/4-16-THD) | 2 | |
| 3K0360 | 30 SEAL-O-RING | 2 | |
| 8E2902 | 31 PLATE-THRUST | 2 | |
| 7X0345 | 32 BOLT (5/8-11X1.75-IN) | 40 | |
| 8T4122 | WASHER-HARD (17X32X3.5-MM THK) | 40 | |
| 5P3092 | 33 SEAL-O-RING | 4 | |
| 7T4131 | 34 COVER | 4 | |
| 7T4145 | 35 SLEEVE | 2 | |
| 8E2900 | 36 SHAFT-PIVOT | 1 | |
| 8E2827 | 37 RING-RETAINING | 2 |
