System And Components

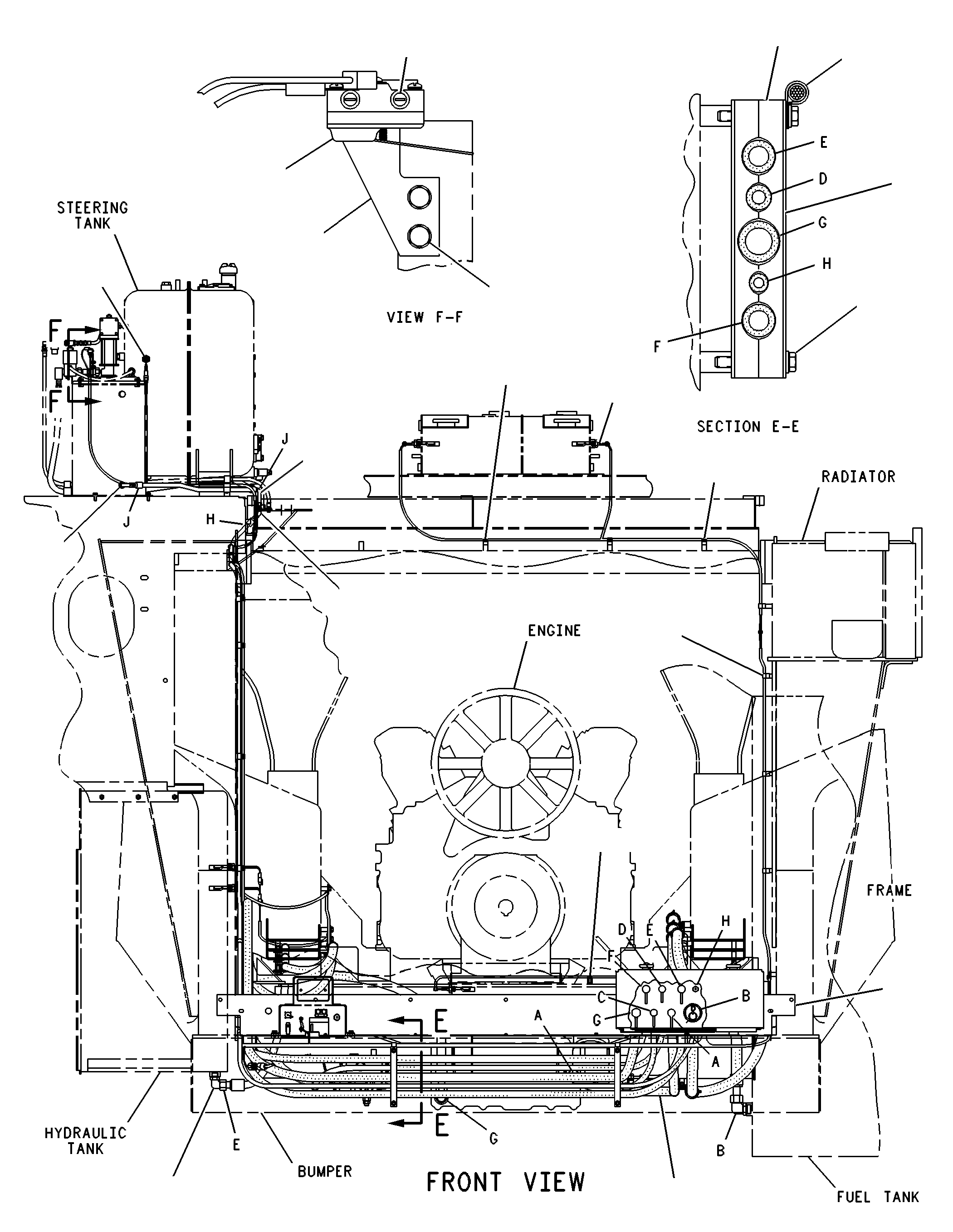

130-7957 SERVICE CENTER GPS/N 4AR1-102
Group No: 130-7957
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1108827 | 1 FITTING (QUICK DISCONNECT, MALE) | 1 | |
| 1108826 | CAP-DUST | 1 | |
| 2V2043 | 2 NUT-BULKHEAD (1-5/8-12-THD) | 1 | |
| 6V8635 | 3 CONNECTOR | 1 | |
| 1307845 | 4 ADAPTER | 1 | |
| 7M8485 | 5 SEAL-O-RING | 3 | |
| 1307844 | 6 HOSE AS | 1 | |
| 6V9008 | 7 ELBOW (90-DEG) | 2 | |
| 5K9090 | 8 SEAL-O-RING | 4 | |
| 7D7233 | 9 CLIP (LOOP) | 4 | |
| 8T4136 | 10 BOLT (M10X1.5X25-MM) | 27 | |
| 8T4121 | 11 WASHER-HARD (11X21X2.5-MM THK) | 35 | |
| 2G9000 | 12 VALVE AS-TANK (FAST FILL FUEL) | 1 | |
| 9D0630 | 13 CAP-DUST | 1 | |
| 8T3611 | 14 CONNECTOR | 1 | |
| 2S4078 | 15 SEAL-O-RING | 3 | |
| 1307846 | 16 HOSE AS | 1 | |
| 6V9009 | 17 ELBOW | 1 | |
| 6V8400 | 18 SEAL-O-RING | 2 | |
| 5P7468 | 19 CLIP (SLOT) | 7 | |
| 5P7469 | 20 CLIP (TAB) | 7 | |
| 6V0545 | 21 GROMMET | 7 | |
| 1180164 | 22 FITTING AS (QUICK DISCONNECT) | 2 | |
| 1180163 | CAP | 1 | |
| 2P1293 | 23 LOCKNUT (1-3/16-12-THD) | 2 | |
| 6V8638 | 24 CONNECTOR | 2 | |
| 2M9780 | 25 SEAL-O-RING | 2 | |
| 1307847 | 26 HOSE AS | 1 | |
| 1307848 | 27 HOSE AS | 1 | |
| 6V9837 | 28 TEE-SWIVEL | 2 | |
| 6V8398 | 29 SEAL-O-RING | 8 | |
| 4S1962 | 30 CLIP (LOOP) | 2 | |
| 1108319 | 31 FITTING AS (QUICK DISCONNECT, FEMALE) | 2 | |
| 1108318 | CAP-DUST | 1 | |
| 2L8257 | 32 NUT-HUB | 2 | |
| 6V8637 | 33 CONNECTOR | 2 | |
| 3D2824 | 34 SEAL-O-RING | 3 | |
| 1307849 | 35 HOSE AS | 1 | |
| 6V9007 | 36 ELBOW | 1 | |
| 6V9746 | 37 SEAL-O-RING | 5 | |
| 1307850 | 38 HOSE AS | 1 | |
| 6V9853 | 39 ELBOW | 1 | |
| 5P7854 | 40 CLIP (LOOP) | 2 | |
| 1180166 | 41 FITTING (QUICK DISCONNECT, MALE) | 1 | |
| 1180165 | CAP-DUST | 1 | |
| 1178568 | 42 NUT-BULKHEAD (1-7/8-12-THD) | 1 | |
| 6V9875 | 43 CONNECTOR | 1 | |
| 1307851 | 44 HOSE AS | 1 | |
| 9D1829 | 45 CLIP | 2 | |
| 1406353 | 46 PLATE | 4 | |
| 4W4076 | 47 ELBOW | 1 | |
| 1307852 | 48 HOSE AS | 1 | |
| 2P7212 | 49 ELBOW-UNION | 1 | |
| 2P1279 | 50 LOCKNUT (9/16-18-THD) | 1 | |
| 1344628 | 51 HOSE AS | 1 | |
| 1S6420 | 52 CLIP | 1 | |
| 7D8793 | 53 ELBOW-FLARED | 1 | |
| 3S8664 | 54 CLIP | 8 | |
| 1307853 | 55 HARNESS AS | 1 | |
| 1307854 | 56 HARNESS AS-PLATFORM (RH) | 1 | |
| 1307855 | 57 HARNESS AS | 1 | |
| 1232993 | 58 SWITCH GP-LIQUID LEVEL | 8 | |
| 3E3365 | WEDGE-RECEPTACLE LOCK (2-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 0338248 | 59 CLIP (LOOP) | 17 | |
| 4D7794 | 60 CLIP | 2 | |
| 5K3294 | 61 CLIP | 4 | |
| 4K8864 | 62 CLIP (LOOP) | 2 | |
| 4S1936 | 63 CLIP | 2 | |
| 1307858 | 64 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 19 | |
| 1307856 | 65 PLATE | 2 | |
| 1307857 | 66 GROMMET | 2 | |
| 1307860 | 67 BOX AS | 1 | |
| 2G9524 | LATCH | 2 | |
| 4E9919 | HINGE | 2 | |
| 1307868 | COVER | 1 | |
| 8T4195 | 68 BOLT (M10X1.5X30-MM) | 4 | |
| 4B2041 | 69 NUT (6-32-THD) | 2 | |
| 4B4158 | 70 SCREW-DRIVE (NO 4X0.25-IN) | 8 | |
| 9D3127 | 71 BASE AS-INDICATOR LIGHT | 9 | |
| 6V8367 | LOCKWASHER | 1 | |
| 6V8382 | NUT-HEX (11/16-27-THD) | 1 | |
| 9D2867 | 72 LENS-AMBER | 9 | |
| 7N5876 | 73 LAMP (24-VOLT, 0.2-AMPERE) | 9 | |
| 8C9812 | 74 SWITCH AS-TOGGLE (FLUID LEVEL TEST) | 1 | |
| 3L8187 | LOCKWASHER | 3 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 3 | |
| 6T6969 | 75 GUARD-SWITCH | 1 | |
| 1338716 | 76 BLOCK | 4 | |
| 9B1117 | 77 LOCKWASHER | 2 | |
| 8T5005 | 78 BOLT (M10X1.5X70-MM) | 4 | |
| 4D1432 | 79 SPACER (12.52X17.14X45.72-MM THK) | 4 | |
| 8M2773 | 80 CLIP (LOOP) | 2 | |
| 7D4092 | 81 CLIP | 1 | |
| 8D9947 | 82 CLIP | 3 | |
| 8T4139 | 83 BOLT (M12X1.75X30-MM) | 4 | |
| 8T4223 | 84 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 1068800 | 85 PLATE | 1 | |
| 5C9553 | 86 BOLT (M6X1X16-MM) | 2 | |
| 9X8256 | 87 WASHER (6.6X12X2-MM THK) | 4 | |
| 5C2890 | 88 NUT (M6X1-THD) | 2 | |
| 6G4195 | 89 SWITCH AS-LIMIT (AUTOLUBE FLUID) | 1 | |
| 3L8187 | LOCKWASHER | 3 | |
| 6V8373 | SCREW-MACHINE (6-32X0.187-IN) | 3 | |
| 0100742 | 90 SCREW-MACHINE (6-32X1-IN) | 2 | |
| 4B5324 | 91 WASHER (3.9X9.6X1.2-MM THK) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) |
