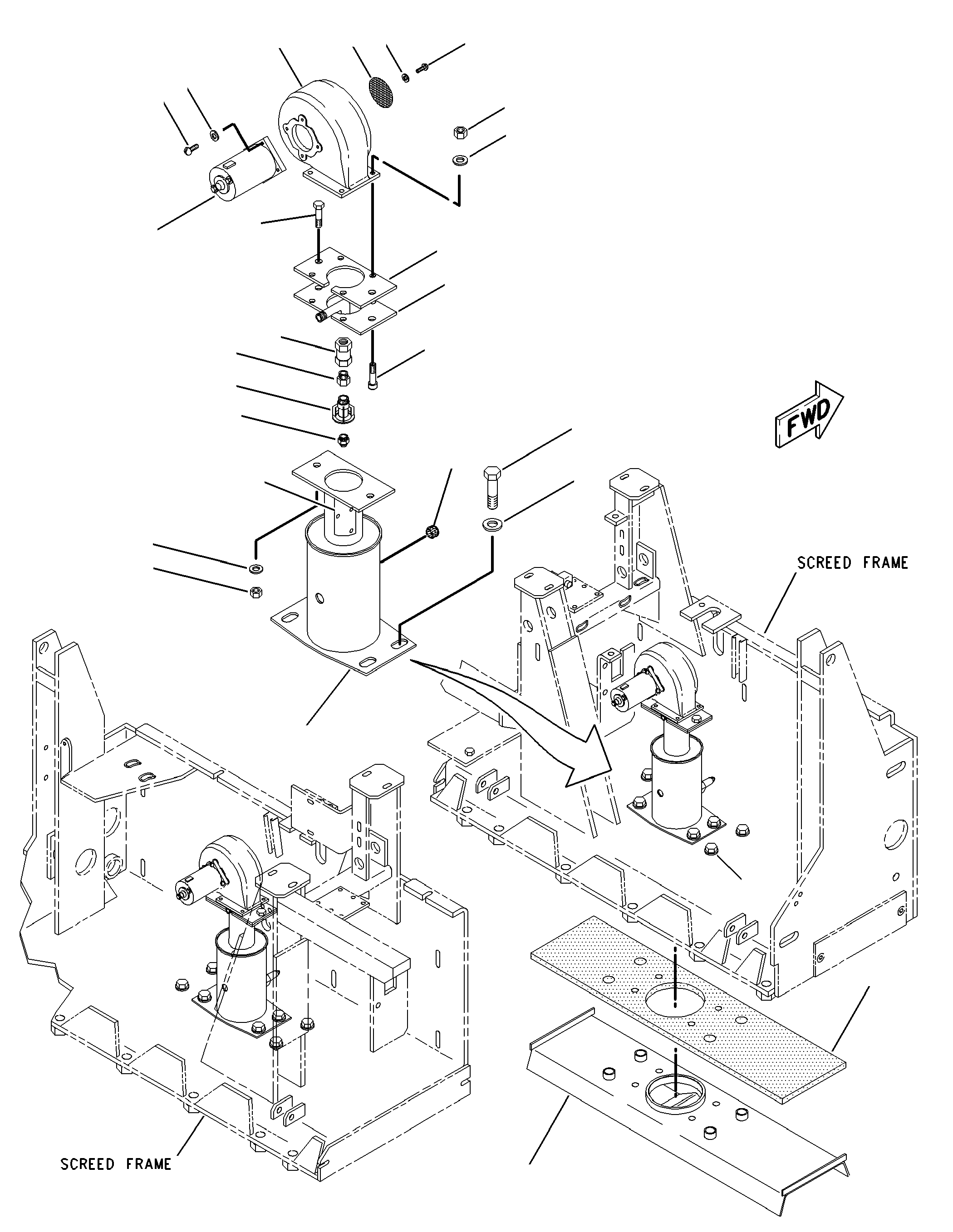

117-5240 BURNER GPS/N BKB1-136

Group No: 117-5240
Part NumberPart NameQty
8I01561 CHAMBER AS-LOWER BURNER2
8T48352 BOLT (1/2-13X2-IN)8
8T42233 WASHER-HARD (13.5X25.5X3-MM THK)12
14589854 CHAMBER AS2
14192725 PLATE-COVER2
8T89176 BOLT (1/2-13X1.25-IN)8
5P10767 WASHER-HARD (13.5X30X4-MM THK)8
8I09978 CONNECTOR AS2
8I09989 BRACKET-MOUNTING2
5P256610 BOLT (1/2-13X1.5-IN)4
6V818811 NUT (1/2-13-THD)4
8M680212 SCREW-HEX SOCKET (1/4-20X1-IN)8
8T420513 WASHER-HARD (7.2X14.5X2-MM THK)8
6V818514 NUT (1/4-20-THD)8
109033415 MOTOR GP-BURNER BLOWER (24-VOLT)2
9W0852PIN-CONNECTOR (14-GA TO 16-GA)2
9X1813SLEEVE
1028802KIT-RECEPTACLE (2-PIN)1
102269716 WHEEL-BLOWER2
102269817 HOUSING-BLOWER2
045406518 SCREW-MACHINE (10-32X0.75-IN)8
9F812519 LOCKWASHER12
187976020 PLATE2
030961221 SCREW-FORMING (10-24X0.5-IN)8
4B427422 WASHER (5.5X13X1.2-MM THK)4
191598323 CONE AS2
9X6259SCREW-MACHINE (6-32X0.375-IN)1
2159198LOCKNUT1
187960824 NOZZLE2
102272525 ADAPTER2
111814026 VALVE-CHECK2
8I016327 INSULATION2
191103628 PLUG2
