System And Components

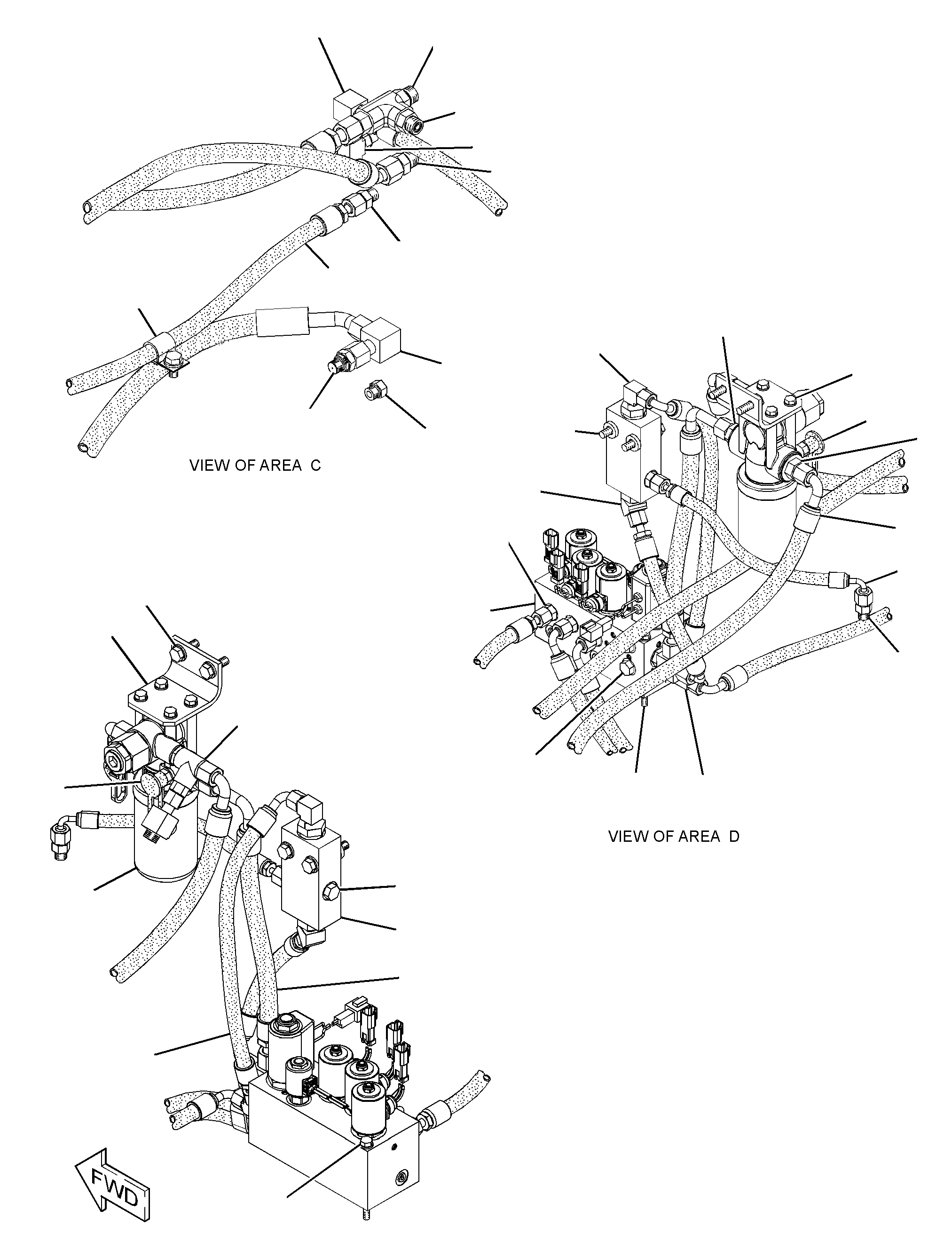

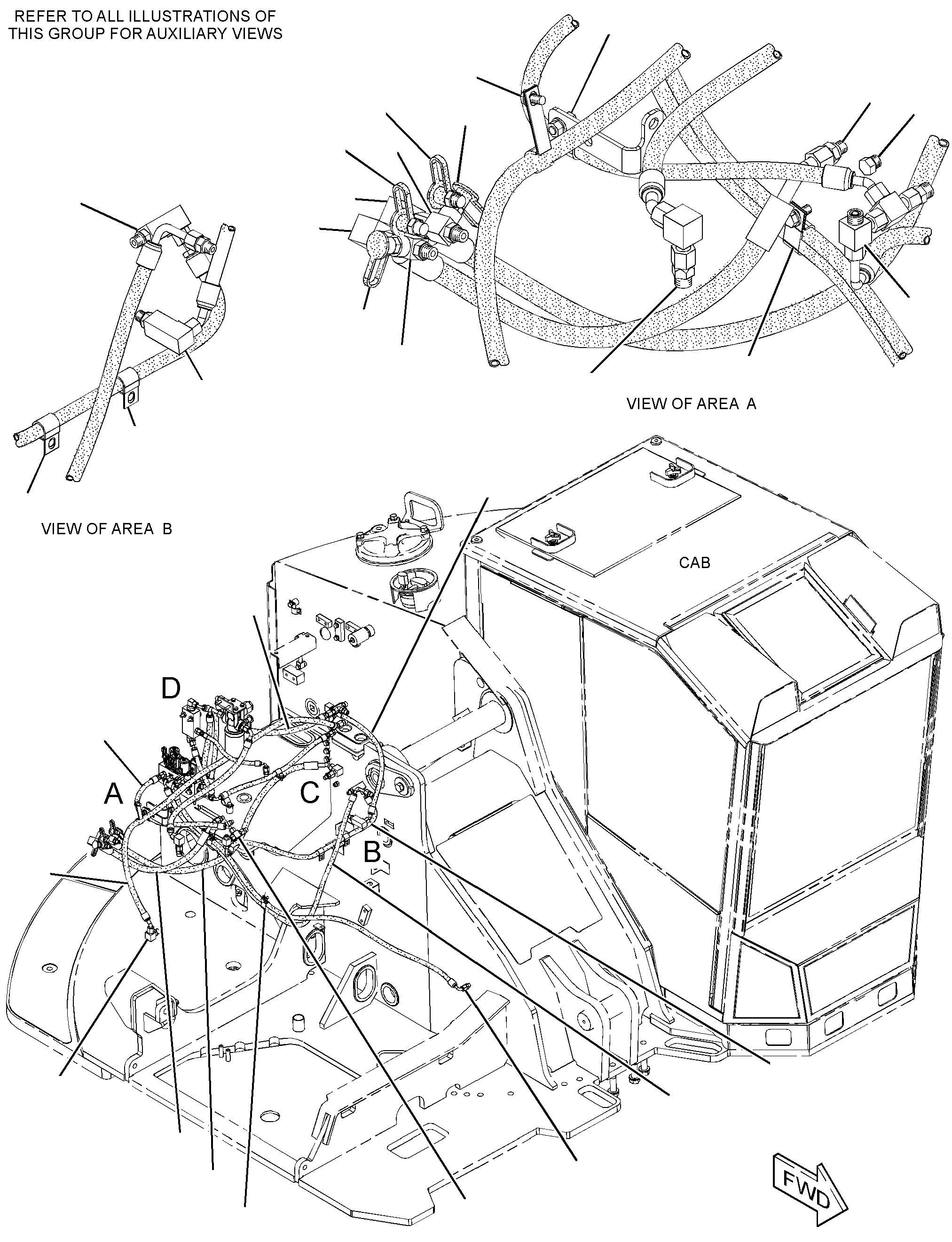

272-0058 LINES GP-PILOTS/N 5111-283
Group No: 272-0058
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2A7129 | 1 HOSE AS | 1 | |
| 4E3449 | 2 HOSE AS | 1 | |
| 1120065 | 3 BRACKET | 1 | |
| 1234750 | 4 VALVE AS-CHECK (PILOT OIL) | 2 | |
| 1244144 | 5 HOSE AS | 1 | |
| 1369354 | 6 HOSE AS | 1 | |
| 1383798 | 7 HOSE AS | 1 | |
| 1488420 | 8 TEE AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8T6338 | TEE-O-RING PORT | 1 | |
| 1504036 | 9 TEE AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 1180911 | TEE-O-RING PORT | 1 | |
| 1593301 | 10 HOSE AS | 1 | |
| 1608705 | 11 HOSE AS | 1 | |
| 1671555 | 12 VALVE GP-PRESSURE CONTROL (BOOM) | 1 | |
| 1853035 | 13 HOSE AS | 1 | |
| 1882084 | 14 FILTER & VALVE GP-PILOT (HYDRAULIC OIL) | 1 | |
| 1922684 | 15 VALVE AS-CHECK (PILOT OIL) | 1 | |
| 2218211 | 16 HOSE AS | 1 | |
| 2218215 | 17 HOSE AS | 1 | |
| 2218217 | 18 HOSE AS | 1 | |
| 2218218 | 19 HOSE AS | 1 | |
| 2232459 | 20 VALVE GP-CHECK (PILOT OIL) | 1 | |
| 2838243 | 21 BRACKET | 1 | |
| 2303095 | 22 HOSE AS | 1 | |
| 2681509 | 23 CONNECTOR AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 2681508 | CONNECTOR | 1 | |
| 2712386 | 24 HOSE AS | 1 | |
| 2722955 | 25 HOSE AS | 1 | |
| 2748742 | 26 VALVE GP-SOLENOID & MANIFOLD (PILOT OIL) | 1 | |
| 1488318 | 27 CONNECTOR AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8634 | CONNECTOR | 1 | |
| 1488336 | 28 CONNECTOR AS | 8 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488340 | 29 CONNECTOR AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 1488345 | 30 CONNECTOR AS | 2 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8638 | CONNECTOR | 1 | |
| 1488353 | 31 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488364 | 32 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8625 | ELBOW | 1 | |
| 1488367 | 33 ELBOW AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9850 | ELBOW | 1 | |
| 1488370 | 34 ELBOW AS | 2 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9851 | ELBOW | 1 | |
| 1488378 | 35 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488407 | 36 PLUG AS | 5 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1488428 | 37 TEE AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V8782 | TEE | 1 | |
| 1488433 | 38 TEE AS | 2 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 1488434 | 39 TEE AS | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9843 | TEE | 1 | |
| 1488435 | 40 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8781 | TEE | 1 | |
| 1488439 | 41 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8774 | TEE | 1 | |
| 1503036 | 42 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T1905 | ELBOW | 1 | |
| 1504027 | 43 TEE AS | 2 | |
| 3E2310 | TEE | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1645544 | 44 ELBOW AS | 2 | |
| 3E2333 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1645567 | 45 COUPLER AS-QUICK DISCONNECT (MALE) | 5 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 1645590 | 46 VALVE AS-FLUID SAMPLING | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 8C3446 | VALVE-SAMPLING | 1 | |
| 3S8664 | 47 CLIP | 3 | |
| 4D7735 | 48 CLIP | 1 | |
| 5K5338 | 49 CLIP (LOOP) | 2 | |
| 6V0852 | 50 CAP-DUST | 5 | |
| 7X0507 | 51 WASHER-HARD (12X22.5X5-MM THK) | 2 | |
| 7X2539 | 52 BOLT (M8X1.25X110-MM) | 2 | |
| 8C3451 | 53 CAP-DUST (HYDRAULIC OIL) | 1 | |
| 8D9671 | 54 CLIP | 1 | |
| 8T4121 | 55 WASHER-HARD (11X21X2.5-MM THK) | 10 | |
| 8T4133 | 56 NUT (M10X1.5-THD) | 1 | |
| 8T4136 | 57 BOLT (M10X1.5X25-MM) | 3 | |
| 8T4137 | 58 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4189 | 59 BOLT (M8X1.25X20-MM) | 4 | |
| 8T4195 | 60 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4224 | 61 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 8T6466 | 62 BOLT (M10X1.5X60-MM) | 2 |
