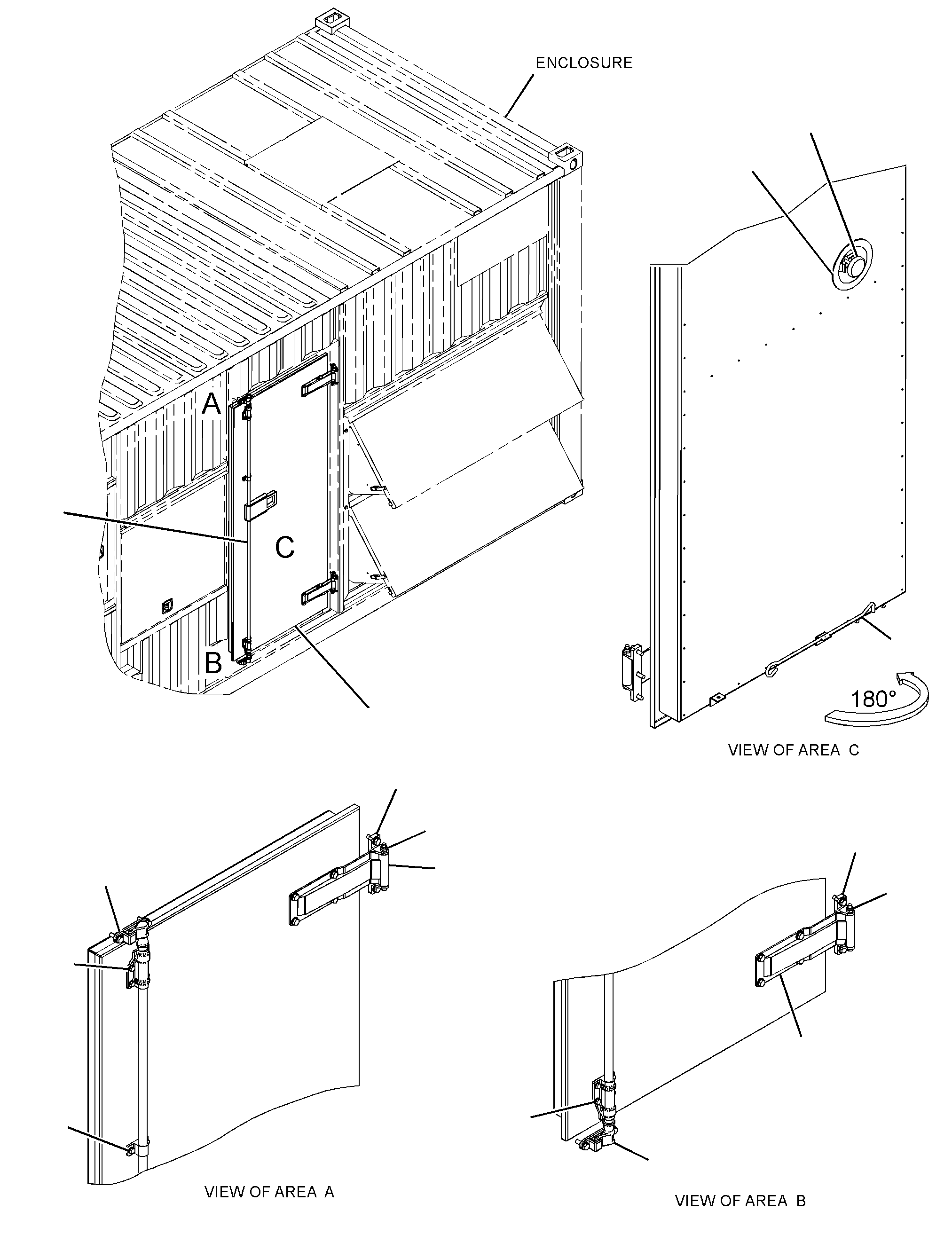

Assembly
100%

452-9059 DOOR GP-ACCESS -ENCLOSURES/N ME21-UP

Group No: 452-9059
Part NumberPart NameQty
44373391 HOLDER2
44373452 BRACKET2
44373463 HINGE2
45293394 DOOR AS-ACCESS1
45392385 LOCK AS1
8T03896 LOCKNUT (M10X1.5-THD)2
8T41217 WASHER-HARD (11X21X2.5-MM THK)22
8T41368 BOLT (M10X1.5X25-MM)12
8T41959 BOLT (M10X1.5X30-MM)10
8T422410 WASHER-HARD (8.8X16X2-MM THK)10
8T490811 BOLT (M8X1.25X25-MM)10
8T543612 BOLT (M10X1.5X130-MM)2
459106313 LATCH-DOOR1
459106214 PAN1
459018215 STAY1
