System And Components

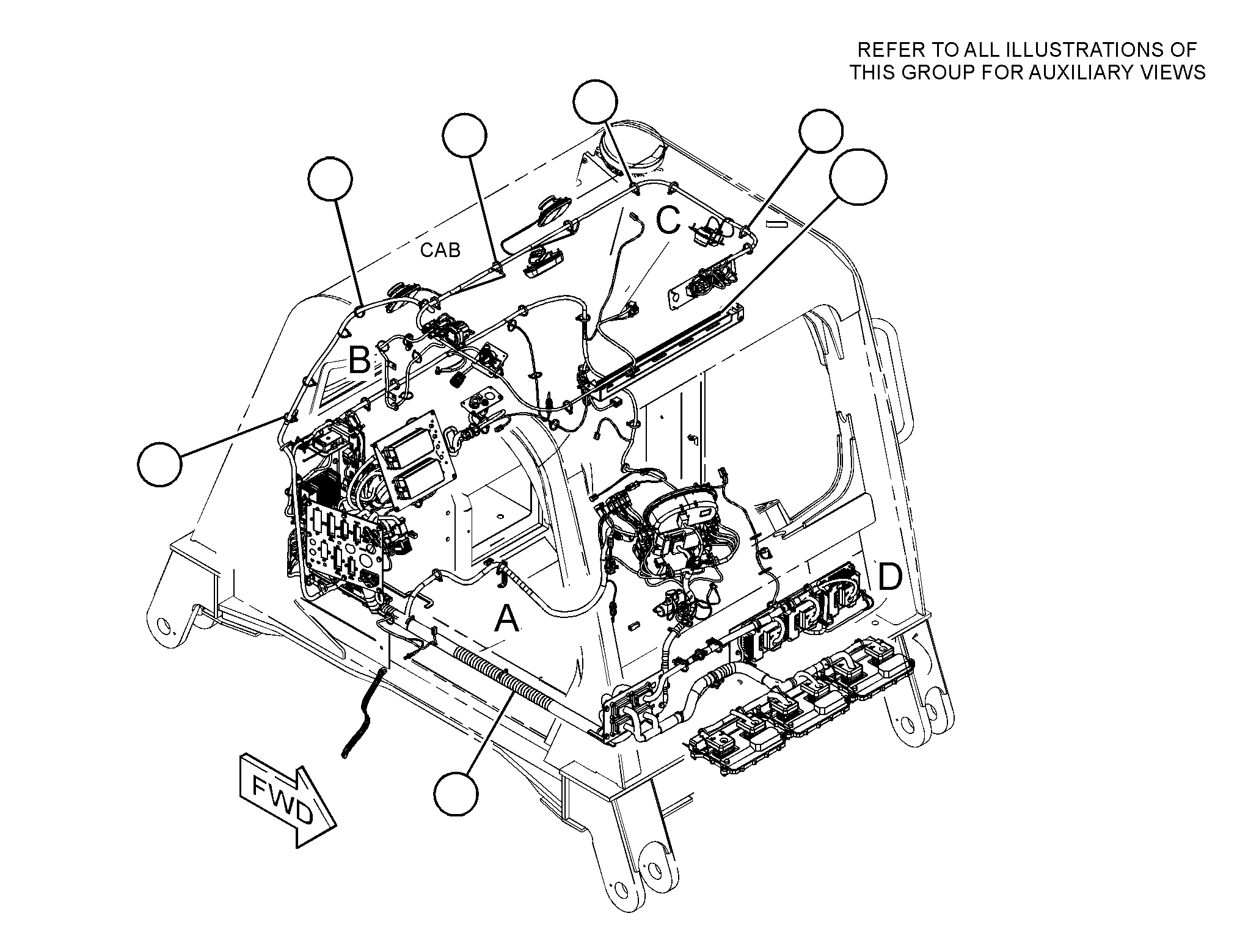

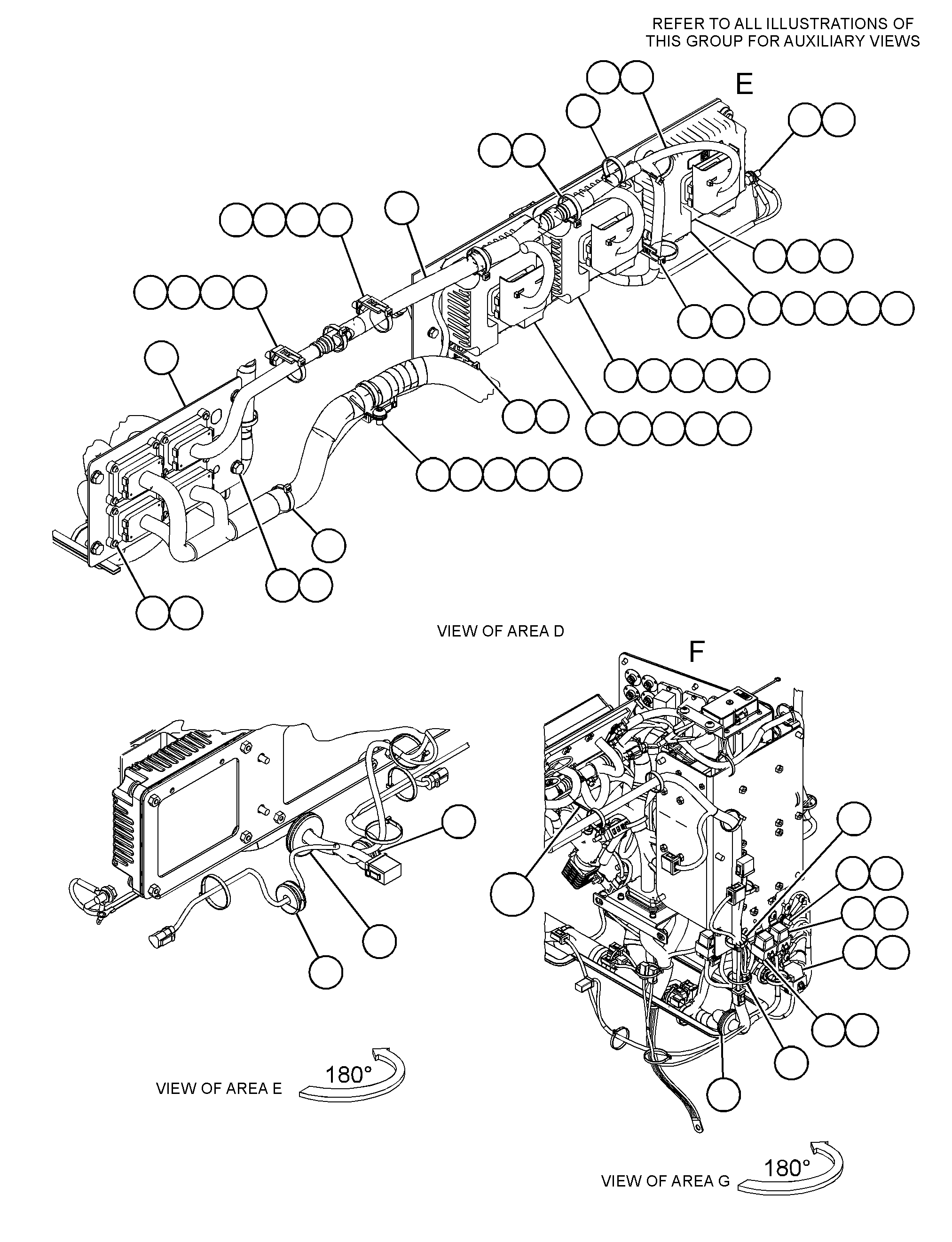

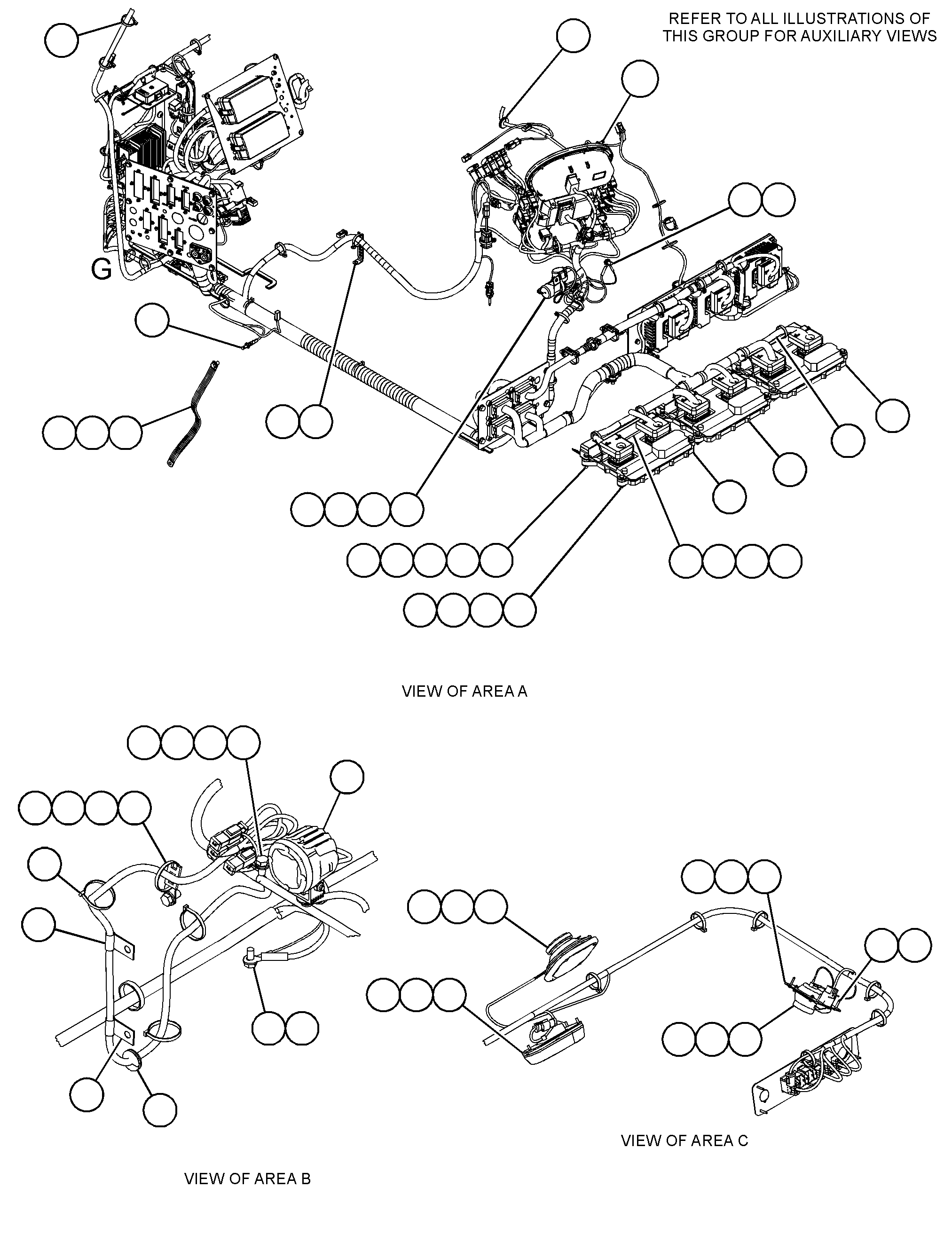

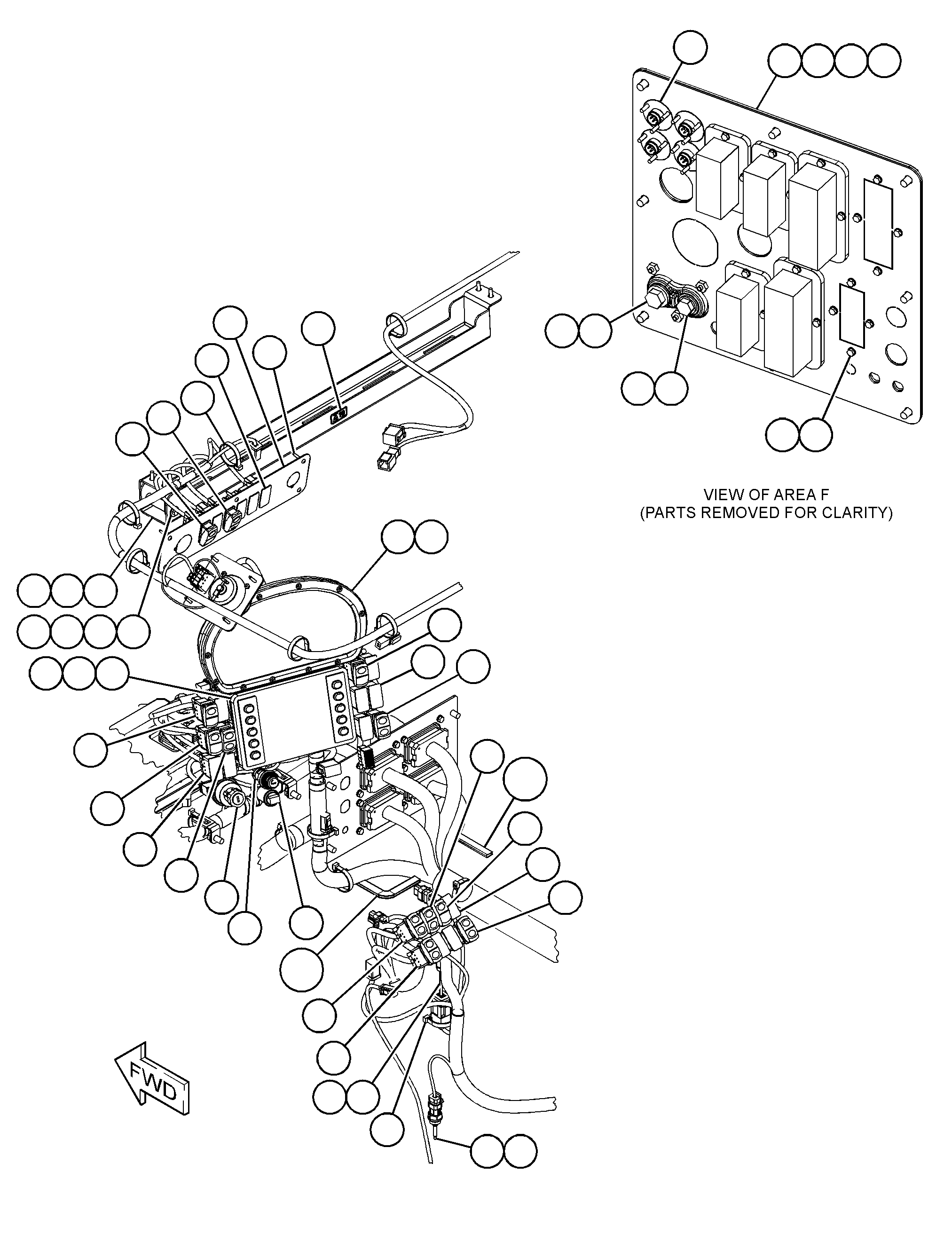

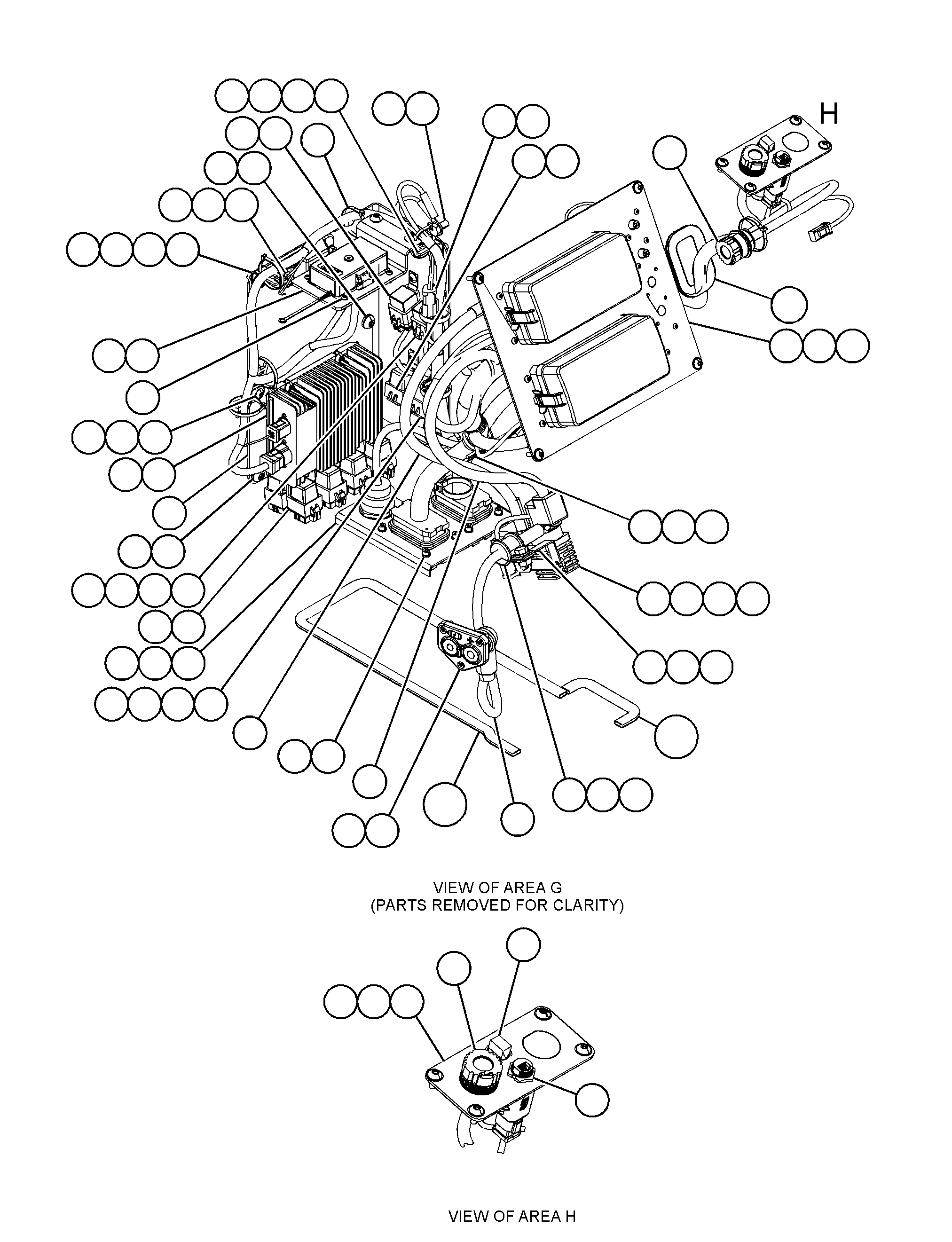

499-4664 WIRING GP-CABS/N LTZ1-154
Group No: 499-4664
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2313930 | 1 RELAY AS (24-VOLT)(POWER WINDOW) | 4 | |
| 2313930 | 1A RELAY AS (24-VOLT)(CLEAN FUEL MODULE) | 1 | |
| 2313930 | 1B RELAY AS (24-VOLT)(BLOWER FAN SPEED) | 1 | |
| 3E5239 | 2 RELAY AS (24-VOLT)(HIGH SPEED) | 1 | |
| 3E5239 | 2A RELAY AS (24-VOLT)(MEDIUM SPEED) | 1 | |
| 3E5239 | 2B RELAY AS (24-VOLT)(AIR HORN) | 1 | |
| 3E6328 | 3 ALARM GP (24-VOLT)(ACTION) | 1 | |
| 3S2093 | 4 STRAP-CABLE | 25 | |
| 6I1418 | 5 SPACER (8.2X12.7X28.7-MM THK) | 12 | |
| 6T7695 | 6 SPEAKER AS-RADIO | 2 | |
| 7K1181 | 7 STRAP-CABLE | 77 | |
| 8C5607 | 8 MOUNT-ISOLATION | 24 | |
| 8C6354 | 9 CAP-RECEPTACLE (ET CONNECTOR) | 2 | |
| 8T9655 | 10 MOUNT-ISOLATION | 24 | |
| 8Y6335 | 11 LAMP-INTERIOR (24-VOLT)(MAP LIGHT) | 2 | |
| 1013055 | 12 COVER-SPEAKER | 2 | |
| 1058034 | 13 SWITCH AS-LIMIT (POWERED WINDOW, RH) | 1 | |
| 1058034 | 13A SWITCH AS-LIMIT (POWERED WINDOW, LH) | 1 | |
| 1080358 | 14 FLASHER AS (24-VOLT) | 1 | |
| 4678535 | 15 SWITCH AS-START (KEY)(IGNITION) | 1 | |
| 7T6799 | NUT-MOUNTING (1-32-THD) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 4 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 1172311 | 16 SOCKET-AUXILIARY POWER (12-VOLT) | 2 | |
| 1321829 | 17 ALARM GP (24-VOLT) | 1 | |
| 1494993 | 18 STRAP AS-GROUND | 1 | |
| 1724863 | 19 JUNCTION BLOCK | 1 | |
| 1986570 | 20 LIGHTER GP (12-VOLT) | 1 | |
| 1986571 | ELEMENT AS-HEATER (12-VOLT)(CIGAR LIGHTER) | 1 | |
| 2418368 | 21 SWITCH GP-MAGNETIC (24-VOLT)(MAIN POWER RELAY) | 1 | |
| 2469371 | 22 COVER-RELAY | 2 | |
| 2566454 | 23 SENSOR-TEMPERATURE (2-PIN)(AIR CONDITIONER) | 2 | |
| 2566467 | 24 PLATE | 2 | |
| 2881401 | 25 BRACKET | 3 | |
| 3055629 | 26 LAMP (24-VOLT) | 2 | |
| 3082844 | 27 CABLE AS | 1 | |
| 1M4986 | TERMINAL-RING (0-GA, 1/2-IN SCREW) | 1 | |
| 5P0760 | CABLE (0-GA, RED)(50-CM) | ||
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 0301708 | TERMINAL-RING (0-GA) | 1 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(4-CM) | ||
| 3240827 | 28 PLATE AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 12 | |
| 3240828 | 29 PLATE AS | 1 | |
| 5D9629 | ROD | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 17 | |
| 8T4130 | STUD (M6X1X18-MM) | 2 | |
| 9X2032 | NUT-WELD (M4X0.7-THD) | 2 | |
| 3338153 | 30 CONNECTION AS | 4 | |
| 3398899 | 31 APPLICATION GP-MONITOR (VIMS ADVISOR) | 1 | |
| 3586266 | 32 HARNESS AS-WIRING (VIMS) | 1 | |
| 3604092 | 33 BRACKET AS | 1 | |
| 3620169 | 34 CONTROL GP-UNPROGRAMMED (ETHERNET SWITCH) | 1 | |
| 3E6389 | 35 LAMP GP-DOME (24-VOLT) | 1 | |
| 5267778 | 36 PLATE | 1 | |
| 3808061 | 37 CABLE AS | 1 | |
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 9X0195 | TERMINAL-RING (0-GA, 3/8-IN SCREW) | 1 | |
| 0301708 | TERMINAL-RING (0-GA) | 1 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(8-CM) | ||
| 1598047 | CABLE-ELECTRICAL (0-GA, RED)(58-CM) | ||
| 2761786 | COVER-TERMINAL (RED) | 1 | |
| 3808062 | 38 CABLE AS | 1 | |
| 9X0195 | TERMINAL-RING (0-GA, 3/8-IN SCREW) | 1 | |
| 0301708 | TERMINAL-RING (0-GA) | 1 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(8-CM) | ||
| 3834147 | 39 PLATE | 1 | |
| 3836904 | 40 CONTROL GP-ELECTRONIC | 1 | |
| 4214066 | 41 PLATE AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 2 | |
| 4265380 | 42 LAMP GP-FLOOD (9/32-VOLT) | 1 | |
| 4436362 | 43 CONVERTER-POWER (24-VOLT TO 12-VOLT) | 1 | |
| 4490071 | 44 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 4817418 | 45 BRACKET AS | 1 | |
| 4817419 | 46 BRACKET AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 1 | |
| 4849906 | 47 FILM-INFORMATION (LOAD CAPACITY) | 1 | |
| 4991768 | 48 HARNESS AS-CAB (A/C MAIN) | 1 | |
| 4991769 | 49 HARNESS AS-CONTROL | 1 | |
| 4994665 | 50 PLATE AS | 1 | |
| 4994666 | 51 HARNESS AS-MONITOR (ECM) | 1 | |
| 4994667 | 52 GASKET | 1 | |
| 4994668 | 53 PLATE AS | 1 | |
| 4995498 | 54 PANEL GP-CIRCUIT BREAKER | 1 | |
| 0966166 | 55 WASHER-HARD (4.5X9X1-MM THK) | 28 | |
| 0993649 | 56 BOLT (M8X1.25X40-MM) | 6 | |
| 1053480 | 57 BOLT-SOCKET HEAD (M5X0.8X16-MM) | 3 | |
| 1146658 | 58 WASHER (6.5X17X1-MM THK) | 8 | |
| 1272170 | 60 SCREW-TRUSS HEAD (M8X1.25X20-MM) | 3 | |
| 1305300 | 61 CLIP | 2 | |
| 1325789 | 62 CLIP (LADDER) | 4 | |
| 1342540 | 63 RECEPTACLE AS-CONNECTOR (3-PIN) | 1 | |
| 1379199 | 64 GROMMET | 1 | |
| 1388454 | 65 SCREW-TRUSS HEAD (M4X0.7X10-MM) | 2 | |
| 1566175 | 66 CLIP (LADDER) | 7 | |
| 1629112 | 67 GROMMET-SPLIT | 1 | |
| 1636088 | 68 MODULE AS (INTERMITTENT WIPER) | 1 | |
| 3E3371 | WEDGE-RECEPTACLE LOCK (3-PIN) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 1705632 | 69 BOLT (M4X0.7X16-MM) | 28 | |
| 1860357 | 70 CLIP | 2 | |
| 1934623 | 71 SCREW-BUTTON HEAD (10-32X0.5-IN) | 4 | |
| 2021129 | 72 SCREW-TRUSS HEAD (M4X0.7X18-MM) | 12 | |
| 2046102 | 73 WASHER-HARD (4.45X9.52X1-MM THK) | 8 | |
| 2227892 | 74 SWITCH AS-ROCKER (24-VOLT)(POWER WINDOW, LH) | 1 | |
| 2286089 | 75 PLUG (ROCKER SWITCH) | 14 | |
| 2292580 | 76 SWITCH AS-ROCKER (24-VOLT)(THROTTLE LOCK) | 1 | |
| 2320314 | 77 SWITCH AS-ROCKER (24-VOLT)(TRACTION CONTROL SYSTEM) | 1 | |
| 2364616 | 78 SWITCH AS-ROCKER (24-VOLT)(HAZARD LIGHT) | 1 | |
| 2430774 | 79 SWITCH AS-ROCKER (24-VOLT)(STAIRWAY ACCESS LIGHTS) | 1 | |
| 2513539 | 80 SWITCH AS-ROCKER (24-VOLT)(RUNNING LIGHTS) | 1 | |
| 2532101 | 81 SWITCH AS-ROCKER (24-VOLT)(MAP LIGHT) | 2 | |
| 2771873 | 82 CLIP (LADDER) | 2 | |
| 2843618 | 83 SWITCH-ROCKER (24-VOLT)(FOG LIGHT) | 1 | |
| 2843620 | 84 SWITCH AS-ROCKER (24-VOLT)(BRAKE RETRACT) | 1 | |
| 2843621 | 85 SWITCH AS-ROCKER (24-VOLT)(BACKLIGHT DIMMER) | 1 | |
| 2843622 | 86 SWITCH AS-ROCKER (24-VOLT)(AUTO RETARDER) | 1 | |
| 2851141 | 87 APPLICATION GP-MONITOR (VIMS) | 1 | |
| 2939128 | 88 SWITCH-ROCKER (24-VOLT)(RETARDER CONTROL) | 1 | |
| 2V8260 | 89 GROMMET | 1 | |
| 2W9499 | 90 BOLT (M6X1X40-MM) | 12 | |
| 3232263 | 91 SPACER (11.1X15.9X54.5-MM THK) | 1 | |
| 3397826 | 92 APPLICATION GP-MACHINE (BRAKE) | 1 | |
| 3397827 | 93 APPLICATION GP-MACHINE (CHASSIS) | 1 | |
| 3397828 | 94 APPLICATION GP-POWER TRAIN | 1 | |
| 3442741 | 95 APPLICATION GP-MONITOR (VIMS 3G) | 1 | |
| 3601755 | 96 SWITCH AS-ROCKER (24-VOLT)(WORK LIGHT) | 1 | |
| 3E8020 | 97 SCREW-TRUSS HEAD (M6X1X25-MM) | 4 | |
| 4B2041 | 98 NUT (6-32-THD) | 8 | |
| 4P7581 | 99 CLIP (LADDER) | 5 | |
| 5L4507 | 100 SCREW-MACHINE (10-32X0.875-IN) | 3 | |
| 5P4116 | 101 WASHER-HARD (8.8X20.5X2-MM THK) | 9 | |
| 6H4005 | 102 GROMMET | 2 | |
| 6V0826 | 103 GROMMET | 1 | |
| 6V7357 | 104 BOLT (M6X1X25-MM) | 2 | |
| 6V8225 | 105 NUT (M6X1-THD) | 2 | |
| 6V8836 | 106 BOLT (M6X1X14-MM) | 4 | |
| 6V8927 | 107 BOLT-SOCKET HEAD (6-32X0.5-IN) | 8 | |
| 7X0818 | 108 BOLT (M8X1.25X45-MM) | 3 | |
| 7X2548 | 109 BOLT (M12X1.75X16-MM) | 1 | |
| 7X2621 | 110 BOLT (M10X1.5X12-MM) | 1 | |
| 7X7729 | 111 WASHER (11X25X3-MM THK) | 2 | |
| 8C5608 | 112 SPACER (6.5X9.5X25.4-MM THK) | 12 | |
| 8T0269 | 113 BOLT-SOCKET HEAD (M6X1X20-MM) | 8 | |
| 8T0328 | 114 WASHER-HARD (5.5X10X1-MM THK) | 3 | |
| 8T1889 | 115 CLIP (SLOT) | 1 | |
| 8T1890 | 116 CLIP (TAB) | 1 | |
| 8T4121 | 117 WASHER-HARD (11X21X2.5-MM THK) | 26 | |
| 8T4133 | 118 NUT (M10X1.5-THD) | 3 | |
| 8T4137 | 119 BOLT (M10X1.5X20-MM) | 18 | |
| 8T4138 | 120 BOLT (M6X1X20-MM) | 20 | |
| 8T4200 | 121 BOLT (M8X1.25X16-MM) | 12 | |
| 8T4223 | 122 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 8T4224 | 123 WASHER-HARD (8.8X16X2-MM THK) | 13 | |
| 8T6912 | 124 BOLT (M8X1.25X50-MM) | 3 | |
| 8T6974 | 125 BOLT (M6X1X80-MM) | 1 | |
| 8T7524 | 126 SEAL-O-RING | 2 | |
| 8Y8606 | 127 GROMMET | 1 | |
| 9K5635 | 128 SCREW-TAPPING (8-18X1-IN) | 22 | |
| 9N0869 | 129 WASHER-HARD (8.8X25.5X2-MM THK) | 12 | |
| 9X2038 | 130 WASHER (7X19X2-MM THK) | 5 | |
| 9X2041 | 131 SCREW-TRUSS HEAD (M10X1.5X20-MM) | 6 | |
| 9X2042 | 132 SCREW-TRUSS HEAD (M6X1X12-MM) | 14 | |
| 9X2043 | 133 SCREW-TRUSS HEAD (M6X1X14-MM) | 1 | |
| 9X2044 | 134 SCREW-TRUSS HEAD (M6X1X16-MM) | 4 | |
| 9X2045 | 135 SCREW-TRUSS HEAD (M6X1X20-MM) | 4 | |
| 9X6165 | 136 WASHER (6.5X22X2.5-MM THK) | 12 | |
| 9X8256 | 137 WASHER (6.6X12X2-MM THK) | 32 | |
| 7X7877 | 138 STRIP-EDGE (20-CM) | ||
| 7X7877 | 138A STRIP-EDGE (13-CM) | ||
| 7X7877 | 138B STRIP-EDGE (16.5-CM) | ||
| 7X7877 | 138C STRIP-EDGE (14-CM) | ||
| 7X7877 | 138D STRIP-EDGE (69.5-CM) | ||
| 7X7877 | 138E STRIP-EDGE (15-CM) | ||
| 7X7877 | 138F STRIP-EDGE (96-CM) | ||
| 4195974 | 139 ADAPTER AS (AT04-6P TO RJ45) | 1 | |
| 4322668 | NUT (13/16-28-THD) | 1 |
