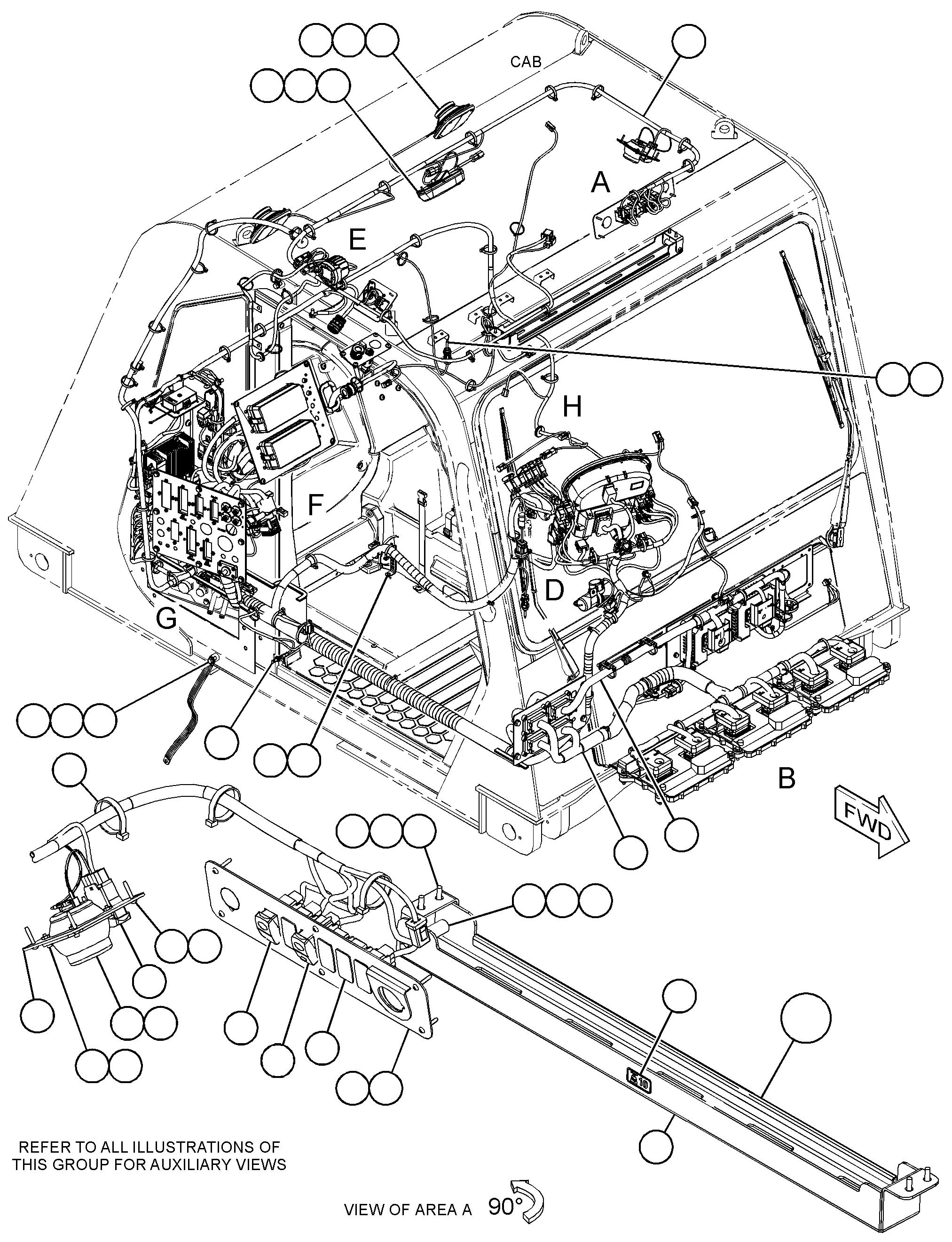

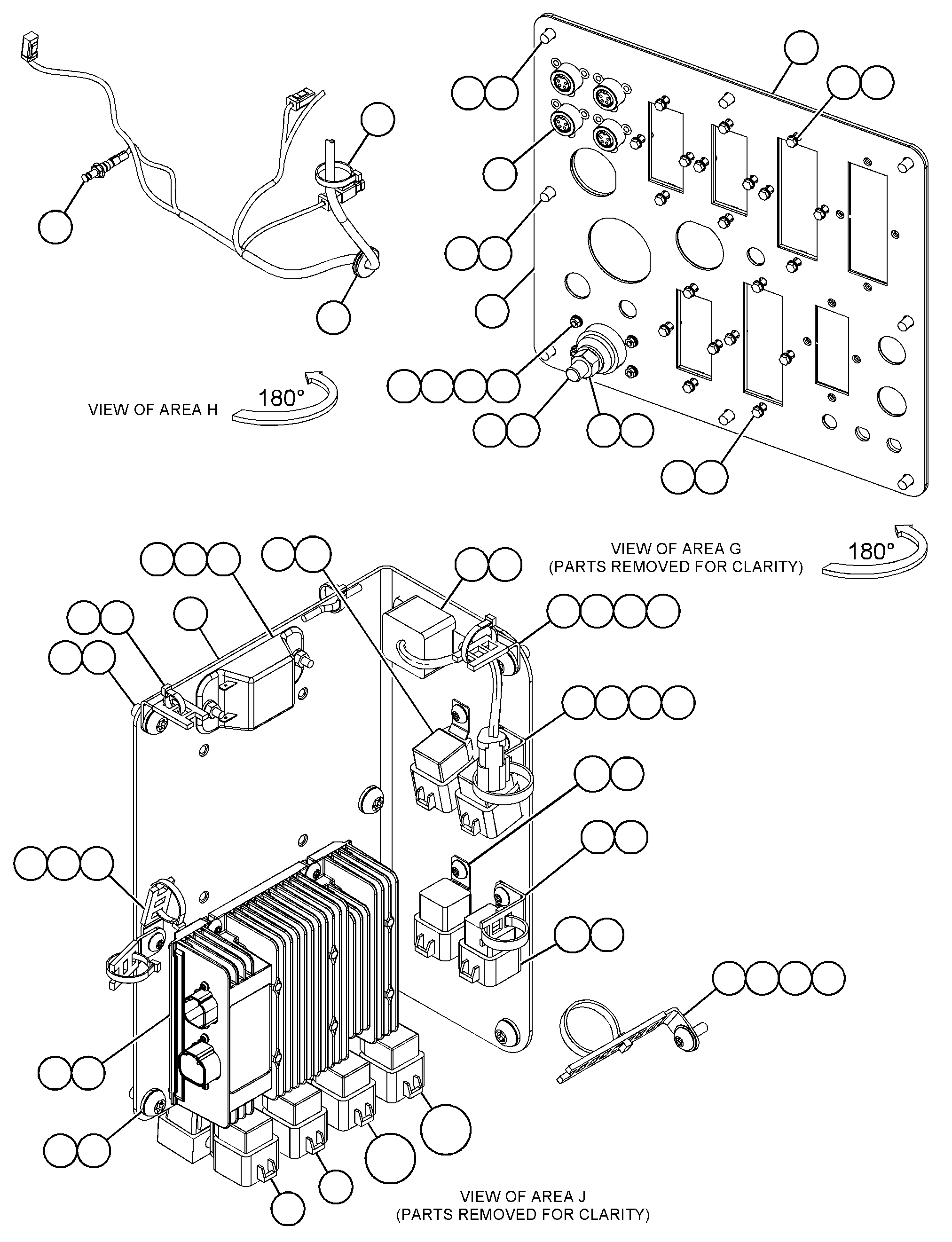

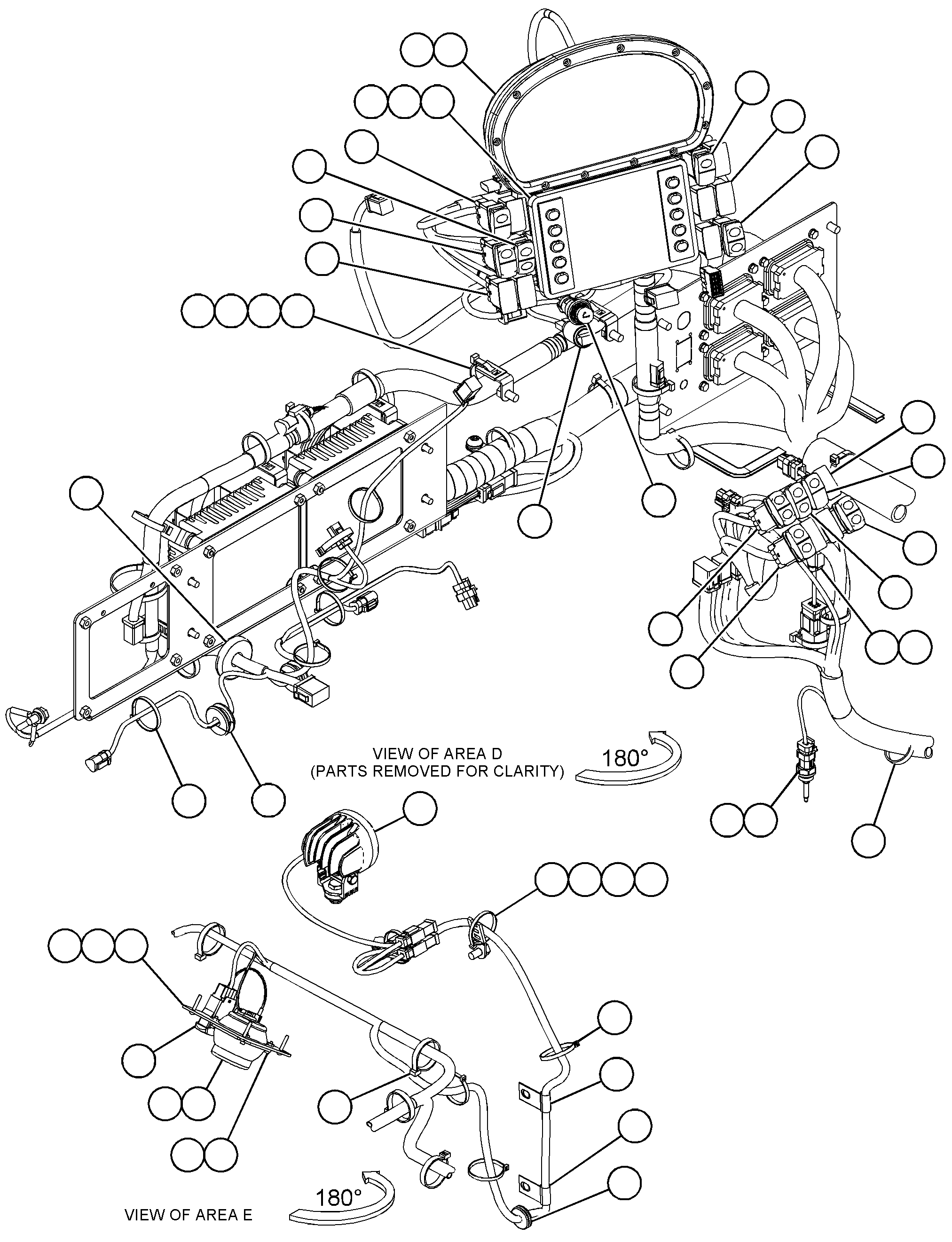

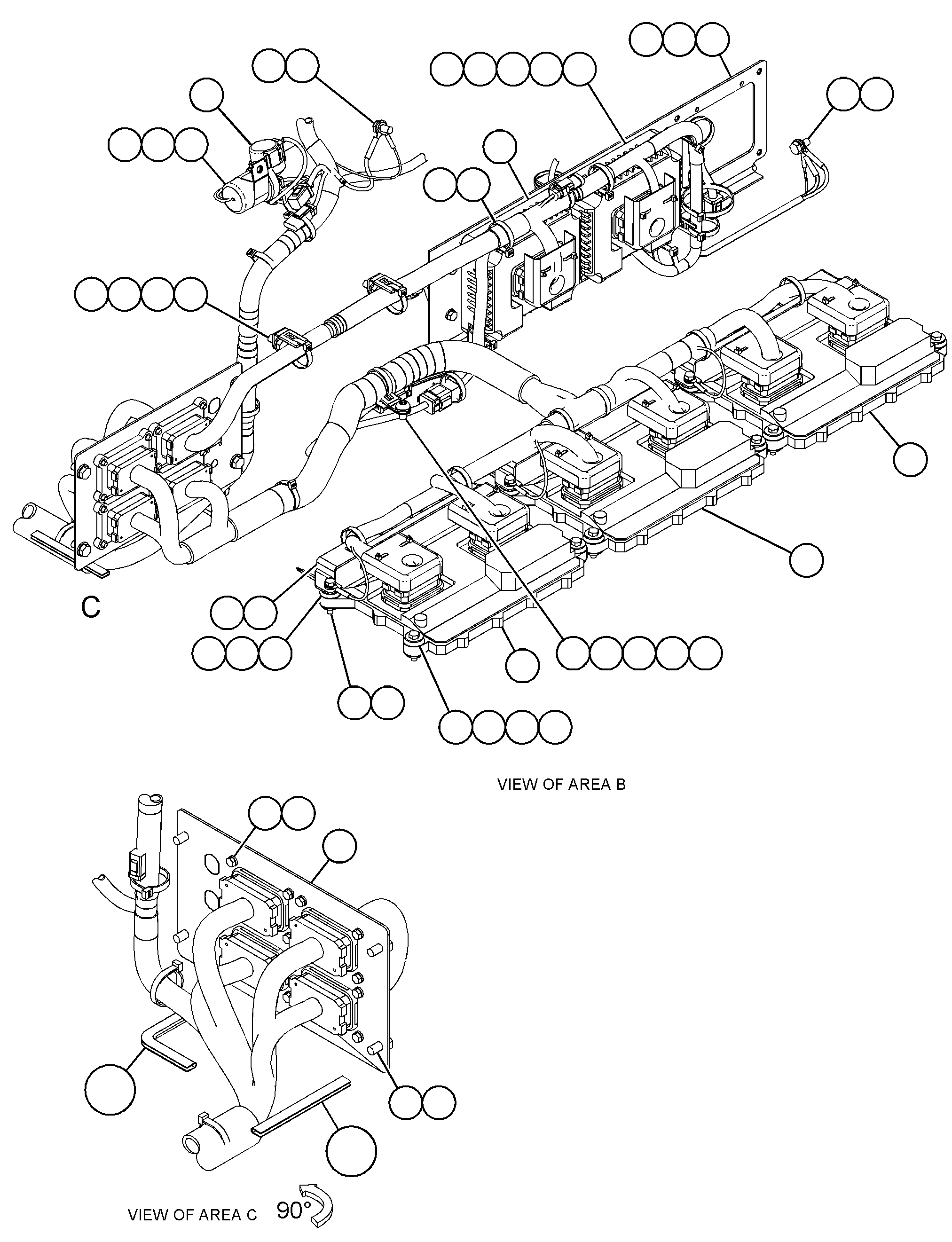

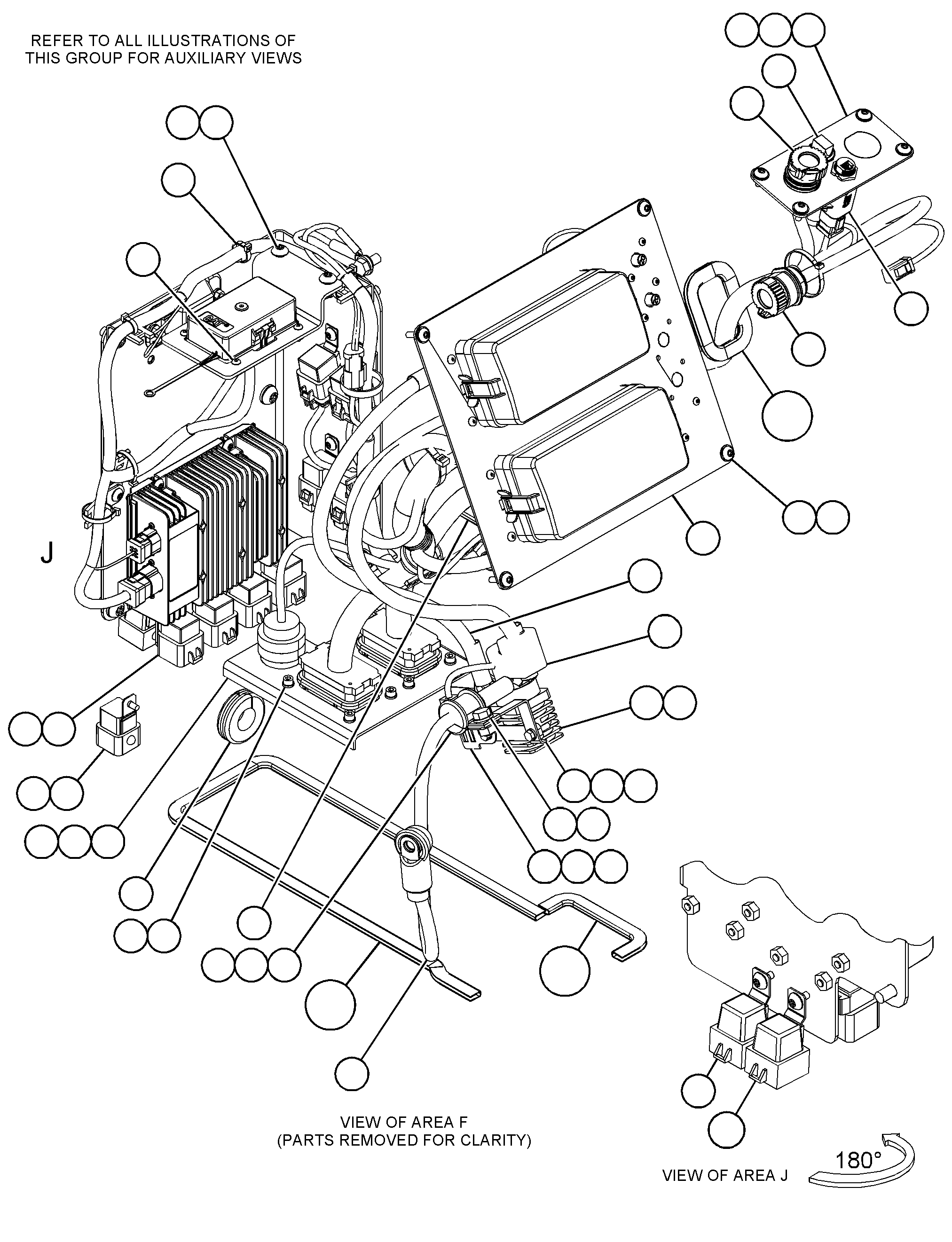

568-7180 WIRING GP-CABS/N LTZ155-UP

Group No: 568-7180

Part Number	Part Name	Qty
2320314	1 SWITCH AS-ROCKER (24-VOLT)(TRACTION CONTROL SYSTEM)	1
2843621	2 SWITCH AS-ROCKER (24-VOLT)(BACKLIGHT DIMMER)	1
2843622	3 SWITCH AS-ROCKER (24-VOLT)(AUTO RETARDER)	1
2227892	4 SWITCH AS-ROCKER (24-VOLT)(POWER WINDOW, LH)	1
2286089	5 PLUG (ROCKER SWITCH)	14
2292580	6 SWITCH AS-ROCKER (24-VOLT)(THROTTLE LOCK)	1
2364616	7 SWITCH AS-ROCKER (24-VOLT)(HAZARD LIGHT)	1
2430774	8 SWITCH AS-ROCKER (24-VOLT)(STAIRWAY ACCESS LIGHTS)	1
2513539	9 SWITCH AS-ROCKER (24-VOLT)(RUNNING LIGHTS)	1
2532101	10 SWITCH AS-ROCKER (24-VOLT)(MAP LIGHT)	2
2843618	11 SWITCH-ROCKER (24-VOLT)(FOG LIGHT)	1
2843620	12 SWITCH AS-ROCKER (24-VOLT)(BRAKE RETRACT)	1
2939128	13 SWITCH-ROCKER (24-VOLT)(AUTOMATIC RETARDER CONTROL)	1
3601755	14 SWITCH AS-ROCKER (24-VOLT)(WORK LIGHT)	1
3S2093	15 STRAP-CABLE	24
4B4277	16 WASHER (8.8X17.5X1.6-MM THK)	2
6I1418	17 SPACER (8.2X12.7X28.7-MM THK)	12
6T7695	18 SPEAKER AS-RADIO	2
7K1181	19 STRAP-CABLE	86
8C5607	20 MOUNT-ISOLATION	16
8C6354	21 CAP-RECEPTACLE (ET CONNECTOR)	2
8T3518	22 NUT-FULL (1/2-13-THD)	1
8T9655	23 MOUNT-ISOLATION	24
8Y6335	24 LAMP-INTERIOR (24-VOLT)(MAP LIGHT)	2
9B7233	25 LOCKWASHER	4
1013055	26 COVER-SPEAKER	2
1058034	27 SWITCH AS-LIMIT (PARKING BRAKE)	2
1080358	28 FLASHER AS (24-VOLT)	1
1172311	29 SOCKET-AUXILIARY POWER (12-VOLT)	2
1878675	30 GASKET	1
1986570	31 LIGHTER GP (12-VOLT)(CIGAR)	1
1986571	ELEMENT AS-HEATER (12-VOLT)	1
2313930	32 RELAY AS (24-VOLT)(CLEAN FUEL MODULE)	1
2313930	32A RELAY AS (24-VOLT)(BLOWER)	1
2566454	33 SENSOR-TEMPERATURE (2-PIN)(CAB AIR)	2
2566467	34 PLATE	2
2881401	35 BRACKET	3
3055629	36 LAMP (24-VOLT)(MAP LIGHT)	2
3240827	37 PLATE AS	1
6V9632	NUT-WELD (M6X1-THD)	12
3240828	38 PLATE AS	1
5D9629	ROD	1
6V9632	NUT-WELD (M6X1-THD)	17
8T4130	STUD (M6X1X18-MM)	2
9X2032	NUT-WELD (M4X0.7-THD)	2
3586266	39 HARNESS AS-WIRING (VIMS)	1
3604092	40 BRACKET AS	1
3808061	41 CABLE AS	1
8N0869	COVER-TERMINAL (RED)	1
9X0195	TERMINAL-RING (0-GA, 3/8-IN SCREW)	1
0301708	TERMINAL-RING (0-GA)	1
1257876	TUBE-HEAT SHRINK (17.78-MM DIA)(8-CM)
1598047	CABLE-ELECTRICAL (0-GA, RED)(58-CM)
2761786	COVER-TERMINAL (RED)	1
3808062	42 CABLE AS	1
9X0195	TERMINAL-RING (0-GA, 3/8-IN SCREW)	1
0301708	TERMINAL-RING (0-GA)	1
1257876	TUBE-HEAT SHRINK (17.78-MM DIA)(8-CM)
3836904	43 CONTROL GP-ELECTRONIC (DASH)	1
4214066	44 PLATE AS	1
8T3612	NUT-WELD (M8X1.25-THD)	2
4436362	45 CONVERTER-POWER (24-VOLT TO 12-VOLT)	1
4490071	46 PLATE AS	1
8T3490	NUT-WELD (M10X1.5-THD)	1
4539924	47 RELAY AS (24-VOLT)(HORN)	1
4539924	47A RELAY AS (24-VOLT)(HIGH SPEED)	1
4539924	47B RELAY AS (24-VOLT)(MEDIUM SPEED)	1
4817418	48 BRACKET AS	1
4817419	49 BRACKET AS	1
6V9632	NUT-WELD (M6X1-THD)	1
4849906	50 FILM-INFORMATION (LOAD CAPACITY)	1
4994668	51 PLATE AS	1
5267778	52 PLATE	1
0966166	53 WASHER-HARD (4.5X9X1-MM THK)	20
0993649	54 BOLT (M8X1.25X40-MM)	6
1146658	55 WASHER (6.5X17X1-MM THK)	8
1272170	56 SCREW-TRUSS HEAD (M8X1.25X20-MM)	3
1305300	57 CLIP	2
1321829	58 ALARM GP (24-VOLT)(SEAT BELT)	1
1325789	59 CLIP (LADDER)	4
1342540	60 RECEPTACLE AS-CONNECTOR (3-PIN)	1
1379199	61 GROMMET	1
1388454	62 SCREW-TRUSS HEAD (M4X0.7X10-MM)	2
1494993	63 STRAP AS-GROUND	1
1566175	64 CLIP (LADDER)	7
1629112	65 GROMMET-SPLIT	1
1636088	66 MODULE AS (INTERMITTENT WIPER)	1
1028803	KIT-RECEPTACLE (3-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	3
1705632	67 BOLT (M4X0.7X16-MM)	20
1860357	68 CLIP	2
1878674	69 BLOCK AS-JUNCTION	1
1934623	70 SCREW-BUTTON HEAD (10-32X0.5-IN)	4
2021129	71 SCREW-TRUSS HEAD (M4X0.7X18-MM)	12
2046102	72 WASHER-HARD (4.45X9.52X1-MM THK)	16
2418368	73 SWITCH GP-MAGNETIC (24-VOLT)(MAIN POWER RELAY)	1
2469371	74 COVER-RELAY (HEATED MIRROR)	1
2469371	74A COVER-RELAY (HEATED MIRROR TIMER)	1
2771873	75 CLIP (LADDER)	2
2V8260	76 GROMMET	1
2W9499	77 BOLT (M6X1X40-MM)	8
3045687	78 CONTROL GP-UNPROGRAMMED (TRANSMISSION)	1
3045687	78A CONTROL GP-UNPROGRAMMED (CHASSIS)	1
3045687	78B CONTROL GP-UNPROGRAMMED (BRAKE)	1
3082844	79 CABLE AS	1
1M4986	TERMINAL-RING (0-GA, 1/2-IN SCREW)	1
5P0760	CABLE (0-GA, RED)(50-CM)
8N0869	COVER-TERMINAL (RED)	1
0301708	TERMINAL-RING (0-GA)	1
1257876	TUBE-HEAT SHRINK (17.78-MM DIA)(4-CM)
3232263	80 SPACER (11.1X15.9X54.5-MM THK)	1
3338153	81 CONNECTION AS	4
3398899	82 APPLICATION GP-MONITOR (VIMS ADVISOR)	1
3620169	83 CONTROL GP-UNPROGRAMMED (ETHERNET SWITCH)	1
3751478	84 LAMP GP-DOME (24-VOLT)	1
3E6328	85 ALARM GP (24-VOLT)(ACTION)	1
3E8020	86 SCREW-TRUSS HEAD (M6X1X25-MM)	4
4265380	87 LAMP GP-FLOOD (9/32-VOLT)	1
4590786	88 CONTROL GP-COMMUNICATION (PLE601 NETWORK MANAGER)	1
4B2041	89 NUT (6-32-THD)	8
4P7581	90 CLIP (LADDER)	5
5676439	91 HARNESS AS-MONITOR (VIMS)	1
5676443	92 PLATE	1
5676444	93 PLATE AS	1
9X2032	NUT-WELD (M4X0.7-THD)	28
5676445	94 GASKET	1
5680060	95 HARNESS AS-CAB (MAIN CAB)	1
5680061	96 HARNESS AS-CONTROL (ELECTRONIC CONTROL MODULE)	1
5680063	97 PANEL GP-CIRCUIT BREAKER (FUSE BLOCK)	1
5C8312	98 NUT (M4X0.7-THD)	4
5L4507	99 SCREW-MACHINE (10-32X0.875-IN)	3
5P4116	100 WASHER-HARD (8.8X20.5X2-MM THK)	9
6H4005	101 GROMMET	2
6V0826	102 GROMMET	1
6V7357	103 BOLT (M6X1X25-MM)	2
6V8225	104 NUT (M6X1-THD)	2
6V8836	105 BOLT (M6X1X14-MM)	4
6V8927	106 BOLT-SOCKET HEAD (6-32X0.5-IN)	8
6V9491	107 SCREW-MACHINE (M4X0.7X20-MM)	4
7F0560	108 WASHER (0.516X0.938X0.101-IN THK)	1
7X7729	109 WASHER (11X25X3-MM THK)	2
8C5608	110 SPACER (6.5X9.5X25.4-MM THK)	8
8T0269	111 BOLT-SOCKET HEAD (M6X1X20-MM)	8
8T0328	112 WASHER-HARD (5.5X10X1-MM THK)	3
8T1889	113 CLIP (SLOT)	1
8T1890	114 CLIP (TAB)	1
8T4121	115 WASHER-HARD (11X21X2.5-MM THK)	25
8T4133	116 NUT (M10X1.5-THD)	3
8T4137	117 BOLT (M10X1.5X20-MM)	18
8T4138	118 BOLT (M6X1X20-MM)	20
8T4200	119 BOLT (M8X1.25X16-MM)	12
8T4224	120 WASHER-HARD (8.8X16X2-MM THK)	13
8T6912	121 BOLT (M8X1.25X50-MM)	6
8T6974	122 BOLT (M6X1X80-MM)	1
8T7524	123 SEAL-O-RING	2
8Y8606	124 GROMMET	1
9K5635	125 SCREW-TAPPING (8-18X1-IN)	22
9N0869	126 WASHER-HARD (8.8X25.5X2-MM THK)	12
9X2038	127 WASHER (7X19X2-MM THK)	5
9X2041	128 SCREW-TRUSS HEAD (M10X1.5X20-MM)	6
9X2042	129 SCREW-TRUSS HEAD (M6X1X12-MM)	14
9X2043	130 SCREW-TRUSS HEAD (M6X1X14-MM)	1
9X2044	131 SCREW-TRUSS HEAD (M6X1X16-MM)	4
9X2045	132 SCREW-TRUSS HEAD (M6X1X20-MM)	4
9X6165	133 WASHER (6.5X22X2.5-MM THK)	8
9X8256	134 WASHER (6.6X12X2-MM THK)	32
4195974	135 ADAPTER AS (AT04-6P TO RJ45)	1
4322668	NUT (13/16-28-THD)	1
3E5239	136 RELAY AS (24-VOLT)(POWER WINDOW, LH)	2
3E5239	136A RELAY AS (24-VOLT)(POWER WINDOW, RH)	2
7X7877	137 STRIP-EDGE (13-CM)
7X7877	137A STRIP-EDGE (20-CM)
7X7877	137B STRIP-EDGE (17-CM)
7X7877	137C STRIP-EDGE (14-CM)
7X7877	137D STRIP-EDGE (70-CM)
7X7877	137E STRIP-EDGE (96-CM)
7X7877	137H STRIP-EDGE (15-CM)
