System And Components

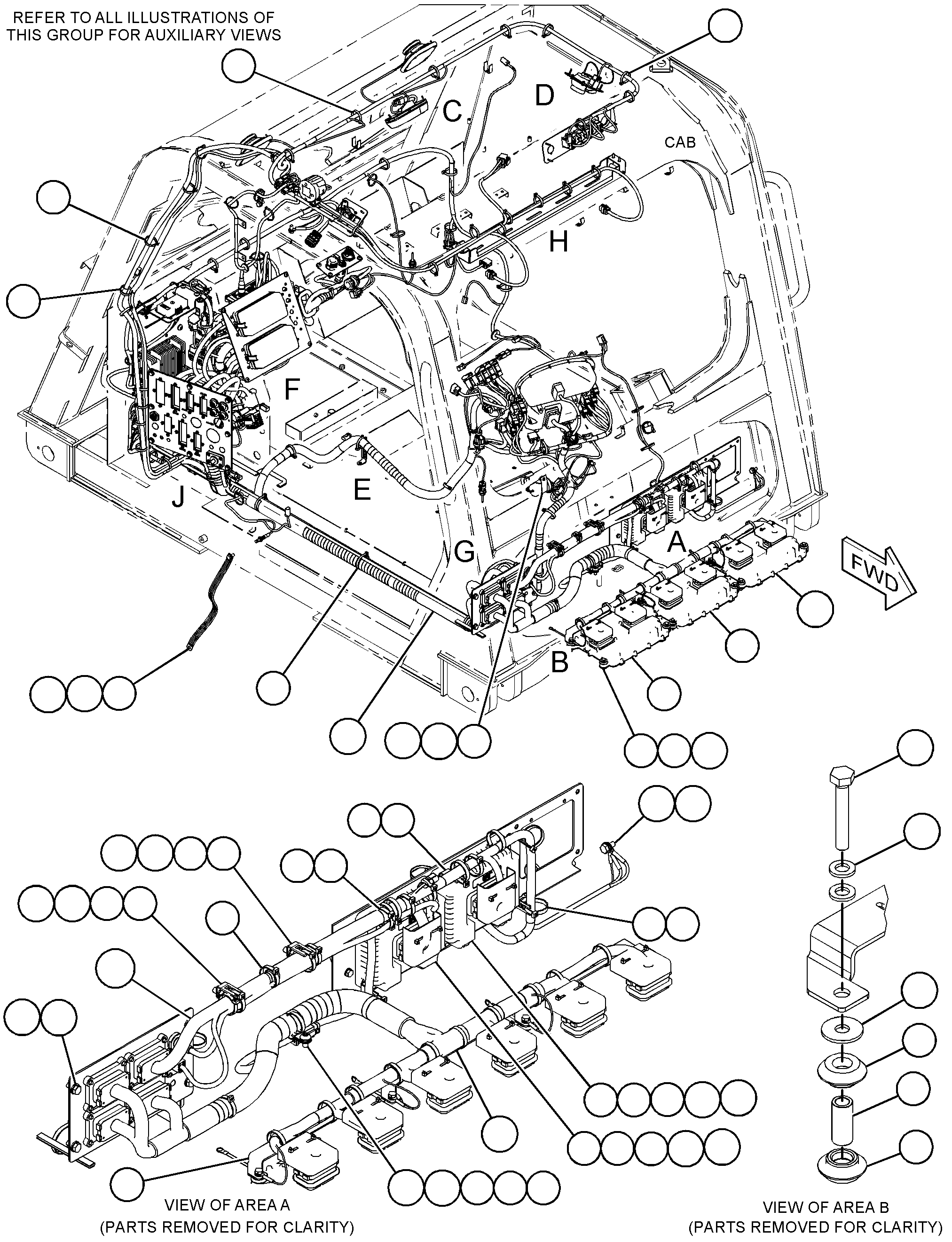

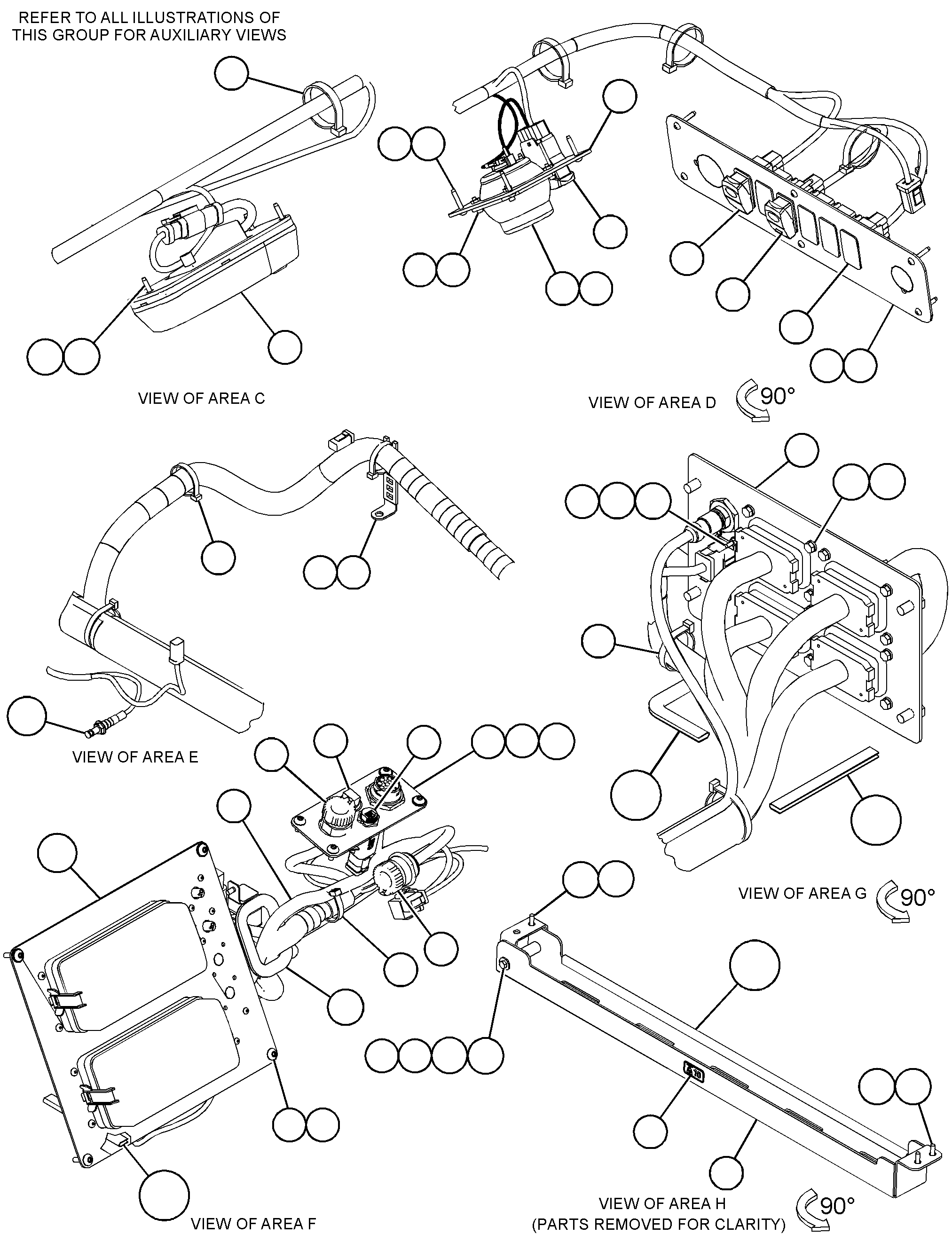

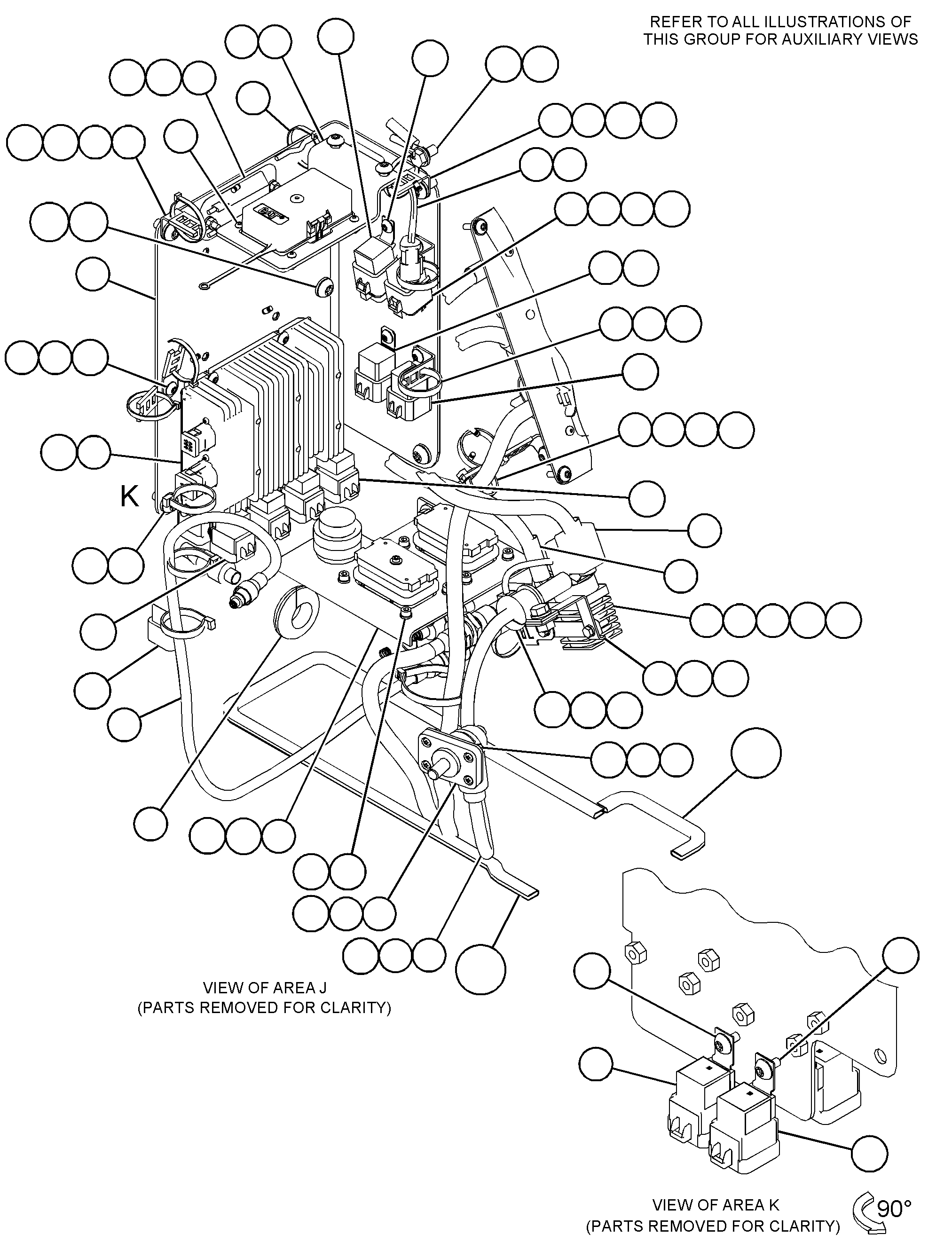

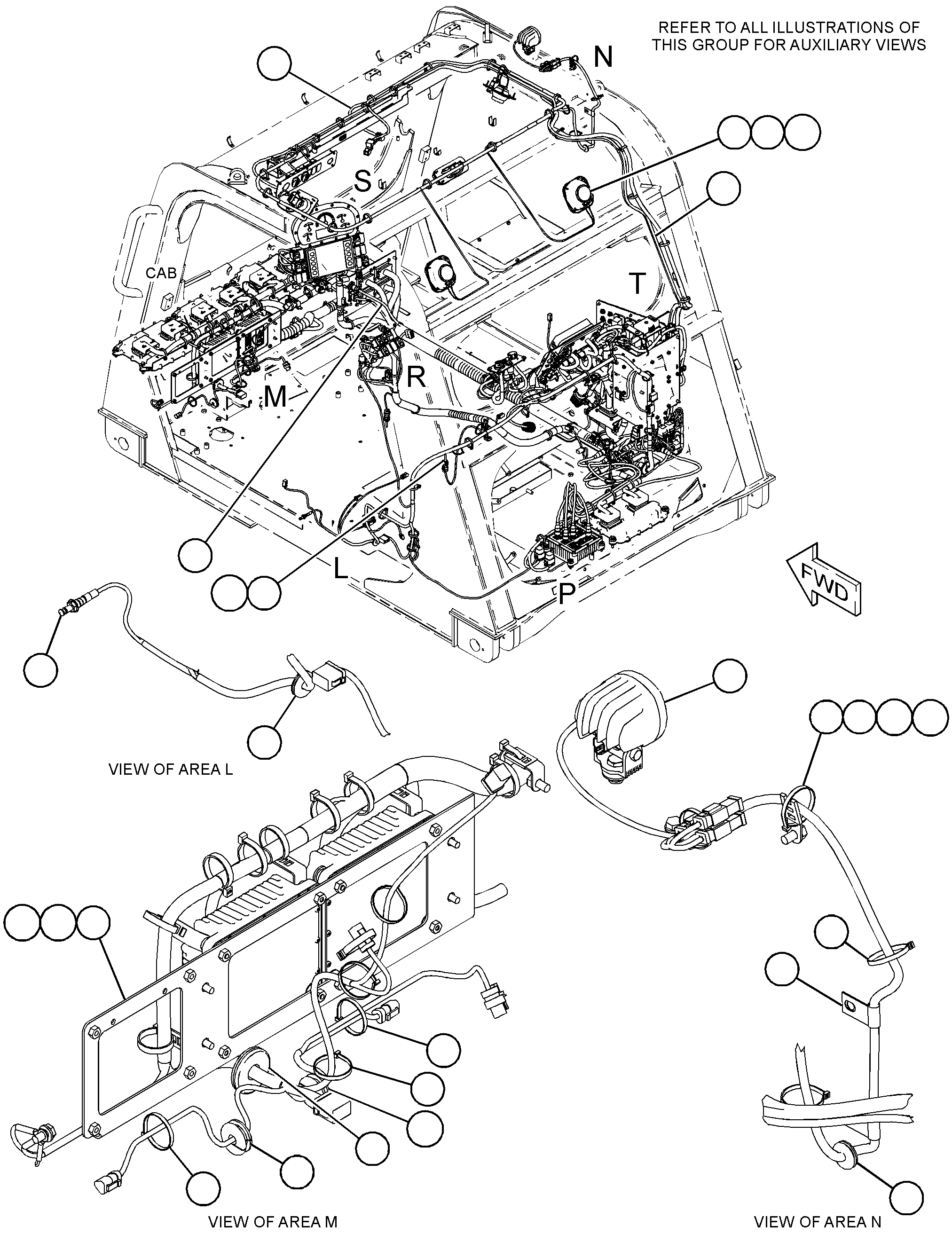

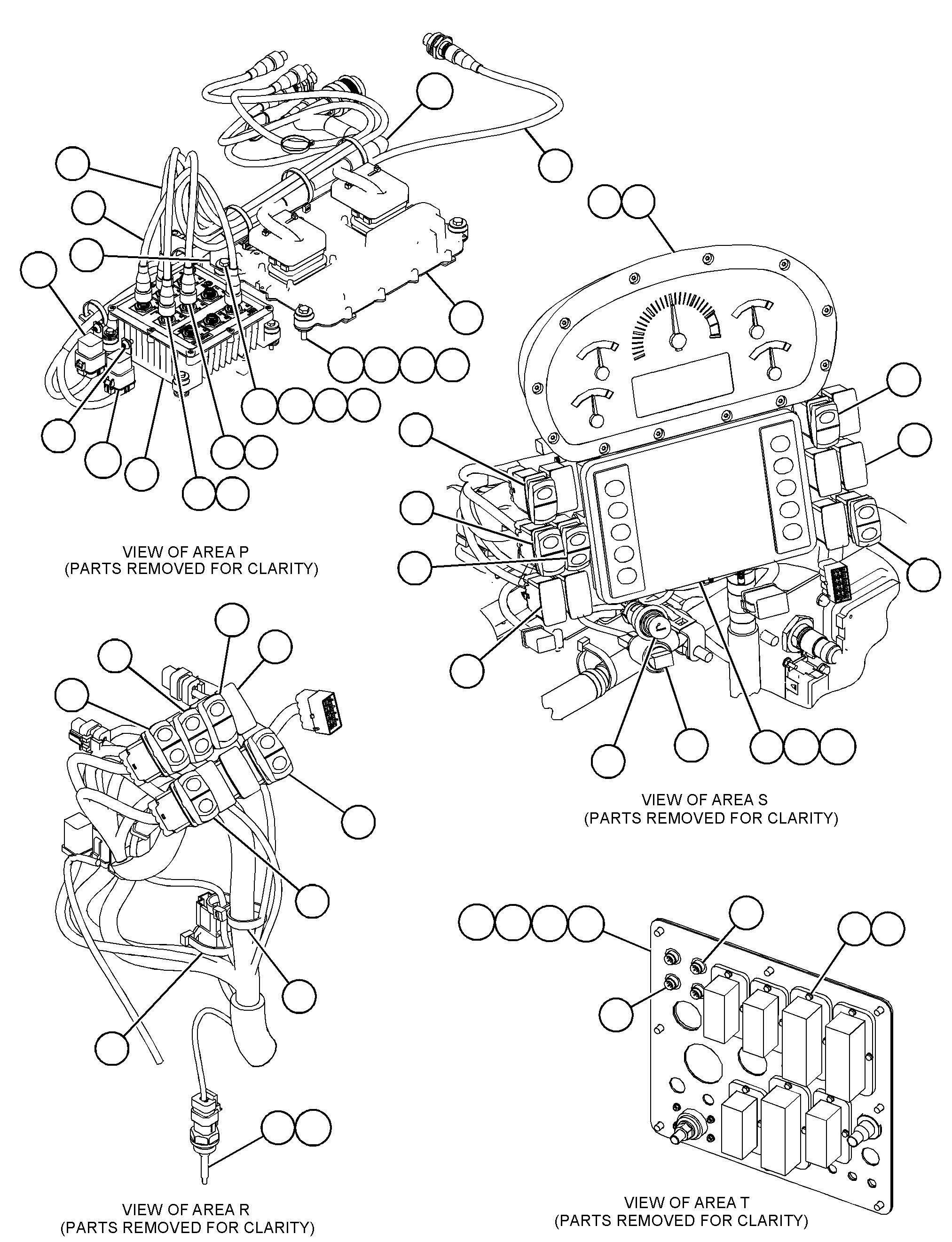

568-7182 WIRING GP-CABS/N LTZ1-UP
Group No: 568-7182
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1494993 | 1 STRAP AS-GROUND | 1 | |
| 2320314 | 2 SWITCH AS-ROCKER (24-VOLT)(TRACTION CONTROL SYSTEM) | 1 | |
| 2418368 | 3 SWITCH GP-MAGNETIC (24-VOLT)(MAIN POWER RELAY) | 1 | |
| 2843622 | 4 SWITCH AS-ROCKER (24-VOLT)(AUTOMATIC RETARDER CONTROL) | 1 | |
| 4559584 | 5 CONTROL GP-ELECTRONIC | 2 | |
| 1172311 | 6 SOCKET-AUXILIARY POWER (12-VOLT) | 2 | |
| 1636088 | 7 MODULE AS (INTERMITTENT WIPER) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 2227892 | 8 SWITCH AS-ROCKER (24-VOLT)(POWER WINDOW, LH) | 1 | |
| 2286089 | 9 PLUG (ROCKER SWITCH) | 14 | |
| 2292580 | 10 SWITCH AS-ROCKER (24-VOLT)(THROTTLE LOCK) | 1 | |
| 2364616 | 11 SWITCH AS-ROCKER (24-VOLT)(HAZARD LIGHT) | 1 | |
| 2430774 | 12 SWITCH AS-ROCKER (24-VOLT)(STAIRWAY ACCESS LIGHTS) | 1 | |
| 2513539 | 13 SWITCH AS-ROCKER (24-VOLT)(RUNNING LIGHTS) | 1 | |
| 2532101 | 14 SWITCH AS-ROCKER (24-VOLT)(MAP LIGHT) | 2 | |
| 2843618 | 15 SWITCH-ROCKER (24-VOLT)(FOG LIGHT) | 1 | |
| 2843620 | 16 SWITCH AS-ROCKER (24-VOLT)(BRAKE RETRACT) | 1 | |
| 2939128 | 17 SWITCH-ROCKER (24-VOLT)(AUTOMATIC RETARDER CONTROL) | 1 | |
| 3601755 | 18 SWITCH AS-ROCKER (24-VOLT)(WORK LIGHT) | 1 | |
| 3E6328 | 19 ALARM GP (24-VOLT)(ACTION) | 1 | |
| 3S2093 | 20 STRAP-CABLE | 21 | |
| 4B4277 | 21 WASHER (8.8X17.5X1.6-MM THK) | 2 | |
| 6I1418 | 22 SPACER (8.2X12.7X28.7-MM THK) | 16 | |
| 6T7695 | 23 SPEAKER AS-RADIO | 2 | |
| 7K1181 | 24 STRAP-CABLE | 98 | |
| 8C5607 | 25 MOUNT-ISOLATION | 24 | |
| 8C6354 | 26 CAP-RECEPTACLE (ET CONNECTOR) | 2 | |
| 8T3518 | 27 NUT-FULL (1/2-13-THD) | 1 | |
| 8T9655 | 28 MOUNT-ISOLATION | 32 | |
| 8Y6335 | 29 LAMP-INTERIOR (24-VOLT) | 2 | |
| 9B7233 | 30 LOCKWASHER | 4 | |
| 1013055 | 31 COVER-SPEAKER | 2 | |
| 1058034 | 32 SWITCH AS-LIMIT (DOOR, LH) | 1 | |
| 1058034 | 32A SWITCH AS-LIMIT (DOOR, RH) | 1 | |
| 1080358 | 33 FLASHER AS (24-VOLT) | 1 | |
| 1606382 | 34 GROMMET | 1 | |
| 1878675 | 35 GASKET | 1 | |
| 1986570 | 36 LIGHTER GP (12-VOLT) | 1 | |
| 1986571 | ELEMENT AS-HEATER (12-VOLT) | 1 | |
| 2313930 | 37 RELAY AS (24-VOLT)(BLOWER) | 1 | |
| 2313930 | 37A RELAY AS (24-VOLT)(CLEAN FUEL MODULE) | 1 | |
| 2566454 | 38 SENSOR-TEMPERATURE (2-PIN)(CAB AIR) | 2 | |
| 2566467 | 39 PLATE | 2 | |
| 2881401 | 40 BRACKET | 4 | |
| 3045687 | 41 CONTROL GP-UNPROGRAMMED (CHASSIS) | 1 | |
| 3045687 | 41A CONTROL GP-UNPROGRAMMED (BRAKE) | 1 | |
| 3055629 | 42 LAMP (24-VOLT) | 2 | |
| 3240827 | 43 PLATE AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 12 | |
| 3240828 | 44 PLATE AS | 1 | |
| 5D9629 | ROD | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 17 | |
| 8T4130 | STUD (M6X1X18-MM) | 2 | |
| 9X2032 | NUT-WELD (M4X0.7-THD) | 2 | |
| 3338153 | 45 CONNECTION AS (OBJECT DETECTION, VISION) | 4 | |
| 3398899 | 46 APPLICATION GP-MONITOR (VIMS ADVISOR) | 1 | |
| 3416783 | 47 SWITCH (ETHERNET) | 1 | |
| 3604092 | 48 BRACKET AS | 1 | |
| 3620169 | 49 CONTROL GP-UNPROGRAMMED (ETHERNET SWITCH) | 1 | |
| 3808061 | 50 CABLE AS | 1 | |
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 9X0195 | TERMINAL-RING (0-GA, 3/8-IN SCREW) | 1 | |
| 0301708 | TERMINAL-RING (0-GA) | 1 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(8-CM) | ||
| 1598047 | CABLE-ELECTRICAL (0-GA, RED)(58-CM) | ||
| 2761786 | COVER-TERMINAL (RED) | 1 | |
| 3808062 | 51 CABLE AS | 1 | |
| 9X0195 | TERMINAL-RING (0-GA, 3/8-IN SCREW) | 1 | |
| 0301708 | TERMINAL-RING (0-GA) | 1 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(8-CM) | ||
| 3836904 | 52 CONTROL GP-ELECTRONIC (DASH) | 1 | |
| 4195974 | 53 ADAPTER AS (AT04-6P TO RJ45) | 1 | |
| 4322668 | NUT (13/16-28-THD) | 1 | |
| 4214066 | 54 PLATE AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 2 | |
| 4436362 | 55 CONVERTER-POWER (24-VOLT TO 12-VOLT) | 1 | |
| 4490071 | 56 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 4539924 | 57 RELAY AS (24-VOLT)(HIGH SPEED) | 1 | |
| 4539924 | 57A RELAY AS (24-VOLT)(MEDIUM SPEED) | 1 | |
| 4539924 | 57B RELAY AS (24-VOLT)(HORN) | 1 | |
| 4539924 | 57C RELAY AS (24-VOLT)(KEY SWITCH) | 2 | |
| 4817418 | 58 BRACKET AS | 1 | |
| 4817419 | 59 BRACKET AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 1 | |
| 4849906 | 60 FILM-INFORMATION (LOAD CAPACITY) | 1 | |
| 4852245 | 61 CONNECTOR AS | 2 | |
| 4994668 | 62 PLATE AS | 1 | |
| 5267778 | 63 PLATE | 1 | |
| 5488536 | 64 CABLE AS | 1 | |
| 8T8737 | PLUG-SEAL | 2 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(3-CM) | ||
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 4 | |
| 2397352 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 4550707 | SEAL-CONNECTOR | 1 | |
| 0966166 | 65 WASHER-HARD (4.5X9X1-MM THK) | 28 | |
| 0993649 | 66 BOLT (M8X1.25X40-MM) | 6 | |
| 1146658 | 67 WASHER (6.5X17X1-MM THK) | 8 | |
| 1272170 | 68 SCREW-TRUSS HEAD (M8X1.25X20-MM) | 3 | |
| 1305300 | 69 CLIP | 2 | |
| 1325789 | 70 CLIP (LADDER) | 4 | |
| 1379199 | 71 GROMMET | 1 | |
| 1388454 | 72 SCREW-TRUSS HEAD (M4X0.7X10-MM) | 2 | |
| 1566175 | 73 CLIP (LADDER) | 7 | |
| 1629112 | 74 GROMMET-SPLIT | 1 | |
| 1705632 | 75 BOLT (M4X0.7X16-MM) | 28 | |
| 1860357 | 76 CLIP | 2 | |
| 1878674 | 77 BLOCK AS-JUNCTION | 1 | |
| 1934623 | 78 SCREW-BUTTON HEAD (10-32X0.5-IN) | 4 | |
| 2021129 | 79 SCREW-TRUSS HEAD (M4X0.7X18-MM) | 12 | |
| 2046102 | 80 WASHER-HARD (4.45X9.52X1-MM THK) | 24 | |
| 2469371 | 81 COVER-RELAY (HEATED MIRROR) | 1 | |
| 2469371 | 81A COVER-RELAY (HEATED MIRROR TIMER) | 1 | |
| 2771873 | 82 CLIP (LADDER) | 2 | |
| 2843621 | 83 SWITCH AS-ROCKER (24-VOLT)(BACKLIGHT DIMMER) | 1 | |
| 2V8260 | 84 GROMMET | 1 | |
| 2W9499 | 85 BOLT (M6X1X40-MM) | 8 | |
| 3082844 | 86 CABLE AS | 1 | |
| 1M4986 | TERMINAL-RING (0-GA, 1/2-IN SCREW) | 1 | |
| 5P0760 | CABLE (0-GA, RED)(50-CM) | ||
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 0301708 | TERMINAL-RING (0-GA) | 1 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(4-CM) | ||
| 3232263 | 87 SPACER (11.1X15.9X54.5-MM THK) | 1 | |
| 3633405 | 88 CABLE (ETHERNET) | 1 | |
| 3751478 | 89 LAMP GP-DOME (24-VOLT)(WITH SWITCH) | 1 | |
| 3E8020 | 90 SCREW-TRUSS HEAD (M6X1X25-MM) | 4 | |
| 4265380 | 91 LAMP GP-FLOOD (9/32-VOLT) | 1 | |
| 4409645 | 92 CABLE AS | 1 | |
| 4430283 | 93 CABLE AS | 5 | |
| 4590786 | 94 CONTROL GP-COMMUNICATION (PLE601 NETWORK MANAGER) | 1 | |
| 4B2041 | 95 NUT (6-32-THD) | 8 | |
| 4P7581 | 96 CLIP (LADDER) | 7 | |
| 5488535 | 97 CABLE AS | 1 | |
| 8T8737 | PLUG-SEAL | 2 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(3-CM) | ||
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 4 | |
| 2397352 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 4550707 | SEAL-CONNECTOR | 1 | |
| 5676441 | 98 CABLE AS | 1 | |
| 8T8737 | PLUG-SEAL | 5 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(3-CM) | ||
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 4 | |
| 2039007 | NUT (1-1/2-18-THD) | 1 | |
| 2702679 | LOCKWASHER | 1 | |
| 3259568 | RECEPTACLE-CONNECTOR (9-PIN) | 1 | |
| 5676443 | 99 PLATE | 1 | |
| 5676444 | 100 PLATE AS | 1 | |
| 9X2032 | NUT-WELD (M4X0.7-THD) | 28 | |
| 5676445 | 101 GASKET | 1 | |
| 5687170 | 102 HARNESS AS-CONTROL (STEERING) | 1 | |
| 5687173 | 103 HARNESS AS-CONTROL | 1 | |
| 5749664 | 104 HARNESS AS-CAB | 1 | |
| 5749666 | 105 WIRING GP-CAB | 1 | |
| 5687181 | 106 PANEL GP-CIRCUIT BREAKER | 1 | |
| 5C8312 | 107 NUT (M4X0.7-THD) | 8 | |
| 5P4116 | 108 WASHER-HARD (8.8X20.5X2-MM THK) | 9 | |
| 6H4005 | 109 GROMMET | 2 | |
| 6V0826 | 110 GROMMET | 1 | |
| 6V7357 | 111 BOLT (M6X1X25-MM) | 2 | |
| 6V8225 | 112 NUT (M6X1-THD) | 2 | |
| 6V8836 | 113 BOLT (M6X1X14-MM) | 4 | |
| 6V8927 | 114 BOLT-SOCKET HEAD (6-32X0.5-IN) | 8 | |
| 6V9491 | 115 SCREW-MACHINE (M4X0.7X20-MM) | 8 | |
| 7F0560 | 116 WASHER (0.516X0.938X0.101-IN THK) | 1 | |
| 7X7729 | 117 WASHER (11X25X3-MM THK) | 2 | |
| 8C5608 | 118 SPACER (6.5X9.5X25.4-MM THK) | 12 | |
| 8T0269 | 119 BOLT-SOCKET HEAD (M6X1X20-MM) | 8 | |
| 8T0328 | 120 WASHER-HARD (5.5X10X1-MM THK) | 3 | |
| 8T1889 | 121 CLIP (SLOT) | 1 | |
| 8T1890 | 122 CLIP (TAB) | 1 | |
| 8T4121 | 123 WASHER-HARD (11X21X2.5-MM THK) | 25 | |
| 8T4133 | 124 NUT (M10X1.5-THD) | 3 | |
| 8T4137 | 125 BOLT (M10X1.5X20-MM) | 18 | |
| 8T4138 | 126 BOLT (M6X1X20-MM) | 20 | |
| 8T4200 | 127 BOLT (M8X1.25X16-MM) | 12 | |
| 8T4224 | 128 WASHER-HARD (8.8X16X2-MM THK) | 15 | |
| 8T6912 | 129 BOLT (M8X1.25X50-MM) | 10 | |
| 8T6974 | 130 BOLT (M6X1X80-MM) | 1 | |
| 8T7524 | 131 SEAL-O-RING | 2 | |
| 9K5635 | 132 SCREW-TAPPING (8-18X1-IN) | 25 | |
| 9N0869 | 133 WASHER-HARD (8.8X25.5X2-MM THK) | 16 | |
| 9X2038 | 134 WASHER (7X19X2-MM THK) | 5 | |
| 9X2041 | 135 SCREW-TRUSS HEAD (M10X1.5X20-MM) | 6 | |
| 9X2042 | 136 SCREW-TRUSS HEAD (M6X1X12-MM) | 16 | |
| 9X2043 | 137 SCREW-TRUSS HEAD (M6X1X14-MM) | 1 | |
| 9X2044 | 138 SCREW-TRUSS HEAD (M6X1X16-MM) | 4 | |
| 9X2045 | 139 SCREW-TRUSS HEAD (M6X1X20-MM) | 4 | |
| 9X2480 | 140 BOLT (M6X1X45-MM) | 4 | |
| 9X6165 | 141 WASHER (6.5X22X2.5-MM THK) | 16 | |
| 9X8256 | 142 WASHER (6.6X12X2-MM THK) | 32 | |
| 7X7877 | 143 STRIP-EDGE (20-CM) | ||
| 7X7877 | 143A STRIP-EDGE (13-CM) | ||
| 7X7877 | 143B STRIP-EDGE (16.5-CM) | ||
| 7X7877 | 143C STRIP-EDGE (14-CM) | ||
| 7X7877 | 143D STRIP-EDGE (69.4-CM) | ||
| 7X7877 | 143E STRIP-EDGE (96-CM) | ||
| 7X7877 | 143F STRIP-EDGE (15-CM) | ||
| 3E5239 | 144 RELAY AS (24-VOLT)(POWER WINDOW) | 4 |
