System And Components

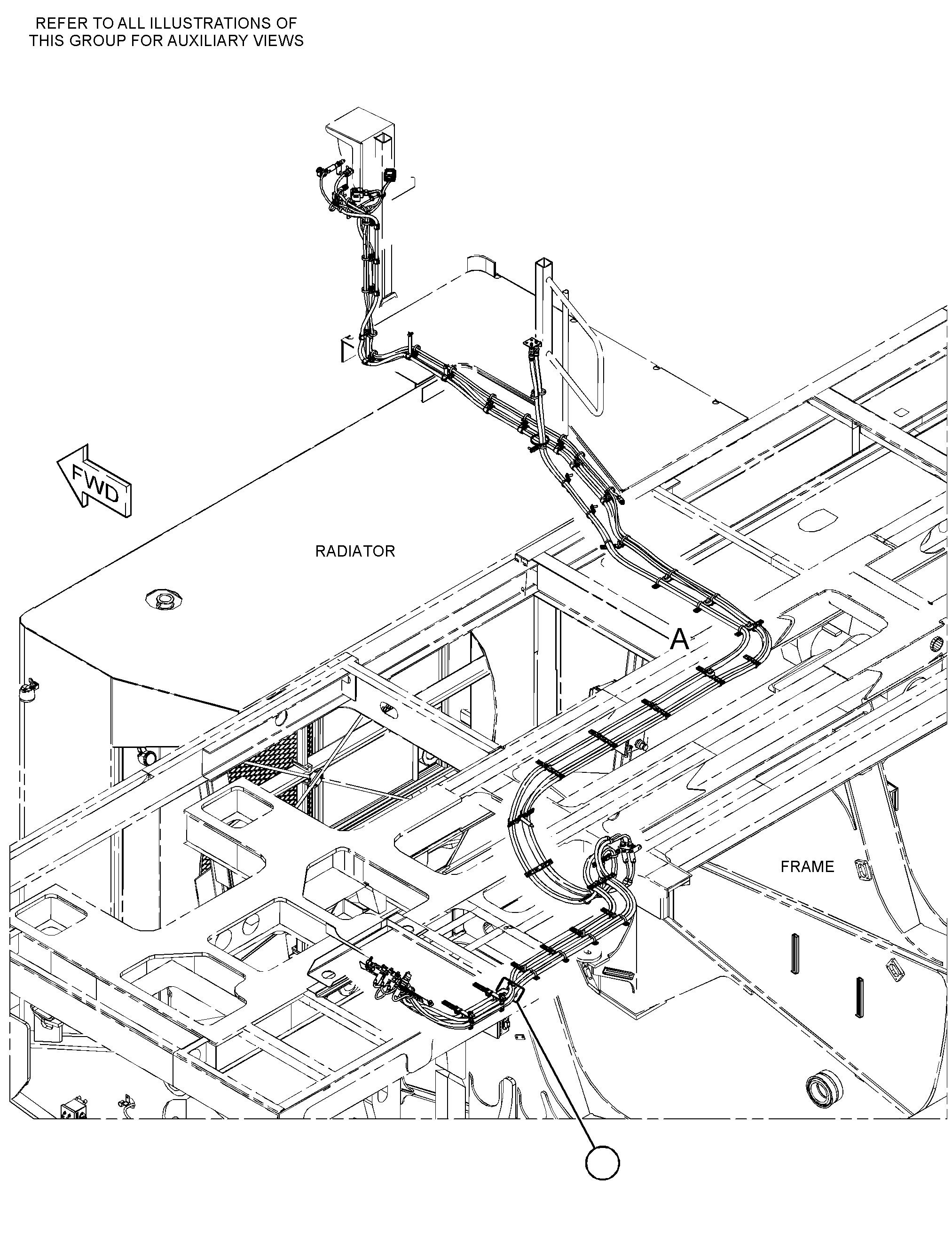

569-9665 WIRING GP-PLATFORMS/N ST71-UP
Group No: 569-9665
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5210750 | 1 BRACKET | 1 | |
| 5T6374 | 2 SPACER (11X20X40-MM THK) | 3 | |
| 9L1566 | 3 SUPPORT | 1 | |
| 9N1909 | 4 BRACKET | 1 | |
| 0910081 | 5 SPACER (10.5X20X10-MM THK) | 1 | |
| 1027886 | 6 SPACER (11X20X80-MM THK) | 1 | |
| 2048000 | 7 MOUNTING-CABLE TIE | 34 | |
| 3102652 | 8 BRACKET | 1 | |
| 3175909 | 9 BRACKET AS | 2 | |
| 6V8224 | NUT-WELD (M10X1.5-THD) | 1 | |
| 3380028 | 10 BRACKET | 1 | |
| 3812621 | 11 MOUNTING-CABLE TIE | 1 | |
| 4345654 | 13 NUT (3/8-16-THD) | 4 | |
| 4381627 | 14 CLIP (LADDER) | 42 | |
| 4422672 | 15 WASHER (13.49X50.80X6.35-MM THK) | 4 | |
| 5334159 | 16 BOLT AS | 7 | |
| 1939131 | 17 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1984777 | 18 WASHER-HARD (11X25X10-MM THK) | 1 | |
| 2042281 | 19 STRAP-CABLE | 102 | |
| 2310336 | 20 STUD-TAPERLOCK (M10X1.5X70-MM) | 10 | |
| 2431353 | 21 SPACER (11X20X35-MM THK) | 1 | |
| 2597140 | 22 STUD-TAPERLOCK (M10X1.5X80-MM) | 1 | |
| 2884402 | 23 STUD-TAPERLOCK (M10X1.5X60-MM) | 1 | |
| 3023908 | 24 SPACER (11X20X30-MM THK) | 1 | |
| 3039449 | 25 STUD (M10X1.5-THD) | 1 | |
| 3445673 | 26 NUT (M6X1-THD) | 4 | |
| 3445675 | 27 NUT (M10X1.5-THD) | 17 | |
| 3710658 | 28 SLEEVE-REFLECTIVE | 3 | |
| 3712082 | 29 CABLE AS | 2 | |
| 1355009 | TUBE-HEAT SHRINK (32-MM DIA)(16-CM) | ||
| 2320897 | CONDUIT-FLEXIBLE (16.2-MM ID)(307-CM) | ||
| 4337087 | 30 STRAP AS-GROUND | 2 | |
| 2L8076 | TERMINAL-RING (14-GA TO 16-GA, NO. 10 SCREW) | 1 | |
| 2L8079 | TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW) | 1 | |
| 4792171 | 31 BOLT AS | 5 | |
| 4792172 | 32 BOLT AS | 3 | |
| 5137311 | 33 CAMERA GP | 2 | |
| 5922947 | SOFTWARE GP-ELECTRONIC | 1 | |
| 5698099 | 34 BRACKET | 2 | |
| 5699081 | 35 BRACKET | 1 | |
| 5699667 | 36 CABLE AS | 1 | |
| 2320897 | CONDUIT-FLEXIBLE (16.2-MM ID)(950-CM) | ||
| 3524200 | STRAP-CABLE | 2 | |
| 3858201 | CAP AS-CONNECTOR | 1 | |
| 3858202 | CAP AS-CONNECTOR | 1 | |
| 5699669 | 37 CABLE AS | 1 | |
| 2320897 | CONDUIT-FLEXIBLE (16.2-MM ID)(943-CM) | ||
| 3524202 | STRAP-CABLE | 2 | |
| 3858201 | CAP AS-CONNECTOR | 1 | |
| 3858202 | CAP AS-CONNECTOR | 1 | |
| 5699670 | 38 CABLE AS | 1 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(2-CM) | ||
| 1240284 | TUBE-HEAT SHRINK (3.2-MM DIA)(39-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(3-CM) | ||
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(5-CM) | ||
| 1561458 | COVER | 1 | |
| 3114859 | TUBE-HEAT SHRINK (48-MM DIA)(8-CM) | ||
| 5699671 | 39 CABLE AS | 1 | |
| 2108958 | TUBE-HEAT SHRINK (24-MM DIA)(20-CM) | ||
| 2320897 | CONDUIT-FLEXIBLE (16.2-MM ID)(1157-CM) | ||
| 3891323 | CAP-CONNECTOR | 2 | |
| 5699672 | 40 HARNESS AS-CONTROL | 1 | |
| 5699693 | 41 CABLE AS | 2 | |
| 1355009 | TUBE-HEAT SHRINK (32-MM DIA)(20-CM) | ||
| 1690705 | PLUG-SEAL | 15 | |
| 2320897 | CONDUIT-FLEXIBLE (16.2-MM ID)(808-CM) | ||
| 3891323 | CAP-CONNECTOR | 1 | |
| 4592668 | PLUG (19-PIN) | 1 | |
| 5699695 | 42 BRACKET | 1 | |
| 3H2900 | 43 GROMMET | 1 | |
| 5G3676 | 44 GROMMET | 12 | |
| 7K1181 | 45 STRAP-CABLE | 2 | |
| 7S3916 | 46 CLIP (TAB) | 5 | |
| 7S3919 | 47 CLIP (SLOT) | 5 | |
| 8T1889 | 48 CLIP (SLOT) | 7 | |
| 8T1890 | 49 CLIP (TAB) | 7 | |
| 8T2501 | 50 BOLT (3/8-16X2-IN) | 4 | |
| 8T4121 | 51 WASHER-HARD (11X21X2.5-MM THK) | 35 | |
| 8T4137 | 52 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4138 | 53 BOLT (M6X1X20-MM) | 4 | |
| 8T4171 | 54 BOLT (M6X1X12-MM) | 8 | |
| 8T4182 | 55 BOLT (M10X1.5X45-MM) | 3 | |
| 8T4186 | 56 BOLT (M10X1.5X40-MM) | 7 | |
| 8T4191 | 57 BOLT (M10X1.5X16-MM) | 1 | |
| 8T4896 | 58 WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 8T5005 | 59 BOLT (M10X1.5X70-MM) | 3 | |
| 8T6466 | 60 BOLT (M10X1.5X60-MM) | 1 | |
| 8T6685 | 61 BOLT (M10X1.5X110-MM) | 1 | |
| 9X8256 | 62 WASHER (6.6X12X2-MM THK) | 16 | |
| 8T3426 | 63 CHANNEL-TRIM (0.6-M) | ||
| 8T3426 | 63A CHANNEL-TRIM (0.4-M) |
