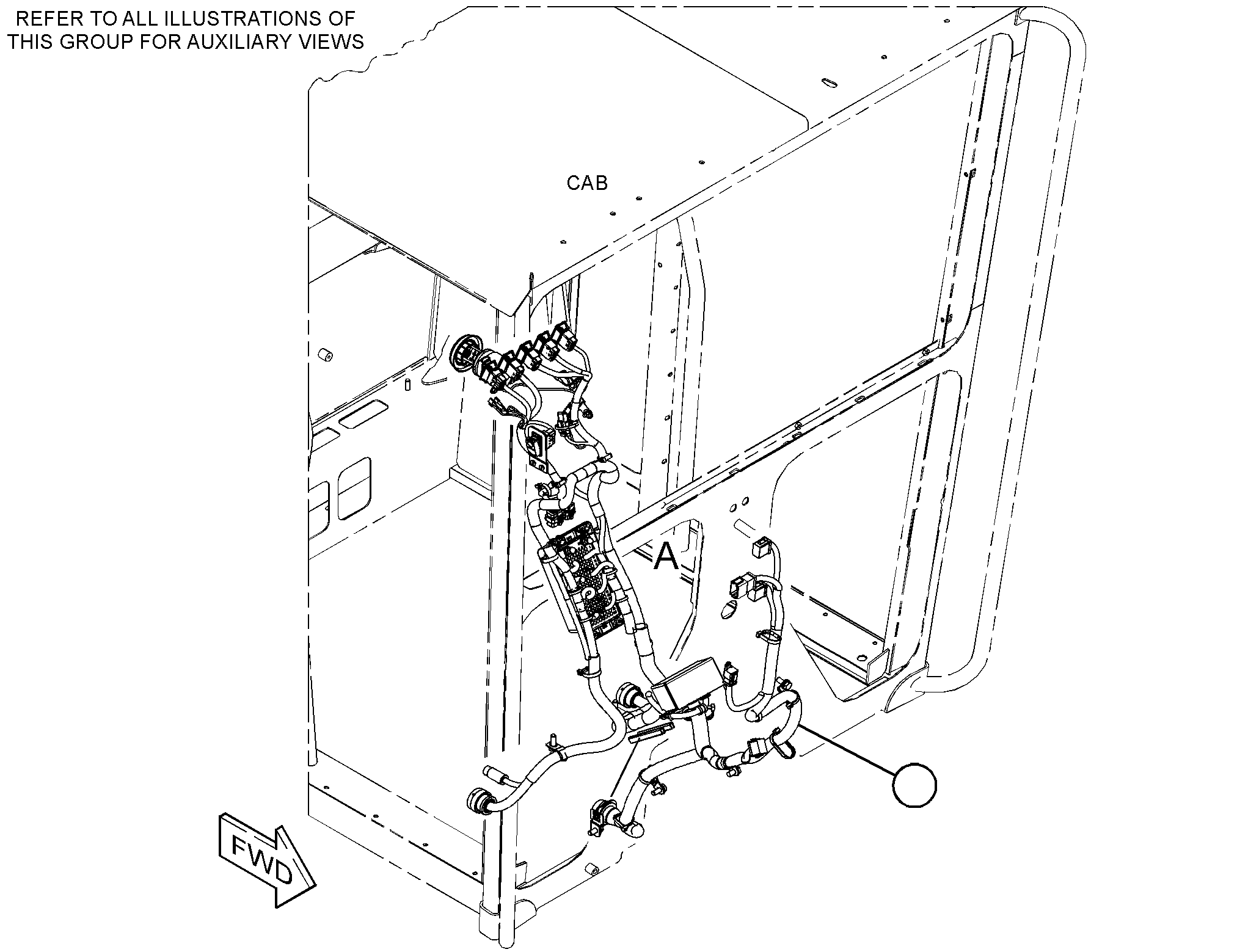

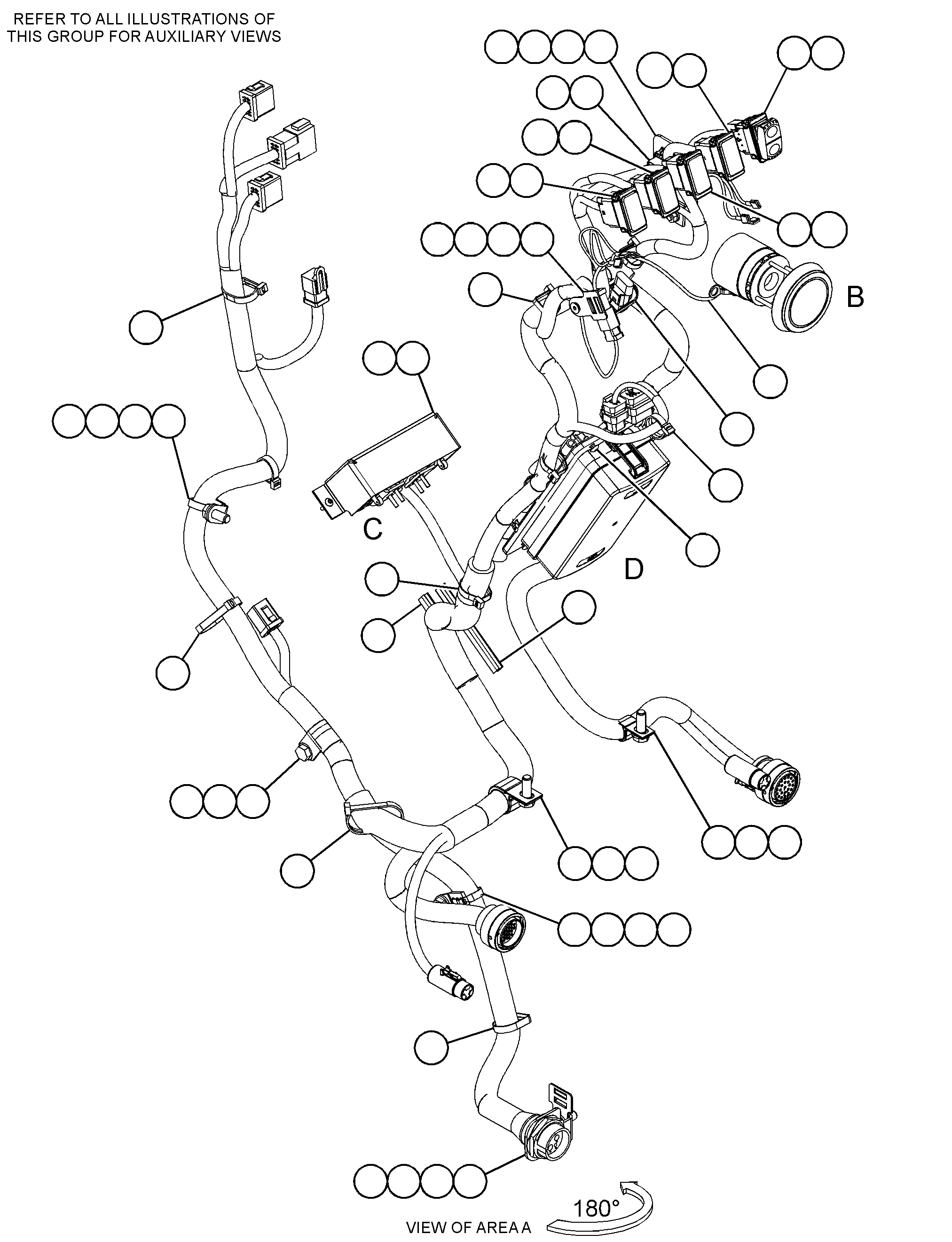

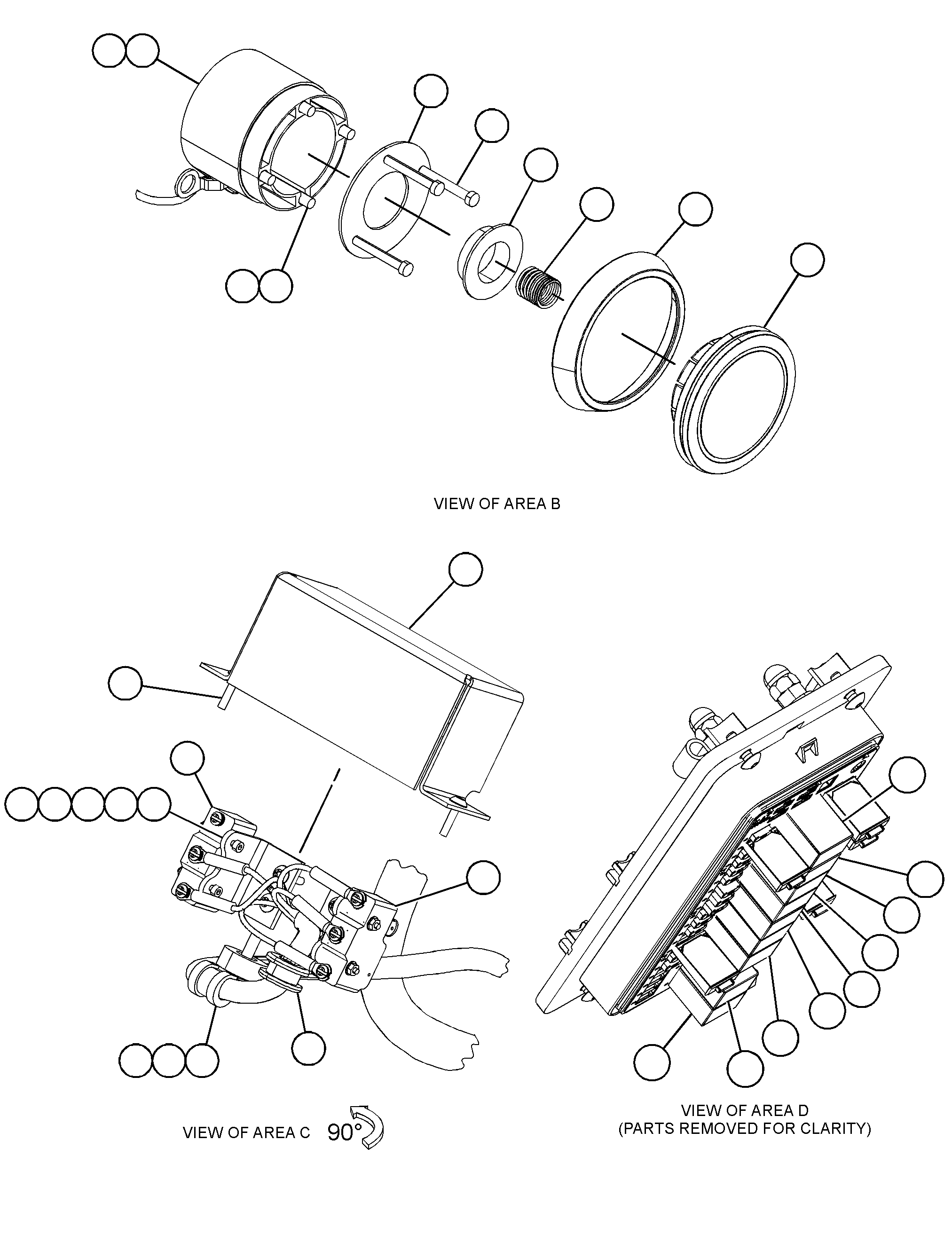

501-4755 WIRING GP-CONSOLE -STEERINGS/N N951-UP

Group No: 501-4755
Part NumberPart NameQty
13053001 CLIP2
8T07222 BOLT-LOCKING (M10X1.5X30-MM)2
3G17013 SPRING1
3S20934 STRAP-CABLE1
3S86655 CLIP (LOOP)1
5T40306 BRACKET1
7I46967 RETAINER1
7I46988 RING1
7I46999 INSULATOR1
7K118110 STRAP-CABLE14
8T412111 WASHER-HARD (11X21X2.5-MM THK)6
8T413612 BOLT (M10X1.5X25-MM)3
009418413 SPRING-HORN4
091907114 SEAL-HORN BUTTON1
098746715 BUTTON1
102938316 PLATE1
169314517 WIRE AS1
179481418 PIN3
201102419 BRACKET1
228608920 PLUG (ROCKER SWITCH)(HAZARDS)1
228608920A PLUG (ROCKER SWITCH)(BEACON)1
228608920B PLUG (ROCKER SWITCH)(HEADLIGHTS, TAIL LIGHTS)1
228608920C PLUG (ROCKER SWITCH)(WORK LIGHTS)1
236463121 BEZEL6
368454122 SWITCH AS-ROCKER (24-VOLT)(DIFFERENTIAL LOCK)1
382447823 SWITCH AS-ROCKER (24-VOLT)(SECONDARY STEERING)1
512902024 COVER1
541662925 CLIP (LOOP)1
541663226 CLIP (LOOP)1
009418527 BRUSH-HORN4
117764028 CLAMP1
132707729 SWITCH AS-LIMIT2
9B7233LOCKWASHER3
6V8376SCREW-MACHINE (8-32X0.25-IN)3
151495730 BOLT-SOCKET HEAD (M3X0.5X25-MM)4
180402831 BRACKET2
198477732 WASHER-HARD (11X25X10-MM THK)1
198970633 SCREW-TRUSS HEAD (M5X0.8X16-MM)4
237996034 CLIP (LADDER)1
312013135 SCREW-MACHINE (M6X1X30-MM)1
344567336 NUT (M6X1-THD)1
3C696937 NUT (M3X0.5-THD)4
3L818738 LOCKWASHER4
033069539 SCREW-FLAT HEAD (1/4-20X0.5-IN)2
4D121240 GROMMET1
4P758141 CLIP (LADDER)1
576743442 HARNESS AS-CONSOLE (STEERING)1
248284142A RELAY AS (24-VOLT)(HEADLIGHTS)1
248284142B RELAY AS (24-VOLT)(POSITION LAMP, LH)1
248284142C RELAY AS (24-VOLT)(POSITION LAMP, RH)1
248284142D RELAY AS (24-VOLT)(MOLDBOARD)1
248284142E RELAY AS (24-VOLT)(CAB FLOODLIGHTS, FRONT)1
248284142F RELAY AS (24-VOLT)(FORWARD HORN)1
248284142G RELAY AS (24-VOLT)(HEATED MIRROR)1
248284142H RELAY AS (24-VOLT)(RIPPER)1
248284142J RELAY AS (24-VOLT)(CAB FLOODLIGHTS, REAR)1
3474716BLOCK AS-FUSE1
3303341COVER-FUSE HOLDER1
4867435SEAL-COVER1
3823077BOOT (1-PIN)1
2802709CIRCUIT BREAKER AS (15-AMPERE, MANUAL RESET)5
3747466CAP-SEAL1
1138490FUSE (10-AMPERE)21
1138491FUSE (15-AMPERE)7
1412760FUSE (7.5-AMPERE)2
5C7261NUT (M8X1.25-THD)2
2110052NUT (1-11/16-18-THD)1
1953699NUT (M8X1.25-THD)2
8T8729PIN-CONNECTOR (16-GA TO 20-GA)28
9W0852PIN-CONNECTOR (14-GA TO 16-GA)14
9X3401PIN-CONNECTOR (16-GA TO 18-GA)2
2025397PLUG21
1275483PLUG AS-CONNECTOR (1-PIN)2
1552255KIT-CONNECTING PLUG (12-PIN)3
1552270KIT-CONNECTING PLUG (2-PIN)2
1552274KIT-CONNECTING PLUG (6-PIN)1
2253854PLUG AS-CONNECTOR (31-PIN)1
2305008PLUG AS-CONNECTOR (4-PIN)1
4550706SEAL-CONNECTOR1
2813395PLUG AS-CONNECTOR (12-PIN)1
4550709SEAL-CONNECTOR1
7R2751PLUG-CONNECTOR (1-PIN)19
2457434KIT-CONNECTING PLUG (10-PIN)6
3112812PLUG-CONNECTOR (23-PIN)1
8T8737PLUG-SEAL17
2748267PLUG (4-GA)1
2421555PULLER-FUSE1
1028801KIT-RECEPTACLE (12-PIN)1
3612945RECEPTACLE AS1
7R2750SEAL-CONNECTOR30
1284123SEAL-CABLE41
1851860SEAL-WIRE10
1851861SEAL-WIRE29
8N1549SOCKET-CONNECTOR (4-GA)2
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)58
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)11
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)2
1962412TERMINAL AS (16-GA)41
7R2750SEAL-CONNECTOR1
1962413TERMINAL AS (12-GA)30
1284123SEAL-CABLE1
3S2093STRAP-CABLE4
1893158SUPPRESSOR-ARC1
3293734TAPE-ELECTRICAL
5P1475TERMINAL-FORK (14-GA TO 16-GA, NO. 8 SCREW)5
5P4571TERMINAL-BLADE (14-GA TO 16-GA)6
2041297TERMINAL AS-BLADE (18-GA TO 20-GA)4
2354123TERMINAL (18-GA TO 20-GA)1
2836447TERMINAL-RING2
2887146WIRE AS (16-GA)35
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(26-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(80-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(20-CM)
4B4277WASHER (8.8X17.5X1.6-MM THK)2
3100674LOCKWASHER1
1552258WEDGE-PLUG LOCK (12-PIN)3
127196043 SCREW-FLAT HEAD (M6X1X16-MM)1
5P411544 WASHER-HARD (7.2X19X2-MM THK)1
6V818545 NUT (1/4-20-THD)2
8T413746 BOLT (M10X1.5X20-MM)1
8T420547 WASHER-HARD (7.2X14.5X2-MM THK)2
9X104648 SCREW (M4X0.7X18-MM)6
7X787749 STRIP-EDGE (11.5-CM EACH)
