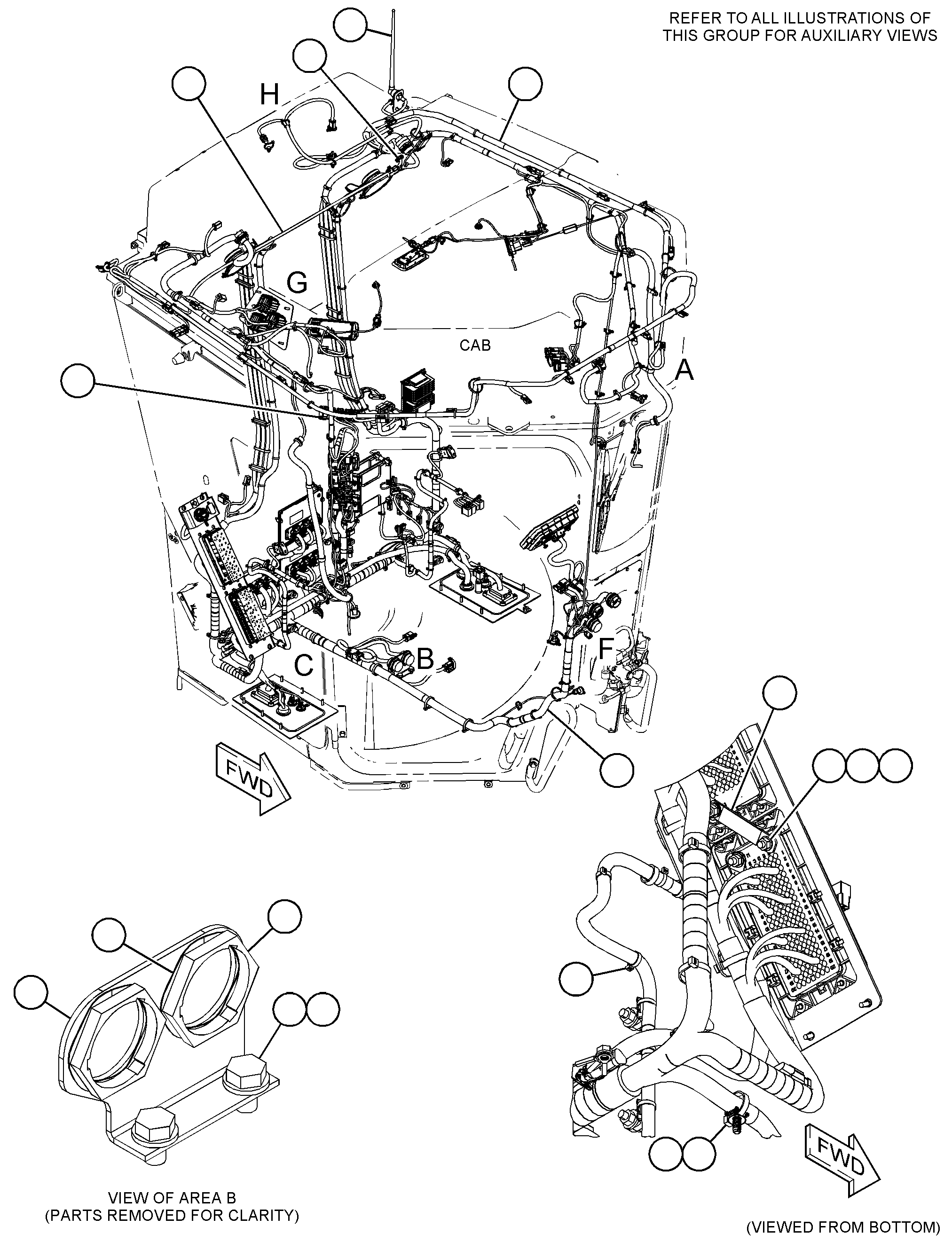

Assembly
100%

466-1271 WIRING GP-CABS/N Y9C1-307

Group No: 466-1271

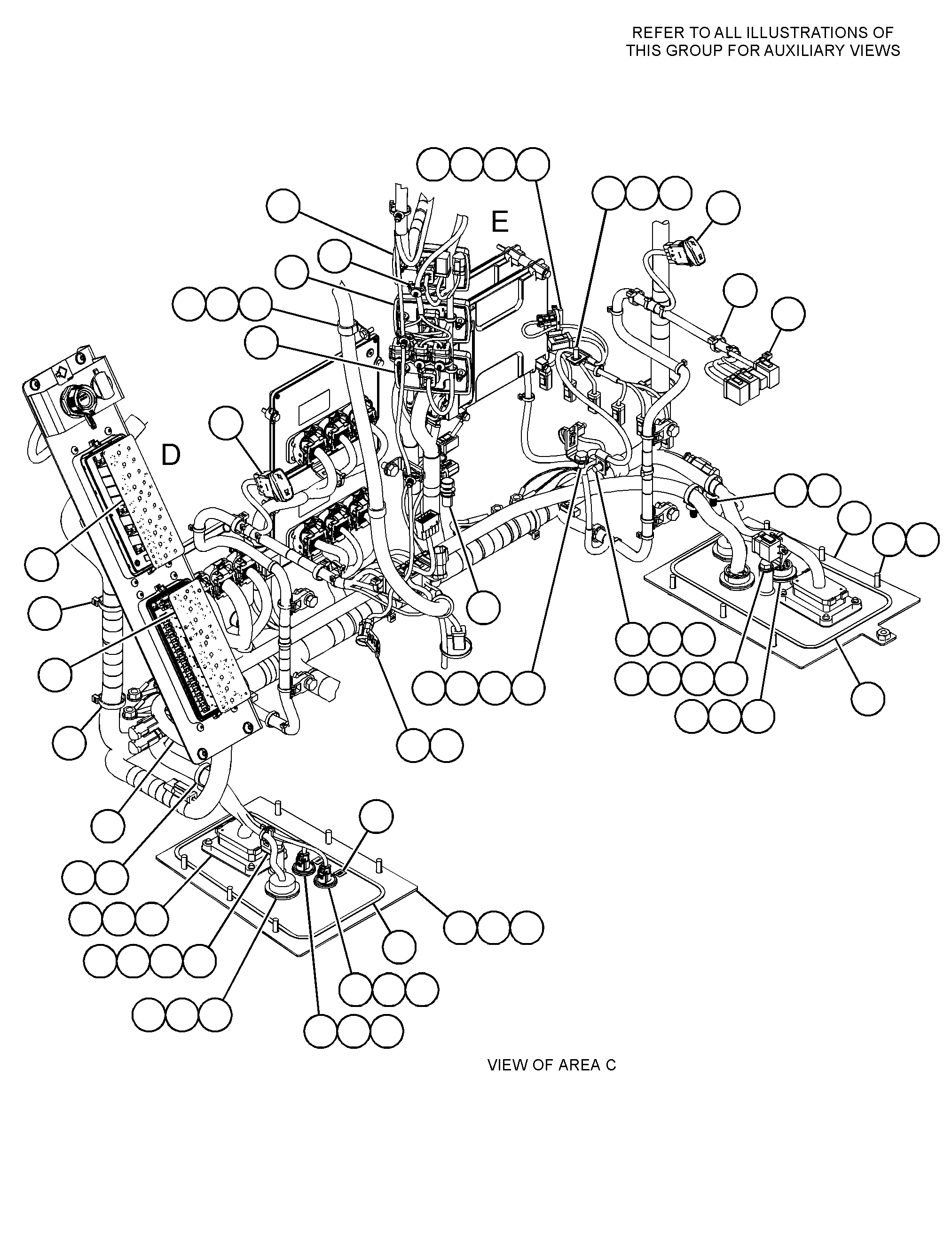

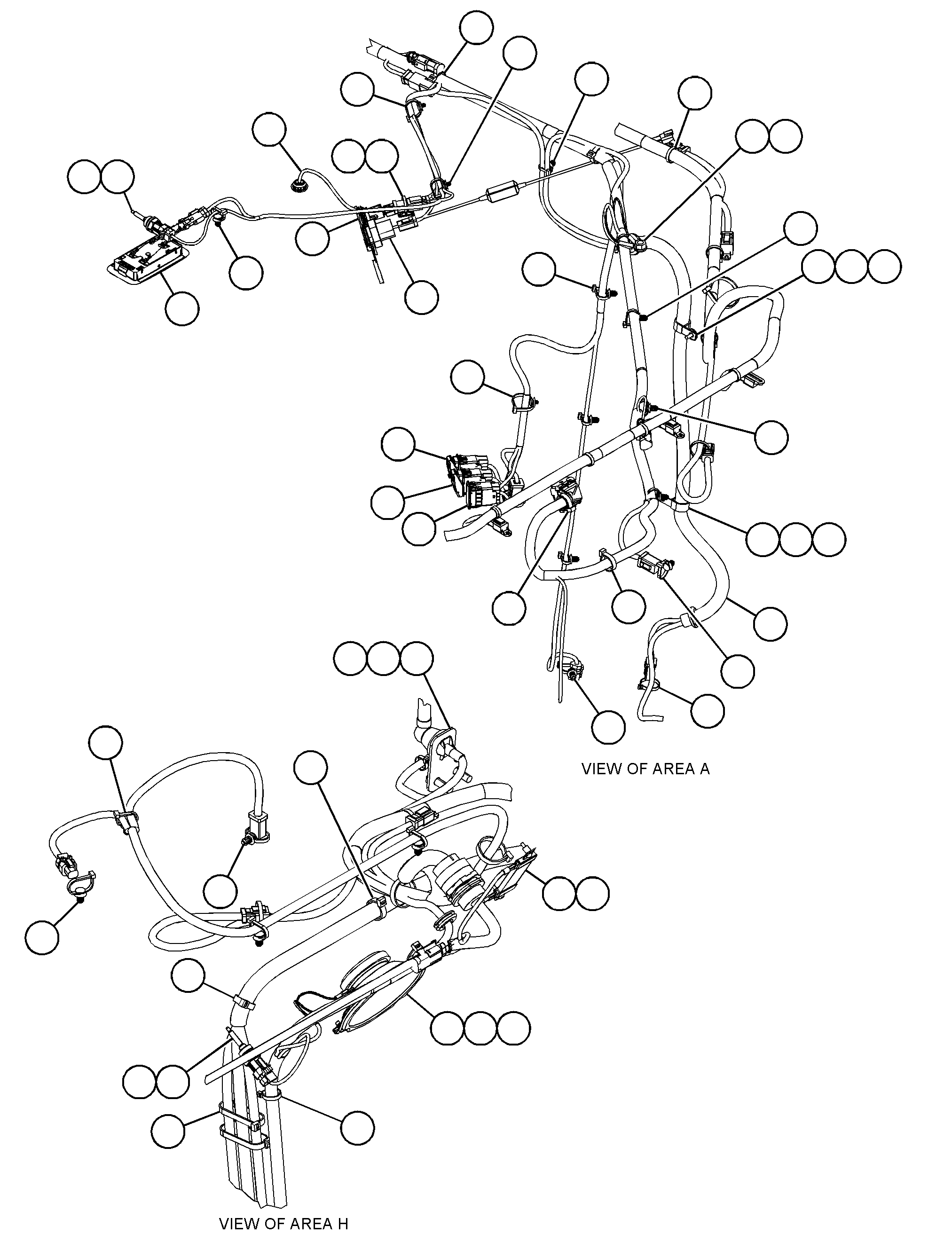

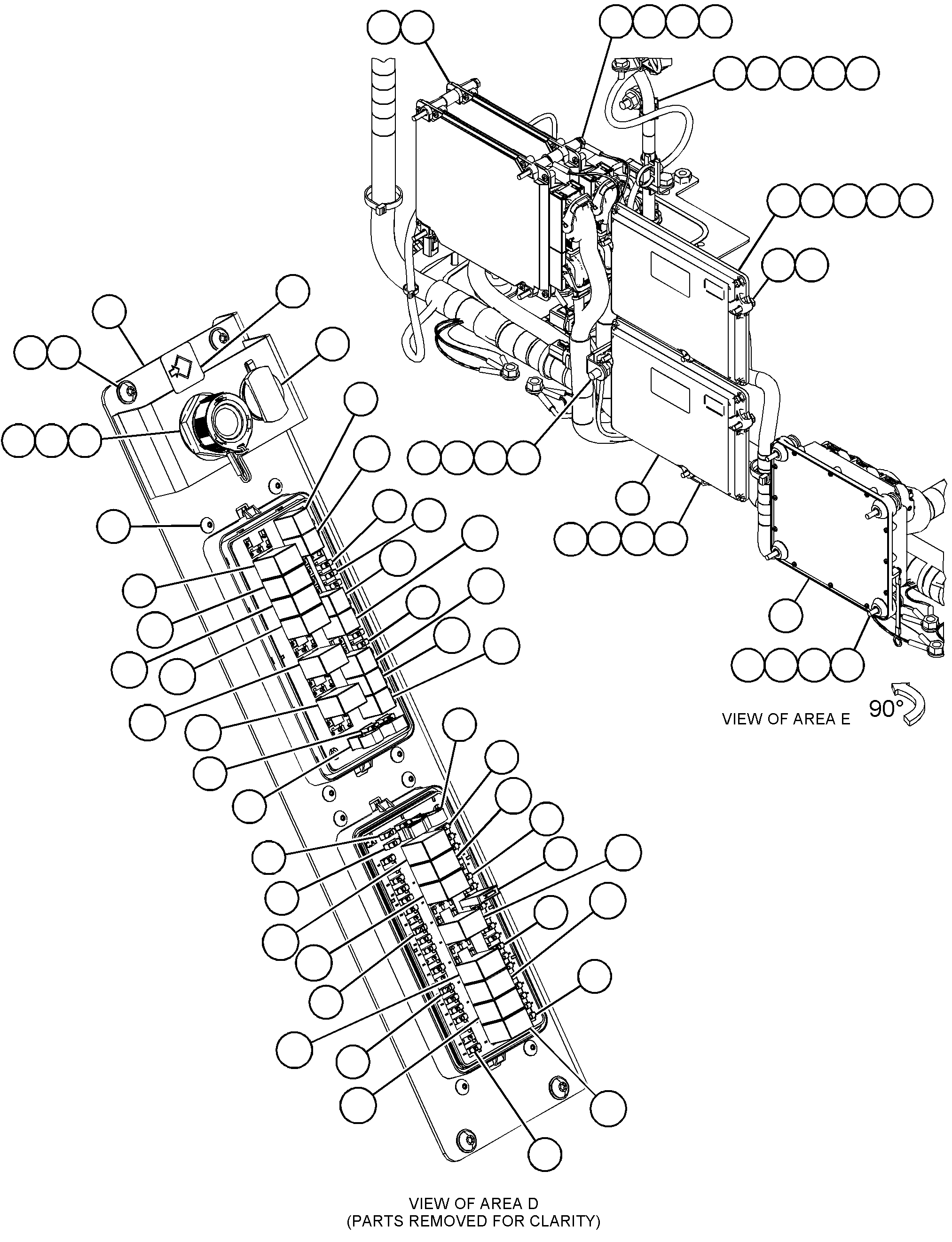

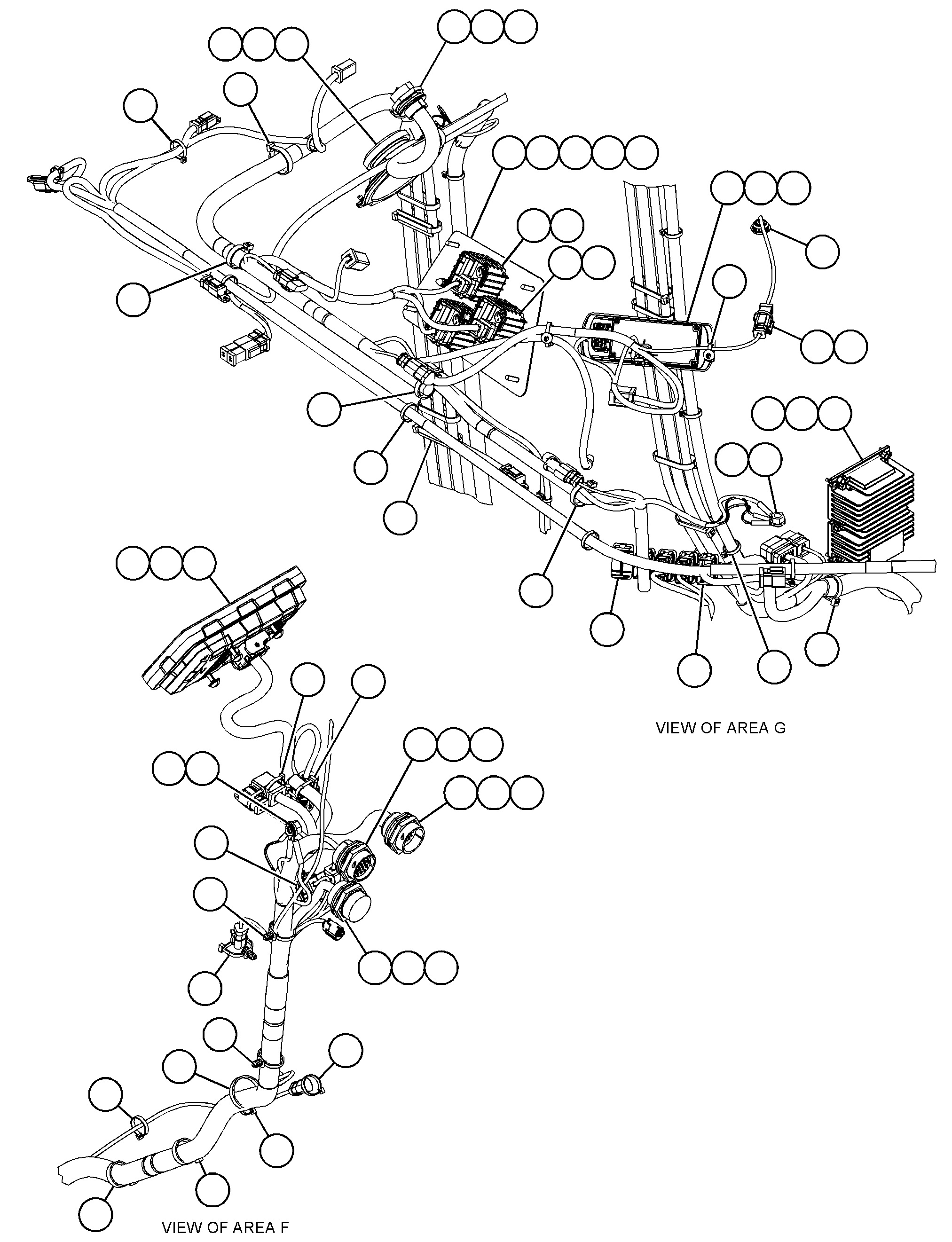

Part NumberPart NameQty
09661661 WASHER-HARD (4.5X9X1-MM THK)4
11384902 FUSE (10-AMPERE)20
11384913 FUSE (15-AMPERE)30
11384924 FUSE (20-AMPERE)4
11466585 WASHER (6.5X17X1-MM THK)2
13151716 CLIP1
13257897 CLIP (LADDER)6
15480798 NUT-RETAINER8
16221659 BOLT-SOCKET HEAD (M4X0.7X16-MM)4
174813110 SCREW-TRUSS HEAD (M4X0.7X12-MM)8
186035811 CLIP (LOOP)2
198970612 SCREW-TRUSS HEAD (M5X0.8X16-MM)8
1A891213 WASHER (6.7X12.7X1.6-MM THK)12
203900714 NUT (1-1/2-18-THD)3
204800015 MOUNTING-CABLE TIE4
206134516 STRAP-CABLE25
211005217 NUT (1-11/16-18-THD)9
228608918 PLUG (ROCKER SWITCH)5
232147319 WASHER (6X18X1-MM THK)14
234592520 GASKET2
242155521 PULLER-FUSE2
248284122 RELAY AS (24-VOLT)(WIPER MOTOR, LH DOOR)1
248284122A RELAY AS (24-VOLT)(WIPER MOTOR, RH DOOR)1
248284122B RELAY AS (24-VOLT)(BEACON)1
248284122C RELAY AS (24-VOLT)(POSITION LAMP, RH)1
248284122D RELAY AS (24-VOLT)(POSITION LAMP, LH)1
248284122E RELAY AS (24-VOLT)(ECM)1
248284122F RELAY AS (24-VOLT)(BACKLIGHT)1
248284122G RELAY AS (24-VOLT)(BLADE, FLOODLIGHTS)1
248284122H RELAY AS (24-VOLT)(BLADE CUSHION)1
248284122J RELAY AS (24-VOLT)(HEADLIGHT DIMMER)1
248284122K RELAY AS (24-VOLT)(MAST)1
248284122L RELAY AS (24-VOLT)(CAB FLOODLIGHTS)1
248284122M RELAY AS (24-VOLT)(HORN)1
248284122N RELAY AS (24-VOLT)(HEATED MIRROR)1
256645423 SENSOR-TEMPERATURE (2-PIN)(AIR CONDITIONER)2
270267924 LOCKWASHER3
271676325 BRACKET1
280271026 CIRCUIT BREAKER AS (20-AMPERE, MANUAL RESET)(AIR CONDITIONER, BLOWER)1
283694727 SWITCH AS-PUSH BUTTON (HORN)1
6F0253LOCKWASHER1
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)3
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)3
1552260KIT-CONNECTING PLUG (3-PIN)1
1723511NUT (5/8-24-THD)1
290566428 STRAP-CABLE11
2W167729 SPACER (7.67X13.72X20-MM THK)4
304946530 STRAP-CABLE3
307064931 KNOB3
310067432 LOCKWASHER9
311281333 SEAL7
325940734 FILM-IDENTIFICATION (WRITE DATA)1
335536535 SOCKET-AUXILIARY POWER (12-VOLT)2
338112836 LAMP AS-DOME (12/24-VOLT, LED)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)3
1028803KIT-RECEPTACLE (3-PIN)1
339295837 GASKET2
344567538 NUT (M10X1.5-THD)8
348784239 CONVERTER-POWER (24-VOLT TO 12-VOLT)1
373444640 PLUG1
381232641 RELAY AS (24-VOLT)(FLOODLIGHTS, RH)1
381232641A RELAY AS (24-VOLT)(GRADE CONTROL)1
381232641B RELAY AS (24-VOLT)(HEADLIGHT)1
381232641C RELAY AS (24-VOLT)(CAB FLOODLIGHTS, REAR)1
381232641D RELAY AS (24-VOLT)(FLOODLIGHTS, BLADE)1
381232641E RELAY AS (24-VOLT)(FLOODLIGHTS, RIPPER)1
381232641F RELAY AS (24-VOLT)(SNOW WING, LIGHTS)1
3E010542 MOUNT2
3E802043 SCREW-TRUSS HEAD (M6X1X25-MM)8
3S209344 STRAP-CABLE60
419391145 LAMP GP-INDICATOR (12/24-VOLT, AMBER)2
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
1028802KIT-RECEPTACLE (2-PIN)1
444913646 HARNESS AS-POWER1
455956847 CAP AS1
461739648 PANEL AS1
2717312KNOB2
466985549 MODULE GP-KEYPAD1
8F1326WASHER (4.2X9.5X0.8-MM THK)2
8T2659LOCKNUT (M4X0.7-THD)2
466985650 MODULE GP-KEYPAD1
8F1326WASHER (4.2X9.5X0.8-MM THK)2
8T2659LOCKNUT (M4X0.7-THD)2
466985751 MODULE GP-KEYPAD1
8F1326WASHER (4.2X9.5X0.8-MM THK)2
8T2659LOCKNUT (M4X0.7-THD)2
430716052 CONTROL GP-ELECTRONIC (ECM)(IMPLEMENT MASTER)1
430716053 CONTROL GP-ELECTRONIC (ECM)(MACHINE CONTROL)1
4676039CAP-CONNECTOR1
4676040CAP-CONNECTOR1
4798364CLIP-CONNECTOR2
487650054 SWITCH AS-WIPER2
2H3920LOCKWASHER1
7F6999NUT-JAM (7/16-20-THD)1
487651055 SWITCH AS-WIPER (24-VOLT)1
2H3920LOCKWASHER1
7F6999NUT-JAM (7/16-20-THD)1
490057956 ADAPTER AS1
490058557 ADAPTER AS1
490058858 NUT2
490059059 CAP-RECEPTACLE2
491459660 HARNESS AS-WINDOW WIPER2
492264961 FILM-IDENTIFICATION (FUSE)2
4P758162 CLIP (LADDER)1
4P813463 CLIP (LADDER)2
501392464 BRACKET AS1
501392765 BUS BAR1
494647266 CONTROL GP-COMMUNICATION (NETWORK MANAGER)1
506945867 PLATE1
490587368 MODULE GP-DISPLAY (8-IN TOUCH SCREEN)1
491668169 CONTROL GP-ELECTRONIC (PRIMARY STEERING)1
491668170 CONTROL GP-ELECTRONIC (SECONDARY STEERING)1
511686471 PLATE AS1
8Y3795BOSS (M10X1.5X40-MM)1
511686572 PLATE AS1
8Y3795BOSS (M10X1.5X40-MM)1
513796873 PLATE1
513909274 FILM-IDENTIFICATION (WIPER, WASHER)1
514643775 HARNESS AS-RADIO (USB PORT)1
526382876 SWITCH AS-AIR CONDITIONER (24-VOLT)(AC)1
528318377 SWITCH AS-ROCKER (24-VOLT)(IMPLEMENT LOCKOUT)1
528318478 SWITCH AS-ROCKER (JOYSTICK CONTROL RAISE, LOWER)2
528318779 SWITCH AS-ROCKER (PARKING BRAKE)1
548594580 FILM-IDENTIFICATION (FUSE/RELAY PANEL)1
548594681 FILM-IDENTIFICATION (FUSE/RELAY PANEL)1
548796682 HARNESS AS-CAB (MAIN)1
552375083 GROMMET1
564958284 HARNESS AS-CAB (ROOF)1
5C726185 NUT (M8X1.25-THD)3
5C955386 BOLT (M6X1X16-MM)2
5P411687 WASHER-HARD (8.8X20.5X2-MM THK)2
6T769588 SPEAKER AS-RADIO2
6V735789 BOLT (M6X1X25-MM)6
6V772890 BOLT (M6X1X45-MM)4
7K118191 STRAP-CABLE55
7T400392 RESISTOR1
7X046593 BOLT (M6X1X100-MM)4
7X060894 WASHER-HARD (10.2X16X2-MM THK)3
7X772995 WASHER (11X25X3-MM THK)4
8C560796 MOUNT-ISOLATION8
8C560897 SPACER (6.5X9.5X25.4-MM THK)4
8E111898 ANTENNA AS1
8L841399 STRAP-CABLE (WHITE)2
8T4121100 WASHER-HARD (11X21X2.5-MM THK)17
8T4133101 NUT (M10X1.5-THD)4
8T4138102 BOLT (M6X1X20-MM)8
8T4171103 BOLT (M6X1X12-MM)2
8T4189104 BOLT (M8X1.25X20-MM)2
8T4191105 BOLT (M10X1.5X16-MM)7
8T4195106 BOLT (M10X1.5X30-MM)6
8T4224107 WASHER-HARD (8.8X16X2-MM THK)12
8T4908108 BOLT (M8X1.25X25-MM)12
8T7524109 SEAL-O-RING2
2643617110 LOCKWASHER3
9W3073111 CABLE AS-COAXIAL1
9X1046112 SCREW (M4X0.7X18-MM)4
9X2038113 WASHER (7X19X2-MM THK)2
9X2044114 SCREW-TRUSS HEAD (M6X1X16-MM)6
9X2332115 CLIP4
9X6165116 WASHER (6.5X22X2.5-MM THK)5
9X8256117 WASHER (6.6X12X2-MM THK)10
5P5637118 SEAL (0.92-M EACH)
