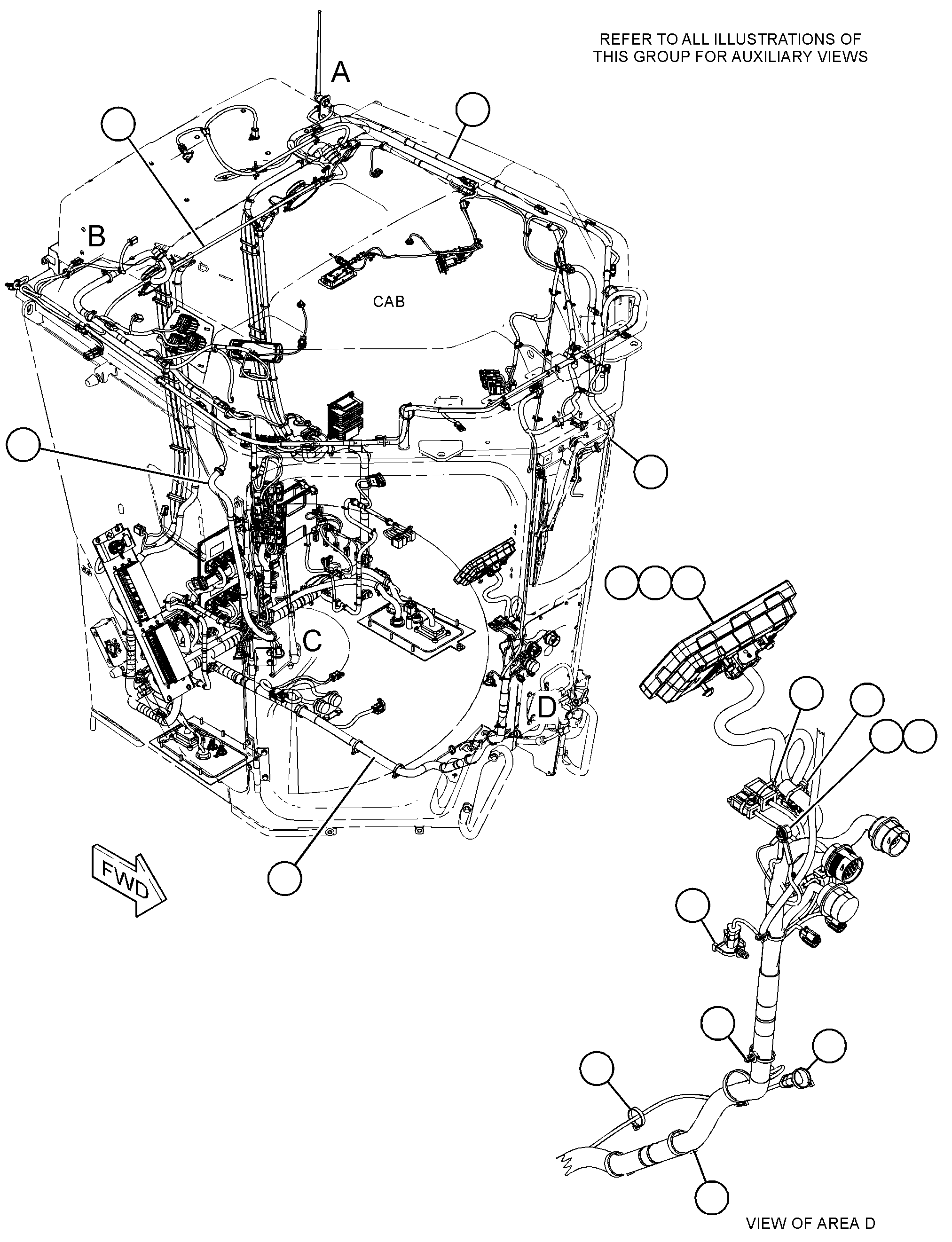

466-1271 WIRING GP-CABS/N Y9C308-UP

Group No: 466-1271

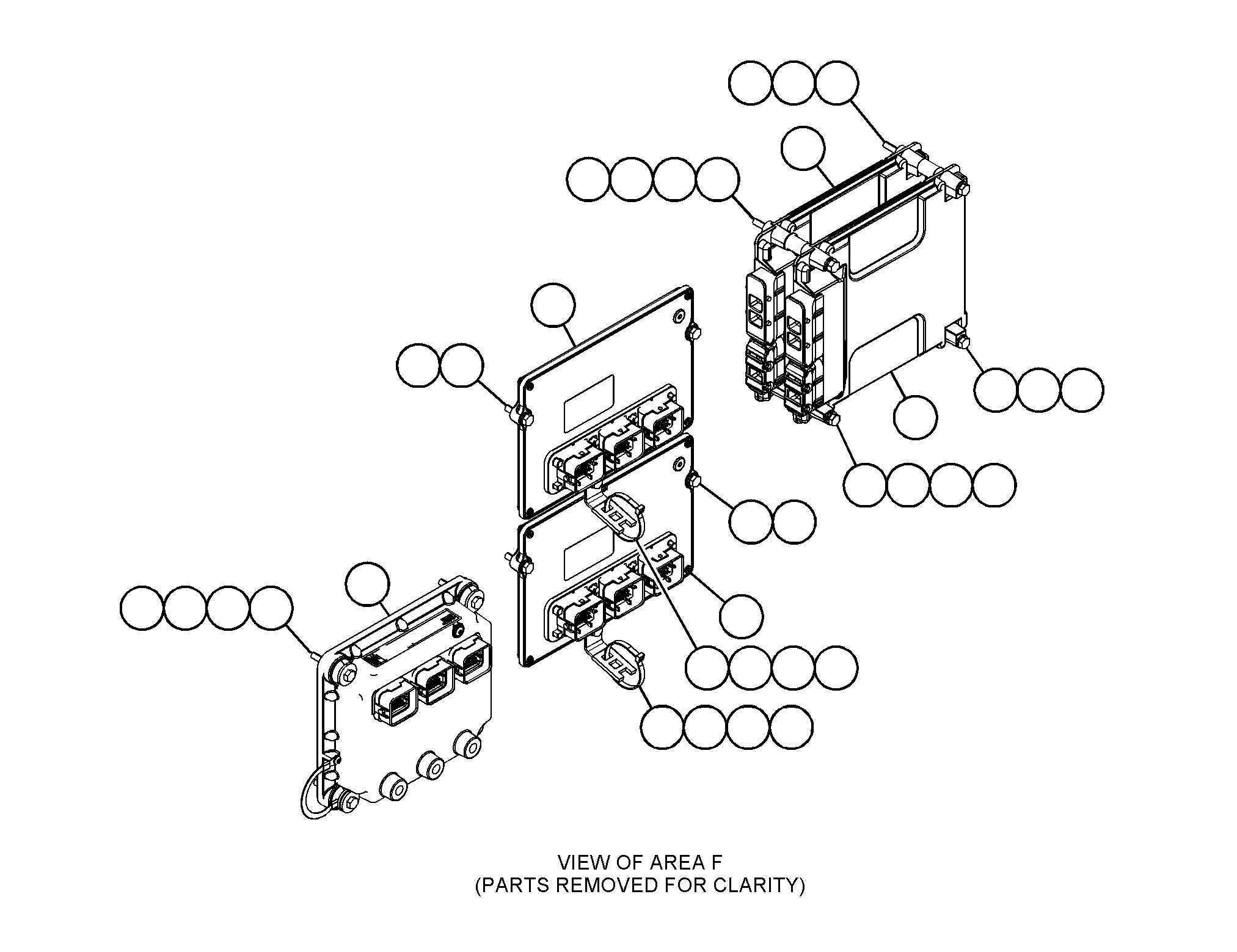

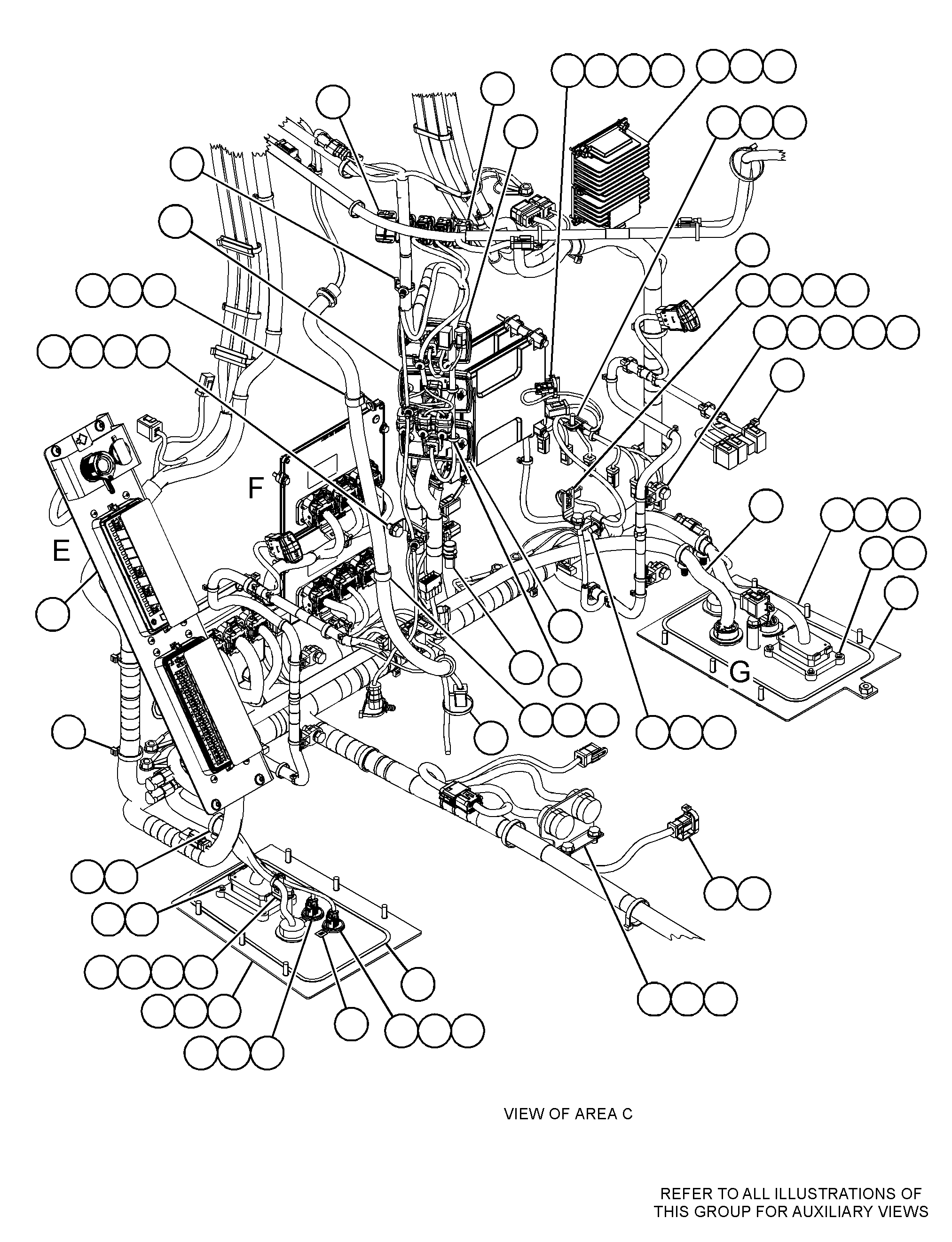

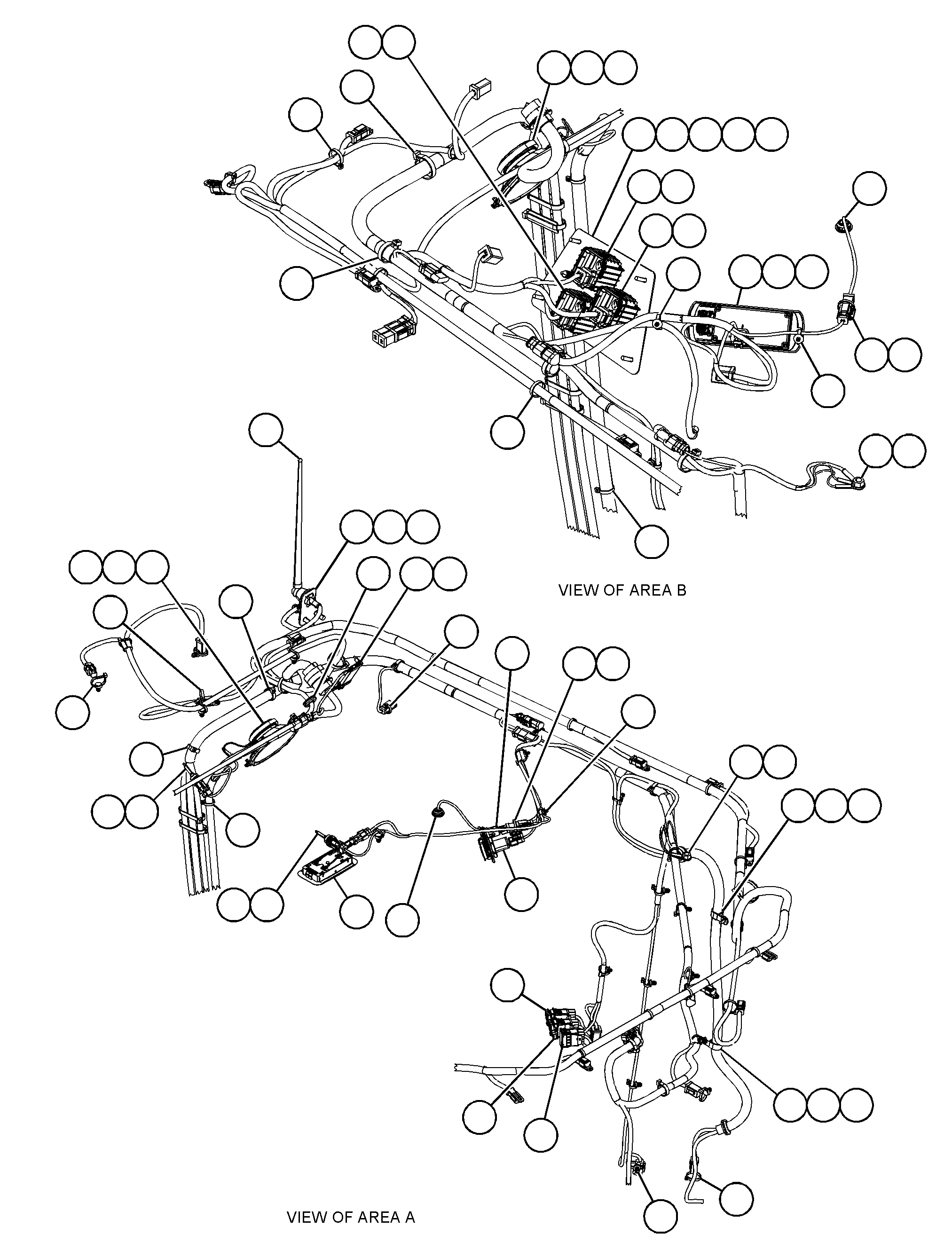

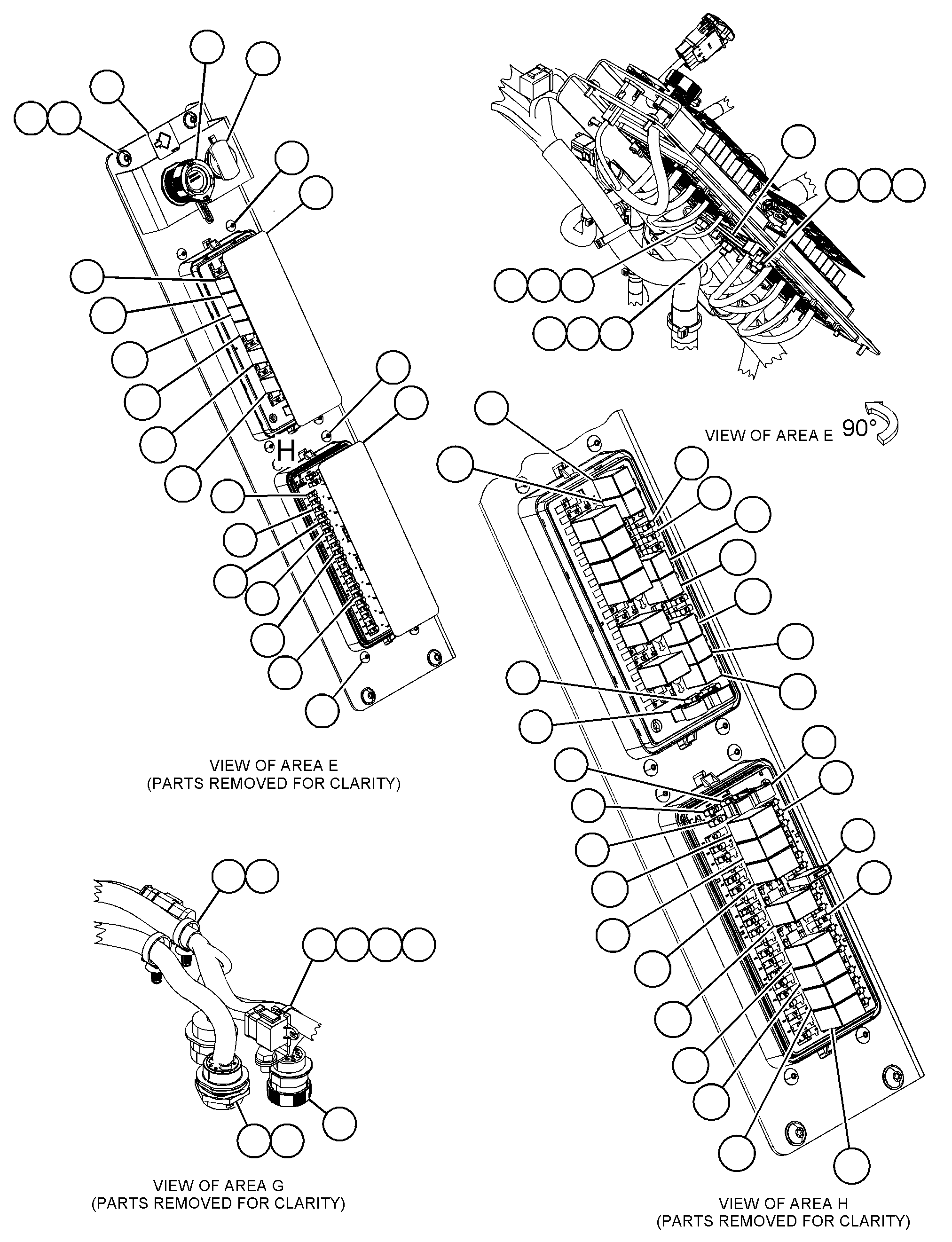

Part Number	Part Name	Qty
3E0105	1 MOUNT	2
3S2093	2 STRAP-CABLE	59
6T7695	3 SPEAKER AS-RADIO	2
7K1181	4 STRAP-CABLE	55
7T4003	5 RESISTOR	1
8C5607	6 MOUNT-ISOLATION	8
8E1118	7 ANTENNA AS	1
1138490	8 FUSE (10-AMPERE)	20
1138491	9 FUSE (15-AMPERE)	30
1138492	10 FUSE (20-AMPERE)	4
2286089	11 PLUG (ROCKER SWITCH)	5
2321473	12 WASHER (6X18X1-MM THK)	14
2421555	13 PULLER-FUSE	2
2482841	14 RELAY AS (24-VOLT)(WIPER MOTOR, LH DOOR)	1
2482841	14A RELAY AS (24-VOLT)(WIPER MOTOR, RH DOOR)	1
2482841	14B RELAY AS (24-VOLT)(BEACON)	1
2482841	14C RELAY AS (24-VOLT)(POSITION LAMP, RH)	1
2482841	14D RELAY AS (24-VOLT)(POSITION LAMP, LH)	1
2482841	14E RELAY AS (24-VOLT)(ECM)	1
2482841	14F RELAY AS (24-VOLT)(BACKLIGHT)	1
2482841	14G RELAY AS (24-VOLT)(BLADE, FLOODLIGHTS)	1
2482841	14H RELAY AS (24-VOLT)(BLADE CUSHION)	1
2482841	14J RELAY AS (24-VOLT)(HEADLIGHT DIMMER)	1
2482841	14K RELAY AS (24-VOLT)(MAST)	1
2482841	14L RELAY AS (24-VOLT)(CAB FLOODLIGHTS)	1
2482841	14M RELAY AS (24-VOLT)(HORN)	1
2482841	14N RELAY AS (24-VOLT)(HEATED MIRROR)	1
2566454	15 SENSOR-TEMPERATURE (2-PIN)(AIR CONDITIONER)	2
2802710	16 CIRCUIT BREAKER AS (20-AMPERE, MANUAL RESET)(AIR CONDITIONER, BLOWER)	1
2836947	17 SWITCH AS-PUSH BUTTON (HORN)	1
6F0253	LOCKWASHER	1
9X3402	SOCKET-CONNECTOR (16-GA TO 18-GA)	3
1261768	SOCKET-CONNECTOR (14-GA TO 16-GA)	3
1552260	KIT-CONNECTING PLUG (3-PIN)	1
1723511	NUT (5/8-24-THD)	1
2905664	18 STRAP-CABLE	11
3049465	19 STRAP-CABLE	3
3070649	20 KNOB	3
3259407	21 FILM-IDENTIFICATION (WRITE DATA)	1
3355365	22 SOCKET-AUXILIARY POWER (12-VOLT)	2
3487842	23 CONVERTER-POWER (24-VOLT TO 12-VOLT)	1
3734446	24 PLUG	1
3812326	25 RELAY AS (24-VOLT)(FLOODLIGHTS, RH)	1
3812326	25A RELAY AS (24-VOLT)(GRADE CONTROL)	1
3812326	25B RELAY AS (24-VOLT)(HEADLIGHT)	1
3812326	25C RELAY AS (24-VOLT)(CAB FLOODLIGHTS, REAR)	1
3812326	25D RELAY AS (24-VOLT)(BLADE, FLOODLIGHTS)	1
3812326	25E RELAY AS (24-VOLT)(FLOODLIGHTS, RIPPER)	1
3812326	25F RELAY AS (24-VOLT)(LIGHTS, SNOW WING)	1
4244322	26 COVER-CONNECTOR	1
4559568	27 CAP AS	1
4617396	28 PANEL AS	1
2717312	KNOB	2
4669855	29 MODULE GP-KEYPAD	1
8F1326	WASHER (4.2X9.5X0.8-MM THK)	2
8T2659	LOCKNUT (M4X0.7-THD)	2
4669856	30 MODULE GP-KEYPAD	1
8F1326	WASHER (4.2X9.5X0.8-MM THK)	2
8T2659	LOCKNUT (M4X0.7-THD)	2
4669857	31 MODULE GP-KEYPAD	1
8F1326	WASHER (4.2X9.5X0.8-MM THK)	2
8T2659	LOCKNUT (M4X0.7-THD)	2
4307160	32 CONTROL GP-ELECTRONIC (ECM)(IMPLEMENT MASTER)	1
4676039	CAP-CONNECTOR	1
4676040	CAP-CONNECTOR	1
4798364	CLIP-CONNECTOR	1
5013924	33 BRACKET AS	1
5013927	34 BUS BAR	1
4905873	35 MODULE GP-DISPLAY (8-IN TOUCH SCREEN)	1
4916681	36 CONTROL GP-ELECTRONIC (PRIMARY STEERING)	1
4916681	37 CONTROL GP-ELECTRONIC (SECONDARY STEERING)	1
5116864	38 PLATE AS	1
8Y3795	BOSS (M10X1.5X40-MM)	1
5116865	39 PLATE AS	1
8Y3795	BOSS (M10X1.5X40-MM)	1
5137968	40 PLATE	1
5139092	41 FILM-IDENTIFICATION (WIPER, WASHER)	1
5263828	42 SWITCH AS-AIR CONDITIONER (24-VOLT)(AC)	1
5283183	43 SWITCH AS-ROCKER (24-VOLT)(IMPLEMENT LOCKOUT)	1
0966166	44 WASHER-HARD (4.5X9X1-MM THK)	4
1146658	45 WASHER (6.5X17X1-MM THK)	2
1315171	46 CLIP	1
1325789	47 CLIP (LADDER)	6
1548079	48 NUT-RETAINER	8
1622165	49 BOLT-SOCKET HEAD (M4X0.7X16-MM)	4
1748131	50 SCREW-TRUSS HEAD (M4X0.7X12-MM)	8
1860358	51 CLIP (LOOP)	2
1989706	52 SCREW-TRUSS HEAD (M5X0.8X16-MM)	8
1A8912	53 WASHER (6.7X12.7X1.6-MM THK)	12
2048000	54 MOUNTING-CABLE TIE	4
2061345	55 STRAP-CABLE	26
2110052	56 NUT (1-11/16-18-THD)	1
2716763	57 BRACKET	1
2W1677	58 SPACER (7.67X13.72X20-MM THK)	4
3100674	59 LOCKWASHER	1
3381128	60 LAMP AS-DOME (12/24-VOLT, LED)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	3
1028803	KIT-RECEPTACLE (3-PIN)	1
3445675	61 NUT (M10X1.5-THD)	8
3E8020	62 SCREW-TRUSS HEAD (M6X1X25-MM)	8
4193911	63 LAMP GP-INDICATOR (12/24-VOLT, AMBER)	2
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	2
1028802	KIT-RECEPTACLE (2-PIN)	1
4449136	64 HARNESS AS-POWER	1
4307160	65 CONTROL GP-ELECTRONIC (ECM)	1
4676039	CAP-CONNECTOR	1
4676040	CAP-CONNECTOR	1
4798364	CLIP-CONNECTOR	2
4876500	66 SWITCH AS-WIPER	2
2H3920	LOCKWASHER	1
7F6999	NUT-JAM (7/16-20-THD)	1
4876510	67 SWITCH AS-WIPER (24-VOLT)	1
2H3920	LOCKWASHER	1
7F6999	NUT-JAM (7/16-20-THD)	1
4900579	68 ADAPTER AS	1
4900585	69 ADAPTER AS	1
4900588	70 NUT	2
4900590	71 CAP-RECEPTACLE	2
4914596	72 HARNESS AS-WINDOW WIPER (RH, LH)	2
4922649	73 FILM-IDENTIFICATION (FUSE)	2
4P8134	74 CLIP (LADDER)	2
4946472	75 CONTROL GP-COMMUNICATION (NETWORK MANAGER)	1
5069458	76 PLATE	1
5283184	77 SWITCH AS-ROCKER (JOYSTICK CONTROL RAISE, LOWER)	2
5283187	78 SWITCH AS-ROCKER (PARKING BRAKE)	1
5393586	79 HARNESS AS-WIRING (USB PORT)	1
1028802	KIT-RECEPTACLE (2-PIN)
5485945	80 FILM-IDENTIFICATION (FUSE/RELAY PANEL)	1
5485946	81 FILM-IDENTIFICATION (FUSE/RELAY PANEL)	1
5523750	82 GROMMET	1
5649582	83 HARNESS AS-CAB (ROOF)	1
5790746	84 HARNESS AS-CAB (MAIN)	1
5C7261	85 NUT (M8X1.25-THD)	3
5C9553	86 BOLT (M6X1X16-MM)	2
5P4116	87 WASHER-HARD (8.8X20.5X2-MM THK)	2
6V7357	88 BOLT (M6X1X25-MM)	6
6V7728	89 BOLT (M6X1X45-MM)	4
7X0465	90 BOLT (M6X1X100-MM)	4
7X0608	91 WASHER-HARD (10.2X16X2-MM THK)	3
7X7729	92 WASHER (11X25X3-MM THK)	4
8C5608	93 SPACER (6.5X9.5X25.4-MM THK)	4
8L8413	94 STRAP-CABLE (WHITE)	2
8T4121	95 WASHER-HARD (11X21X2.5-MM THK)	17
8T4133	96 NUT (M10X1.5-THD)	4
8T4138	97 BOLT (M6X1X20-MM)	8
8T4171	98 BOLT (M6X1X12-MM)	2
8T4189	99 BOLT (M8X1.25X20-MM)	2
8T4191	100 BOLT (M10X1.5X16-MM)	7
8T4195	101 BOLT (M10X1.5X30-MM)	6
8T4224	102 WASHER-HARD (8.8X16X2-MM THK)	12
8T4908	103 BOLT (M8X1.25X25-MM)	12
8T7524	104 SEAL-O-RING	2
2643617	105 LOCKWASHER	3
9W3073	106 CABLE AS-COAXIAL	1
9X1046	107 SCREW (M4X0.7X18-MM)	4
9X2038	108 WASHER (7X19X2-MM THK)	2
9X2044	109 SCREW-TRUSS HEAD (M6X1X16-MM)	6
9X2332	110 CLIP	4
9X6165	111 WASHER (6.5X22X2.5-MM THK)	5
9X8256	112 WASHER (6.6X12X2-MM THK)	10
5P5637	113 SEAL (0.92-M EACH)
