System And Components
487-3042 VALVE GP-BANK 4 -LHS/N Y9C1-UP
Group No: 487-3042
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1063659 | 1 PISTON | 2 | |
| 1063660 | 2 PISTON | 2 | |
| 1589956 | 3 VALVE GP-CHECK (PILOT MANIFOLD) | 1 | |
| 2124961 | 4 SPRING | 4 | |
| 2191892 | 6 PLUG AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 2191893 | 7 PLUG AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 2429264 | 8 PLUG-ORIFICE | 4 | |
| 2432965 | 9 SPOOL | 4 | |
| 2442579 | 10 PLUG | 4 | |
| 2486175 | 11 ROD | 4 | |
| 2520741 | 12 VALVE GP-SOLENOID (LOAD SENSING) | 1 | |
| 1565970 | NUT (1/2-20-THD) | 1 | |
| 3626151 | COIL AS | 1 | |
| 2521630 | 13 PLUG AS | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 2521631 | 14 PLUG AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 2731871 | 15 COVER | 1 | |
| 2781799 | 16 VALVE GP-SOLENOID (BLADE LIFT, LH) | 2 | |
| 2781799 | 16A VALVE GP-SOLENOID (SIDESHIFT) | 2 | |
| 2781799 | 16B VALVE GP-SOLENOID (CIRCLE DRIVE) | 2 | |
| 2781799 | 16C VALVE GP-SOLENOID (BLADE TIP) | 2 | |
| 2828827 | 17 PLUG | 7 | |
| 2929221 | 18 PLUG AS | 1 | |
| 2929220 | PLUG | 1 | |
| 2948055 | SEAL-O-RING | 1 | |
| 2S4663 | 20 SEAL-O-RING | 8 | |
| 3014568 | 21 ORIFICE | 2 | |
| 3183040 | 22 VALVE GP-CHECK & RELIEF (BLADE TIP) | 1 | |
| 3183040 | 22A VALVE GP-CHECK & RELIEF (SIDESHIFT) | 1 | |
| 3183052 | 23 VALVE GP-CHECK & RELIEF (BLADE LIFT, LH) | 1 | |
| 3183115 | 24 VALVE GP-CHECK (BLADE LIFT, LH) | 1 | |
| 3183115 | 24A VALVE GP-CHECK (SIDESHIFT) | 1 | |
| 3183115 | 24B VALVE GP-CHECK (BLADE TIP) | 1 | |
| 3366718 | 25 LOCKNUT-FLANGE | 4 | |
| 3445675 | 26 NUT (M10X1.5-THD) | 4 | |
| 3664700 | 27 PLUG AS | 8 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 3603693 | PLUG (3/4-16-THD) | 1 | |
| 3676002 | 28 PLUG AS | 5 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 3603677 | PLUG (7/16-20-THD) | 1 | |
| 3676003 | 29 PLUG AS | 3 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 3603680 | PLUG (3/4-16-THD) | 1 | |
| 3696858 | 30 PLUG AS | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 3603697 | PLUG | 1 | |
| 5646716 | 31 COVER-SPRING | 4 | |
| 3708979 | 32 COVER | 4 | |
| 3720918 | 33 SEAL-INTEGRAL | 3 | |
| 3800794 | 34 RETAINER | 16 | |
| 5266377 | 35 SPRING | 3 | |
| 3800820 | 36 SPRING | 1 | |
| 3800821 | 37 SPRING | 1 | |
| 3K0360 | 42 SEAL-O-RING | 4 | |
| 3T0849 | 43 BOLT-SOCKET HEAD (M6X1X25-MM) | 16 | |
| 4J7533 | 49 SEAL-O-RING | 4 | |
| 5B9318 | 50 BALL | 4 | |
| 6E3007 | 51 SPRING | 4 | |
| 6L9716 | 52 PLUG-PIPE | 1 | |
| 8T0267 | 53 BOLT-SOCKET HEAD (M6X1X12-MM) | 8 | |
| 8T4121 | 54 WASHER-HARD (11X21X2.5-MM THK) | 4 | |

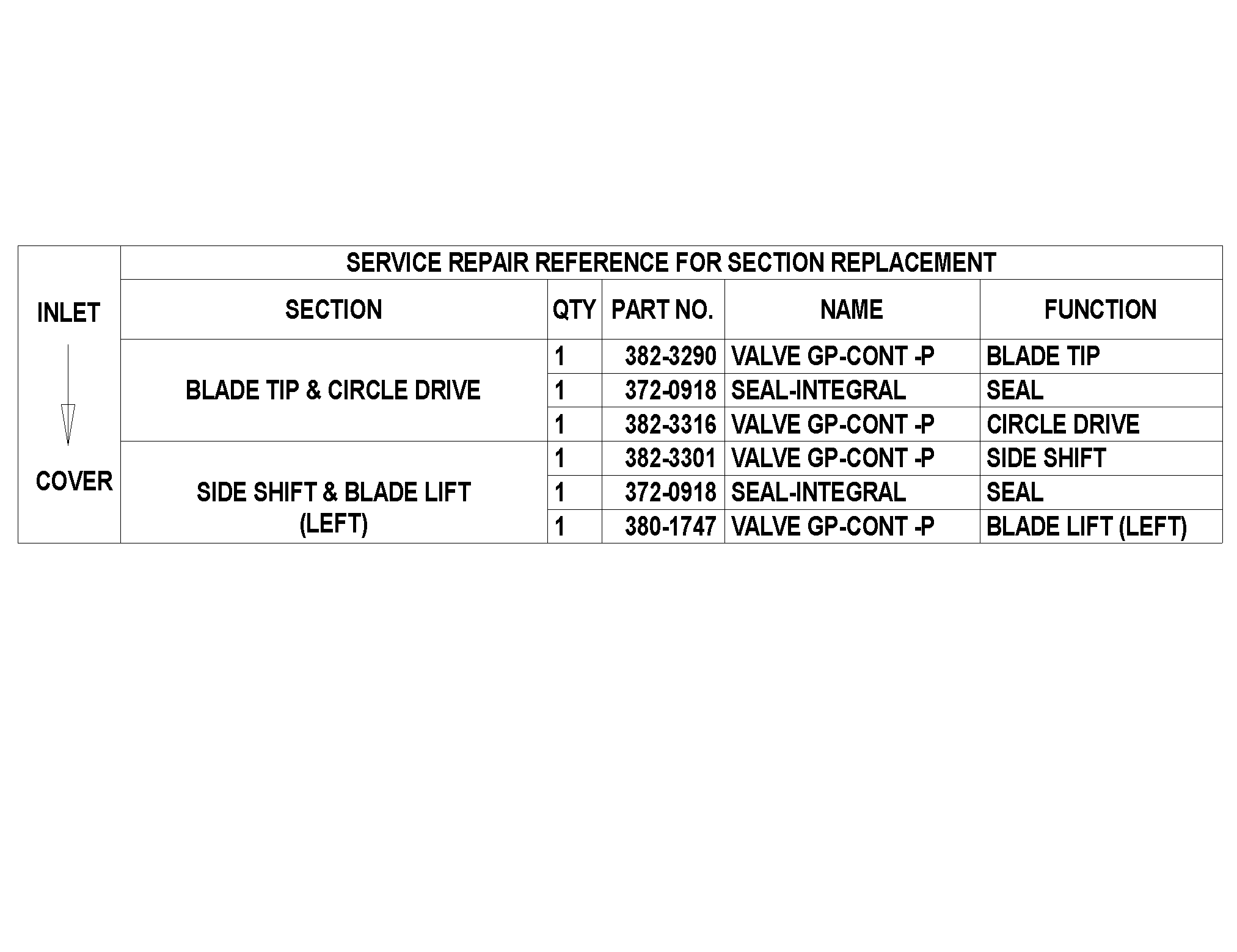

| 3720918 | SEAL-INTEGRAL | 5 | |
| 3801747 | VALVE GP-CONTROL (BLADE LIFT)(LEFT) | 1 | |
| 3823290 | VALVE GP-CONTROL (BLADE TIP) | 1 | |
| 3823301 | VALVE GP-CONTROL (BLADE TIP) | 1 | |
| 3823316 | VALVE GP-CONTROL (CIRCLE) | 1 | |
| 4714231 | KIT-SEAL (CHECK VALVE) | 1 |
