System And Components

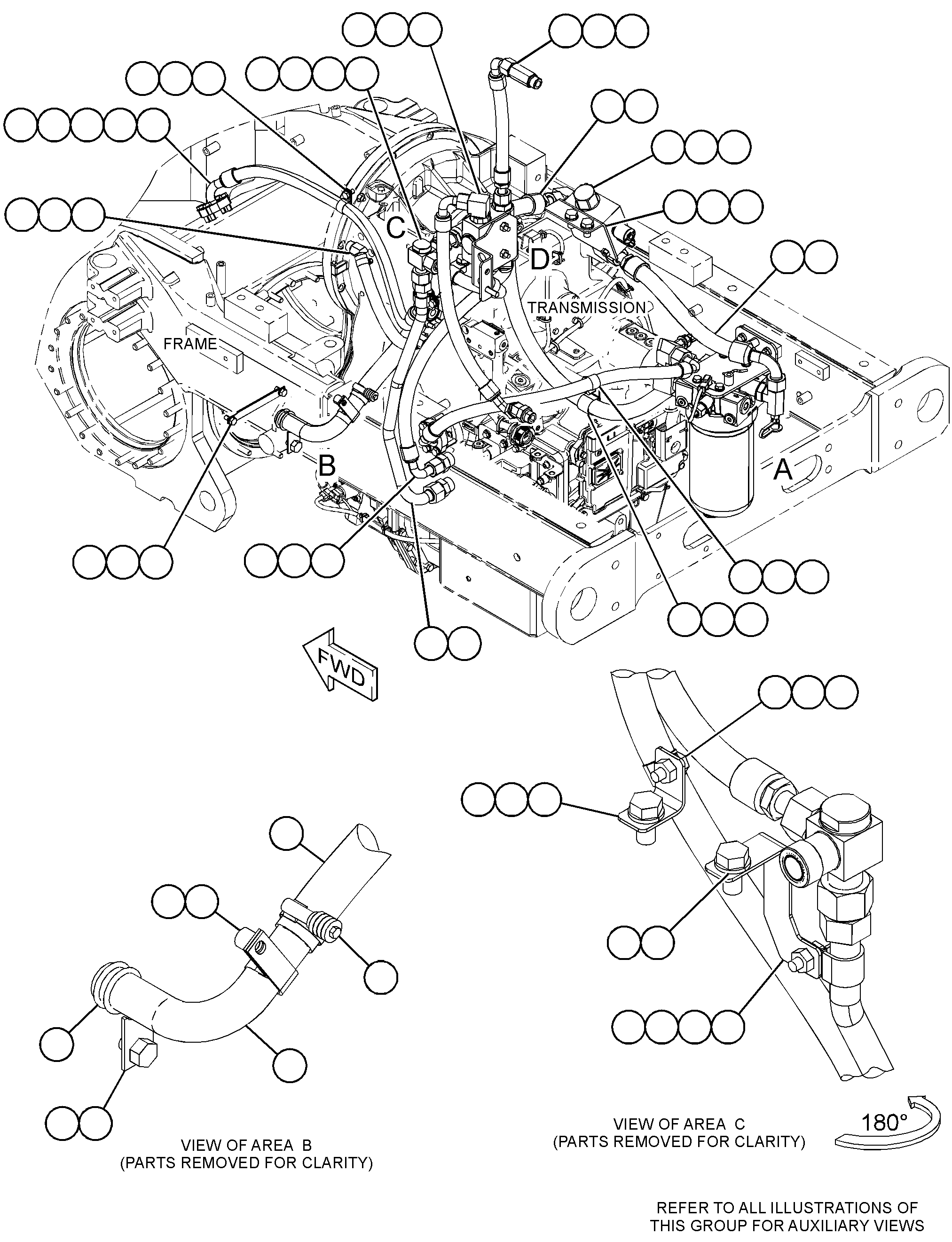

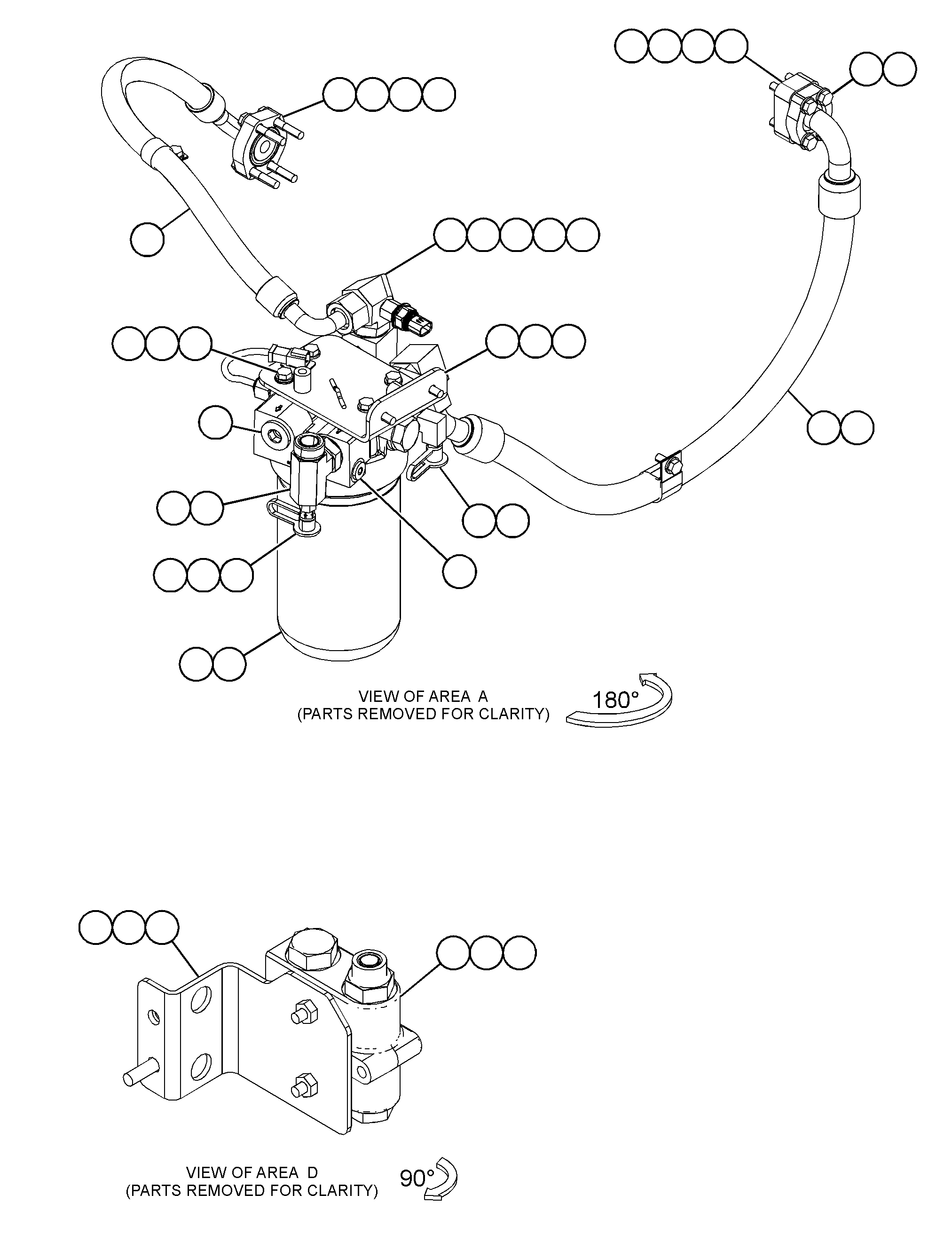

460-0505 LINES GP-TRANSMISSION OIL -COLD STARTS/N Y9B1-UP
Group No: 460-0505
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0324036 | 1 FITTING | 2 | |
| 0673045 | 2 CLIP (LOOP) | 1 | |
| 1139048 | 3 BAFFLE | 1 | |
| 1180424 | 4 ADAPTER | 1 | |
| 1260747 | 5 VALVE GP-BYPASS (TRANSMISSION OIL) | 1 | |
| 1305300 | 6 CLIP | 1 | |
| 1488305 | 7 ADAPTER AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 5P9617 | ADAPTER | 1 | |
| 1488335 | 8 CONNECTOR AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V8635 | CONNECTOR | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488339 | 9 CONNECTOR AS | 3 | |
| 6V8716 | CONNECTOR (STRAIGHT) | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488357 | 10 ELBOW AS | 3 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9008 | ELBOW (90-DEG) | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488360 | 11 ELBOW AS | 1 | |
| 6V9182 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488395 | 12 PLUG AS | 2 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 9S8005 | PLUG (3/4-16-THD) | 1 | |
| 1488406 | 13 PLUG AS | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 9S9334 | PLUG (1-5/16-12-THD) | 1 | |
| 1504047 | 14 ADAPTER AS | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 8T2353 | ADAPTER | 1 | |
| 1504049 | 15 ELBOW AS | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8T4149 | ELBOW | 1 | |
| 1536237 | 16 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9004 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1645567 | 17 COUPLER AS-QUICK DISCONNECT (MALE) | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1645590 | 18 VALVE AS-FLUID SAMPLING | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 8C3446 | VALVE-SAMPLING | 1 | |
| 1645596 | 19 TEE AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8C6515 | TEE | 1 | |
| 1833407 | 20 PLUG AS | 2 | |
| 9S8004 | PLUG (9/16-18-THD) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1P4578 | 21 FLANGE-HALF | 2 | |
| 2070649 | 22 CONNECTOR AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 8C8417 | CONNECTOR | 1 | |
| 2416172 | 23 ELBOW AS | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1730064 | ELBOW | 1 | |
| 2416215 | 24 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8076 | ELBOW | 1 | |
| 3328833 | 25 FILTER GP-OIL (MEDIUM PRESSURE)(TRANSMISSION) | 1 | |
| 3447389 | 26 SENSOR AS-PRESSURE (OIL PRESSURE) | 1 | |
| 3535132 | 27 ELBOW AS | 1 | |
| 1863705 | ELBOW | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3615941 | 28 VALVE GP-SOLENOID (24-VOLT)(COLD START) | 1 | |
| 3J1907 | 29 SEAL-O-RING | 1 | |
| 4358315 | 30 HOSE AS | 1 | |
| 4358316 | 31 TUBE AS | 1 | |
| 4358321 | 32 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 4420289 | 33 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 4420290 | 34 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 4435122 | 35 HOSE AS | 1 | |
| 4867968 | 36 TEE AS | 1 | |
| 5K9090 | SEAL-O-RING | 2 | |
| 1972112 | TEE | 1 | |
| 4D7388 | 37 CLIP | 1 | |
| 4F7389 | 38 SEAL-O-RING | 2 | |
| 4J0520 | 39 SEAL-O-RING | 4 | |
| 4J0522 | 40 SEAL-O-RING | 1 | |
| 4S1962 | 41 CLIP (LOOP) | 1 | |
| 5136521 | 42 BRACKET AS | 1 | |
| 5D9629 | ROD | 1 | |
| 9R2613 | BOSS-WELD (M10X1.5X25-MM) | 1 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 1 | |
| 5136522 | 43 HOSE AS | 1 | |
| 5197022 | 44 HOSE AS | 1 | |
| 5201957 | 45 HOSE AS | 1 | |
| 5201958 | 46 HOSE AS | 1 | |
| 5416625 | 47 CLIP (LOOP) | 2 | |
| 5560072 | 48 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 5594884 | 49 HOSE AS | 1 | |
| 5602360 | 50 HOSE AS | 1 | |
| 5773607 | 51 HOSE AS | 1 | |
| 5D1026 | 52 CLAMP-BAND | 2 | |
| 5K9090 | 53 SEAL-O-RING | 1 | |
| 6V0852 | 54 CAP-DUST | 1 | |
| 7X0342 | 55 BOLT (5/8-11X0.75-IN) | 1 | |
| 7X2552 | 56 BOLT (M16X2X30-MM) | 4 | |
| 8C3206 | 57 FLANGE-HALF | 6 | |
| 8C3447 | 58 CAP-DUST | 1 | |
| 8T4121 | 59 WASHER-HARD (11X21X2.5-MM THK) | 31 | |
| 8T4136 | 60 BOLT (M10X1.5X25-MM) | 6 | |
| 8T4137 | 61 BOLT (M10X1.5X20-MM) | 3 | |
| 8T4172 | 62 BOLT (M10X1.5X80-MM) | 2 | |
| 8T4178 | 63 BOLT (M10X1.5X90-MM) | 2 | |
| 8T4183 | 64 BOLT (M12X1.75X40-MM) | 1 | |
| 8T4195 | 65 BOLT (M10X1.5X30-MM) | 4 | |
| 8T4196 | 66 BOLT (M10X1.5X35-MM) | 8 | |
| 8T4223 | 67 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T4983 | 68 CLAMP-HOSE | 2 | |
| 8T6466 | 69 BOLT (M10X1.5X60-MM) | 8 | |
| 8T7934 | 70 WASHER-HARD (11X21X5-MM THK) | 2 | |
| 8X5121 | 71 TUBE | 1 | |
| 8X7317 | 72 HOSE | 1 | |
| 8X8916 | 73 PLATE | 1 | |
| 9C5344 | 74 SPACER (10.5X20X18-MM THK) | 1 | |
| 9C9467 | 75 CLIP | 1 | |
| 9X8257 | 76 WASHER (17.5X30X3.5-MM THK) | 4 | |
| 5P0765 | 77 HOSE (54-CM) |
