System And Components

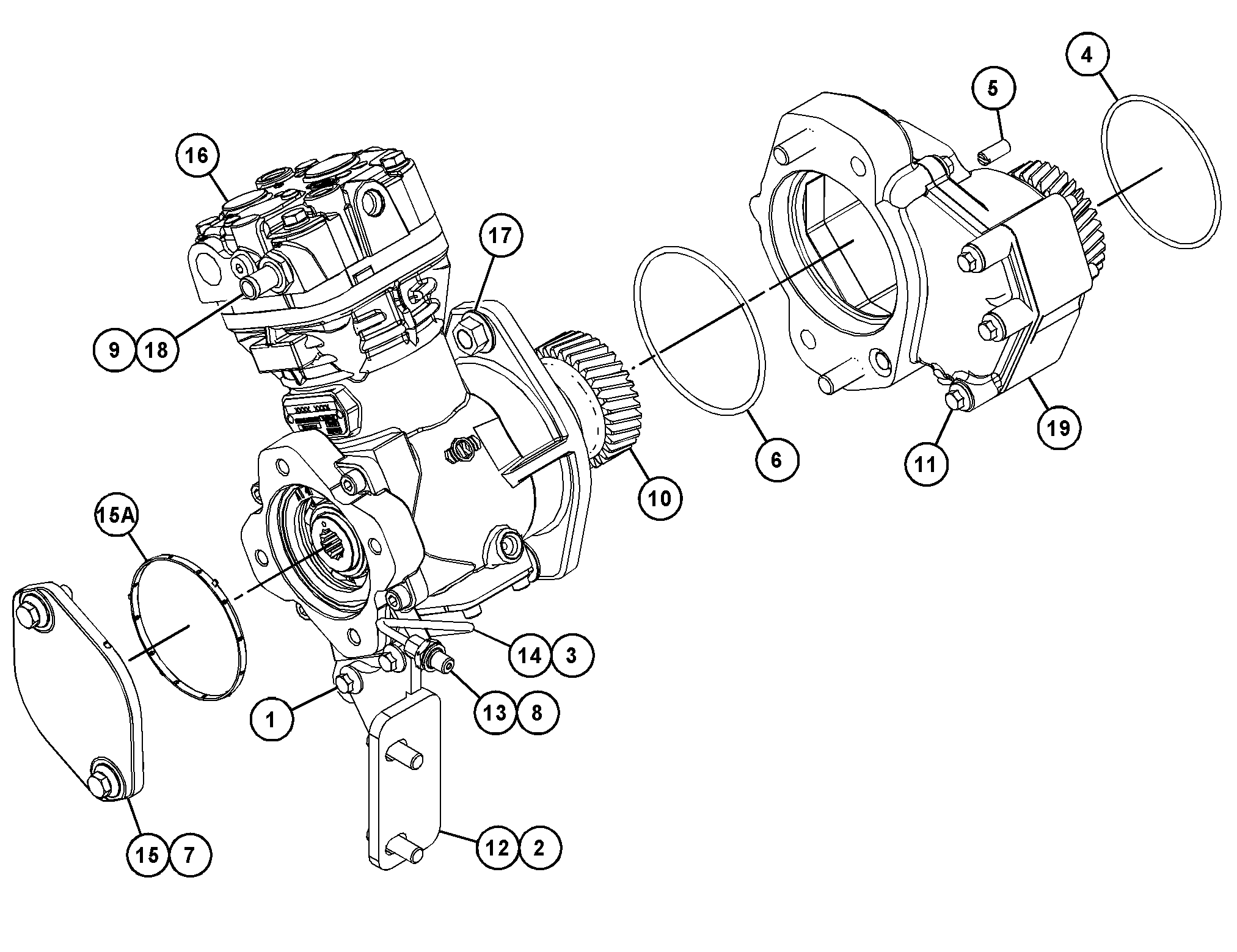

503-8948 HOUSING GP-FRONTS/N 4501-UP
Group No: 503-8948
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6I0217 | 1 BOLT (M8X1.25X20-MM) | 2 | |
| 6I0302 | 2 BOLT (M10X1.5X25-MM) | 2 | |
| 0358017 | 3 UNION | 1 | |
| 1022073 | 4 SEAL-O-RING | 1 | |
| 1138076 | 5 PIN | 1 | |
| 1263219 | 6 SEAL-O-RING | 1 | |
| 6I0654 | 7 BOLT (M10X1.5X25-MM) | 2 | |
| 2143203 | 8 WASHER (SEALING) | 1 | |
| 2474928 | 9 WASHER (16.5X20.5X1.6-MM THK) | 2 | |
| 2592623 | 10 GEAR (34-TEETH) | 1 | |
| 2733691 | 11 BOLT (M8X1.25X80-MM) | 4 | |
| 2931876 | 12 BRACKET | 1 | |
| 2931878 | 13 CONNECTION | 1 | |
| 3216120 | 14 LINES GP-FUEL INJECTION | 1 | |
| 3693866 | 15 PLATE GP-COVER | 1 | |
| 3655317 | 15A SEAL | 1 | |
| 4511179 | 16 COMPRESSOR | 1 | |
| 1840983 | 17 NUT-HEX FLANGE (M12X1.75-THD) | 2 | |
| 2096825 | 18 ADAPTER | 2 | |
| 2931877 | 19 ADAPTER GP-AIR COMPRESSOR | 1 |
