System And Components

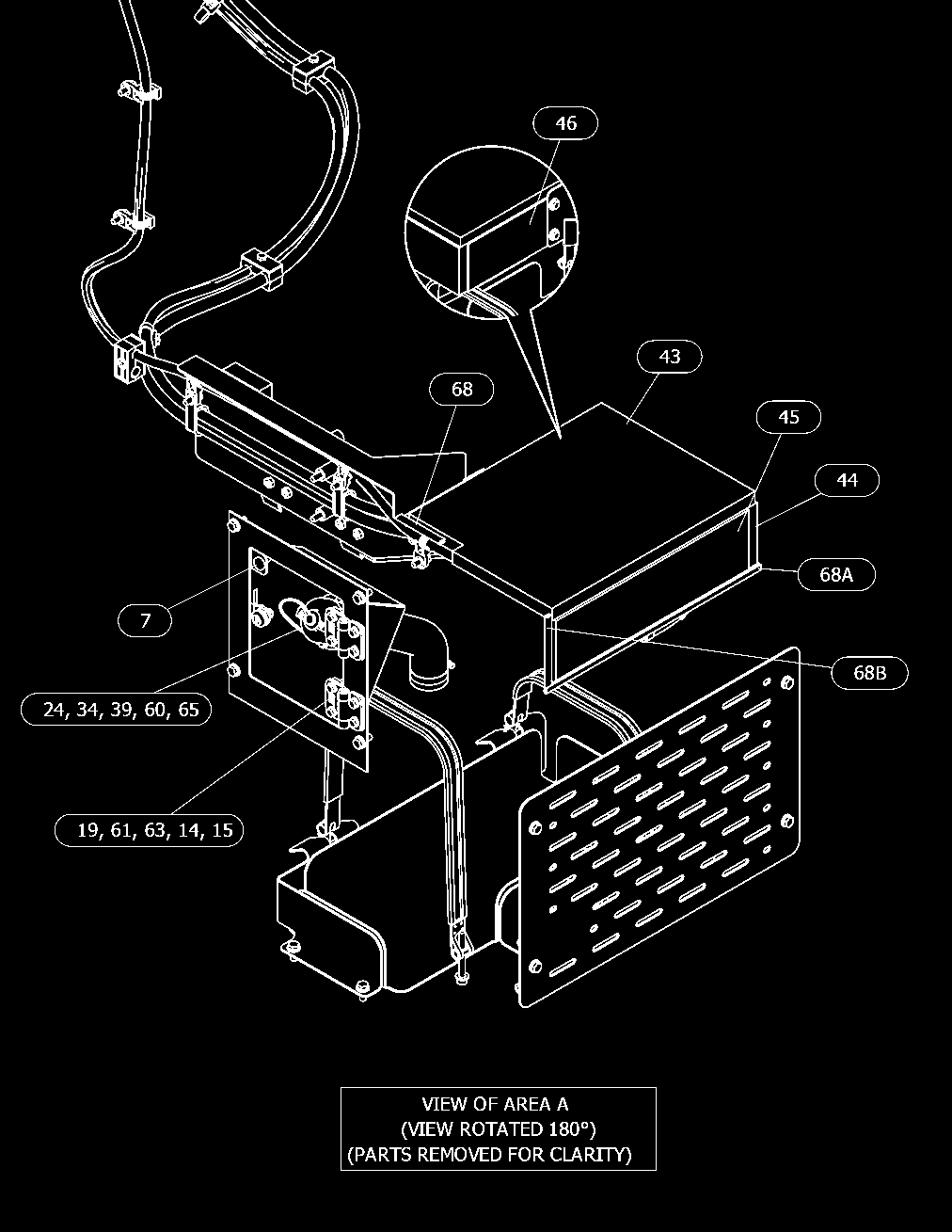

591-8462 LINES GP-DIESEL EXHAUST FLUIDS/N XS6300-UP
Group No: 591-8462
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1305300 | 1 CLIP | 1 | |
| 2042281 | 2 STRAP-CABLE | 9 | |
| 8T5005 | 3 BOLT (M10X1.5X70-MM) | 2 | |
| 6V5217 | 4 BOLT (M8X1.25X20-MM) | 6 | |
| 7X0818 | 5 BOLT (M8X1.25X45-MM) | 3 | |
| 1028705 | 6 PLATE (TOP) | 3 | |
| 1111777 | 7 BUMPER-RUBBER | 1 | |
| 1246257 | 8 CLAMP-HOSE | 4 | |
| 1325789 | 9 CLIP (LADDER) | 1 | |
| 1772215 | 10 STRAP-DUAL CLAMP | 3 | |
| 2006345 | 11 SADDLE-MOUNTING (DUAL SWIVEL) | 1 | |
| 2048000 | 12 MOUNTING-CABLE TIE | 7 | |
| 2082683 | 13 SPACER (13.9X21.3X46-MM THK) | 2 | |
| 2567669 | 14 PLATE | 4 | |
| 2567670 | 15 SPACER | 2 | |
| 2888405 | 16 CLAMP-HALF | 6 | |
| 2895248 | 17 CAM | 1 | |
| 2905562 | 18 MOUNT (DUAL SWIVEL) | 1 | |
| 2964090 | 19 HINGE AS | 2 | |
| 3260314 | 20 CONNECTOR AS | 1 | |
| 4K1388 | SEAL-O-RING | 1 | |
| 3260313 | CONNECTOR | 1 | |
| 3510276 | 21 CONNECTOR AS | 1 | |
| 6V3250 | SEAL-O-RING | 1 | |
| 2977964 | CONNECTOR | 1 | |
| 3514322 | 22 CLIP (LOOP) | 2 | |
| 3540817 | 23 CONNECTOR-HOSE | 1 | |
| 3875472 | 24 LANYARD | 1 | |
| 3896955 | 25 LOCK AS | 1 | |
| 3899523 | 26 DOOR | 1 | |
| 3920915 | 27 STRAP AS | 1 | |
| 3920916 | 28 STRAP AS | 1 | |
| 3920933 | 29 PAD | 1 | |
| 3971529 | 30 FOAM | 1 | |
| 3978286 | 31 PLATE | 1 | |
| 3978287 | 32 PLATE | 2 | |
| 3979110 | 33 PLATE AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 6 | |
| 2537911 | BOSS-TAPPED | 1 | |
| 3983011 | 34 CAP-TANK FILLER (DIESEL EXHAUST FLUID) | 1 | |
| 4159349 | 35 PLATE | 3 | |
| 4159350 | 36 BAFFLE | 1 | |
| 4264053 | 37 ELBOW AS | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 2977987 | ELBOW | 1 | |
| 4457647 | 38 HOSE | 1 | |
| 4460473 | 39 ADAPTER AS | 1 | |
| 4458648 | ADAPTER-CAP | 1 | |
| 4512774 | SCREEN AS | 1 | |
| 4510501 | 40 VALVE AS-BALL (DEF DRAIN) | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 4652702 | 41 COVER AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 6 | |
| 4652704 | 42 PLATE AS | 1 | |
| 7T1099 | LINK | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 4880910 | 43 INSULATION | 1 | |
| 4880911 | 44 INSULATION | 1 | |
| 4880912 | 45 INSULATION | 1 | |
| 4880913 | 46 INSULATION | 1 | |
| 4I0472 | 47 CLIP (LOOP) | 1 | |
| 5399237 | 48 PLATE | 1 | |
| 5685849 | 49 ELBOW AS | 1 | |
| 6V3250 | SEAL-O-RING | 1 | |
| 6V8076 | ELBOW | 1 | |
| 5781461 | 50 HOSE AS | 1 | |
| 5M3062 | 51 BOLT (3/8-16X0.75-IN) | 1 | |
| 5P4116 | 52 WASHER-HARD (8.8X20.5X2-MM THK) | 6 | |
| 6S8620 | 53 CLAMP-HOSE | 1 | |
| 7K1181 | 54 STRAP-CABLE | 5 | |
| 7X7729 | 55 WASHER (11X25X3-MM THK) | 10 | |
| 8M2773 | 56 CLIP (LOOP) | 1 | |
| 8T4121 | 57 WASHER-HARD (11X21X2.5-MM THK) | 25 | |
| 8T4136 | 58 BOLT (M10X1.5X25-MM) | 24 | |
| 8T4137 | 59 BOLT (M10X1.5X20-MM) | 7 | |
| 8T4138 | 60 BOLT (M6X1X20-MM) | 6 | |
| 8T4224 | 61 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 8T4896 | 62 WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 8T4908 | 63 BOLT (M8X1.25X25-MM) | 8 | |
| 9M0164 | 64 CLAMP-HOSE | 2 | |
| 9X8256 | 65 WASHER (6.6X12X2-MM THK) | 6 | |
| 6V8523 | 66 HOSE (78.7-CM) | ||
| 6V8523 | 66A HOSE (286-CM) | ||
| 3519048 | 67 HOSE (319-CM) | ||
| 7X7877 | 68 STRIP-EDGE (10-CM) | ||
| 7X7877 | 68A STRIP-EDGE (49.5-CM) | ||
| 7X7877 | 68B STRIP-EDGE (14-CM) |
