System And Components

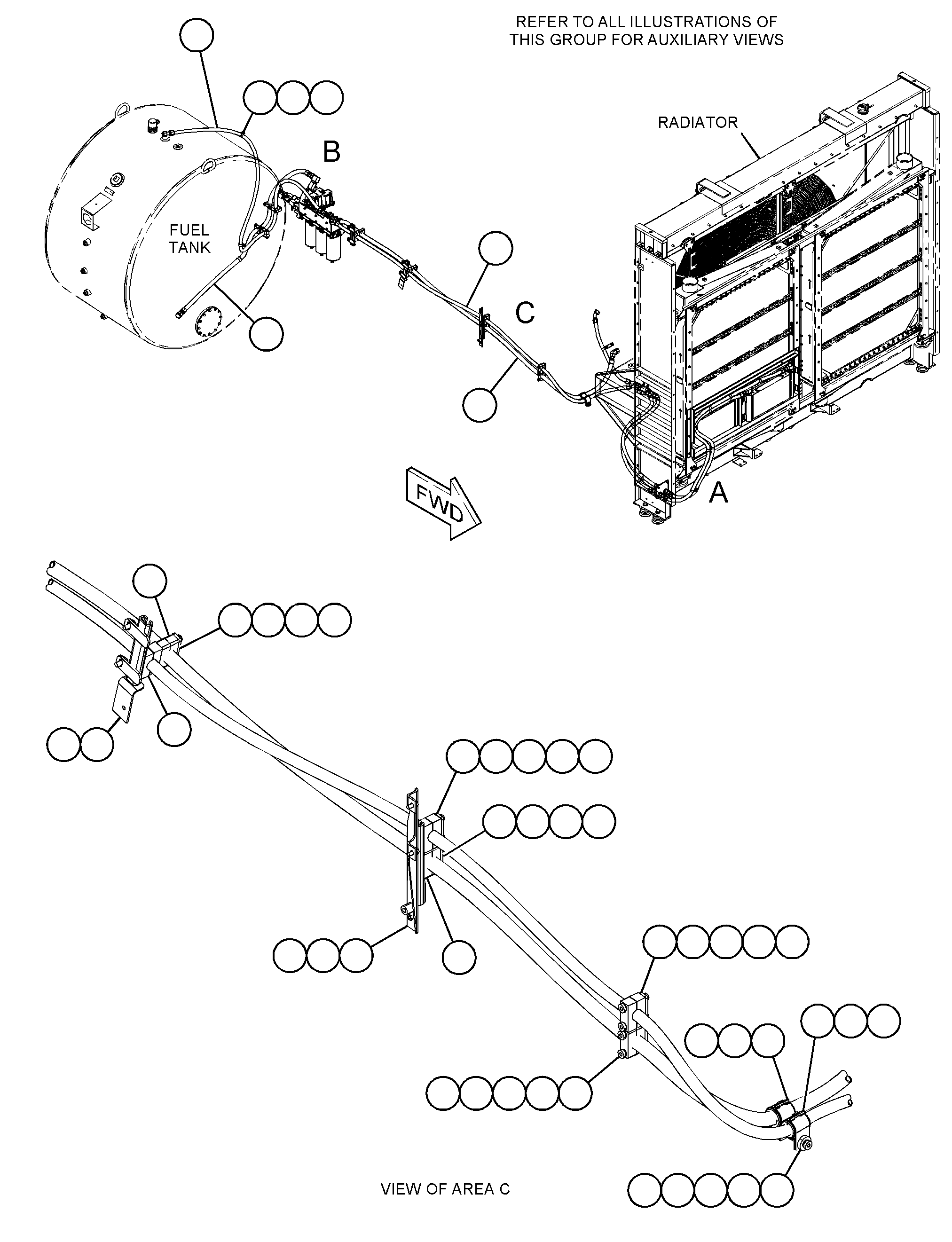

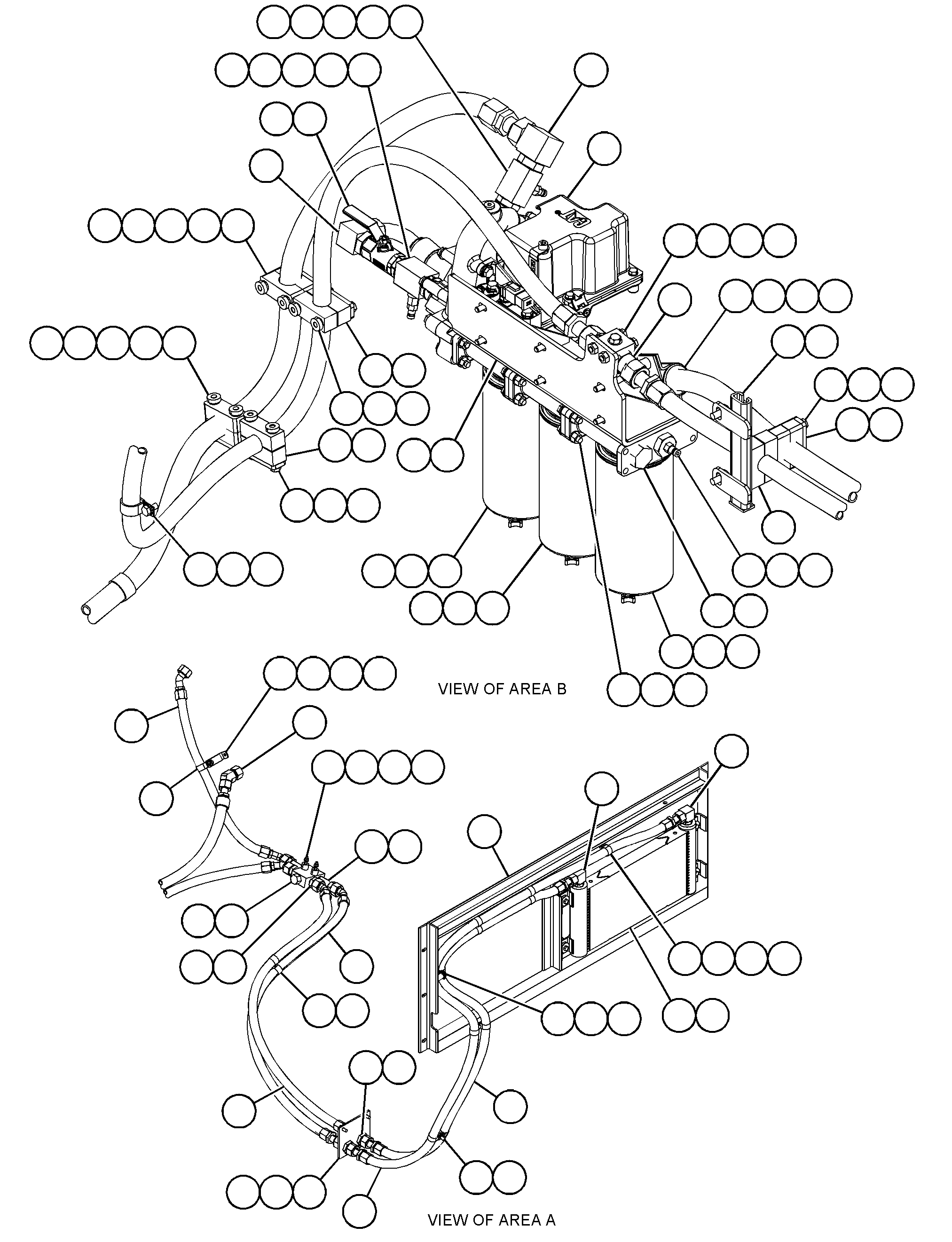

514-1071 LINES GP-FUELS/N HRT107-UP
Group No: 514-1071
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8W5161 | 1 MANIFOLD | 1 | |
| 9L1566 | 2 SUPPORT | 1 | |
| 1488373 | 3 ELBOW AS | 1 | |
| 6V8400 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8C3364 | ELBOW | 1 | |
| 2067013 | 4 FASTENER | 21 | |
| 2790143 | 5 VALVE | 1 | |
| 3193772 | 6 ADAPTER-STR | 2 | |
| 3196220 | 7 ELBOW AS | 1 | |
| 6V9008 | ELBOW | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3211326 | 8 BASE AS-FILTER | 3 | |
| 3232268 | STUD-HOLLOW | 1 | |
| 3574574 | 9 ADAPTER AS | 1 | |
| 8D8428 | ADAPTER | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3664699 | 10 PLUG AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 3603692 | PLUG (9/16-18-THD) | 1 | |
| 3985628 | 12 ELBOW AS | 1 | |
| 1420038 | ELBOW | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 4328132 | 14 CLAMP | 6 | |
| 4357022 | 15 PLATE-COVER | 10 | |
| 4385386 | 16 FILTER AS-WATER SEP & FUEL (ULTRA HIGH EFFICIENCY) | 3 | |
| 4790856 | FILTER AS-WATER SEP & FUEL (ULTRA HIGH EFFICIENCY) | 3 | |
| 4580875 | 18 CORE AS (FUEL COOLER) | 1 | |
| 3614742 | ISOLATOR | 4 | |
| 4684351 | 19 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8Y3795 | BOSS (M10X1.5X40-MM) | 1 | |
| 4687941 | 20 BRACKET AS | 1 | |
| 4689708 | 21 CLAMP-HALF | 12 | |
| 5115018 | 22 PUMP GP-FUEL | 1 | |
| 5131402 | 23 BRACKET AS | 1 | |
| 5141257 | 24 PLATE | 1 | |
| 5141264 | 25 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 5 | |
| 8Y4489 | BOSS (M10X1.5X35-MM) | 3 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 1 | |
| 0919035 | 26 SPACER (11X25X20-MM THK) | 2 | |
| 1358573 | 27 BOLT AS | 4 | |
| 1488317 | 28 CONNECTOR AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V8714 | CONNECTOR | 1 | |
| 1488362 | 29 ELBOW AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 8T6684 | ELBOW | 1 | |
| 1552026 | 30 UNION AS | 2 | |
| 5K9090 | SEAL-O-RING | 2 | |
| 6V8998 | UNION | 1 | |
| 1594724 | 31 VALVE-BALL | 1 | |
| 1984781 | 33 WASHER-HARD (22X40X10-MM THK) | 1 | |
| 1F7854 | 34 SPACER (11.01X19.05X49.21-MM THK) | 1 | |
| 2256948 | 36 SEAL-O-RING | 6 | |
| 2287093 | 37 SEAL-O-RING | 4 | |
| 2884402 | 38 STUD-TAPERLOCK (M10X1.5X60-MM) | 3 | |
| 2M9780 | 39 SEAL-O-RING | 4 | |
| 3445674 | 40 NUT (M8X1.25-THD) | 2 | |
| 3445675 | 41 NUT (M10X1.5-THD) | 4 | |
| 3J1907 | 43 SEAL-O-RING | 2 | |
| 4264093 | 44 ADAPTER AS | 2 | |
| 2385084 | SEAL-O-RING | 1 | |
| 4264092 | ADAPTER-TEE | 1 | |
| 4423313 | 45 HOSE AS | 1 | |
| 4423321 | 47 CLAMP AS | 1 | |
| 4K9097 | NUT-WELD (5/16-18-THD) | 1 | |
| 9R2640 | BOSS (M12X1.75X25-MM) | 1 | |
| 4779134 | 48 HOSE AS | 1 | |
| 4792171 | 49 BOLT AS | 18 | |
| 4L6454 | 50 BOLT (3/8-16X1-IN) | 2 | |
| 4S4455 | 51 CLIP | 2 | |
| 5141072 | 52 HOSE AS | 1 | |
| 5141080 | 53 HOSE AS | 1 | |
| 5141089 | 54 HOSE AS | 2 | |
| 5696272 | 55 HOSE AS | 1 | |
| 5793616 | 56 HOSE AS | 1 | |
| 5809223 | 57 HOSE AS | 1 | |
| 5M3062 | 58 BOLT (3/8-16X0.75-IN) | 1 | |
| 5P7466 | 59 CLIP (SLOT) | 1 | |
| 5P7467 | 60 CLIP (TAB) | 1 | |
| 5P7468 | 61 CLIP (SLOT) | 2 | |
| 5P7469 | 62 CLIP (TAB) | 2 | |
| 5P7701 | 63 SEAL-O-RING | 2 | |
| 5P8112 | 64 GROMMET | 1 | |
| 5P8444 | 65 GROMMET (37-MM ID) | 2 | |
| 5P9617 | 66 ADAPTER | 2 | |
| 5S7379 | 67 BOLT (3/8-16X0.875-IN) | 2 | |
| 6V1889 | 68 CLIP (LOOP) | 14 | |
| 6V5048 | 69 SEAL-O-RING | 3 | |
| 6V9172 | 70 NUT (1-7/16-12-THD) | 2 | |
| 7X2544 | 71 BOLT (M10X1.5X140-MM) | 4 | |
| 8C3446 | 72 VALVE-SAMPLING | 3 | |
| 8T4121 | 73 WASHER-HARD (11X21X2.5-MM THK) | 49 | |
| 8T4133 | 74 NUT (M10X1.5-THD) | 8 | |
| 8T4137 | 75 BOLT (M10X1.5X20-MM) | 1 | |
| 8T4172 | 76 BOLT (M10X1.5X80-MM) | 16 | |
| 8T4177 | 77 BOLT (M8X1.25X90-MM) | 2 | |
| 8T4178 | 78 BOLT (M10X1.5X90-MM) | 1 | |
| 8T4182 | 79 BOLT (M10X1.5X45-MM) | 8 | |
| 8T4186 | 80 BOLT (M10X1.5X40-MM) | 4 | |
| 8T4224 | 81 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 8T4896 | 82 WASHER-HARD (10.2X18.5X2.5-MM THK) | 3 | |
| 8T5005 | 83 BOLT (M10X1.5X70-MM) | 2 | |
| 8T9386 | 84 CONNECTOR | 2 | |
| 9S4181 | 85 PLUG (1-5/16-12-THD) | 1 |
