System And Components

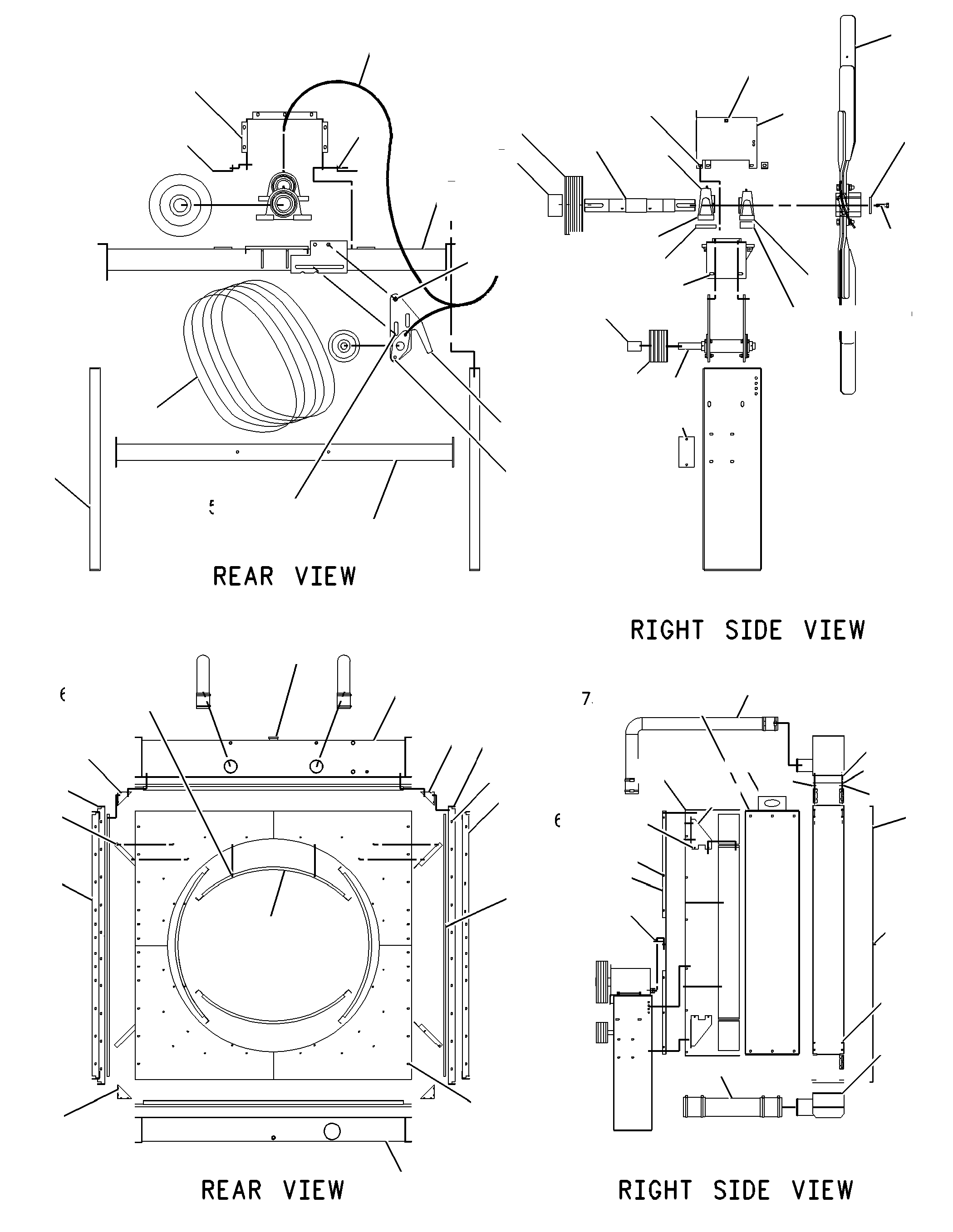

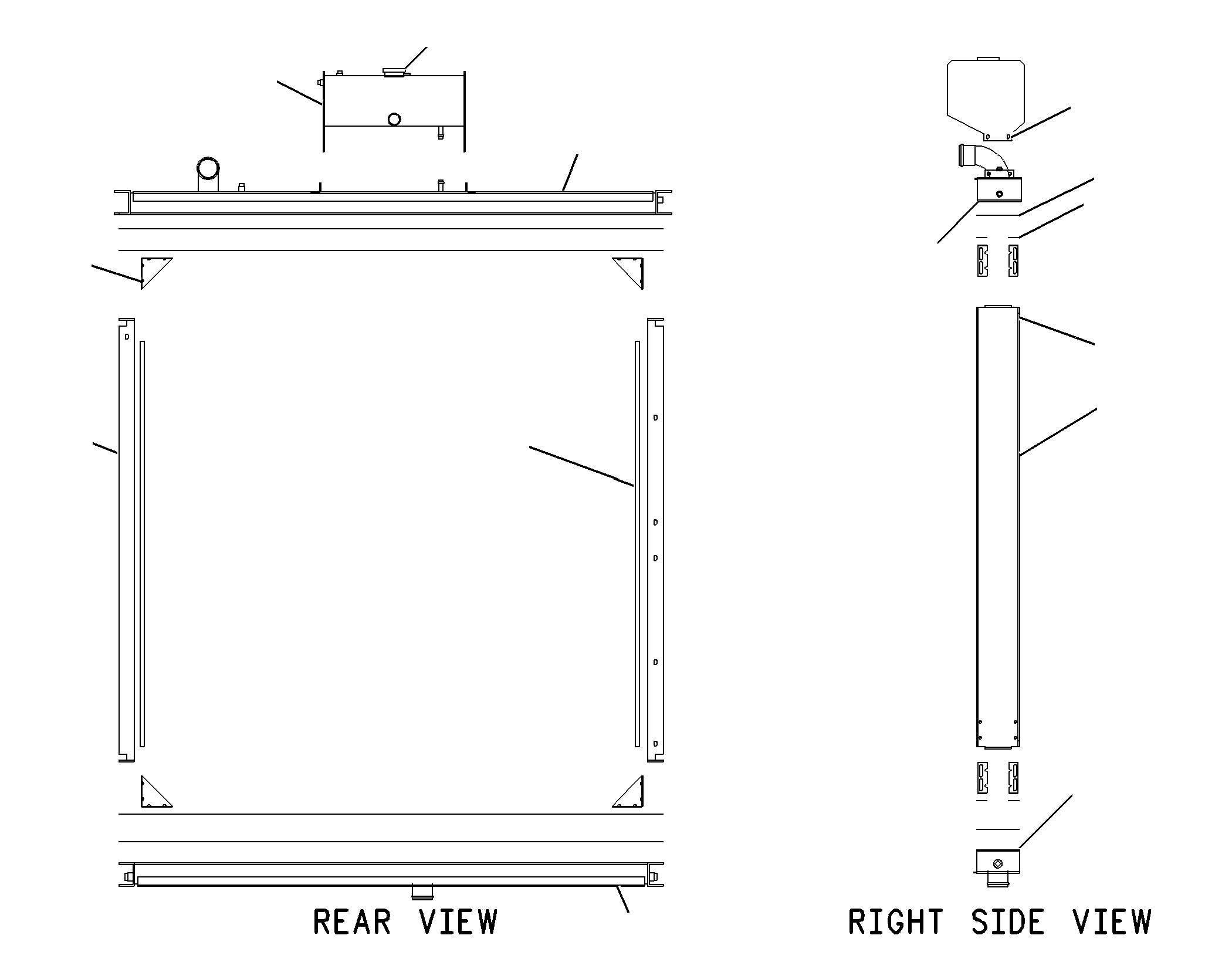

171-5615 RADIATOR & FAN GPS/N 5KW1-UP
Group No: 171-5615
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1531398 | 1 TANK-COOLANT (RADIATOR) | 1 | |
| 1531399 | 2 TANK-COOLANT (RADIATOR) | 1 | |
| 1531400 | 3 GASKET | 2 | |
| 1723853 | 4 STRAP | 2 | |
| 1531402 | 5 GUSSET | 16 | |
| 1531403 | 6 CAP AS-RADIATOR | 2 | |
| 1530264 | 7 BRACKET-SIDE | 2 | |
| 1652042 | 8 SEAL | 4 | |
| 1531406 | 9 GUARD | 1 | |
| 1772896 | 10 PIPE (88.9-MM OD)(994.1-MM LENGTH) | 2 | |
| 1531430 | 11 COWLING | 1 | |
| 1531409 | 12 GUSSET | 4 | |
| 1531410 | 13 COWLING AS | 4 | |
| 1531411 | 14 GUARD AS-FAN | 1 | |
| 1772031 | 15 PIPE (127-MM OD)(310-MM LENGTH) | 1 | |
| 1531414 | 16 BRACKET-SUPPORT | 2 | |
| 1700500 | 17 SUPPORT (BEARING) | 1 | |
| 1531416 | 18 GUARD | 1 | |
| 1531417 | 19 BRACE | 1 | |
| 1531418 | 20 SHAFT-FAN | 1 | |
| 1531419 | 21 WASHER | 1 | |
| 1530261 | 22 FAN AS (8-BLADE) | 1 | |
| 1723884 | 23 IDLER | 1 | |
| 1530230 | 24 PULLEY | 1 | |
| 1531421 | 25 BUSHING | 1 | |
| 1531422 | 26 SHAFT-IDLER | 1 | |
| 1531423 | 27 BEARING | 1 | |
| 1531424 | 28 BEARING | 1 | |
| 1530250 | 29 V-BELT SET (RADIATOR) | 4 | |
| 1530234 | 30 PULLEY | 1 | |
| 1727009 | 31 BUSHING | 1 | |
| 1700531 | 32 SHIM | 1 | |
| 1531427 | 33 BRACKET (BEARING GUARD) | 2 | |
| 1531428 | 34 STRAP | 2 | |
| 1531904 | 35 BRACKET-LIFTING | 2 | |
| 1585620 | 36 KIT-LUBRICATION (RADIATOR) | 1 | |
| 1703909 | 37 SPACER | 1 | |
| 1531429 | 38 BRACKET-SUPPORT | 2 | |
| 1531861 | 39 TANK-COOLANT (AFTERCOOLER) | 1 | |
| 1531862 | 40 TANK-COOLANT (AFTERCOOLER) | 1 | |
| 1531863 | 41 GASKET | 2 | |
| 1531864 | 42 STRAP | 4 | |
| 1531865 | 43 BRACKET-SIDE | 2 | |
| 1531866 | 44 TANK-EXPANSION | 1 | |
| 8T4908 | 45 BOLT (M8X1.25X25-MM) | 332 | |
| 1700516 | 46 NUT (M8X1.25-THD) | 399 | |
| 9X8256 | 47 WASHER (6.6X12X2-MM THK) | 20 | |
| 3B4508 | 48 LOCKWASHER | 6 | |
| 6V7743 | 49 LOCKNUT (M6X1-THD) | 28 | |
| 1723783 | 50 NUT (M6X1-THD) | 16 | |
| 8T4195 | 51 BOLT (M10X1.5X30-MM) | 8 | |
| 6V7744 | 52 LOCKNUT (M10X1.5-THD) | 8 | |
| 8T4121 | 53 WASHER-HARD (11X21X2.5-MM THK) | 16 | |
| 8T4194 | 54 BOLT (M12X1.75X50-MM) | 4 | |
| 6V7687 | 55 LOCKNUT (M12X1.75-THD) | 4 | |
| 8T4223 | 56 WASHER-HARD (13.5X25.5X3-MM THK) | 14 | |
| 8T7338 | 57 BOLT (M16X2X45-MM) | 2 | |
| 9X8257 | 58 WASHER (17.5X30X3.5-MM THK) | 12 | |
| 8T4778 | 59 LOCKNUT (M16X2-THD) | 6 | |
| 7X2556 | 60 BOLT (M16X2X100-MM) | 2 | |
| 7X2564 | 61 BOLT (M20X2.5X90-MM) | 2 | |
| 6V7688 | 62 LOCKNUT (M20X2.5-THD) | 2 | |
| 8T4123 | 63 WASHER (22X35X3.5-MM THK) | 4 | |
| 8T5460 | 64 BOLT (M20X2.5X40-MM) | 1 | |
| 3B4514 | 65 LOCKWASHER | 1 | |
| 1700511 | 66 BOLT AS | 55 | |
| 1700514 | 67 BOLT AS | 67 | |
| 6V7357 | 68 BOLT (M6X1X25-MM) | 12 | |
| 8T4193 | 69 BOLT (M16X2X50-MM) | 2 | |
| 8T4139 | 70 BOLT (M12X1.75X30-MM) | 6 | |
| 9M8406 | 71 CLIP (LOOP) | 3 | |
| 4N9170 | 72 CLIP | 1 | |
| 8T4244 | 73 NUT (M12X1.75-THD) | 6 |
