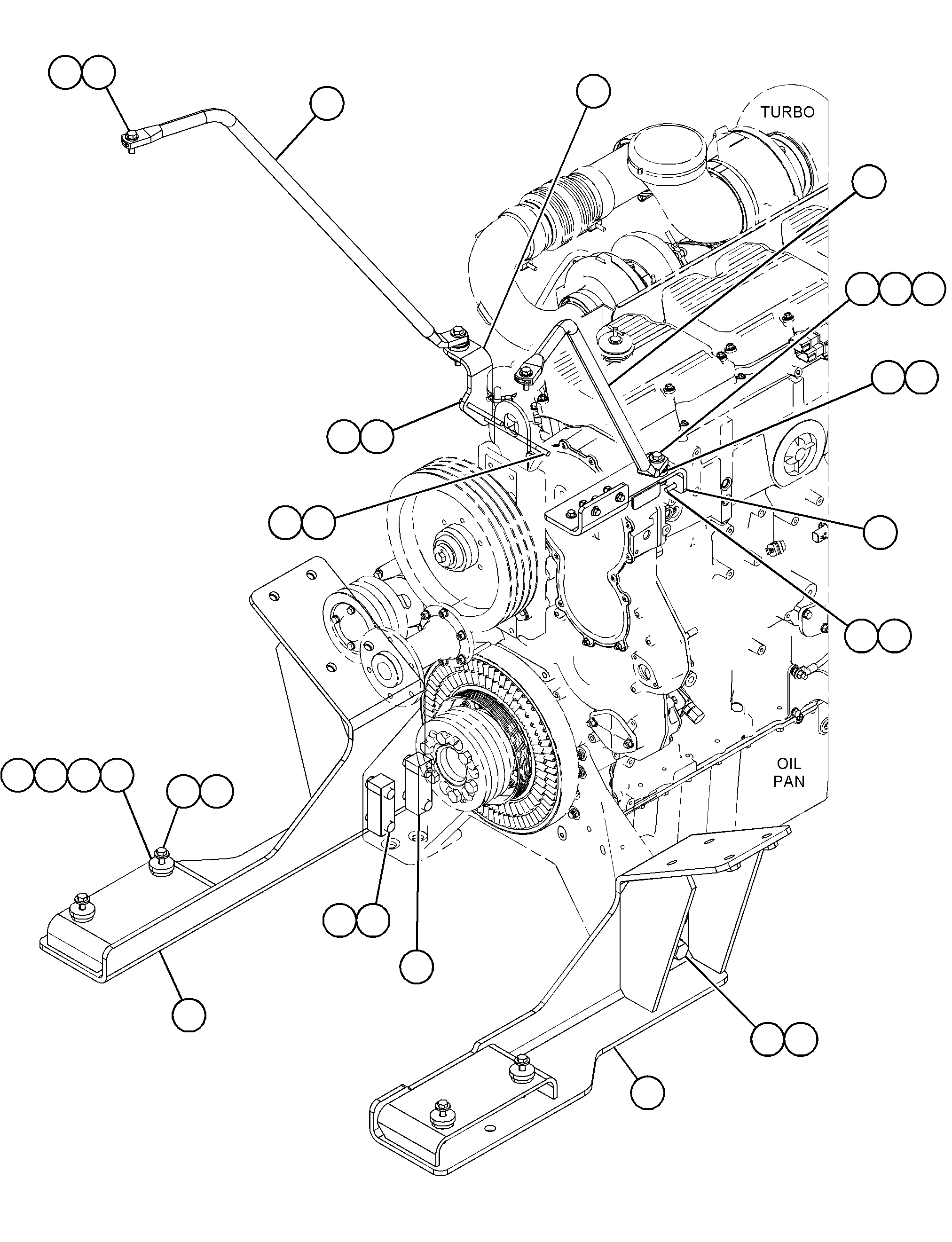

463-8519 MOUNTING GP-RADIATORS/N PCF1-UP

Group No: 463-8519
Part NumberPart NameQty
18607121 PLATE4
36209192 BRACE1
36209203 BRACE1
36209244 BRACKET1
39875945 BRACKET AS1
6V7744LOCKNUT (M10X1.5-THD)4
8T3490NUT-WELD (M10X1.5-THD)4
2089295BOLT-FLANGE HEAD (M10X1.5X40-MM)4
44412066 SUPPORT AS-RADIATOR1
3558941NUT-WELD (M16X2-THD)4
44412097 SUPPORT AS-RADIATOR1
3558941NUT-WELD (M16X2-THD)4
1B10678 WASHER (13.5X50.8X11.1-MM THK)4
32933569 NUT (M12X1.75-THD)6
4L933710 BOLT (3/8-16X1.5-IN)2
5P107611 WASHER-HARD (13.5X30X4-MM THK)6
7T833212 MOUNTING6
7X030213 BOLT (3/8-16X7.5-IN)1
6C321014 BOLT (7/8-9X3-IN)8
7X061815 WASHER-HARD (13.5X40X5-MM THK)8
8C691316 WASHER-HARD (24X41.5X4-MM THK)8
8T417617 BOLT (M12X1.75X90-MM)4
8T418318 BOLT (M12X1.75X40-MM)2
8T422319 WASHER-HARD (13.5X25.5X3-MM THK)2
8T489620 WASHER-HARD (10.2X18.5X2.5-MM THK)4
8T686821 BOLT (M12X1.75X80-MM)2
8T937922 BOLT (3/8-16X4.25-IN)1
