System And Components

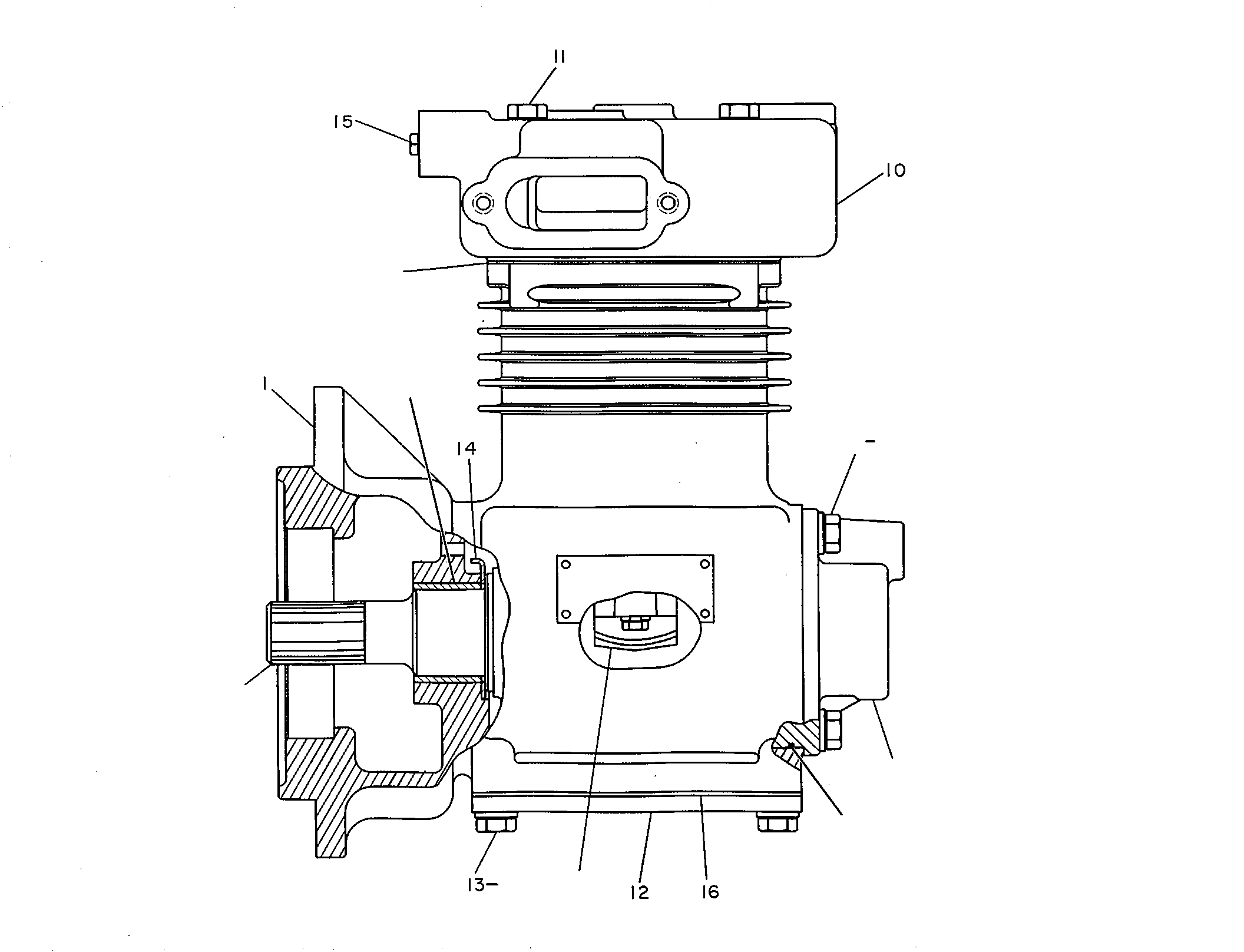

2W-9270 AIR COMPRESSOR GPS/N 08Z36205-57234
Group No: 2W-9270
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7C0561 | 1 CRANKCASE GP-AIR COMPRESSOR | 1 | |
| 7C0562 | 2 CRANKSHAFT-AIR COMPRESSOR | 1 | |
| 7C0563 | 3 PISTON & ROD AS | 1 | |
| 7C0564 | 4 COVER AS-END | 1 | |
| 7C0565 | 5 SEAL-END COVER | 1 | |
| 2B2695 | 6 BOLT (5/16-18X0.875-IN) | 4 | |
| 3B4505 | 7 LOCKWASHER | 8 | |
| 7C0566 | 8 BEARING | 2 | |
| 7C0577 | 9 GASKET-CYLINDER HEAD | 1 | |
| 7C0576 | 10 CYLINDER HEAD AS | 1 | |
| 1D4540 | 11 BOLT (5/16-18X2.75-IN) | 4 | |
| 7C0567 | 12 COVER-BOTTOM | 1 | |
| 0S1617 | 13 BOLT (5/16-18X0.75-IN) | 4 | |
| 9L1518 | 14 WASHER-THRUST | 2 | |
| 5M6214 | 15 PLUG (1/8-27 PTF) | 1 | |
| 7C0568 | 16 GASKET | 1 | |
| 7E9918 | KIT-AIR COMPRESSOR | 1 | |
| 7C0570 | KIT-PISTON RING | 1 | |
| 7C0571 | KIT-UNLOADER | 1 |
