System And Components

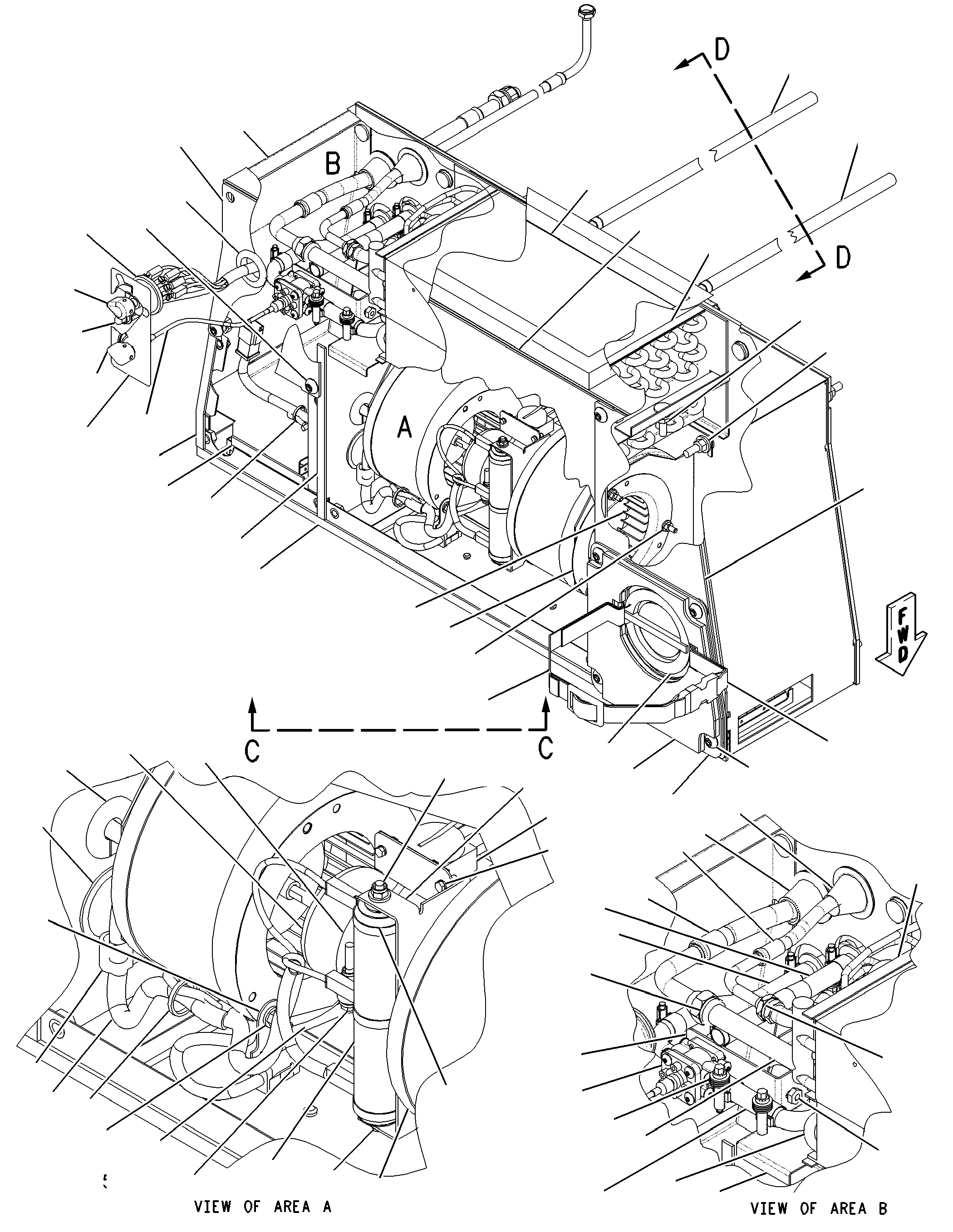

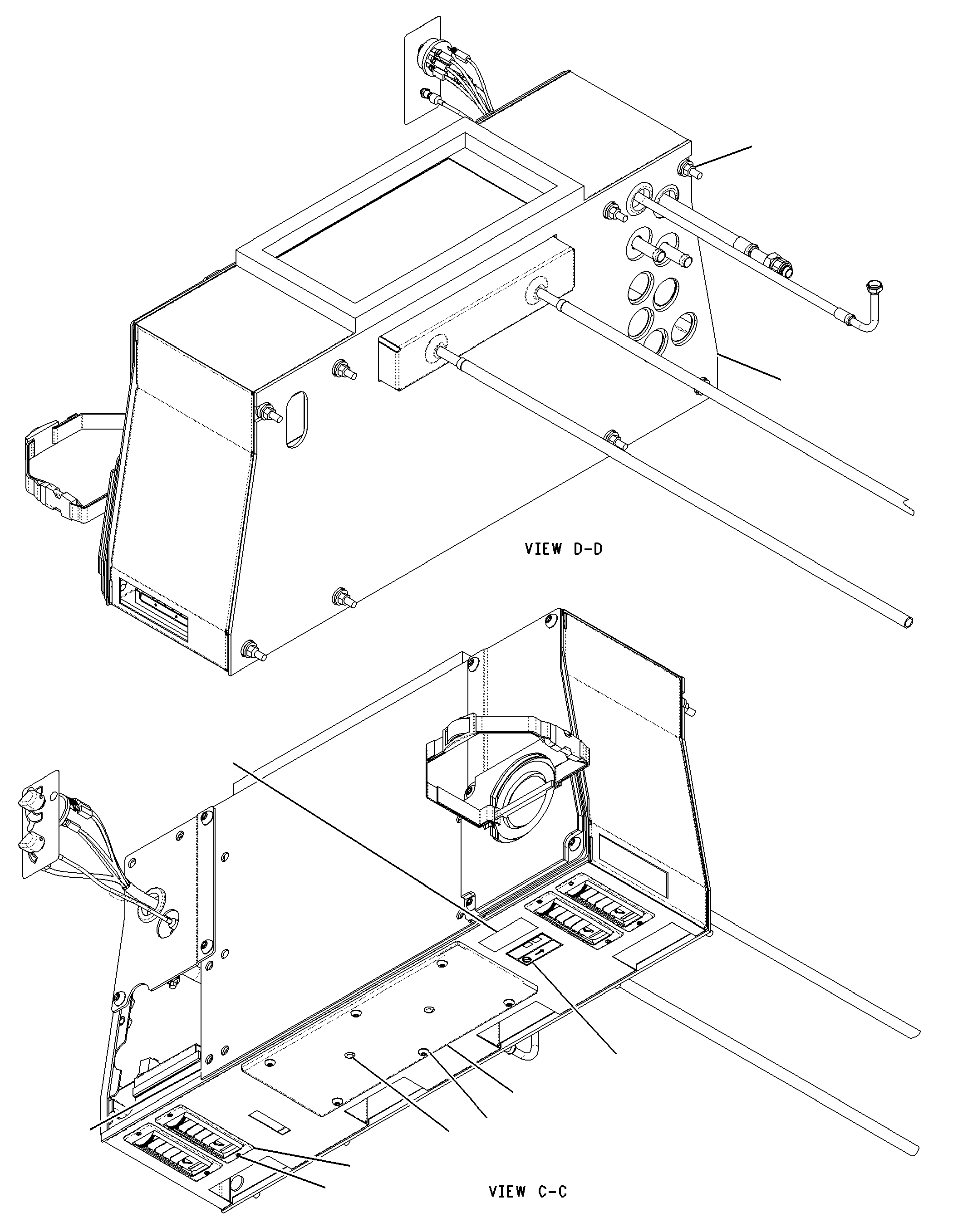

174-4548 AIR CONDITIONER GPS/N 1251-UP
Group No: 174-4548
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2P4339 | 1 NUT-JAM (7/16-28-THD) | 1 | |
| 2V0099 | 2 KNOB-CONTROL (FAN SPEED) | 1 | |
| 3E0400 | 3 WHEEL AS-BLOWER | 2 | |
| 3E3890 | 4 FILM-IDENTIFICATION (FAN SPEED, TEMPERATURE)(HEATER & A/C) | 1 | |
| 3E5464 | 5 SWITCH AS-THERMOSTAT (HVAC)(REFRIGERANT) | 1 | |
| 3S2093 | 6 STRAP-CABLE | 2 | |
| 3T3197 | 7 GROMMET | 1 | |
| 3T3198 | 8 GROMMET | 1 | |
| 5P7803 | 9 PLUG-BUTTON | 2 | |
| 6P3236 | 10 SWITCH AS-ROTARY (FAN SPEED) | 1 | |
| 6V8362 | SCREW-MACHINE (8-32X0.31-IN) | 5 | |
| 9B7233 | LOCKWASHER | 5 | |
| 6T5345 | 11 BUSHING-TERMINAL | 1 | |
| 6T6708 | 12 WASHER (7X28.6X4.1-MM THK) | 2 | |
| 2044376 | 13 CAP-PROTECTIVE | 1 | |
| 7G4824 | 14 STRAP | 1 | |
| 7T9793 | 15 VALVE-CHECK (EVAPORATOR DRAIN) | 2 | |
| 8C3756 | 16 FILM-IDENTIFICATION (AIR CONDITIONER) | 1 | |
| 8C4586 | 17 CLAMP | 2 | |
| 8C5223 | PLUG-SEAL | 2 | |
| 8D1429 | 18 LAMP (24-VOLT)(HVAC PANEL) | 1 | |
| 8E7791 | 19 STRAP | 1 | |
| 8P5141 | 20 PLATE-ORIFICE | 2 | |
| 8X5536 | 21 COVER | 1 | |
| 8X5538 | 22 COVER AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 8X5540 | 23 COVER | 1 | |
| 8X7152 | 24 HOSE AS | 1 | |
| 8X7153 | 25 HOSE AS | 1 | |
| 8Y6388 | 26 LOUVER AS-VENT | 4 | |
| 9G1950 | 27 RESISTOR | 1 | |
| 9X2185 | 28 SCREW (8-15X0.44-IN) | 4 | |
| 9X2488 | 29 CLAMP-HOSE | 6 | |
| 9X9653 | 30 COIL AS-EVAPORATOR | 1 | |
| 9X9654 | 31 COIL AS-HEATER | 1 | |
| 1106393 | 32 PLATE-INSTRUCTION (AIR CONDITIONER) | 1 | |
| 1234618 | 33 COVER | 1 | |
| 1234701 | 34 SEAL | 1 | |
| 1241431 | 35 BRACKET | 1 | |
| 1241432 | 36 HOUSING AS | 1 | |
| 7T1099 | LINK | 1 | |
| 8P5141 | PLATE-ORIFICE | 2 | |
| 1243137 | 37 BRACKET | 1 | |
| 1243138 | 38 SEAL | 1 | |
| 1249006 | 39 SHAFT | 1 | |
| 1249007 | 40 SHAFT AS | 1 | |
| 4L5966 | SETSCREW (10-32X0.25-IN) | 2 | |
| 1250438 | 41 GASKET | 1 | |
| 1294935 | 42 SEAL | 1 | |
| 1424940 | 43 PLATE AS | 1 | |
| 1741494 | 44 MOTOR AS-BLOWER (24-VOLT, A/C, HEATER)(AIR CONDITIONER) | 1 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1744492 | 45 COVER | 1 | |
| 1744971 | 46 SUPPORT AS | 1 | |
| 1746353 | 47 PLATE | 1 | |
| 1765507 | 48 PAD | 1 | |
| 1777858 | 49 HARNESS AS-HEATER & AIR COND | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 1910027 | 50 PAD | 1 | |
| 1042091 | 51 SCREW-FLAT HEAD (6-20X0.5-IN) | 8 | |
| 2065154 | 52 VALVE AS (AIR CONDITIONER) | 1 | |
| 1293178 | 53 LOCKNUT (M6X1-THD) | 4 | |
| 1305300 | 54 CLIP | 1 | |
| 1419784 | 55 BOLT (M6X1X190-MM) | 1 | |
| 3B4501 | 56 LOCKWASHER | 2 | |
| 3H2900 | 57 GROMMET | 1 | |
| 5C2890 | 58 NUT (M6X1-THD) | 7 | |
| 5P1075 | 59 WASHER-HARD (10.2X22.5X3-MM THK) | 13 | |
| 5P9135 | 60 GROMMET | 1 | |
| 6V1668 | 61 WASHER (6.5X29.1X3-MM THK) | 2 | |
| 6V7728 | 62 BOLT (M6X1X45-MM) | 1 | |
| 6V8801 | 63 NUT (3/8-16-THD) | 13 | |
| 7X0591 | 64 WASHER-HARD (17X29X3-MM THK) | 2 | |
| 8T4171 | 65 BOLT (M6X1X12-MM) | 2 | |
| 8T4205 | 66 WASHER-HARD (7.2X14.5X2-MM THK) | 15 | |
| 8T6631 | 67 SCREW-MACHINE (8-32X0.5-IN) | 2 | |
| 9M8406 | 68 CLIP (LOOP) | 1 | |
| 9X2040 | 69 SCREW-TRUSS HEAD (M10X1.5X25-MM) | 4 | |
| 9X2041 | 70 SCREW-TRUSS HEAD (M10X1.5X20-MM) | 5 | |
| 9X2045 | 71 SCREW-TRUSS HEAD (M6X1X20-MM) | 6 | |
| 9X7381 | 72 SEAL-O-RING | 1 | |
| 9X7382 | 73 SEAL-O-RING | 1 | |
| 1361953 | 74 HOSE (8CM) | ||
| 5P5908 | 75 SEAL (2DM) | ||
| 5P5637 | 76 SEAL (36DM) | ||
| 9X2126 | 77 SEAL (160CM) | ||
| 5P6129 | 78 TUBE (.9M) | ||
| 2V0099 | 79 KNOB-CONTROL (TEMPERATURE CONTROL) | 1 | |
| 1361953 | 80 HOSE (17CM) | ||
| 1361953 | 81 HOSE (17CM) | ||
| 5P6129 | 84 TUBE (.9M) |
