System And Components

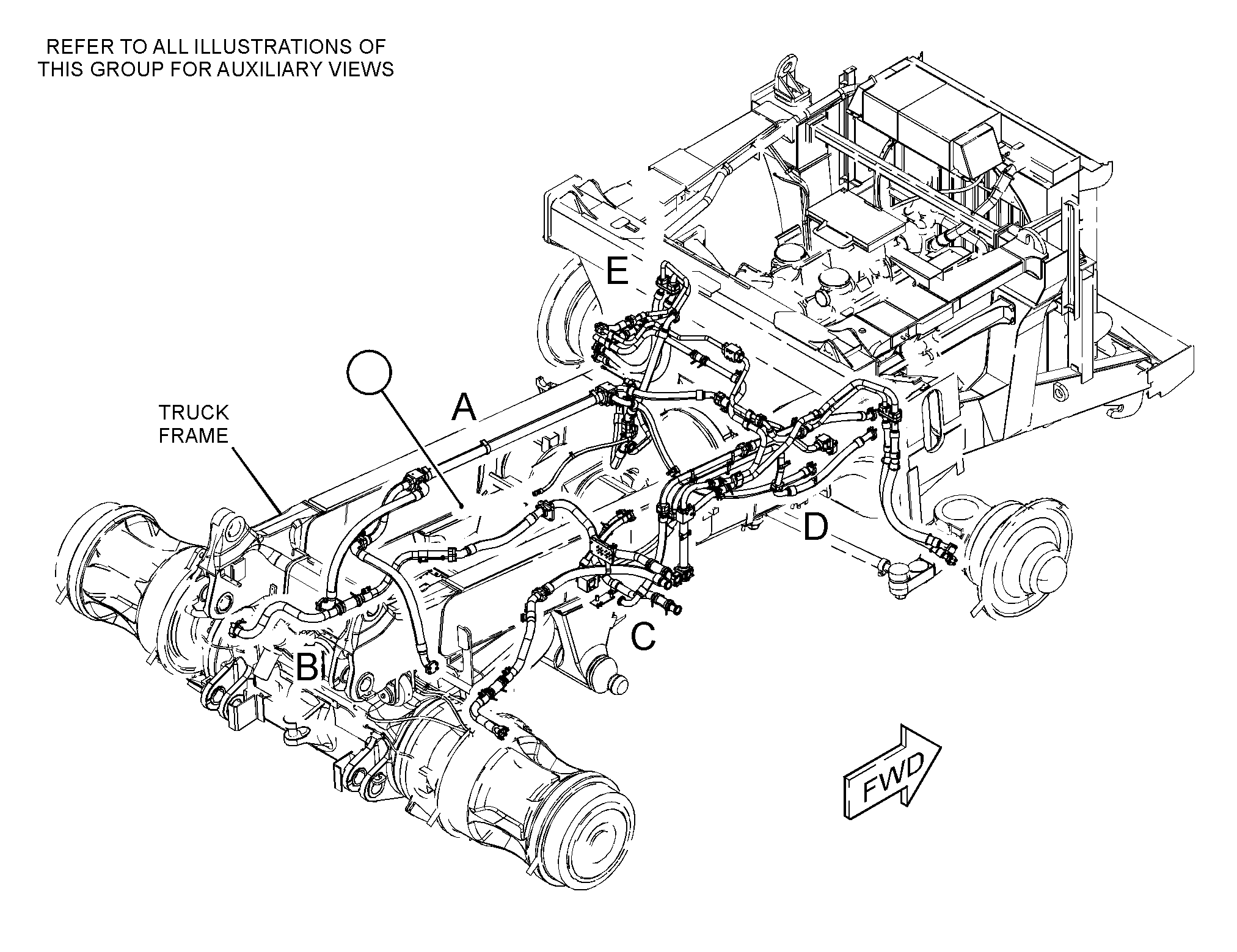

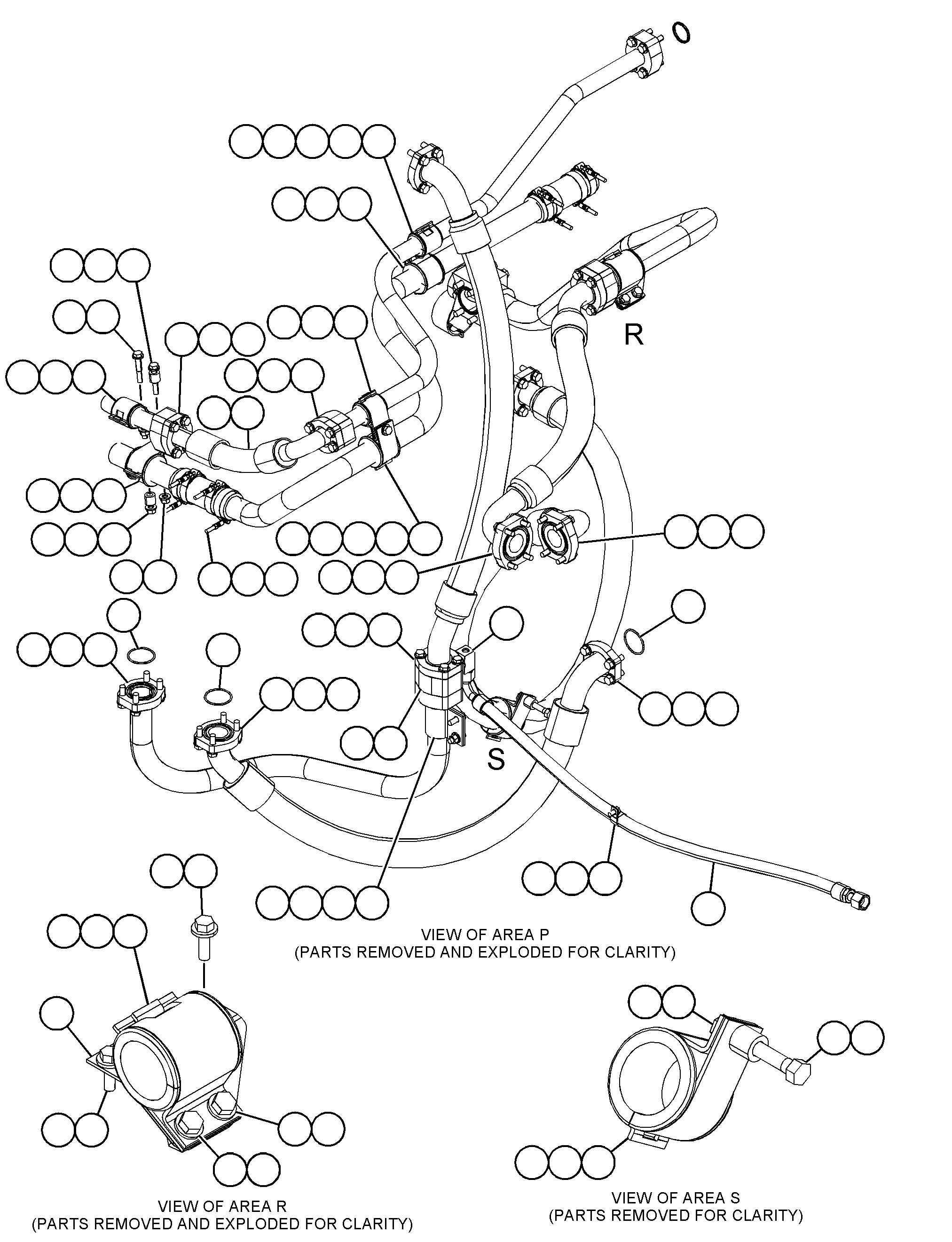

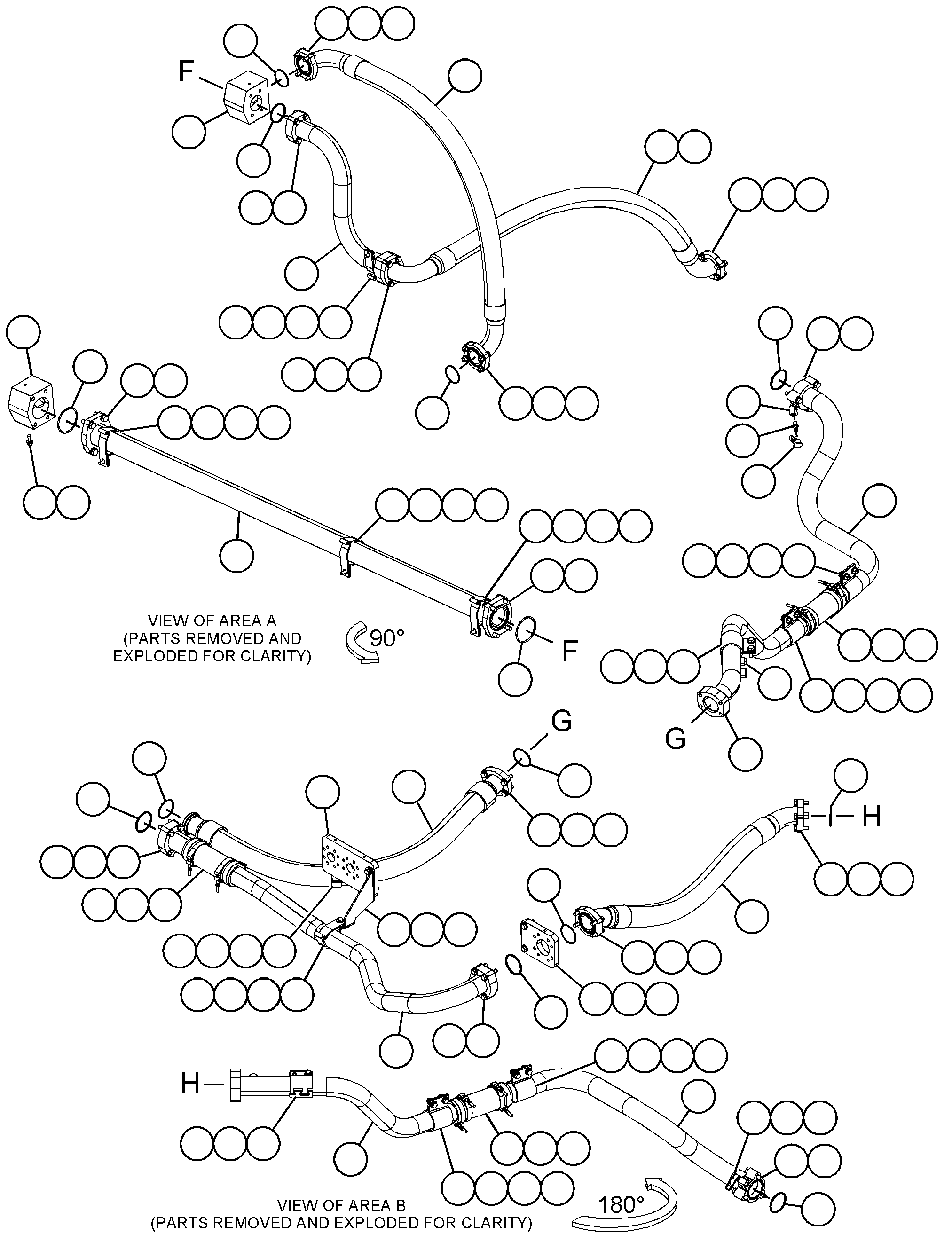

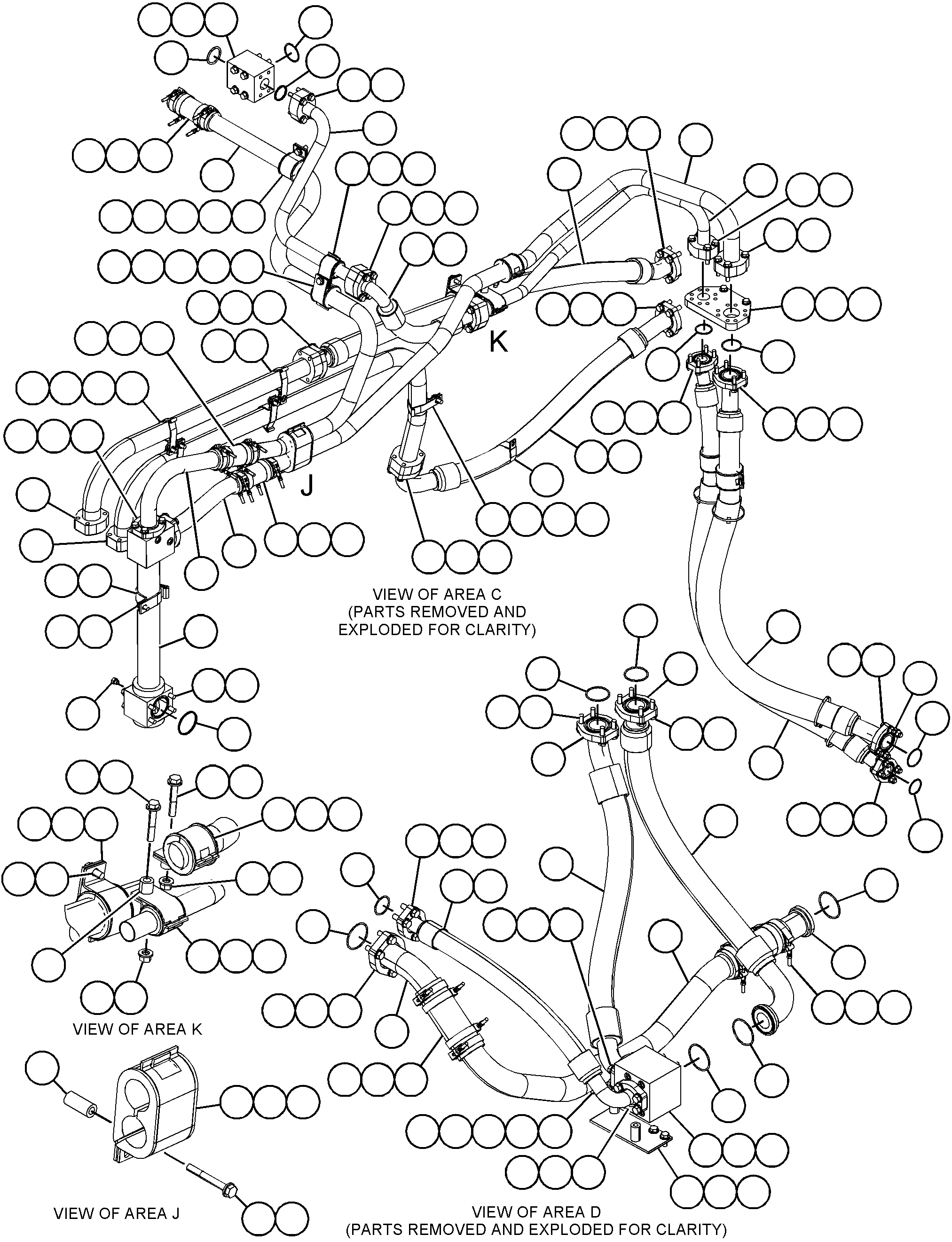

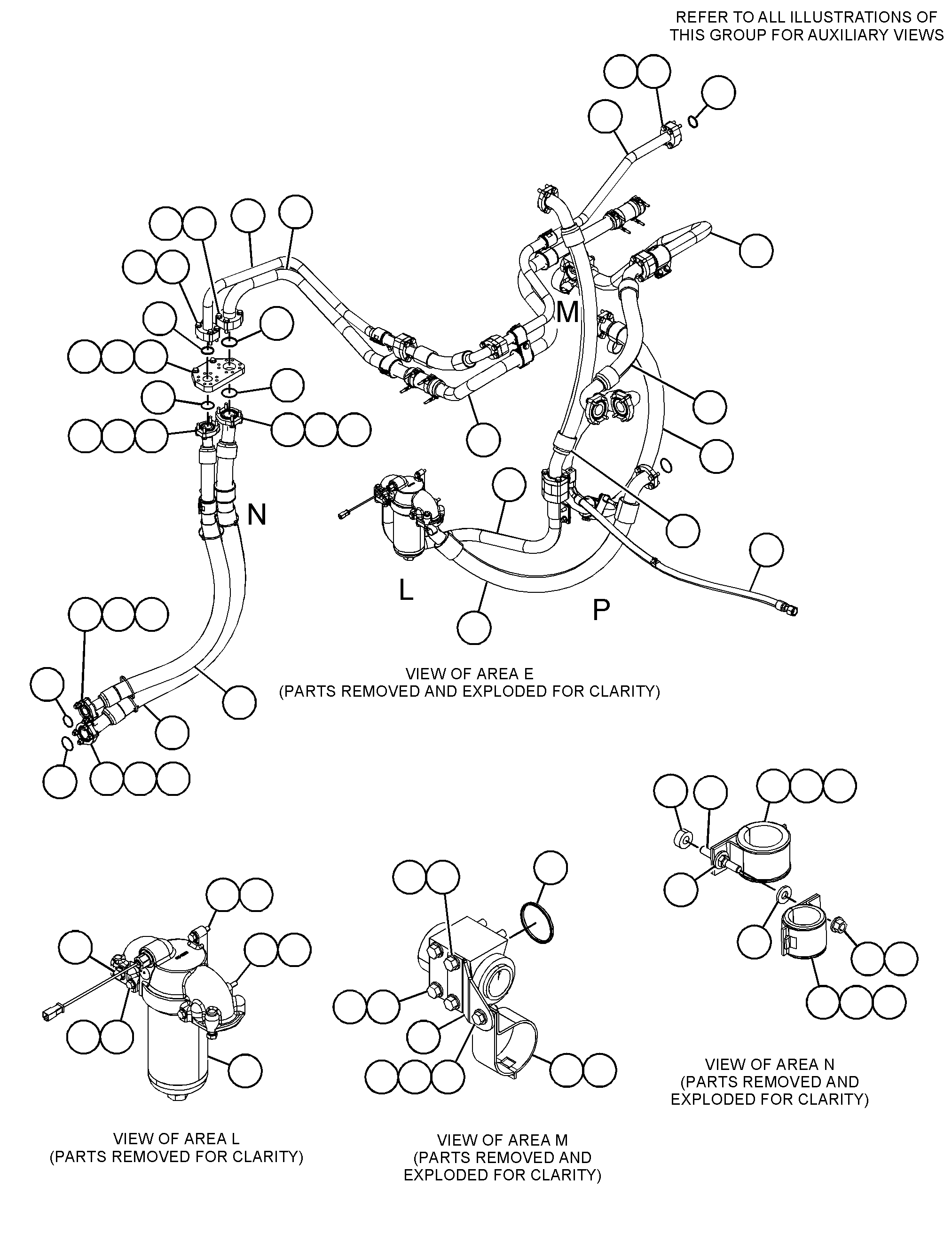

424-8028 LINES GP-BRAKE OIL COOLERS/N SPD705-944
Group No: 424-8028
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2J8298 | 1 HOSE | 3 | |
| 3E4096 | 2 CAP | 36 | |
| 6G1444 | 3 ADAPTER | 1 | |
| 6V0852 | 4 CAP-DUST (HYDRAULIC OIL) | 2 | |
| 5P1293 | 5 HOSE (20-CM) | ||
| 1602737 | 6 BLOCK | 1 | |
| 1669373 | 7 HOSE AS | 1 | |
| 1866434 | 8 SCREEN GP-HYDRAULIC (TC, FRONT BRAKE COOLING) | 1 | |
| 2443712 | 9 PLUG AS | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2903443 | 10 CLIP-2 PIECE | 3 | |
| 2903444 | 11 CLIP-2 PIECE | 3 | |
| 3045250 | 12 HOSE | 2 | |
| 3072670 | 13 PLUG AS | 2 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3159840 | 14 ELBOW AS | 2 | |
| 6V8077 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3196217 | 15 CONNECTOR AS | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3344546 | 16 TUBE AS | 1 | |
| 3344551 | 17 TUBE AS | 1 | |
| 3522894 | 18 HOSE AS | 1 | |
| 3522896 | 19 HOSE AS | 1 | |
| 3555209 | 20 PLATE | 1 | |
| 3555210 | 21 PLATE AS | 1 | |
| 8R7783 | BOSS (M12X1.75X45-MM) | 2 | |
| 9R2640 | BOSS (M12X1.75X25-MM) | 1 | |
| 3555221 | 22 HOSE AS | 1 | |
| 3555222 | 23 HOSE AS | 1 | |
| 3555223 | 24 HOSE AS | 1 | |
| 3555224 | 25 HOSE AS | 1 | |
| 3555227 | 26 HOSE AS | 1 | |
| 3555228 | 27 HOSE AS | 1 | |
| 3565777 | 28 PLATE | 1 | |
| 3566459 | 29 PLATE | 1 | |
| 3566463 | 30 TUBE AS | 1 | |
| 3574326 | 31 TUBE AS | 1 | |
| 3574327 | 32 TUBE | 1 | |
| 3574328 | 33 TUBE AS | 1 | |
| 3574329 | 34 TUBE AS | 1 | |
| 3574330 | 35 TUBE AS | 1 | |
| 3574331 | 36 TUBE AS | 1 | |
| 3588718 | 37 TUBE AS | 1 | |
| 3588719 | 38 TUBE AS | 1 | |
| 3588724 | 39 TUBE AS | 1 | |
| 3588725 | 40 HOSE AS | 1 | |
| 3588726 | 41 HOSE AS | 1 | |
| 3588727 | 42 HOSE AS | 1 | |
| 3588735 | 43 BLOCK | 2 | |
| 3592885 | 44 MANIFOLD | 1 | |
| 3636799 | 45 HOSE AS | 1 | |
| 3668531 | 46 TUBE AS | 1 | |
| 3822843 | 47 PLATE AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 3854830 | 48 HOSE AS | 1 | |
| 3938122 | 49 PLATE | 1 | |
| 4248033 | 50 HOSE AS | 1 | |
| 4248035 | 51 TUBE AS | 2 | |
| 4248036 | 52 TUBE AS | 1 | |
| 4248037 | 53 TUBE AS | 1 | |
| 4248038 | 54 TUBE AS | 1 | |
| 4248039 | 55 TUBE AS | 1 | |
| 4248040 | 56 TUBE AS | 1 | |
| 4248041 | 57 TUBE AS | 1 | |
| 4248042 | 58 TUBE AS | 1 | |
| 4248043 | 59 TUBE AS | 1 | |
| 4248044 | 60 TUBE AS | 1 | |
| 4248045 | 61 TUBE | 1 | |
| 4248046 | 62 TUBE | 1 | |
| 4375924 | 63 HOSE AS | 1 | |
| 4676114 | 64 STUD | 2 | |
| 4699383 | 65 HOSE AS | 1 | |
| 4699384 | 66 HOSE AS | 1 | |
| 4699385 | 67 HOSE AS | 1 | |
| 4699386 | 68 HOSE AS | 1 | |
| 4699403 | 69 PLATE | 1 | |
| 4831528 | 70 PLATE | 1 | |
| 0673045 | 71 CLIP (LOOP) | 1 | |
| 1043173 | 72 CLIP (LOOP) | 1 | |
| 1081784 | 73 BOLT-SOCKET HEAD (M12X1.75X120-MM) | 4 | |
| 1645567 | 74 COUPLER AS-QUICK DISCONNECT (MALE) | 2 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1932120 | 75 GROMMET | 3 | |
| 1984778 | 76 WASHER-HARD (13.5X30X12-MM THK) | 2 | |
| 1997854 | 77 SPACER (11.8X20X45-MM THK) | 1 | |
| 1P4579 | 78 FLANGE-HALF | 16 | |
| 1P4582 | 79 FLANGE-HALF | 36 | |
| 1P4584 | 80 FLANGE-HALF | 20 | |
| 2094577 | 81 CLAMP | 8 | |
| 2094579 | 82 CLAMP | 12 | |
| 2239985 | 83 CLAMP | 16 | |
| 2343544 | 84 SEAL-O-RING | 10 | |
| 2352476 | 85 SEAL-RECTANGULAR | 4 | |
| 2352478 | 86 SEAL-RECTANGULAR | 1 | |
| 2352479 | 87 SEAL-RECTANGULAR | 2 | |
| 2352480 | 88 SEAL-RECTANGULAR | 1 | |
| 2V0600 | 89 CLAMP-HALF | 2 | |
| 3293356 | 90 NUT (M12X1.75-THD) | 16 | |
| 3295523 | 91 TEE AS | 1 | |
| 8T3312 | TEE | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3445675 | 92 NUT (M10X1.5-THD) | 1 | |
| 3706141 | 93 CLIP (SLOT) | 1 | |
| 3706142 | 94 CLIP (TAB) | 1 | |
| 3706219 | 95 GROMMET | 1 | |
| 3753192 | 96 CLIP (TAB) | 1 | |
| 3753193 | 97 CLIP (SLOT) | 1 | |
| 5P1075 | 98 WASHER-HARD (10.2X22.5X3-MM THK) | 2 | |
| 5P1076 | 99 WASHER-HARD (13.5X30X4-MM THK) | 6 | |
| 5P2424 | 100 BOLT (1/2-13X2.25-IN) | 4 | |
| 6C3241 | 101 BOLT (1/2-13X1.5-IN) | 8 | |
| 5P7468 | 102 CLIP (SLOT) | 5 | |
| 5P7469 | 103 CLIP (TAB) | 5 | |
| 5P7470 | 104 CLIP (SLOT) | 8 | |
| 5P7471 | 105 CLIP (TAB) | 8 | |
| 5P7703 | 106 GROMMET (52-MM ID) | 2 | |
| 5P8444 | 107 GROMMET (37-MM ID) | 5 | |
| 5P9371 | 108 SEAL-RECTANGULAR | 6 | |
| 5S9134 | 109 SEAL-O-RING | 2 | |
| 6V1575 | 110 CLIP (SLOT) | 1 | |
| 6V1576 | 111 CLIP (TAB) | 1 | |
| 6V1867 | 112 CLIP (SLOT) | 5 | |
| 6V1868 | 113 CLIP (TAB) | 5 | |
| 6V1869 | 114 GROMMET (65-MM ID) | 2 | |
| 5P8182 | 115 GROMMET (46-MM ID) | 6 | |
| 6V1877 | 116 GROMMET | 1 | |
| 6V4356 | 117 CLIP (SLOT) | 3 | |
| 6V4357 | 118 CLIP (TAB) | 3 | |
| 6V4590 | 119 SEAL-O-RING | 21 | |
| 6V8188 | 120 NUT (1/2-13-THD) | 1 | |
| 6V8521 | 121 CLAMP-HALF | 12 | |
| 7D5962 | 122 BOLT (1/2-13X3.5-IN) | 1 | |
| 7X0325 | 123 BOLT (1/2-13X2.5-IN) | 6 | |
| 7X0331 | 124 BOLT (1/2-13X4.25-IN) | 6 | |
| 7X0332 | 125 BOLT (1/2-13X4.5-IN) | 2 | |
| 7X0334 | 126 BOLT (1/2-13X5-IN) | 4 | |
| 7X0599 | 127 WASHER-HARD (13X20X2-MM THK) | 4 | |
| 7X7729 | 128 WASHER (11X25X3-MM THK) | 2 | |
| 8T0568 | 129 SEAL-O-RING | 14 | |
| 8T2441 | 130 CLIP (TAB) | 5 | |
| 8T2442 | 131 CLIP (SLOT) | 5 | |
| 8T4121 | 132 WASHER-HARD (11X21X2.5-MM THK) | 6 | |
| 8T4137 | 133 BOLT (M10X1.5X20-MM) | 1 | |
| 8T4139 | 134 BOLT (M12X1.75X30-MM) | 14 | |
| 8T4172 | 135 BOLT (M10X1.5X80-MM) | 1 | |
| 8T4176 | 136 BOLT (M12X1.75X90-MM) | 4 | |
| 8T4182 | 137 BOLT (M10X1.5X45-MM) | 1 | |
| 8T4183 | 138 BOLT (M12X1.75X40-MM) | 2 | |
| 8T4184 | 139 BOLT (M12X1.75X45-MM) | 114 | |
| 8T4186 | 140 BOLT (M10X1.5X40-MM) | 1 | |
| 8T4193 | 141 BOLT (M16X2X50-MM) | 8 | |
| 8T4194 | 142 BOLT (M12X1.75X50-MM) | 7 | |
| 8T4195 | 143 BOLT (M10X1.5X30-MM) | 1 | |
| 8T4223 | 144 WASHER-HARD (13.5X25.5X3-MM THK) | 276 | |
| 8T4648 | 145 BOLT (M12X1.75X70-MM) | 4 | |
| 8T4910 | 146 BOLT (M12X1.75X60-MM) | 32 | |
| 8T4956 | 147 BOLT (M12X1.75X35-MM) | 18 | |
| 8T6408 | 148 BOLT (M10X1.5X160-MM) | 2 | |
| 8T8919 | 149 BOLT (1/2-13X1.75-IN) | 36 | |
| 9B7237 | 150 BOLT (3/8-16X1.25-IN) | 2 | |
| 9F8885 | 151 SPACER (13.5X24X22.2-MM THK) | 5 | |
| 9X2646 | 152 CLIP (SLOT) | 1 | |
| 9X2647 | 153 CLIP (TAB) | 1 | |
| 9X8257 | 154 WASHER (17.5X30X3.5-MM THK) | 8 |
