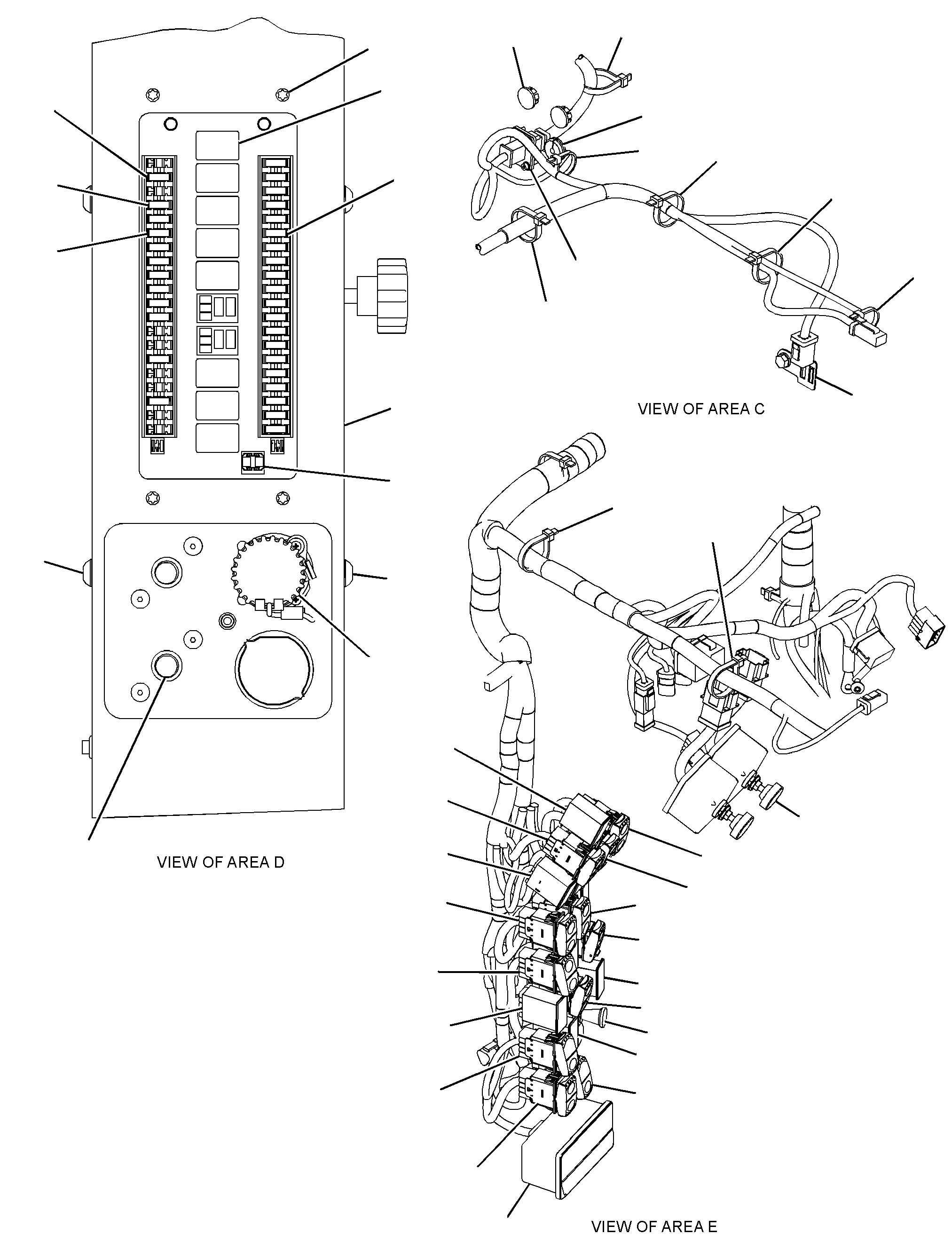

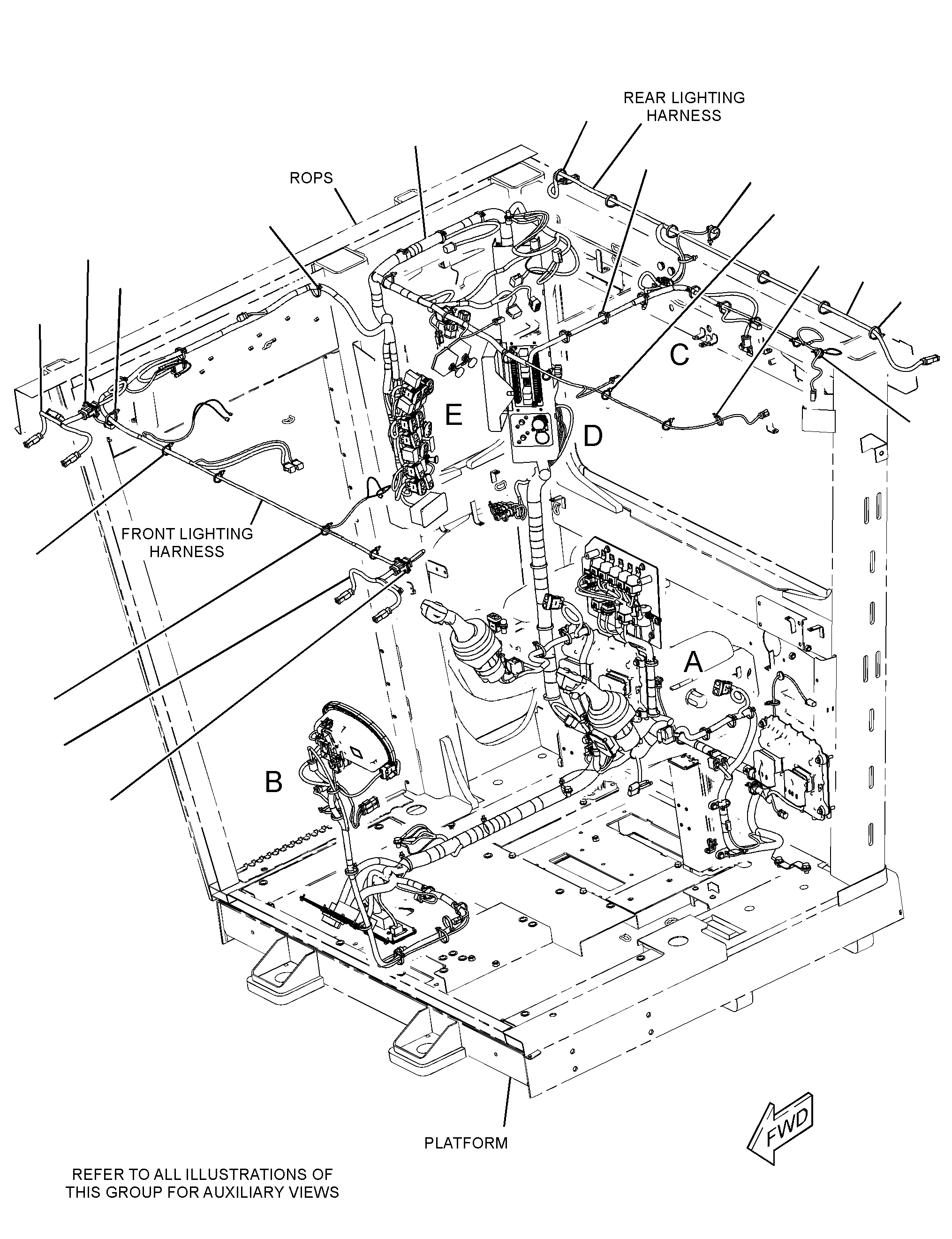

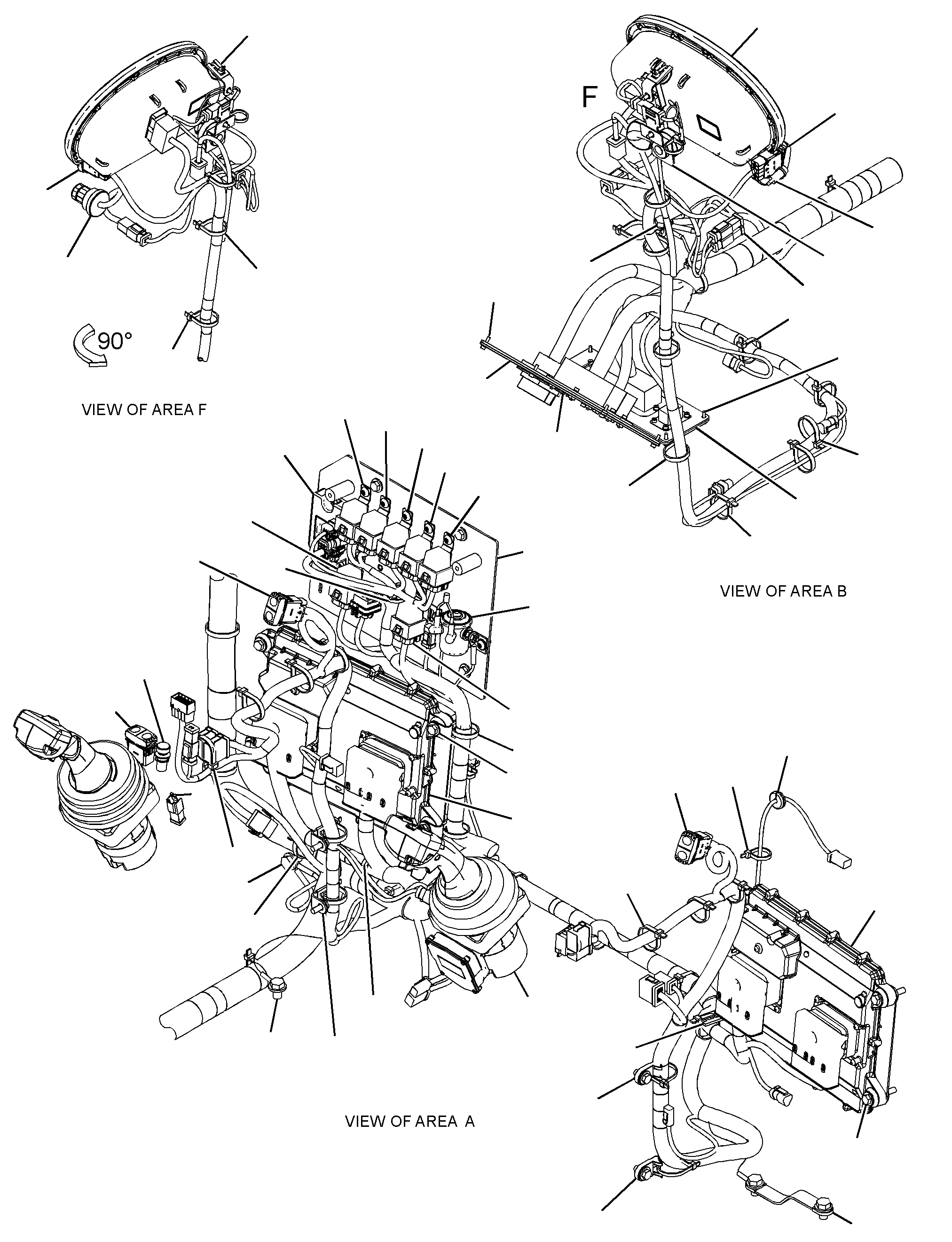

System And Components
Assembly
100%

375-8431 WIRING GP-CABS/N B9K545-UP

Group No: 375-8431
Part NumberPart NameQty
10288021 KIT-RECEPTACLE (2-PIN)2
3E52392 RELAY AS (24-VOLT)(WORK LIGHTS, FRONT)3
3E52392A RELAY AS (24-VOLT)(WORK LIGHTS, REAR)1
3E52392B RELAY AS (24-VOLT)(THROTTLE CONTROL)1
3E52392C RELAY AS (24-VOLT)(CAB FLOODLIGHTS)2
6I14183 SPACER (8.2X12.7X28.7-MM THK)8
8T96554 MOUNT-ISOLATION16
11078875 SWITCH AS-START (KEY)1
7T6799NUT-MOUNTING (1-32-THD)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)4
1028804KIT-RECEPTACLE (4-PIN)1
11384906 FUSE (10-AMPERE)20
11384917 FUSE (15-AMPERE)8
11384928 FUSE (20-AMPERE)5
12435489 FUSE (30-AMPERE)1
161312810 RELAY (24-VOLT)8
170182111 SWITCH AS-PUSH BUTTON (HORN)1
6F0253LOCKWASHER1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
1723511NUT (5/8-24-THD)1
170688812 PULLER-FUSE1
180990013 CAP AS1
5P7958SLEEVE-CABLE SPLICE1
8C6354CAP-RECEPTACLE (ET CONNECTOR)1
1799392LANYARD1
189251214 PLATE1
398094015 SWITCH GP-MAGNETIC (24-VOLT)(AIR INLET HEATER)1
228608916 PLUG (ROCKER SWITCH)9
229258017 SWITCH AS-ROCKER (24-VOLT)(THROTTLE SPEED SET)1
236461518 SWITCH AS-ROCKER (SECONDARY STEERING)1
236461619 SWITCH AS-ROCKER (24-VOLT)1
249548020 SWITCH AS-ROCKER (24-VOLT)(CAB FLOODLIGHTS)1
250229921 LAMP AS-LED (24-VOLT, GREEN)1
275965022 ELECTRONICS GP-MONITOR (MESSENGER)1
282378325 HARNESS AS-FRONT LIGHTING (RH)1
1028802KIT-RECEPTACLE (2-PIN)3
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)4
8T8737PLUG-SEAL8
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)8
1552265KIT-CONNECTING PLUG (8-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)3
282378426 HARNESS AS-REAR LIGHTING1
1028802KIT-RECEPTACLE (2-PIN)2
8T8737PLUG-SEAL4
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)8
1148843SLEEVE-PLASTIC (100-CM)
1552270KIT-CONNECTING PLUG (2-PIN)2
1552271KIT-CONNECTING PLUG (4-PIN)1
282433727 PLATE AS1
9X2032NUT-WELD (M4X0.7-THD)12
282433928 PLATE AS1
9X2032NUT-WELD (M4X0.7-THD)8
424453129 PANEL GP-CAB1
284362030 SWITCH AS-ROCKER (24-VOLT)(BRAKE RETRACT)1
284362331 SWITCH AS-ROCKER (24-VOLT)(HYDRAULIC LOCKOUT)1
284364932 SWITCH AS-ROCKER (24-VOLT)1
284697233 HARNESS AS-FRONT LIGHTING (LH)1
1028802KIT-RECEPTACLE (2-PIN)3
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)4
8T8737PLUG-SEAL8
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)8
1552265KIT-CONNECTING PLUG (8-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)3
286032034 GASKET1
286032135 GASKET1
286032236 GASKET1
286032337 GASKET2
293913638 SWITCH AS-ROCKER (24-VOLT)(AUTO DIFFERENTIAL LOCK)1
313215240 MODULE GP-DISPLAY (INSTRUMENT CLUSTER)1
329679141 SWITCH AS-ROCKER (PARKING BRAKE)1
357915143 CONTROL & MTG GP-JOYSTICK (RH, LH)1
360176744 SWITCH AS-ROCKER (24-VOLT)(THROTTLE LOCK)1
363123545 ALARM GP (ACTION)1
367520946 SWITCH AS-ROCKER (24-VOLT)(LIGHTING)1
367521147 SWITCH AS-ROCKER (24-VOLT)(FRONT DEFROSTER)1
367521147A SWITCH AS-ROCKER (24-VOLT)(DEFROSTER, REAR)1
367521248 SWITCH AS-ROCKER (24-VOLT)(TURN SIGNAL)1
114665850 WASHER (6.5X17X1-MM THK)4
096616651 WASHER-HARD (4.5X9X1-MM THK)41
108103252 STRAP-GROUNDING1
130530053 CLIP3
174813154 SCREW-TRUSS HEAD (M4X0.7X12-MM)3
1H439355 LOCKWASHER4
275776456 SWITCH GP-WIPER (24-VOLT, INTERMITTENT)2
275896957 CONTROL GP-UNPROGRAMMED (IMPLEMENT 2)1
275897058 CONTROL GP-UNPROGRAMMED (IMPLEMENT 1)1
3S209360 STRAP-CABLE26
3S955761 SCREW-PAN HEAD (4-40X0.5-IN)4
4H300162 PLUG-BUTTON2
4P813463 CLIP (LADDER)1
5P411664 WASHER-HARD (8.8X20.5X2-MM THK)16
5P852565 GROMMET2
6T199966 HOUSING AS1
6T364467 CIRCUIT BREAKER AS (20-AMPERE)2
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
7K118168 STRAP-CABLE60
7U489269 SCREW (8-32X0.75-IN)4
8N152370 LOCKWASHER1
8N235371 KNOB AS-LIGHTER (24-VOLT)1
8T417172 BOLT (M6X1X12-MM)2
8T417973 BOLT (M12X1.75X20-MM)6
8T418974 BOLT (M8X1.25X20-MM)9
8T422375 WASHER-HARD (13.5X25.5X3-MM THK)6
8T422476 WASHER-HARD (8.8X16X2-MM THK)1
8T691277 BOLT (M8X1.25X50-MM)8
8T940578 BOLT-SOCKET HEAD (M4X0.7X16-MM)40
9X104679 SCREW (M4X0.7X18-MM)12
9X204481 SCREW-TRUSS HEAD (M6X1X16-MM)19
422380282 PLATE AS1
6V9632NUT-WELD (M6X1-THD)11
9X2032NUT-WELD (M4X0.7-THD)3
419914983 HARNESS AS-CAB1
5P4571TERMINAL-BLADE (14-GA TO 16-GA)2
9X0196TERMINAL AS (16-GA)1
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)2
2L8054TERMINAL-RING (6-GA, 1/2-IN SCREW)1
2L8061TERMINAL-RING (8-GA, 1/2-IN SCREW)1
2L8071TERMINAL-RING (10-GA TO 12-GA, 1/2-IN SCREW)6
2L8081TERMINAL-RING (14-GA TO 16-GA, 1/2-IN SCREW)3
5P5618TERMINAL-BLADE (10-GA TO 12-GA)2
5P4571TERMINAL-BLADE (14-GA TO 16-GA)5
5P1475TERMINAL-FORK (14-GA TO 16-GA, NO. 8 SCREW)1
2L8065TERMINAL-RING (10-GA TO 12-GA, NO. 8 SCREW)4
2L8067TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)2
2L8068TERMINAL-RING (10-GA TO 12-GA, 5/16-IN SCREW)2
2L8081TERMINAL-RING (14-GA TO 16-GA, 1/2-IN SCREW)2
5P2957TERMINAL-BLADE (14-GA TO 16-GA)2
5P5602TERMINAL-BLADE (18-GA TO 22-GA)2
7K1181STRAP-CABLE1
2838106SOCKET-CONNECTOR (20-GA)4
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)357
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)357
1962412TERMINAL AS (16-GA)45
7R2750SEAL-CONNECTOR1
1962413TERMINAL AS (12-GA)21
1284123SEAL-CABLE1
2020313TERMINAL AS (18-GA)4
1285016SEAL-CABLE1
1028802KIT-RECEPTACLE (2-PIN)4
1665229KIT-RECEPTACLE (12-PIN)1
1944254KIT-RECEPTACLE (8-PIN)2
1977565KIT-RECEPTACLE (4-PIN)1
2457434KIT-CONNECTING PLUG (10-PIN)23
1552260KIT-CONNECTING PLUG (3-PIN)9
1552270KIT-CONNECTING PLUG (2-PIN)14
1552271KIT-CONNECTING PLUG (4-PIN)5
1552274KIT-CONNECTING PLUG (6-PIN)6
1779648KIT-CONNECTING PLUG (2-PIN)2
1779656KIT-CONNECTING PLUG (4-PIN)1
1552255KIT-CONNECTING PLUG (12-PIN)4
1552256KIT-CONNECTING PLUG (12-PIN)2
1552257KIT-CONNECTING PLUG (12-PIN)1
1552265KIT-CONNECTING PLUG (8-PIN)5
9X3401PIN-CONNECTOR (16-GA TO 18-GA)177
1261767PIN-CONNECTOR (14-GA TO 16-GA)177
2041297TERMINAL AS-BLADE (18-GA TO 20-GA)147
2354123TERMINAL (18-GA TO 20-GA)1
9X1055TERMINAL-RECEPTACLE (12-GA)2
9X1056TERMINAL-RECEPTACLE (14-GA TO 16-GA)14
1005041TERMINAL-RECEPTACLE (18-GA TO 20-GA)12
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(46-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(545-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(155-CM)
2702679LOCKWASHER1
2743782CAP-SEAL1
1285016SEAL-CABLE4
2743785CAP-SEAL1
1851861SEAL-WIRE164
3S2093STRAP-CABLE27
3E5226SOCKET-CONNECTOR (12-GA TO 14-GA)7
1893158SUPPRESSOR-ARC1
3293734TAPE-ELECTRICAL
2304012RECEPTACLE AS-CONNECTOR (2-PIN)1
8T8737PLUG-SEAL254
7G7917PLUG-SEAL9
7G7918PLUG-SEAL1
7G7919PLUG-SEAL3
8N1517RECEPTACLE AS-CONNECTOR (25-PIN)1
8N1522NUT (2-1/4-16-THD)1
9X0145RECEPTACLE AS-CONNECTOR (24-PIN)1
1030213RECEPTACLE AS-CONNECTOR (70-PIN)2
1342540RECEPTACLE AS-CONNECTOR (3-PIN)4
2304009PLUG AS-CONNECTOR (12-PIN)1
2647034SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)1
2647029SEAL-CONNECTOR1
2304013PLUG AS-CONNECTOR (3-PIN)1
2647030SEAL-CONNECTOR1
2305008PLUG AS-CONNECTOR (4-PIN)1
2647031SEAL-CONNECTOR1
2305010PLUG AS-CONNECTOR (6-PIN)1
2397352PLUG AS-CONNECTOR (6-PIN)1
2647032SEAL-CONNECTOR1
2715590PLUG AS-CONNECTOR (2-PIN)2
7R2751PLUG-CONNECTOR (1-PIN)26
2039007NUT (1-1/2-18-THD)1
8N1540PIN-CONNECTOR (12-GA TO 14-GA)3
8N1548PIN-CONNECTOR (4-GA)2
9X6856PIN-CONNECTOR (16-GA TO 18-GA)7
7X6222PLUG AS-CONNECTOR (24-PIN)1
3E4367RING-RETAINING1
3E8558BOLT (M5X0.8X39.37-MM)1
9X3265SEAL-CONNECTOR (24-PIN)2
1471445PLUG AS-CONNECTOR (70-PIN)2
1471446PLUG AS-CONNECTOR (70-PIN)2
1599322SEAL-O-RING1
9X1054PLUG AS-CONNECTOR (4-PIN)7
2382319BASE AS (FUSE, RELAY PANEL)1
9X8256WASHER (6.6X12X2-MM THK)2
0950742SCREW-MACHINE (M6X1X16-MM)2
1709394TERMINAL40
1809900CAP AS1
5P7958SLEEVE-CABLE SPLICE1
8C6354CAP-RECEPTACLE (ET CONNECTOR)1
1799392LANYARD1
3747463CAP-SEAL5
3747464CAP-SEAL2
3747465CAP-SEAL2
3747466CAP-SEAL5
3747467CAP-SEAL3
3747468CAP-SEAL2
8N1521BELL AS-END1
1261774COVER-CONNECTOR4
431873584 FLASHER AS (12/24-VOLT)(TURN SIGNAL)1
347079985 SWITCH AS-ROCKER (24-VOLT)(FLOODLIGHTS, REAR)2
204800086 MOUNTING-CABLE TIE2
132578987 CLIP (LADDER)5
