System And Components

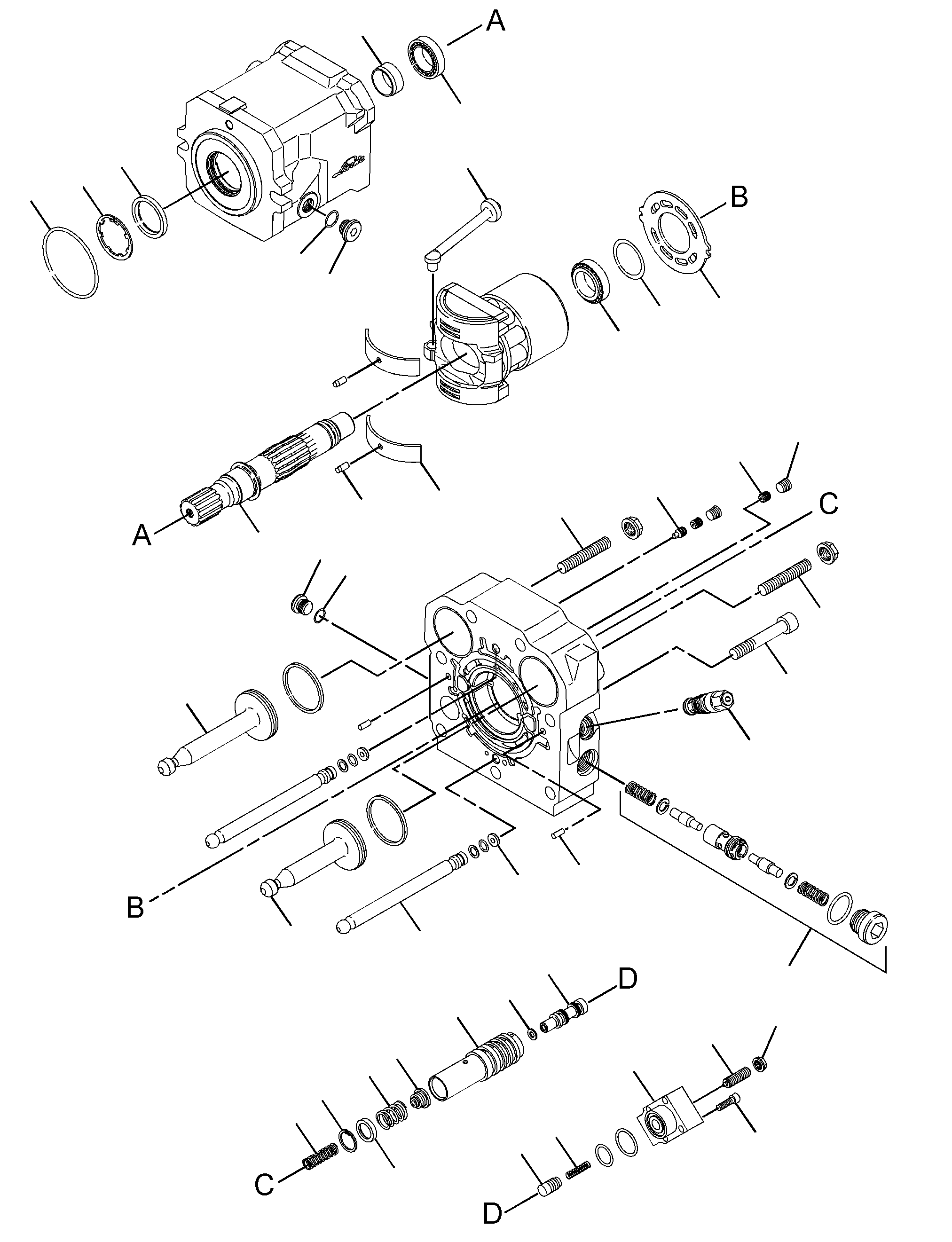

358-0163 MOTOR GP-PISTONS/N T5A1-UP
Group No: 358-0163
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1401739 | 1 RING-RETAINING | 1 | |
| 2232321 | 2 KIT-WASHER (HYDRAULIC PUMP, MOTOR) | 2 | |
| 2416170 | 3 PLUG | 1 | |
| 2287101 | 4 SEAL-O-RING | 1 | |
| 1326769 | 5 RING | 1 | |
| 6V8796 | 6 CONE-BEARING | 1 | |
| 4339477 | 7 SHAFT | 1 | |
| 8U9480 | 8 PIN | 2 | |
| 1314646 | 9 BEARING | 2 | |
| 4339480 | 11 PISTON | 1 | |
| 8U2566 | 12 BEARING | 1 | |
| 3803425 | 13 KIT-SHIM (INCLUDES 8-SHIMS) | 1 | |
| 3796717 | 14 VALVE GP-SHUTTLE (PISTON MOTOR) | 1 | |
| 3796720 | 15 VALVE GP-CHECK (PISTON MOTOR) | 1 | |
| 1314672 | 16 PLATE | 1 | |
| 1012862 | 17 DOWEL | 2 | |
| 1314674 | 18 PIPE | 2 | |
| 4339481 | 19 PISTON | 1 | |
| 4339482 | 20 PLATE-SPRING | 1 | |
| 4340765 | 21 PIN-THREADED | 1 | |
| 4339483 | 22 COVER | 1 | |
| 0950674 | 23 BOLT-SOCKET HEAD (M12X1.75X65-MM) | 7 | |
| 1279831 | 24 SETSCREW (M12X1X50-MM) | 2 | |
| 7X1553 | 25 SEAL-LIP TYPE | 1 | |
| 6V8797 | 26 CUP-BEARING | 1 | |
| 9T4901 | 27 NUT (M12X1-THD) | 2 | |
| 2716954 | 28 ROD | 1 | |
| 2442246 | 29 RING-RETAINING | 1 | |
| 2442240 | 30 SPRING | 1 | |
| 2442248 | 31 RING | 1 | |
| 2716959 | 32 SPRING | 1 | |
| 2716961 | 33 BUSHING | 1 | |
| 2716963 | 34 PILOT | 1 | |
| 2716964 | 35 PISTON | 1 | |
| 2716965 | 36 SPRING | 1 | |
| 9T4817 | 37 NUT (M8X1-THD) | 1 | |
| 2287105 | 38 SEAL-O-RING | 1 | |
| 1178216 | 39 SEAL-O-RING | 1 | |
| 1538003 | 40 BOLT-SOCKET HEAD (M4X0.7X30-MM) | 4 | |
| 2442331 | 41 WASHER (4X8X1-MM THK) | 1 | |
| 4340757 | 42 NOZZLE | 2 | |
| 4340758 | 43 NOZZLE | 1 | |
| 8U3875 | 44 PLUG | 2 | |
| 2270136 | 45 PLUG | 1 | |
| 7J6285 | 46 SEAL-O-RING | 1 | |
| 4339484 | KIT-SEAL (PISTON MOTOR) | 1 |
