System And Components

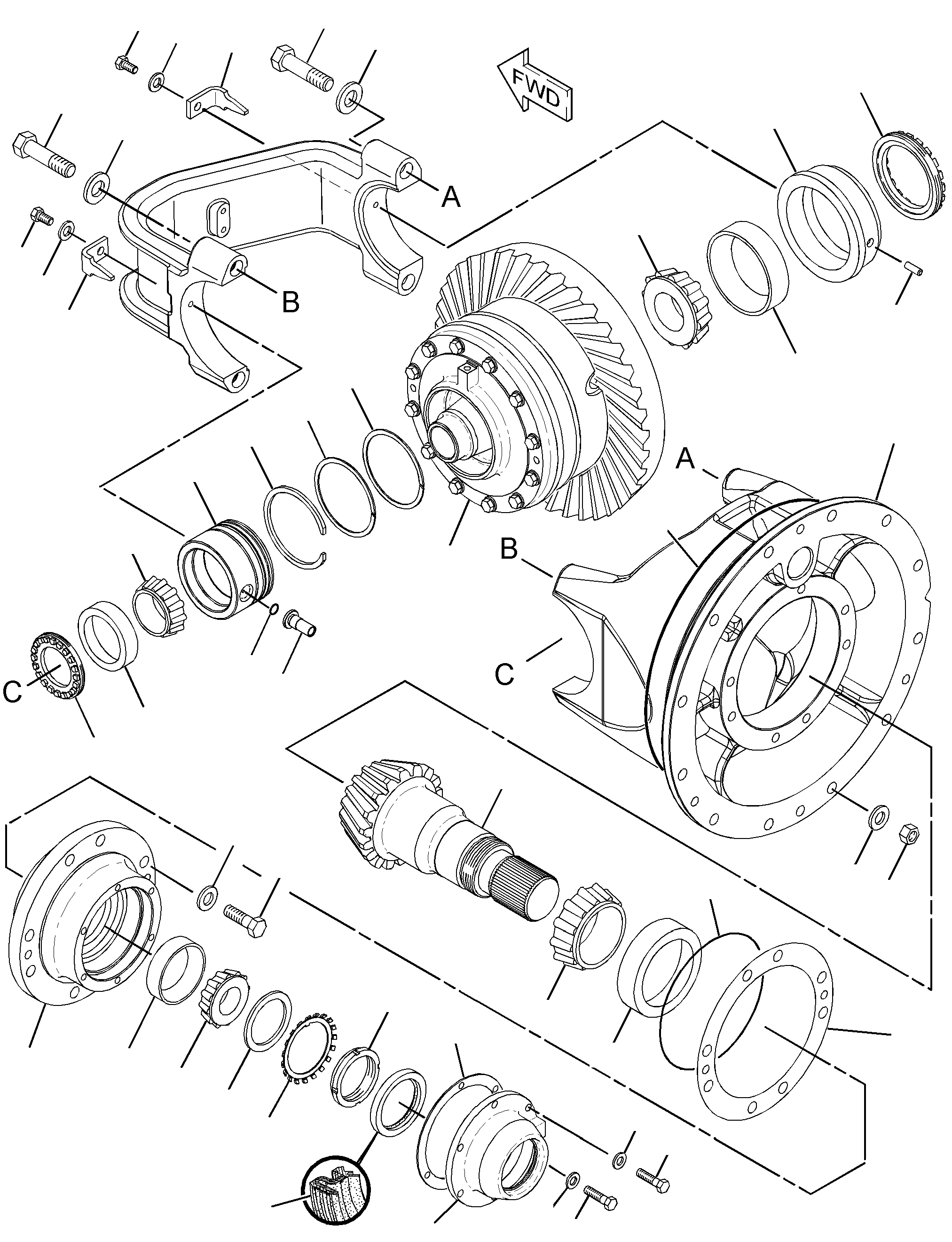

8W-5430 DIFFERENTIAL & BEVEL GEAR GPS/N ASD1-UP
Group No: 8W-5430
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5D9844 | 1 BOLT-LOCKING (3/8-16X2-IN) | 1 | |
| 5P8247 | 2 WASHER-HARD (17X32X3.5-MM THK) | 8 | |
| 0343557 | 3 BOLT-LOCKING (3/8-16X1.125-IN) | 5 | |
| 5M2894 | 4 WASHER-HARD (10.2X18.5X2.5-MM THK) | 8 | |
| 2K5109 | 5 GASKET | 1 | |
| 8W5279 | 6 RETAINER | 1 | |
| 1234003 | 7 SEAL-LIP TYPE | 1 | |
| 8T8883 | 8 SEAL-O-RING | 1 | |
| 5P5813 | 9 LOCKNUT-BEARING (2.75X18-THD) | 1 | |
| 9B0143 | 10 LOCKWASHER | 1 | |
| 7D8347 | 11 WASHER-TAB | 1 | |
| 8X2534 | 12 HOUSING | 1 | |
| 5L2031 | 13 CUP-BEARING (TAPERED ROLLER) | 1 | |
| 5L2030 | 14 CONE-BEARING | 1 | |
| 9X8880 | 15 BOLT (5/8-11X2-IN) | 8 | |
| 2K5106 | 16 SHIM (2.54-MM THK) | 1 | |
| 3404515 | 17 NUT (5/8-11-THD) | 12 | |
| 4H6520 | 18 SEAL-O-RING | 1 | |
| 1J4757 | 19 CONE-BEARING (TAPERED ROLLER) | 1 | |
| 1J2860 | 20 CUP-BEARING (TAPERED ROLLER) | 1 | |
| 8D8197 | 21 CAGE | 1 | |
| 6G4703 | 22 NUT (5 1/4-12-THD) | 1 | |
| 1262729 | 23 CONE-SPECIAL TAPERED | 1 | |
| 5P2503 | 24 CUP-BEARING | 1 | |
| 6F0698 | 25 DOWEL | 1 | |
| 8D9784 | 26 LOCK | 2 | |
| 0308535 | 27 BOLT-LOCKING (3/8-16X0.875-IN) | 2 | |
| 1542687 | 28 CARRIER AS | 1 | |
| 0S1756 | 28A BOLT (3/4-10X4.25-IN) | 4 | |
| 5P8248 | 28B WASHER-HARD (20X36.5X3.5-MM THK) | 4 | |
| 3404517 | 29 WASHER-HARD (17X32X3.5-MM THK) | 12 | |
| 4D5292 | 31 RING-RETAINING | 1 | |
| 1P2662 | 32 CONE-BEARING | 1 | |
| 1P2636 | 33 CUP-BEARING | 1 | |
| 6G4701 | 34 NUT-BEARING (4-1/4-12-THD) | 1 | |
| 8X2308 | 35 CAGE AS | 1 | |
| 2D6642 | BALL | 1 | |
| 2H5001 | 36 SEAL-O-RING | 1 | |
| 8W5111 | 37 SLEEVE | 1 | |
| 1691548 | 38 SHAFT-PINION | 1 | |
| 9G2991 | 40 RING-SEAL | 2 | |
| 1542688 | 42 DIFFERENTIAL GP | 1 |
