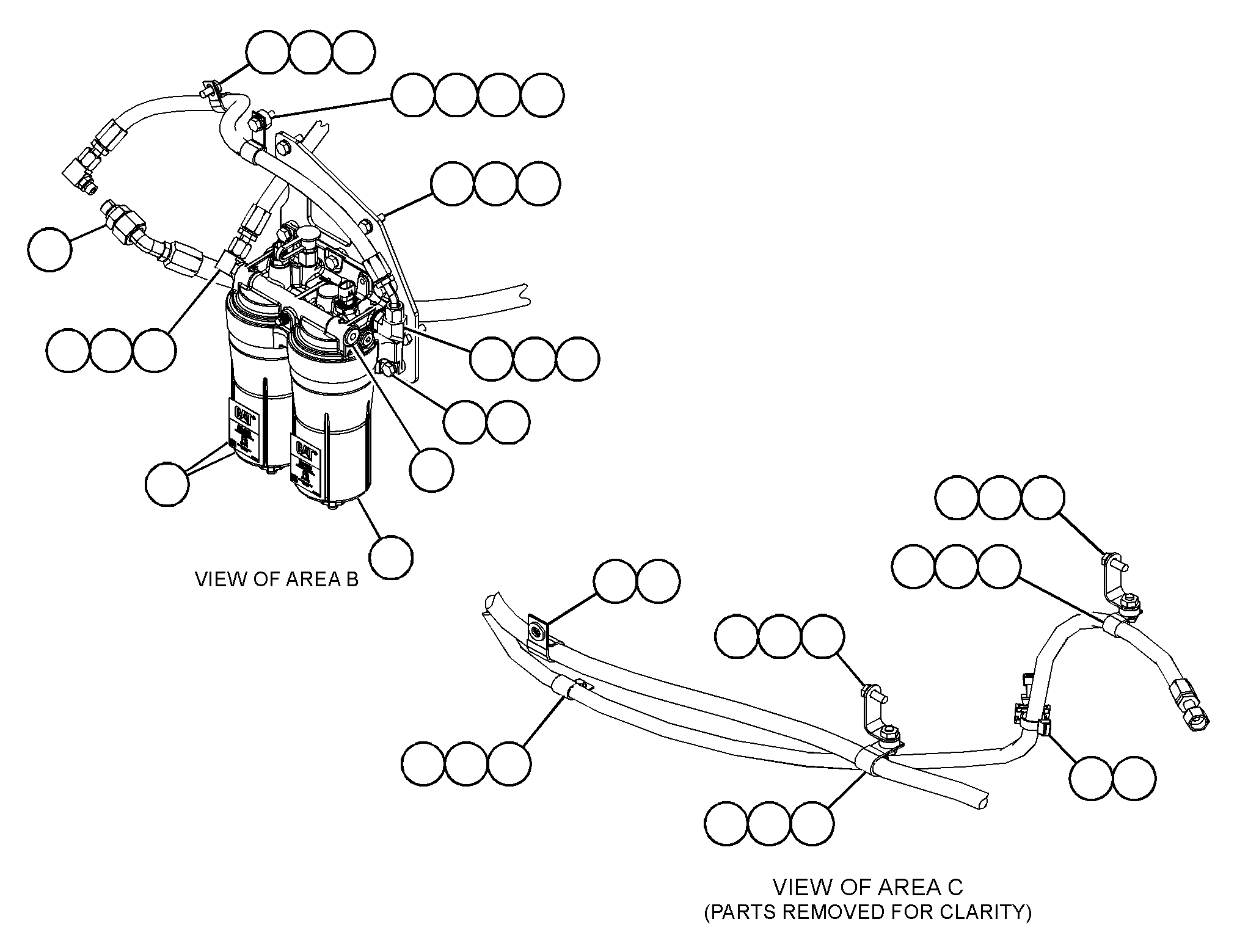

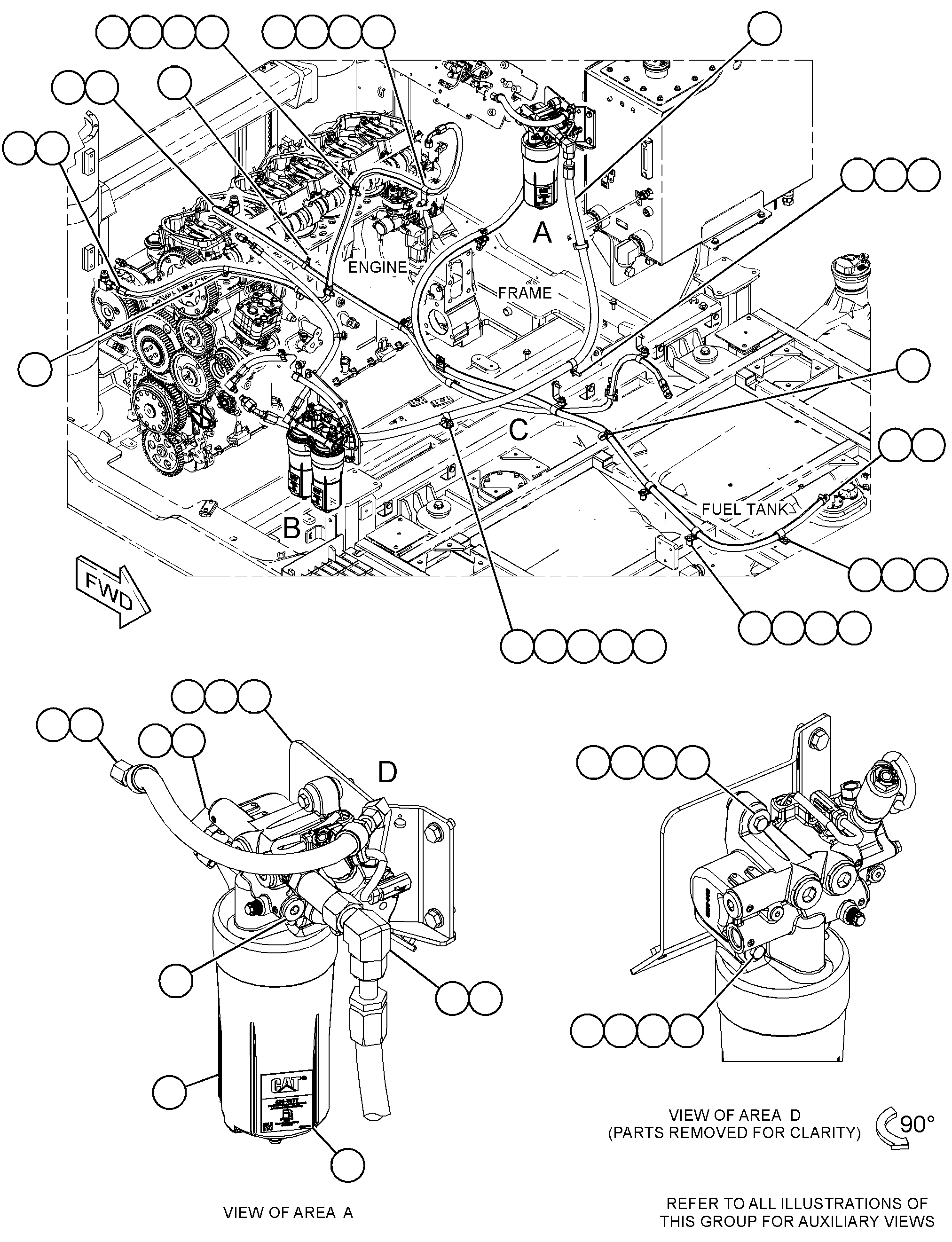

System And Components
562-2523 LINES GP-FUELS/N XS61-UP
Group No: 562-2523
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3816865 | 1 HOSE AS | 1 | |
| 4368032 | 2 PUMP GP-FUEL PRM & PRIM FILTER | 1 | |
| 7X2539 | 3 BOLT (M8X1.25X110-MM) | 2 | |
| 1243019 | 4 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1772215 | 5 STRAP-DUAL CLAMP | 3 | |
| 1911782 | 6 SPACER (8.5X12.7X38.2-MM THK) | 1 | |
| 1911783 | 7 SPACER (8.5X12.7X87.3-MM THK) | 2 | |
| 2006345 | 8 SADDLE-MOUNTING (DUAL SWIVEL) | 3 | |
| 3196228 | 9 ELBOW AS | 2 | |
| 6V8721 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 3309757 | 10 ELBOW AS | 1 | |
| 8T1905 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3535134 | 11 ELBOW AS | 1 | |
| 1184728 | ELBOW | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3899704 | 12 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 5 | |
| 4162558 | 13 HOSE AS | 1 | |
| 4184819 | 14 HOSE AS | 1 | |
| 4205190 | 15 HOSE AS | 1 | |
| 4520435 | 16 ADAPTER AS | 1 | |
| 3E7420 | CONNECTOR | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 0673045 | 17 CLIP (LOOP) | 1 | |
| 0993001 | 18 CLIP | 1 | |
| 1343988 | 19 CLIP (LOOP) | 1 | |
| 1409293 | 20 WASHER (8.2X16X3.1-MM THK) | 1 | |
| 1448344 | 21 SPACER (11X19X20-MM THK) | 3 | |
| 1925017 | 22 BRACKET AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1984777 | 23 WASHER-HARD (11X25X10-MM THK) | 3 | |
| 2042281 | 24 STRAP-CABLE | 6 | |
| 2385081 | 25 SEAL-O-RING | 1 | |
| 2815933 | 26 ELBOW AS | 1 | |
| 6V9853 | ELBOW | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2815982 | 27 CONNECTOR AS | 1 | |
| 6V9874 | CONNECTOR | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3031506 | 28 ELBOW AS | 1 | |
| 4K6297 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3072673 | 29 PLUG AS | 1 | |
| 9S8005 | PLUG (3/4-16-THD) | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3095131 | 30 PLUG AS | 3 | |
| 9S8006 | PLUG (7/8-14-THD) | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 3149747 | 31 SPACER (9.5X20X22-MM THK) | 2 | |
| 3328555 | 32 ADAPTER AS | 1 | |
| 8M0506 | ADAPTER-O-RING | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3368614 | 33 CLIP (LOOP) | 2 | |
| 3779640 | 34 ELBOW AS | 1 | |
| 0054173 | ELBOW | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 3833546 | 35 HOSE AS | 1 | |
| 3S8664 | 36 CLIP | 3 | |
| 4589944 | 37 FILM-FILTER (FUEL FILTER IDENTIFICATION) | 2 | |
| 4635457 | 38 BASE GP-FUEL FILTER | 1 | |
| 4675344 | 39 MOUNT | 6 | |
| 4718498 | 40 FILM-IDENTIFICATION (FUEL FILTER, WATER SEPARATOR) | 1 | |
| 4I0472 | 41 CLIP (LOOP) | 4 | |
| 4L9337 | 42 BOLT (3/8-16X1.5-IN) | 3 | |
| 5262834 | 43 HOSE AS | 1 | |
| 5635200 | 44 BRACKET AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 3 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 3 | |
| 5D1026 | 45 CLAMP-BAND | 2 | |
| 6D4246 | 46 CLIP (LOOP) | 3 | |
| 6V4369 | 47 CLIP | 1 | |
| 6V9208 | 48 ELBOW | 1 | |
| 7X2537 | 49 BOLT (M8X1.25X35-MM) | 2 | |
| 8J8197 | 50 CLIP | 1 | |
| 8T4121 | 51 WASHER-HARD (11X21X2.5-MM THK) | 12 | |
| 8T4136 | 52 BOLT (M10X1.5X25-MM) | 5 | |
| 8T4137 | 53 BOLT (M10X1.5X20-MM) | 3 | |
| 8T4195 | 54 BOLT (M10X1.5X30-MM) | 7 | |
| 8T4196 | 55 BOLT (M10X1.5X35-MM) | 5 | |
| 8T4200 | 56 BOLT (M8X1.25X16-MM) | 1 | |
| 8T4223 | 57 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 8T4224 | 58 WASHER-HARD (8.8X16X2-MM THK) | 3 | |
| 8T4896 | 59 WASHER-HARD (10.2X18.5X2.5-MM THK) | 10 | |
| 8T4970 | 60 BOLT (M6X1X14-MM) | 1 | |
| 8T6869 | 61 BOLT (M8X1.25X60-MM) | 1 | |
| 9N0869 | 62 WASHER-HARD (8.8X25.5X2-MM THK) | 3 | |
| 3478647 | 63 HOSE (310-CM) |
