System And Components

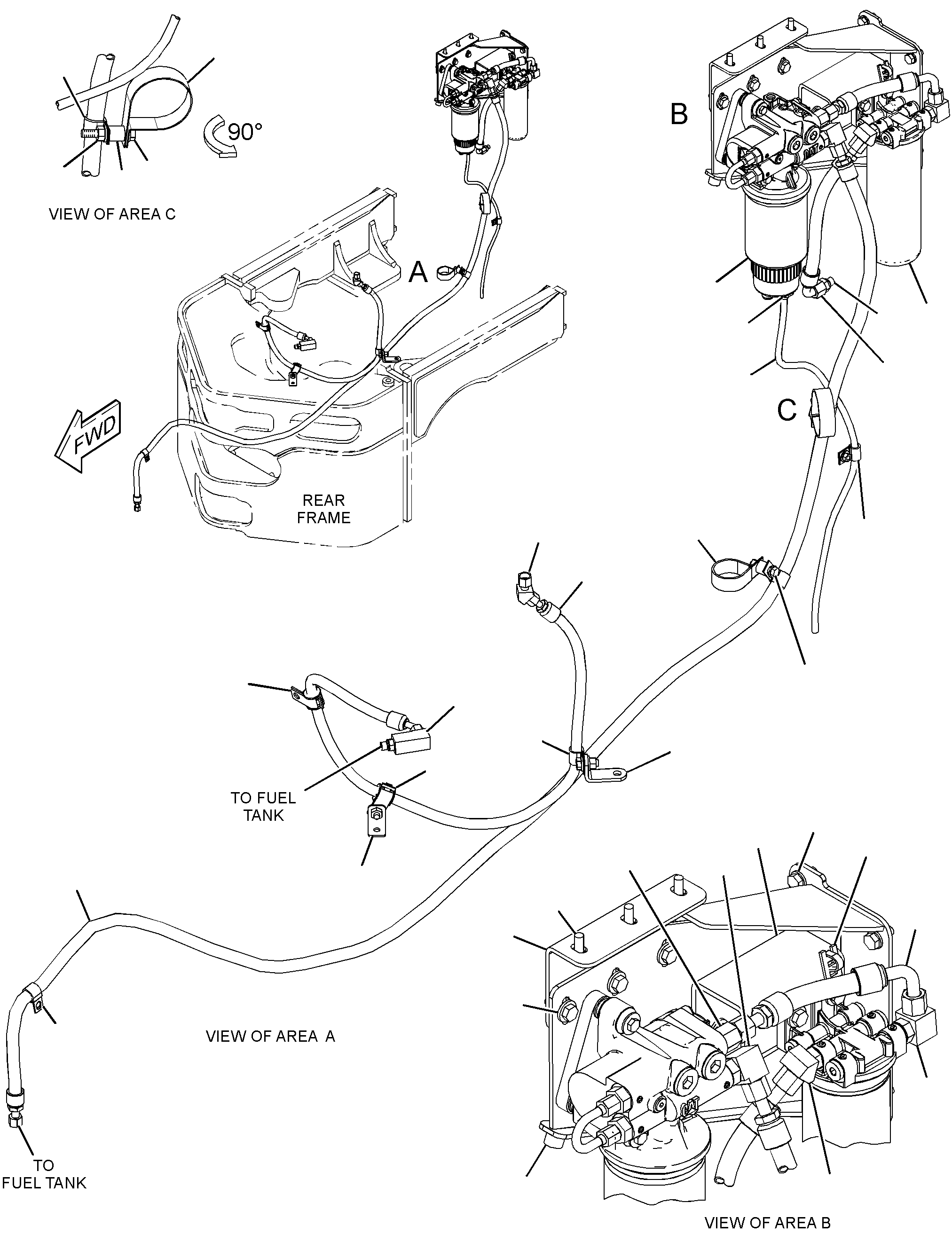

231-2148 LINES GP-FUEL FILTERS/N B9E404-UP
Group No: 231-2148
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 1 | |
| 9M4594 | 2 SPACER (0.406X0.875X0.75-IN THK) | 1 | |
| 1845394 | 3 CLIP (LOOP) | 1 | |
| 1901105 | 4 PUMP GP-FILTER & FUEL TRANSFER (WITH WATER SEPARATOR) | 1 | |
| 2530472 | 5 PLATE AS | 1 | |
| 2543267 | 6 HOSE AS | 1 | |
| 4204900 | 7 BRACKET AS | 1 | |
| 4Y8939 | BOSS (M10X1.5X40-MM) | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 9R2821 | BOSS (M10X1.5X15-MM) | 1 | |
| 4202896 | 8 HOSE AS | 1 | |
| 2890213 | 9 BRACKET | 1 | |
| 0919035 | 12 SPACER (11X25X20-MM THK) | 1 | |
| 1488371 | 13 ELBOW AS | 1 | |
| 8C8988 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488372 | 14 ELBOW AS | 1 | |
| 6V8721 | ELBOW | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 3309757 | 15 ELBOW AS | 1 | |
| 8T1905 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 1645557 | 16 CONNECTOR AS | 1 | |
| 5I4370 | CONNECTOR | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488364 | 17 ELBOW AS | 1 | |
| 6V8625 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 4363332 | 18 HOSE AS | 1 | |
| 1S0994 | 20 CLIP (LOOP) | 3 | |
| 1S1015 | 21 CLIP (LOOP) | 1 | |
| 5C7261 | 24 NUT (M8X1.25-THD) | 1 | |
| 5P4116 | 25 WASHER-HARD (8.8X20.5X2-MM THK) | 2 | |
| 5P4295 | 26 CLIP | 1 | |
| 5P4325 | 27 CLIP (LOOP) | 1 | |
| 5P9299 | 28 CLIP (LOOP) | 1 | |
| 7X7729 | 29 WASHER (11X25X3-MM THK) | 13 | |
| 8T4121 | 30 WASHER-HARD (11X21X2.5-MM THK) | 10 | |
| 8T4133 | 31 NUT (M10X1.5-THD) | 5 | |
| 8T4136 | 32 BOLT (M10X1.5X25-MM) | 8 | |
| 8T4137 | 33 BOLT (M10X1.5X20-MM) | 1 | |
| 8T4139 | 34 BOLT (M12X1.75X30-MM) | 1 | |
| 8T4182 | 35 BOLT (M10X1.5X45-MM) | 1 | |
| 8T4195 | 36 BOLT (M10X1.5X30-MM) | 3 | |
| 8T4196 | 37 BOLT (M10X1.5X35-MM) | 4 | |
| 8T4223 | 38 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T6466 | 40 BOLT (M10X1.5X60-MM) | 1 | |
| 8C6959 | 41 HOSE (112-CM) | ||
| 4199351 | 42 HOSE AS | 1 | |
| 4194129 | 43 FILTER GP-FUEL | 1 | |
| 4173457 | 44 BRACKET AS | 1 | |
| 1504043 | 45 CONNECTOR AS | 1 | |
| 6V9873 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488354 | 46 ELBOW AS | 1 | |
| 6V9002 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 7K1181 | 47 STRAP-CABLE | 1 | |
| 4P7581 | 48 CLIP (LADDER) | 1 | |
| 3537954 | 49 GROMMET | 2 | |
| 2W7940 | 50 BRACKET | 1 | |
| 8T1890 | 51 CLIP (TAB) | 2 | |
| 8T1889 | 52 CLIP (SLOT) | 2 | |
| 3293356 | 53 NUT (M12X1.75-THD) | 1 |
