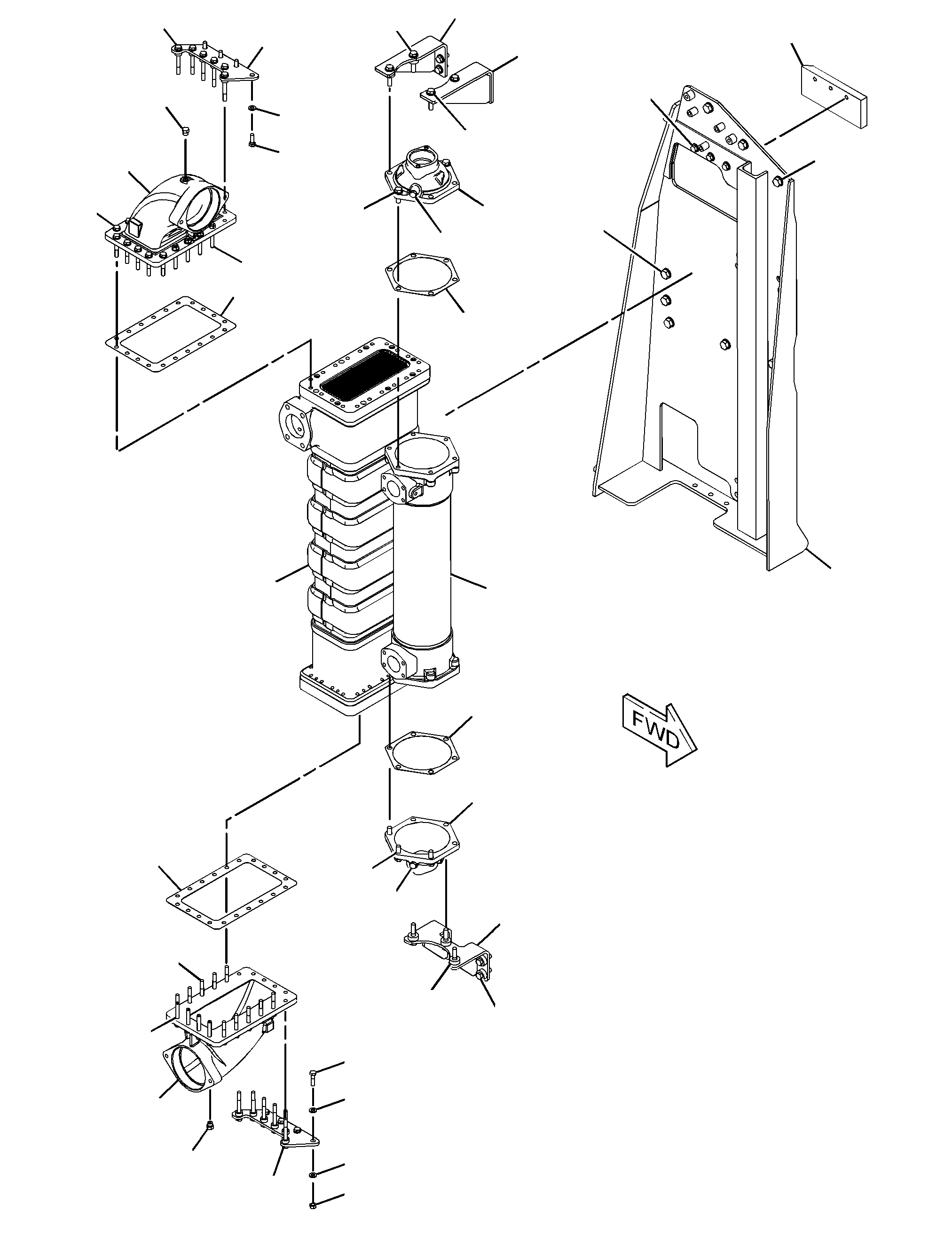

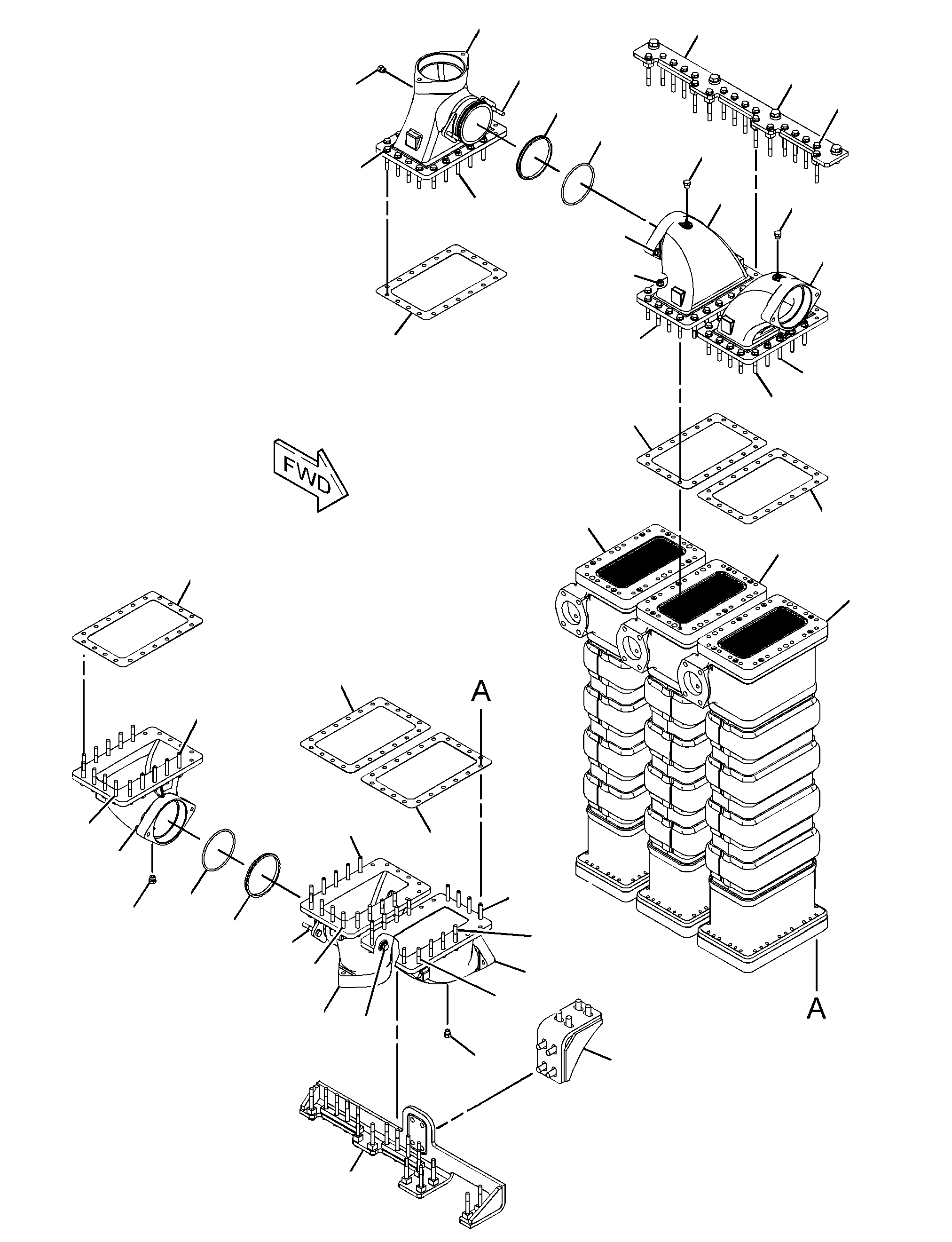

272-3418 CORE GP-OIL COOLER -FINAL DRIVE OILS/N LAJ1-599

Group No: 272-3418
Part NumberPart NameQty
7S87671 GASKET2
8N85702 RING-RETAINING2
35572173 STUD (M10X1.5X90-MM)32
28649094 BONNET2
28760965 GASKET8
28843046 BRACKET AS1
28843067 BRACKET AS1
28852218 RETAINER4
29027299 CORE GP-OIL COOLER (STEERING COOLER)1
2270135PLUG2
2287099SEAL-O-RING2
292007910 BRACKET AS1
8T3851BOSS-WELD (M10X1.5X17.5-MM)2
8R7783BOSS (M12X1.75X45-MM)1
8T3597NUT-WELD (M12X1.75-THD)9
8Y4489BOSS (M10X1.5X35-MM)2
9R2060BOSS (M10X1.5X21-MM)1
9R2613BOSS-WELD (M10X1.5X25-MM)6
292008411 PLATE1
292117812 PLATE AS1
323187513 PLATE AS1
1613357SPACER (12X20X10-MM THK)6
323187614 PLATE AS1
1613357SPACER (12X20X10-MM THK)6
352310615 CORE AS-OIL COOLER (REAR BRAKE COOLERS)3
430538016 CORE AS-OIL COOLER (POWER TRAIN)1
1364184BOLT-SOCKET HEAD (M8X1.25X40-MM)8
2391139SEAL2
337998217 BRACKET AS1
339325118 BONNET2
340565719 BONNET4
340565820 BONNET2
342592421 BRACKET AS1
342592522 BRACKET AS1
244371223 PLUG AS10
9S4191PLUG (9/16-18-THD)1
2147568SEAL-O-RING1
198477824 WASHER-HARD (13.5X30X12-MM THK)11
198478025 WASHER-HARD (17.5X32X8-MM THK)12
8T290326 SEAL-O-RING2
8T412127 WASHER-HARD (11X21X2.5-MM THK)180
8T413328 NUT (M10X1.5-THD)40
8T413929 BOLT (M12X1.75X30-MM)4
8T417830 BOLT (M10X1.5X90-MM)12
8T418331 BOLT (M12X1.75X40-MM)8
8T418632 BOLT (M10X1.5X40-MM)4
8T419333 BOLT (M16X2X50-MM)8
8T419534 BOLT (M10X1.5X30-MM)4
8T419835 BOLT (M10X1.5X100-MM)35
8T422336 WASHER-HARD (13.5X25.5X3-MM THK)19
8T477937 BOLT (M16X2X35-MM)8
8T491038 BOLT (M12X1.75X60-MM)7
8T500539 BOLT (M10X1.5X70-MM)79
8T646640 BOLT (M10X1.5X60-MM)3
8T733841 BOLT (M16X2X45-MM)4
9X825742 WASHER (17.5X30X3.5-MM THK)8
8T418443 BOLT (M12X1.75X45-MM)4
8T424444 NUT (M12X1.75-THD)2
5P107645 WASHER-HARD (13.5X30X4-MM THK)2
8T417246 BOLT (M10X1.5X80-MM)3
