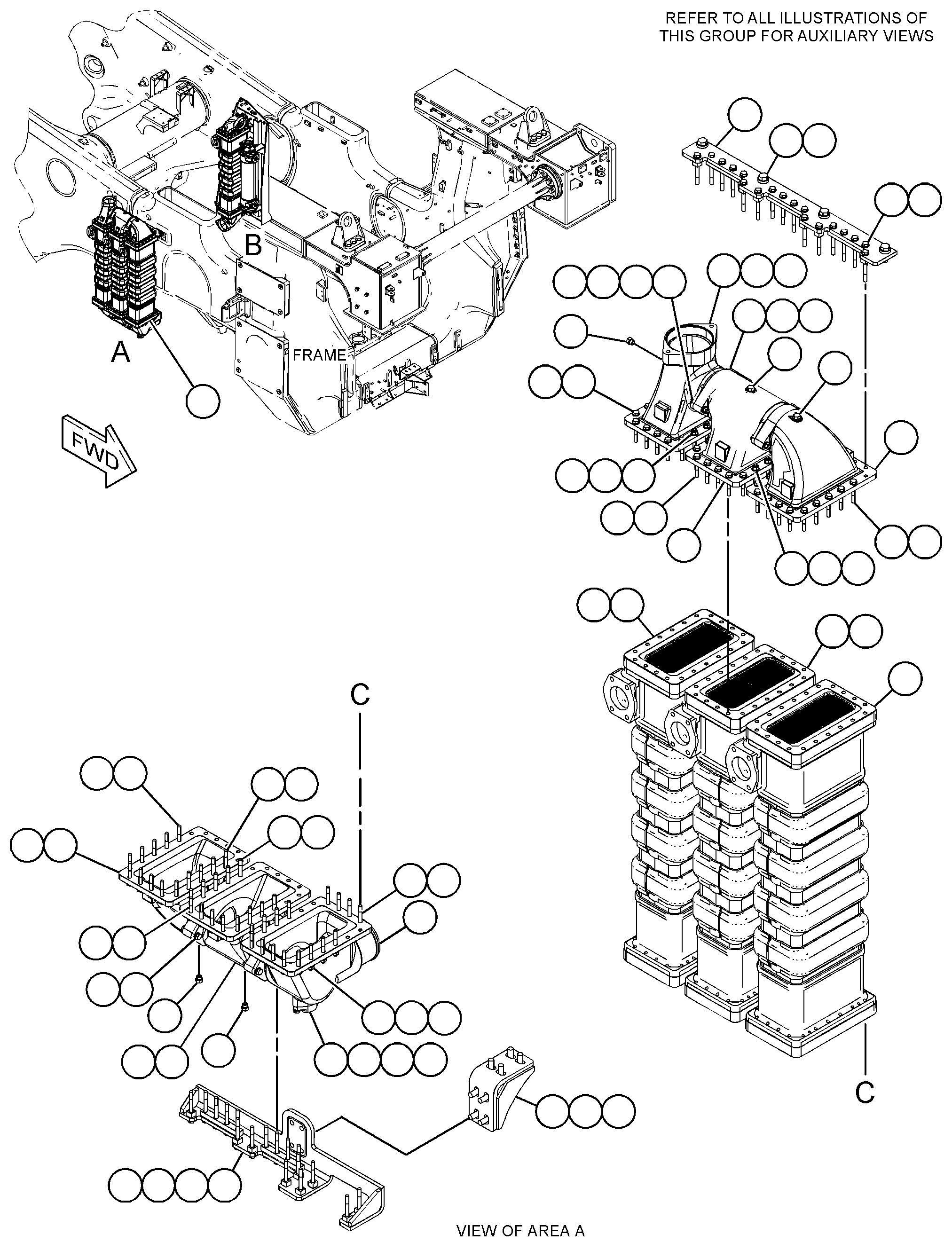

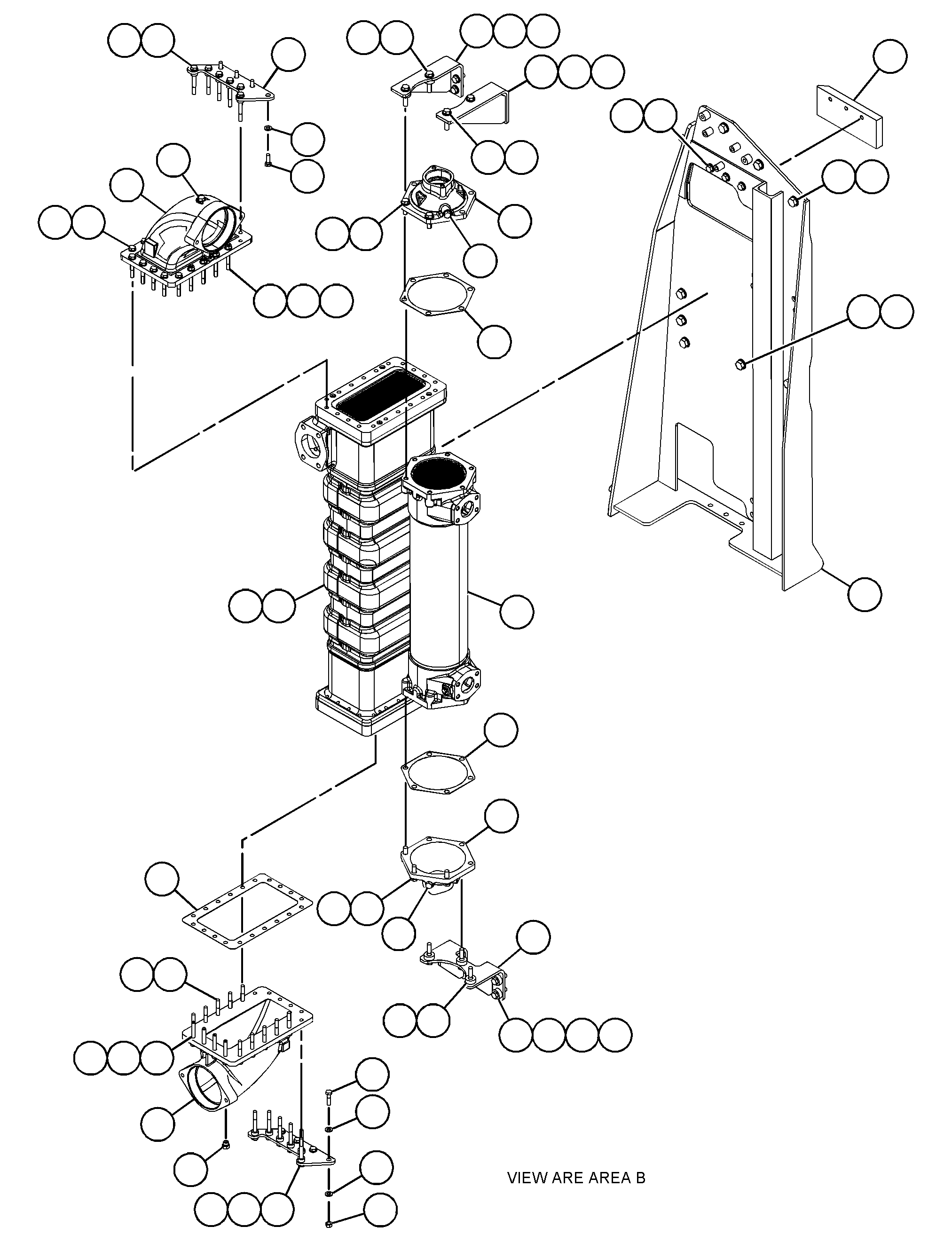

272-3418 CORE GP-OIL COOLER -FINAL DRIVE OILS/N LAJ637-UP
Group No: 272-3418
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7S8767 | 1 GASKET | 2 | |
| 8N8570 | 2 RING-RETAINING | 4 | |
| 2443712 | 3 PLUG AS | 9 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2864909 | 4 BONNET | 2 | |
| 2876096 | 5 GASKET | 8 | |
| 2885221 | 6 RETAINER | 8 | |
| 2902729 | 7 CORE GP-OIL COOLER (STEERING COOLER) | 1 | |
| 2270135 | PLUG | 2 | |
| 2287099 | SEAL-O-RING | 2 | |
| 2920079 | 8 BRACKET AS | 1 | |
| 8T3851 | BOSS-WELD (M10X1.5X17.5-MM) | 2 | |
| 8R7783 | BOSS (M12X1.75X45-MM) | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 9 | |
| 8Y4489 | BOSS (M10X1.5X35-MM) | 2 | |
| 9R2060 | BOSS (M10X1.5X21-MM) | 1 | |
| 9R2613 | BOSS-WELD (M10X1.5X25-MM) | 6 | |
| 2920084 | 9 PLATE | 1 | |
| 2921178 | 10 PLATE AS | 1 | |
| 3231875 | 11 PLATE AS | 1 | |
| 1613357 | SPACER (12X20X10-MM THK) | 6 | |
| 3231876 | 12 PLATE AS | 1 | |
| 1613357 | SPACER (12X20X10-MM THK) | 6 | |
| 3393251 | 13 BONNET | 1 | |
| 3405657 | 14 BONNET | 3 | |
| 3405658 | 15 BONNET | 1 | |
| 3425924 | 16 BRACKET AS | 1 | |
| 3425925 | 17 BRACKET AS | 1 | |
| 3523106 | 18 CORE AS-OIL COOLER (REAR BRAKE COOLERS) | 3 | |
| 1364184 | BOLT-SOCKET HEAD (M8X1.25X40-MM) | 8 | |
| 2391139 | SEAL | 2 | |
| 3557217 | 19 STUD (M10X1.5X90-MM) | 45 | |
| 4305380 | 20 CORE AS-OIL COOLER (POWER TRAIN) | 1 | |
| 1364184 | BOLT-SOCKET HEAD (M8X1.25X40-MM) | 8 | |
| 2391139 | SEAL | 2 | |
| 4701561 | 21 BONNET | 2 | |
| 5209040 | 22 BRACKET AS | 1 | |
| 5209041 | 23 BRACKET AS | 1 | |
| 5209042 | 24 BRACKET AS | 1 | |
| 1984778 | 25 WASHER-HARD (13.5X30X12-MM THK) | 4 | |
| 1984780 | 26 WASHER-HARD (17.5X32X8-MM THK) | 12 | |
| 2786389 | 27 STUD-TAPERLOCK (M10X1.5X120-MM) | 3 | |
| 5P1076 | 28 WASHER-HARD (13.5X30X4-MM THK) | 2 | |
| 8T2903 | 29 SEAL-O-RING | 4 | |
| 8T4121 | 30 WASHER-HARD (11X21X2.5-MM THK) | 190 | |
| 8T4133 | 31 NUT (M10X1.5-THD) | 60 | |
| 8T4139 | 32 BOLT (M12X1.75X30-MM) | 4 | |
| 8T4178 | 33 BOLT (M10X1.5X90-MM) | 12 | |
| 8T4183 | 34 BOLT (M12X1.75X40-MM) | 7 | |
| 8T4184 | 35 BOLT (M12X1.75X45-MM) | 4 | |
| 8T4186 | 36 BOLT (M10X1.5X40-MM) | 4 | |
| 8T4193 | 37 BOLT (M16X2X50-MM) | 8 | |
| 8T4195 | 38 BOLT (M10X1.5X30-MM) | 6 | |
| 8T4198 | 39 BOLT (M10X1.5X100-MM) | 32 | |
| 8T4223 | 40 WASHER-HARD (13.5X25.5X3-MM THK) | 19 | |
| 8T4244 | 41 NUT (M12X1.75-THD) | 2 | |
| 8T4779 | 42 BOLT (M16X2X35-MM) | 8 | |
| 8T4910 | 43 BOLT (M12X1.75X60-MM) | 8 | |
| 8T5005 | 44 BOLT (M10X1.5X70-MM) | 69 | |
| 8T6466 | 45 BOLT (M10X1.5X60-MM) | 7 | |
| 8T7338 | 46 BOLT (M16X2X45-MM) | 4 | |
| 9X8257 | 47 WASHER (17.5X30X3.5-MM THK) | 8 | |
| 5244130 | 48 BONNET | 1 | |
| 5F8000 | 49 SEAL-O-RING | 1 | |
| 1290987 | 50 DRAIN AS | 1 | |
| 6J2419 | SEAL-O-RING | 1 | |
| 8F0212 | SEAL-O-RING | 1 | |
| 1754946 | PLUG-DRAIN | 1 |
