System And Components
6R-3378 FRAME GP-SCREEDS/N 1HD170-197
Group No: 6R-3378
| Part Number | Part Name | Qty | |
|---|---|---|---|

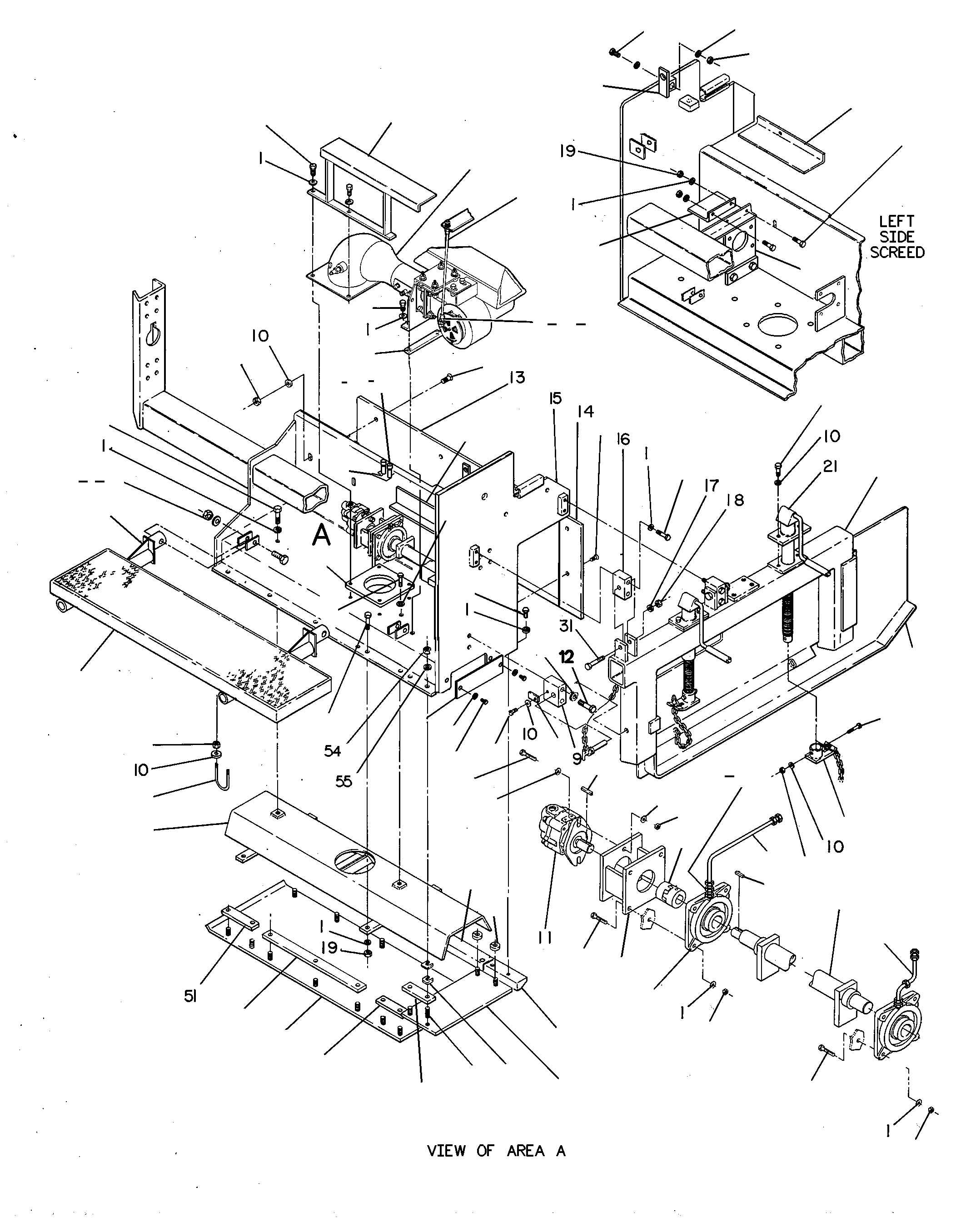

| 8T4223 | 1 WASHER-HARD (13.5X25.5X3-MM THK) | 59 | |
| 5P2566 | 2 BOLT (1/2-13X1.5-IN) | 12 | |
| 0819587 | 3 GUARD (BURNER) | 1 | |
| 7R3023 | 4 BURNER GP | 1 | |
| 7R3022 | BURNER GP | 1 | |
| 7R3347 | 5 CABLE AS | 2 | |
| 7R6112 | 6 HUB | 2 | |
| 7R6109 | PIVOT | 2 | |
| 0819584 | 7 BAR-SPACER | 2 | |
| 0677897 | 8 BOLT (3/8-16X1.25-IN) | 12 | |
| 6V8801 | 9 NUT (3/8-16-THD) | 36 | |
| 8T4896 | 10 WASHER-HARD (10.2X18.5X2.5-MM THK) | 54 | |
| 8C7167 | 11 MOTOR GP-GEROTOR | 2 | |
| 6V4432 | 12 BOLT (1/2-13X4-IN) | 8 | |
| 7X6456 | 13 PLATE (RH) | 1 | |
| 7X6455 | PLATE (LH) | 1 | |
| 7X6452 | 14 PLATE (RH) | 1 | |
| 7X6451 | PLATE (LH) | 1 | |
| 6R1342 | 15 FRAME AS-SCREED | 1 | |
| 6R0493 | FRAME AS-SCREED | 1 | |
| 0819580 | 16 BLOCK | 4 | |
| 8T4994 | 17 WASHER-HARD (20X36.5X3.5-MM THK) | 4 | |
| 6V8182 | 18 NUT (3/4-10-THD) | 4 | |
| 6V8188 | 19 NUT (1/2-13-THD) | 30 | |
| 5P8167 | 20 BOLT (3/8-16X0.625-IN) | 8 | |
| 8C7121 | 21 CRANK | 4 | |
| 0817720 | 22 SUPPORT (RH) | 1 | |
| 0819563 | SUPPORT (LH) | 1 | |
| 8C7890 | 23 PLATE (RH) | 1 | |
| 8C7889 | PLATE (LH) | 1 | |
| 4L6459 | 24 BOLT (3/8-16X2.5-IN) | 4 | |
| 2K4973 | 25 LOCKNUT (3/8-16-THD) | 4 | |
| 8T4205 | 26 WASHER-HARD (7.2X14.5X2-MM THK) | 8 | |
| 8C7886 | 27 SHAFT-VIBRATOR | 2 | |
| 8C7122 | 28 BASE-CRANK | 4 | |
| 0819581 | 29 BLOCK | 2 | |
| 1C4148 | 30 LOCK | 2 | |
| 7X0370 | 31 BOLT (3/4-10X3.5-IN) | 4 | |
| 4L9337 | 32 BOLT (3/8-16X1.5-IN) | 6 | |
| 5C6565 | 33 BOLT (1/2-13X1.125-IN) | 18 | |
| 0819588 | 34 GUARD (LH) | 1 | |
| 8T8917 | 35 BOLT (1/2-13X1.25-IN) | 16 | |
| 6R1668 | 36 BAFFLE AS-EXTENSION | 2 | |
| 7R7526 | 37 BAR | 1 | |
| 7R7525 | BAR | 1 | |
| 7R7662 | 38 HOSE AS | 2 | |
| 7R7528 | 39 BAR | 1 | |
| 7R7527 | BAR | 1 | |
| 7R7519 | 40 PLATE | 2 | |
| 6R3395 | 41 SPACER | 18 | |
| 8C7136 | SHIM (0.794-MM THK) | 36 | |
| 6R4005 | 42 STUD | 36 | |
| 7R7520 | 43 PLATE | 2 | |
| 5L2534 | 44 U-BOLT | 16 | |
| 9N8903 | 45 PLATFORM (RH) | 1 | |
| 0819577 | PLATFORM (LH) | 1 | |
| 0819567 | 46 SUPPORT-PLATFORM | 4 | |
| 8T8919 | 47 BOLT (1/2-13X1.75-IN) | 18 | |
| 8T8920 | 48 BOLT (1/2-13X3.25-IN) | 4 | |
| 0819583 | 49 PLATE-ADAPTER | 2 | |
| 6R1665 | 50 SPACER | 2 | |
| 6R1664 | 51 SPACER | 2 | |
| 6R1663 | 52 SPACER | 2 | |
| 0817174 | 53 SPACER | 18 | |
| 0913741 | 54 LOCKNUT | 36 | |
| 8T4223 | 55 WASHER-HARD (13.5X25.5X3-MM THK) | 36 | |
| 6R0258 | 56 SPACER | 2 | |
| 8T8019 | 57 COUPLING | 2 | |
| 8T8015 | 58 BEARING | 4 | |
| 0817718 | 59 MOUNT | 2 | |
| 8C7138 | 60 KEY | 2 | |
| 0816574 | 61 KEY | 2 | |
| 0817719 | 62 MOUNT | 1 | |
| 0982599 | 63 FITTING-GREASE | 4 | |
| 8C6866 | 64 CONNECTOR | 4 | |
| 6V9849 | 65 ELBOW | 4 | |
| 7R6361 | 66 SHIELD (RH) | 1 | |
| 6R2699 | 67 BRACKET-CABLE | 1 | |
| 7R6386 | 68 SHIELD (LH) | 1 | |
| 7R7661 | 69 HOSE AS | 2 | |
| 8C6865 | 70 CONNECTOR | 4 | |
| 4J5477 | 71 SEAL-O-RING | 8 | |
| 3B4607 | 72 PIN-COTTER | 2 | |
| 6R0299 | 73 PLATE-END | 2 | |
| 4M5281 | 74 BOLT (1/4-20X0.75-IN) | 4 | |
| 7K1181 | STRAP-CABLE | 70 | |

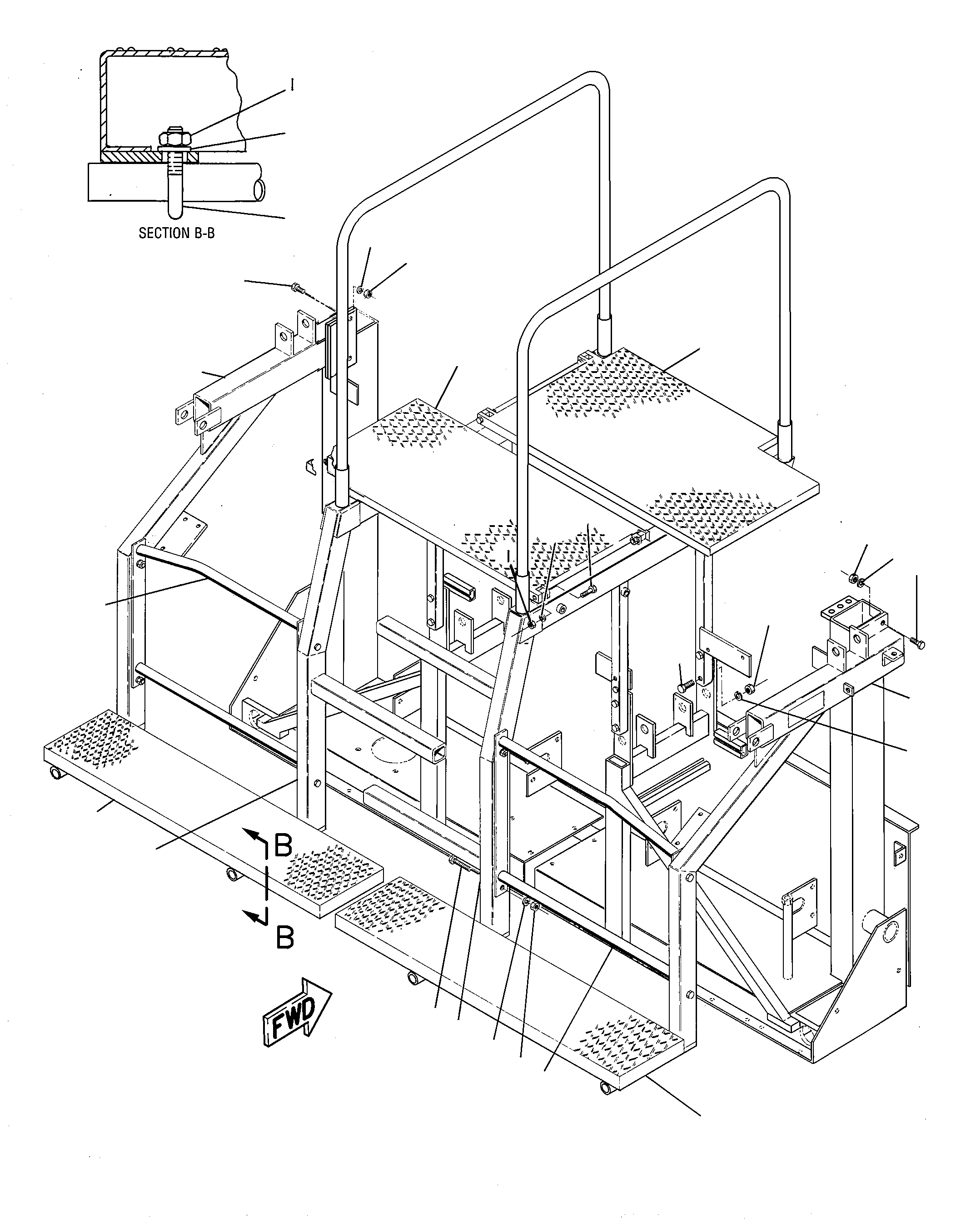

| 6V8801 | 1 NUT (3/8-16-THD) | 20 | |
| 8T4896 | 2 WASHER-HARD (10.2X18.5X2.5-MM THK) | 20 | |
| 5L2534 | 3 U-BOLT | 8 | |
| 5E9625 | 4 SUPPORT AS | 1 | |
| 5P2566 | 5 BOLT (1/2-13X1.5-IN) | 8 | |
| 8T4223 | 6 WASHER-HARD (13.5X25.5X3-MM THK) | 24 | |
| 6V8188 | 7 NUT (1/2-13-THD) | 24 | |
| 4L6459 | 8 BOLT (3/8-16X2.5-IN) | 4 | |
| 6R2989 | 9 PLATFORM AS (LH) | 1 | |
| 5E9626 | 10 SUPPORT AS | 1 | |
| 7X0326 | 11 BOLT (1/2-13X3-IN) | 16 | |
| 0819578 | 12 PLATFORM (RH) | 1 | |
| 0819574 | 13 HANDRAIL | 2 | |
| 6R3382 | 14 SUPPORT AS | 1 | |
| 6R0531 | 15 SUPPORT AS | 1 | |
| 9N8904 | 16 PLATFORM | 1 | |
| 6R2990 | 17 PLATFORM AS (RH) | 1 | |
| 3B8488 | 1 FITTING-GREASE (1/8-27 PTF) | 4 | |
| 1J8136 | 2 PIN-SPRING | 2 | |
| 0822390 | 3 WHEEL-ADJUSTMENT | 2 | |
| 7X9919 | 4 GRIP-HANDLE | 4 | |
| 2H3791 | 5 NUT (1-8-THD, SELF LOCKING) | 4 | |
| 3P8680 | 6 CUP-BEARING | 8 | |
| 7T9831 | CONE-BEARING | 8 | |
| 5P8250 | WASHER (28X49X5-MM THK) | 8 | |
| 8C7123 | 7 HOUSING | 4 | |
| 8C7130 | 8 LOCK | 4 | |
| 5C5440 | 9 LOCKNUT (1/4-20-THD) | 4 | |
| 8C7129 | 10 BOLT-LOCKING (2 5/8IN) | 4 | |
| 7X2501 | 11 BOLT (1/4-20X1.25-IN) | 8 | |
| 1D5119 | 12 NUT (3/4-10-THD) | 4 | |
| 5E9628 | 13 MOUNTING AS (RH) | 1 | |
| 5E9627 | MOUNTING AS (LH) | 1 | |
| 7X0366 | 14 BOLT (3/4-10X2-IN) | 16 | |
| 8T4994 | 15 WASHER-HARD (20X36.5X3.5-MM THK) | 10 | |
| 8C7128 | 16 SPACER | 16 | |
| 5E9631 | 17 BUSHING-TERMINAL | 16 | |
| 8C7891 | 18 SHAFT | 2 | |
| 0817167 | 19 INDICATOR (SLOPE) | 2 | |
| 6V8185 | 20 NUT (1/4-20-THD) | 4 | |
| 8T4205 | 21 WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 8C7895 | 22 THROWER-OIL | 2 | |
| 2J5850 | 23 PIN | 6 | |
| 8C7126 | 24 SHAFT | 2 | |
| 8C7165 | 25 WIPER | 2 | |
| 8C7148 | NUT | 2 | |
| 8C7897 | 26 HOUSING | 2 | |
| 8C7896 | 27 CRANKSHAFT | 2 | |
| 0817730 | 28 INDICATOR (MAT THICKNESS) | 2 | |
| 0822385 | 29 ROD-INDICATOR | 2 | |
| 8T4896 | 30 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 4L6454 | 31 BOLT (3/8-16X1-IN) | 2 | |
| 8C7127 | 32 BLOCK (ADJ) | 2 | |
| 6V8182 | 33 NUT (3/4-10-THD) | 8 | |
| 7X0369 | 34 BOLT (3/4-10X3.25-IN) | 8 | |
| 8C7908 | 35 STICK-POGO (INCL MTG STUD & NUT) | 2 | |
| 8C7125 | 36 SHAFT | 2 | |
| 5E9630 | 37 ARM AS-TOW | 1 | |
| 5E9629 | ARM AS-TOW | 1 | |
| 7R7970 | SHIM | 8 | |
| 8C7124 | 38 SHAFT | 2 | |
| 0817724 | 39 SPACER | 2 | |
| 8T4223 | 40 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 6V8188 | 41 NUT (1/2-13-THD) | 2 | |
| 8T9397 | 42 BOLT (3/4-10X1.25-IN) | 2 | |
| 5P2228 | 43 BOLT (1/2-13X1-IN) | 2 | |
| 0819564 | 44 RETAINER | 2 | |
| 5P6652 | 45 WASHER (20X44.5X6-MM THK) | 16 | |

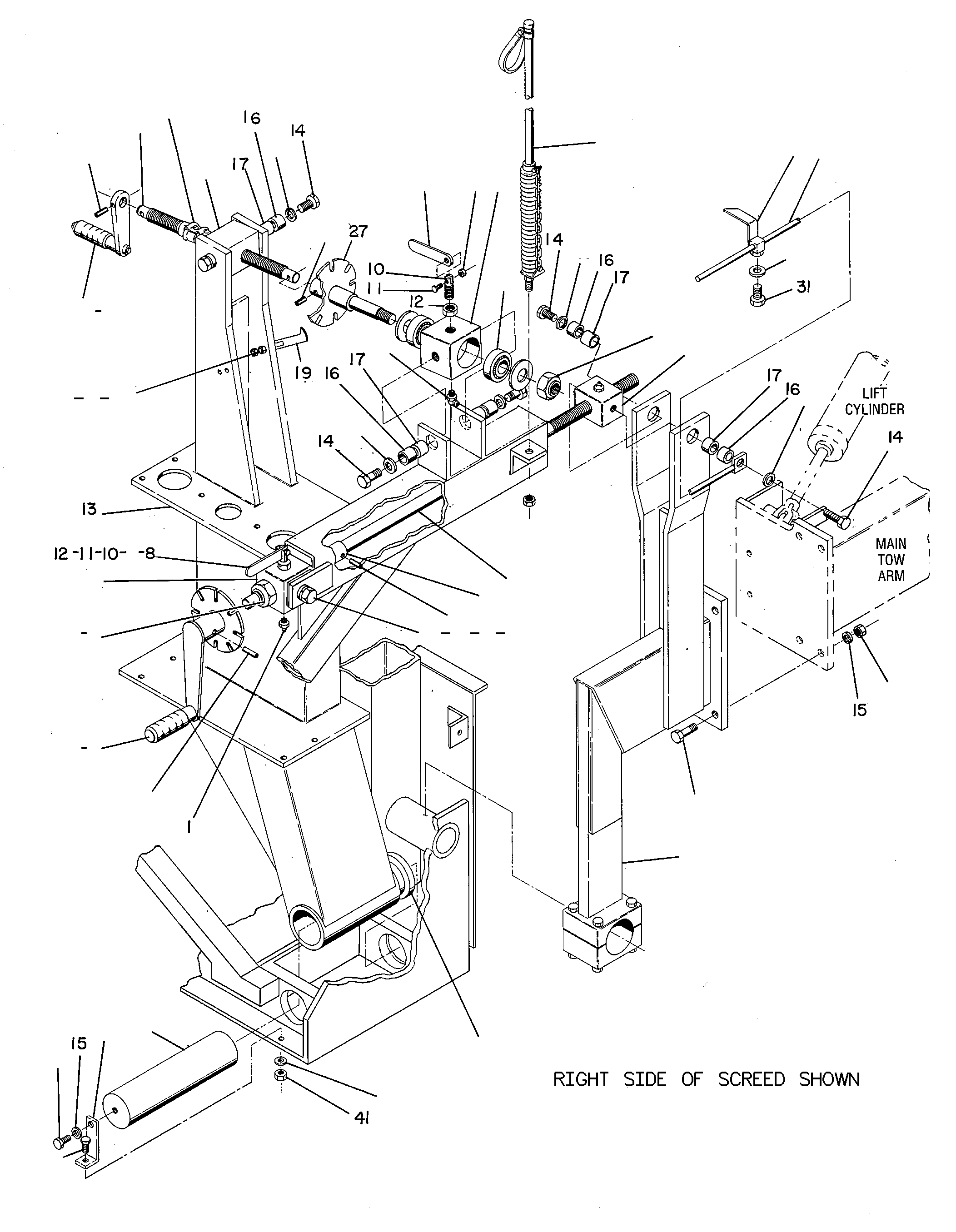

| 8C7166 | 1 CYLINDER GP-HYDRAULIC | 2 | |
| 7X0365 | 2 BOLT (3/4-10X1.5-IN) | 24 | |
| 8T4994 | 3 WASHER-HARD (20X36.5X3.5-MM THK) | 24 | |
| 7X8739 | 4 HANDRAIL | 2 | |
| 8C7883 | 5 TUBE (UPPER) | 2 | |
| 8C7884 | 6 TUBE (LOWER) | 2 | |
| 5E9170 | 7 MOUNT | 1 | |
| 0817723 | MOUNT | 1 | |
| 7X9630 | 8 BOLT-TAKE UP | 2 | |
| 8C7169 | 9 BEARING | 8 | |
| 8C7893 | SHAFT | 4 | |
| 8C7879 | 10 MOUNT | 2 | |
| 8C7140 | 11 JACK | 2 | |
| 9B7237 | 12 BOLT (3/8-16X1.25-IN) | 4 | |
| 8T4896 | 13 WASHER-HARD (10.2X18.5X2.5-MM THK) | 8 | |
| 6V8801 | 14 NUT (3/8-16-THD) | 6 | |
| 8C7134 | 15 PIN | 2 | |
| 0816574 | 16 KEY | 2 | |
| 7X9919 | 17 GRIP-HANDLE | 2 | |
| 8C7892 | THROWER-OIL | 2 | |
| 0102570 | 18 SETSCREW (1/4-20X0.375-IN) | 4 | |
| 6V8188 | 19 NUT (1/2-13-THD) | 20 | |
| 8T4223 | 20 WASHER-HARD (13.5X25.5X3-MM THK) | 12 | |
| 5P2566 | 21 BOLT (1/2-13X1.5-IN) | 20 | |
| 3B4617 | 22 PIN-COTTER | 4 | |
| 6R2682 | 23 BLOCK-STOP | 2 | |
| 7X8538 | BLOCK (NON THREADED) | 2 | |
| 0819568 | 24 RETAINER-SHAFT | 2 | |
| 8C7168 | 25 BEARING | 8 | |
| 8T5361 | 26 WASHER-HARD (28X49X5-MM THK) | 2 | |
| 7X0401 | 27 BOLT (1-8X1.75-IN) | 2 | |
| 5P0370 | 28 LOCK PIN | 4 | |
| 8C1851 | 29 PIN | 2 | |
| 6V8190 | 30 NUT (1-8-THD) | 8 | |
| 0819585 | 31 ROD-ADJUSTMENT | 2 | |
| 0819569 | 32 CAP-TRUNNION | 2 | |
| 8T8917 | 33 BOLT (1/2-13X1.25-IN) | 4 | |
| 5M3062 | 34 BOLT (3/8-16X0.75-IN) | 4 | |
| 0871785 | 35 MOUNT AS | 1 | |
| 0871784 | MOUNT AS | 1 | |
| 5S7383 | 36 BOLT (3/8-16X1.75-IN) | 2 | |
| 8T2501 | 37 BOLT (3/8-16X2-IN) | 2 | |
| 6V8182 | 38 NUT (3/4-10-THD) | 4 | |

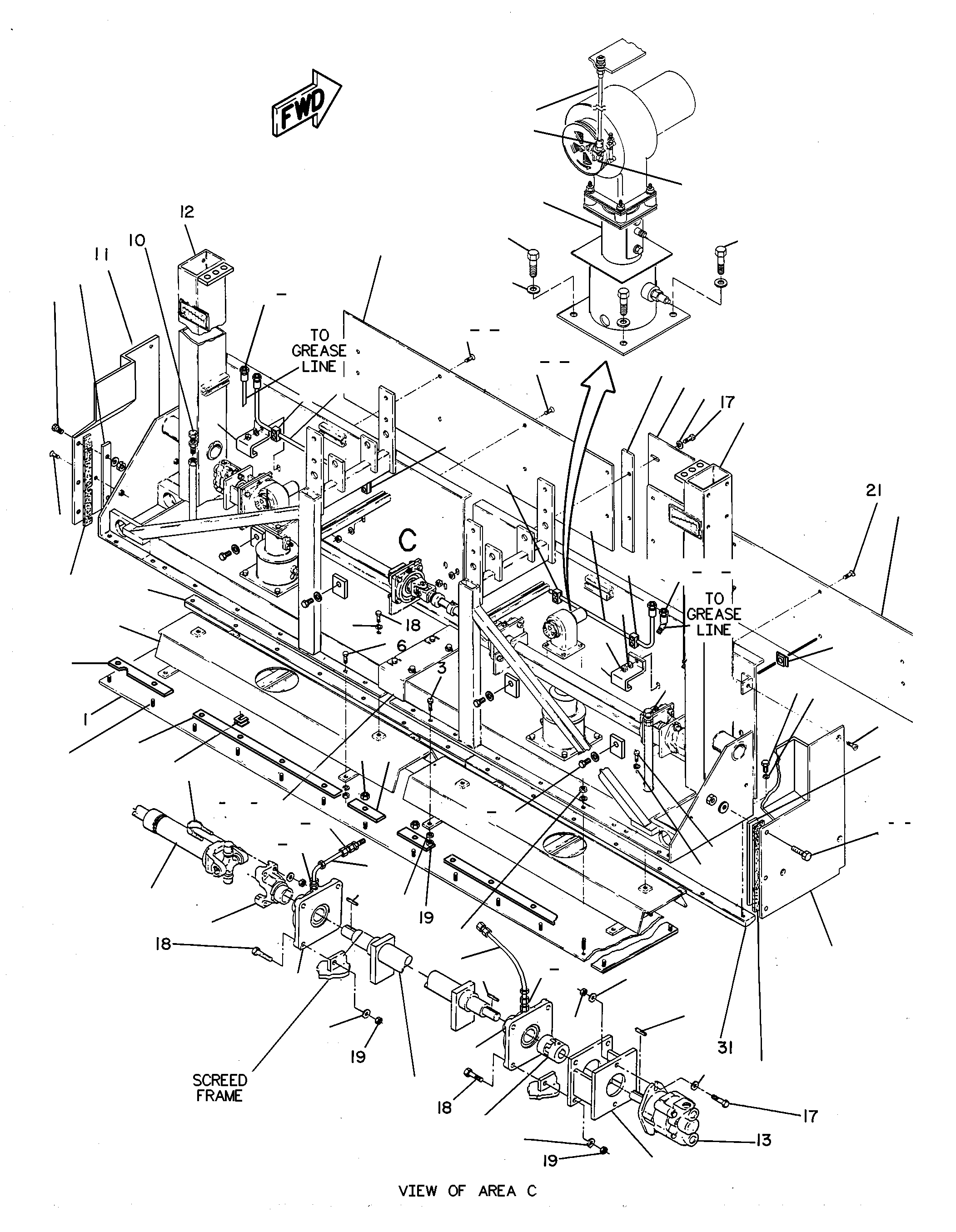

| 7R7518 | 1 PLATE | 1 | |
| 6R1669 | 2 BAFFLE AS-SCREED | 2 | |
| 7R7524 | 3 BAR | 1 | |
| 8C7172 | 4 SEAL | 2 | |
| 0307571 | 5 BOLT (3/8-16X1-IN) | 6 | |
| 0309110 | 6 BOLT | 6 | |
| 8T4896 | 7 WASHER-HARD (10.2X18.5X2.5-MM THK) | 31 | |
| 6V8801 | 8 NUT (3/8-16-THD) | 20 | |
| 0822384 | 9 STRAP | 2 | |
| 0817721 | 10 BOLT | 2 | |
| 1D5118 | NUT-JAM (5/8-11-THD) | 2 | |
| 6R1667 | 11 PLATE AS-SIDE (LH) | 1 | |
| 6R0446 | 12 FRAME AS-SCREED | 1 | |
| 8C7167 | 13 MOTOR GP-GEROTOR | 2 | |
| 7R6460 | 14 SHIELD (RH) | 1 | |
| 8C7138 | 15 KEY | 2 | |
| 8T8015 | 16 BEARING | 4 | |
| 4L9337 | 17 BOLT (3/8-16X1.5-IN) | 6 | |
| 8T8919 | 18 BOLT (1/2-13X1.75-IN) | 20 | |
| 6V8188 | 19 NUT (1/2-13-THD) | 24 | |
| 8T4223 | 20 WASHER-HARD (13.5X25.5X3-MM THK) | 74 | |
| 0677897 | 21 BOLT (3/8-16X1.25-IN) | 16 | |
| 8C7882 | 22 SHAFT | 2 | |
| 8C7874 | 23 PLATE (LH) | 1 | |
| 0819579 | 24 COVER | 1 | |
| 1C4490 | 25 SPACER | 1 | |
| 0817166 | 26 PLATE | 1 | |
| 6R0447 | 27 FRAME AS-SCREED | 1 | |
| 8C7875 | 28 PLATE (RH) | 1 | |
| 6R1666 | 29 PLATE AS-SIDE | 1 | |
| 5C6565 | 30 BOLT (1/2-13X1.125-IN) | 14 | |
| 7R7523 | 31 BAR | 1 | |
| 5P2566 | 32 BOLT (1/2-13X1.5-IN) | 2 | |
| 7R6360 | 33 SHIELD | 1 | |
| 0913741 | 34 LOCKNUT | 28 | |
| 8T4223 | WASHER-HARD (13.5X25.5X3-MM THK) | 28 | |
| 6R1662 | 35 SPACER | 2 | |
| 8T8917 | 36 BOLT (1/2-13X1.25-IN) | 8 | |
| 0817175 | 37 SPACER | 14 | |
| 7R3347 | 38 CABLE AS | 2 | |
| 0871457 | 39 BURNER GP (LH) | 1 | |
| 0871458 | BURNER GP (RH) | 1 | |
| 7R6112 | 40 HUB | 2 | |
| 7R6109 | 41 PIVOT | 2 | |
| 3B4607 | PIN-COTTER | 2 | |
| 8T4205 | WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 5P2566 | 42 BOLT (1/2-13X1.5-IN) | 8 | |
| 8C7136 | 43 SHIM (0.794-MM THK) | 28 | |
| 8C7135 | SHIM (1.588-MM THK) | 28 | |
| 0816574 | 44 KEY | 2 | |
| 8T8019 | 45 COUPLING | 2 | |
| 0778164 | 46 U-BOLT | 2 | |
| 8C7760 | 47 SHAFT AS | 1 | |
| 8C7761 | 48 END-YOKE | 2 | |
| 8C7139 | 49 KEY | 2 | |
| 0817718 | 50 MOUNT | 2 | |
| 5M3062 | 51 BOLT (3/8-16X0.75-IN) | 4 | |
| 5M2894 | 52 WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 0982599 | 53 FITTING-GREASE | 4 | |
| 8C6866 | CONNECTOR | 4 | |
| 7R7663 | 54 TUBE AS | 2 | |
| 7R6037 | 55 CLAMP | 4 | |
| 7R6036 | PLATE | 4 | |
| 7X2501 | BOLT (1/4-20X1.25-IN) | 8 | |
| 6V8729 | 56 UNION | 2 | |
| 4J5477 | 57 SEAL-O-RING | 10 | |
| 3B7733 | 58 FITTING | 4 | |
| 3B6487 | COUPLING (PIPE) | 4 | |
| 8C6865 | CONNECTOR | 4 | |
| 7R7661 | 59 HOSE AS | 2 | |
| 7R7662 | 60 HOSE AS | 2 | |
| 6R4005 | 61 STUD | 28 | |
| 6R0257 | 62 SPACER | 2 | |
| 6R0256 | 63 SPACER | 2 | |
| 4V0182 | 64 NUT AS-SPRING | 8 | |
| 0870491 | 65 ADAPTER | 2 | |

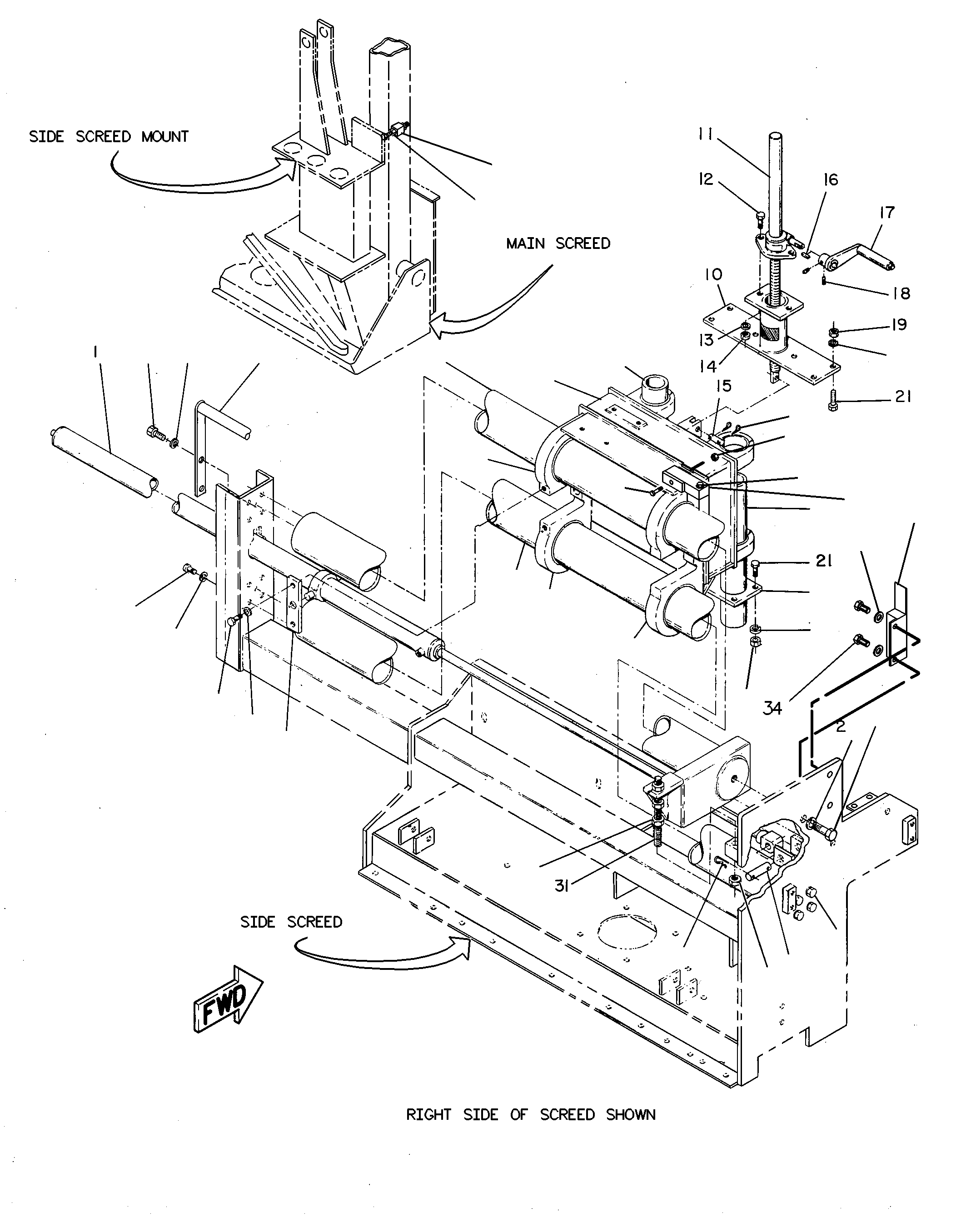

| 7X0533 | 1 WASHER-HARD (34X55X6-MM THK) | 8 | |
| 1C4489 | SHIM | 12 | |
| 8C7127 | 2 BLOCK (ADJ) | 2 | |
| 3B8488 | 3 FITTING-GREASE (1/8-27 PTF) | 3 | |
| 8C7131 | 4 CRANKSHAFT | 1 | |
| 8C7128 | 5 SPACER | 8 | |
| 8C7132 | 6 SHAFT-SPROCKET | 2 | |
| 8T8018 | 7 CHAIN AS | 1 | |
| 8T4223 | 8 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 3B4627 | 9 PIN-COTTER | 2 | |
| 8C7123 | 10 HOUSING | 2 | |
| 3B8489 | 11 FITTING-GREASE (1/8-27 PTF) | 3 | |
| 3P8680 | 12 CUP-BEARING | 4 | |
| 7T9831 | CONE-BEARING | 4 | |
| 5P8250 | 13 WASHER (28X49X5-MM THK) | 2 | |
| 2H3791 | 14 NUT (1-8-THD, SELF LOCKING) | 2 | |
| 5C7886 | 15 BOLT (3/4-10X1-IN) | 2 | |
| 5E9631 | 16 BUSHING-TERMINAL | 8 | |
| 7X9919 | 17 GRIP-HANDLE | 1 | |
| 8C7133 | 18 THROWER-OIL | 1 | |
| 4H3119 | 19 PIN | 1 | |
| 5P6652 | 20 WASHER (20X44.5X6-MM THK) | 8 | |
| 7X0366 | 21 BOLT (3/4-10X2-IN) | 8 | |
| 8C7898 | 22 SHAFT | 2 | |
| 6R4006 | 23 PLATE | 1 | |
| 6R4007 | 24 BAR | 1 | |
| 6R4111 | 25 TENSIONER | 1 | |
| 7X0274 | 26 BOLT (5/16-18X2.75-IN) | 1 | |
| 7X0279 | 27 BOLT (5/16-18X4.75-IN) | 1 | |
| 8T4224 | 28 WASHER-HARD (8.8X16X2-MM THK) | 3 | |
| 6V8189 | 29 NUT (5/16-18-THD) | 1 |
