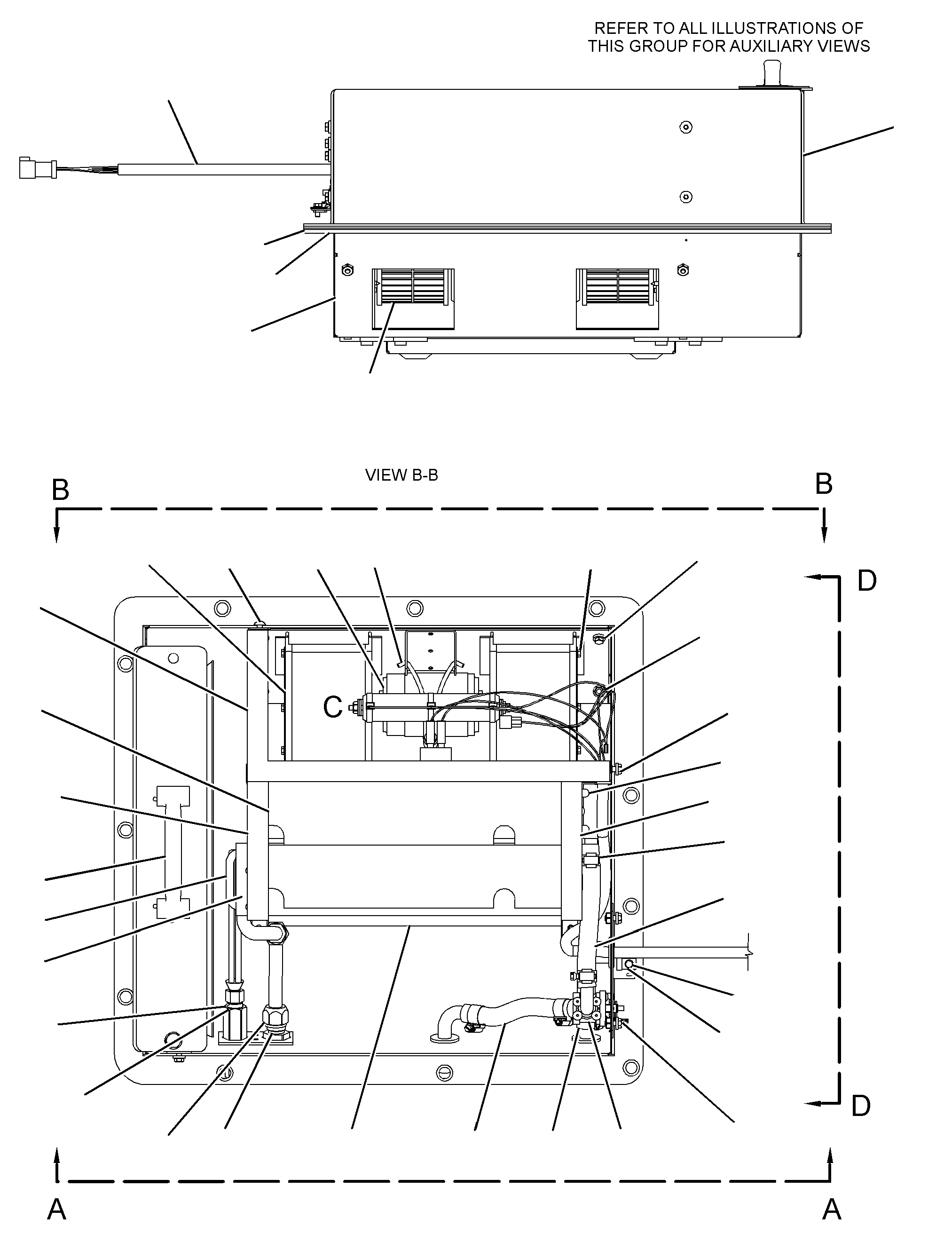

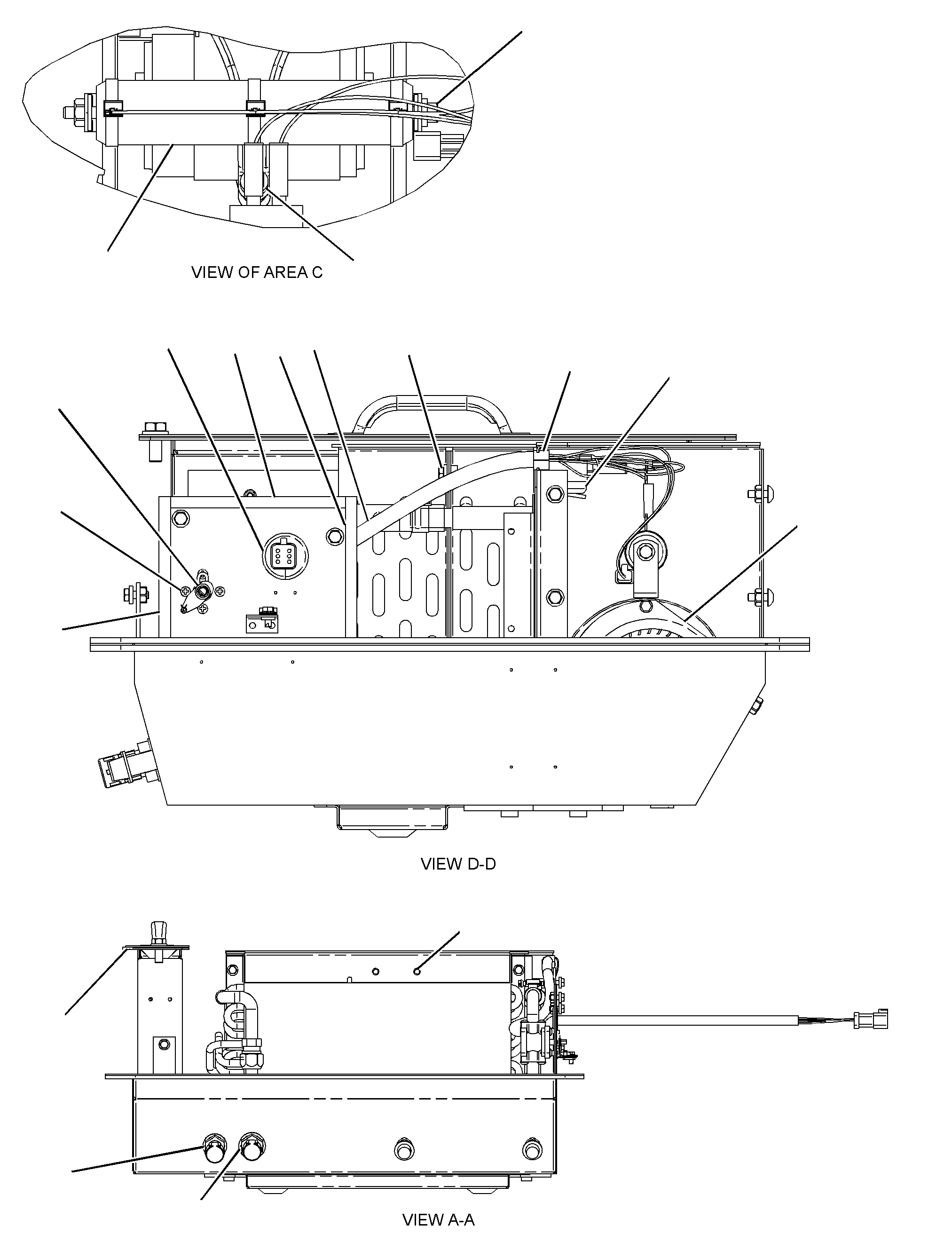

System And Components
156-6821 AIR CONDITIONER GPS/N 2RZ1-UP; 5LZ1-UP
Group No: 156-6821
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1P6522 | 1 GROMMET | 1 | |
| 2H3922 | 2 LOCKWASHER | 1 | |
| 2H3923 | 3 LOCKWASHER | 1 | |
| 2S3745 | 4 SCREW-TAPPING (10-16X0.5-IN) | 6 | |
| 3B4501 | 5 LOCKWASHER | 2 | |
| 3E0068 | 6 TUBE AS | 1 | |
| 3E0406 | 7 FITTING-BULKHEAD | 1 | |
| 3E1841 | 8 LEVER | 1 | |
| 3E5464 | 9 SWITCH AS-THERMOSTAT (HVAC) | 1 | |
| 3S2093 | 10 STRAP-CABLE | 1 | |
| 5C9553 | 11 BOLT (M6X1X16-MM) | 5 | |
| 6V1668 | 12 WASHER (6.5X29.1X3-MM THK) | 2 | |
| 7F2050 | 13 LOCKNUT (3/4-16-THD) | 1 | |
| 7F2060 | 14 LOCKNUT (7/8-14-THD) | 1 | |
| 7G4850 | 15 UNION | 1 | |
| 8C4586 | 16 CLAMP | 2 | |
| 8C8451 | 17 BOLT (M6X1X40-MM) | 1 | |
| 8C8457 | 18 SCREW-MACHINE (M5X0.8X14-MM) | 1 | |
| 8T0154 | 19 CLAMP-HOSE | 6 | |
| 8T4171 | 20 BOLT (M6X1X12-MM) | 4 | |
| 8T4205 | 21 WASHER-HARD (7.2X14.5X2-MM THK) | 14 | |
| 8T6631 | 22 SCREW-MACHINE (8-32X0.5-IN) | 2 | |
| 8Y5737 | 23 CLAMP | 1 | |
| 9G1950 | 24 RESISTOR | 1 | |
| 9X2044 | 25 SCREW-TRUSS HEAD (M6X1X16-MM) | 2 | |
| 9X2185 | 26 SCREW (8-15X0.44-IN) | 4 | |
| 0374426 | 27 RETAINER | 1 | |
| 1003143 | 28 PLATE-ORIFICE | 2 | |
| 1003426 | 29 WHEEL AS-BLOWER | 2 | |
| 0374838 | CLAMP | 2 | |
| 1020341 | 30 CLIP (TAB) | 1 | |
| 1130302 | 31 COIL AS-HEATER | 1 | |
| 1130303 | 32 COIL AS-EVAPORATOR | 1 | |
| 1130306 | 33 TUBE AS-AIR CONDITIONER | 1 | |
| 1143140 | 34 GROMMET | 1 | |
| 1185044 | 35 HARNESS AS-WIRING (CAB HEATER) | 1 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 3E3383 | WEDGE-RECEPTACLE LOCK (6-PIN) | 1 | |
| 3S2093 | STRAP-CABLE | 3 | |
| 6T6505 | HOUSING-RECEPTACLE (BLADE, POSITIVE LOCK) | 5 | |
| 6T6506 | TERMINAL-BLADE (14-GA TO 18-GA) | 5 | |
| 8T8737 | PLUG-SEAL | 1 | |
| 9W0844 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 2 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 5 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(13-CM) | ||
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 1185046 | 36 HOUSING AS | 1 | |
| 1248494 | 37 GASKET | 2 | |
| 1248495 | 38 VALVE AS-WATER (AIR CONDITIONER) | 1 | |
| 1268542 | 39 FRAME AS-FILTER | 1 | |
| 1278613 | 40 GASKET | 1 | |
| 1293178 | 41 LOCKNUT (M6X1-THD) | 3 | |
| 1419784 | 42 BOLT (M6X1X190-MM) | 1 | |
| 1566818 | 43 COVER AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 1566822 | 44 CASE AS | 1 | |
| 4V0969 | PLATE AS | 4 | |
| 1649206 | 45 MOTOR AS-BLOWER | 1 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 9X7381 | 46 SEAL-O-RING | 1 | |
| 9X7382 | 47 SEAL-O-RING | 2 | |
| 5P5673 | 48 SEAL (2.2-M) | ||
| 5P5673 | 48A SEAL (2.2-M) | ||
| 5P5643 | 48B SEAL (0.4-M) | ||
| 6V1392 | 49 SEAL (0.6-M) | ||
| 6V1392 | 49A SEAL (0.2-M EACH) | ||
| 1361953 | 50 HOSE (17.8-CM) | ||
| 1361953 | 50A HOSE (15.2-CM) | ||
| 1361953 | 50B HOSE (22.9-CM) | ||
| 8T5372 | 51 SEAL (0.2-M) | ||
| 8T5372 | 51A SEAL (0.1-M EACH) | ||
| 5P7070 | 52 INSULATION-STRIP (0.6-M EACH) |
