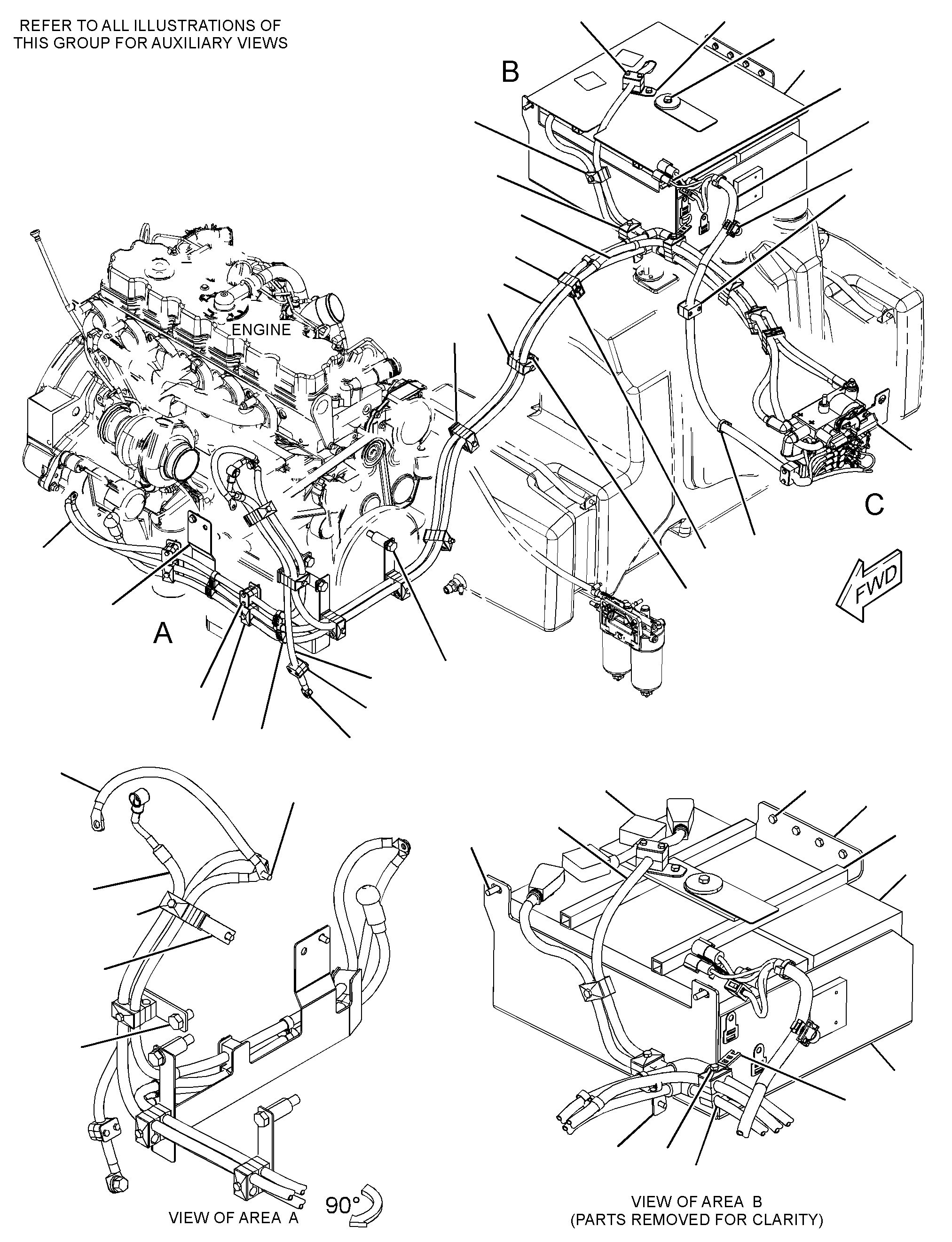

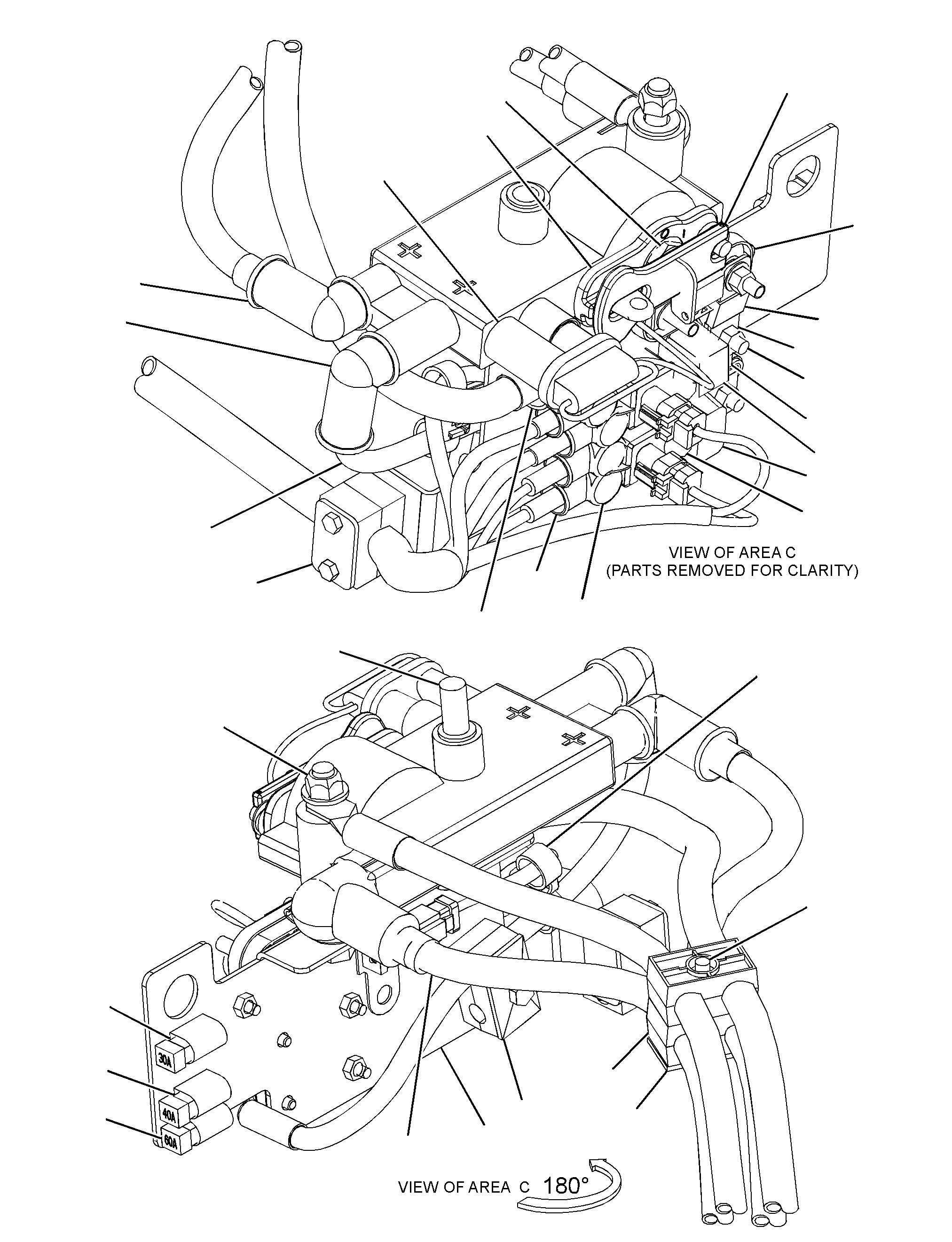

428-6693 BATTERY & WIRING GPS/N RLM1-UP

Group No: 428-6693

Part Number	Part Name	Qty
7V5628	1 PLATE (TOP)	3
7X8877	2 HOLD-DOWN-BATTERY	1
8T8799	3 BOOT (RED)	4
9G2758	4 LOCKOUT-SWITCH	1
9X6932	5 BOOT-TERMINAL	2
1028703	6 PLATE-COVER	20
1074749	7 PLATE (TOP)	3
1535710	8 BATTERY GP (12-VOLT, MAINTENANCE FREE, WET)	2
1544890	9 BOLT-STACKING (M8X1.25X33-MM)	7
1635293	10 CABLE AS	1
1598050	CABLE (00-GA, BLACK)(14-CM)
9G0002	COVER AS-TERMINAL (RED)	1
9G0005	COVER AS-TERMINAL (BLACK)	1
8L8413	STRAP-CABLE (WHITE)	1
8C5918	TERMINAL AS-BATTERY (NEGATIVE)	1
8T9756	TERMINAL AS-BATTERY (POSITIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)
1772215	11 STRAP-DUAL CLAMP	7
2006345	12 SADDLE-MOUNTING (DUAL SWIVEL)	1
2042281	13 STRAP-CABLE	2
2060451	14 BOLT-STACKING (M8X1.25X44-MM)	2
2060452	15 PLATE	12
2351845	16 FUSE (100-AMPERE)	1
2672701	17 FUSE (60-AMPERE)(POWER, 1)	2
2672744	18 HOLDER AS-FUSE	1
2672746	COVER AS	1
2721193	19 PLATE AS	1
2749872	20 FUSE (30-AMPERE)(MAIN)	3
2750553	21 BAR-BUS	1
2786377	22 FUSE (40-AMPERE)(POWER, 2)	2
3031256	23 RELAY GP (24-VDC)(MAIN POWER)	2
3031256	23A RELAY GP (24-VDC)(ENGINE TEMPERATURE)	2
3293992	24 CABLE AS	1
3L6513	TERMINAL-RING (1-GA TO 2-GA, 1/2-IN SCREW)	1
8C3056	CABLE (2-GA, RED)(42-CM)
2781439	TERMINAL AS-RING	1
1257876	TUBE-HEAT SHRINK (17.78-MM DIA)(4-CM)
2781438	TERMINAL-RING	1
3388927	25 PLATE AS	1
3389001	26 TRAY AS-BATTERY	1
3389005	27 CABLE AS-BATTERY	1
7T9988	COVER AS-TERMINAL (BLACK)	1
8L8413	STRAP-CABLE (WHITE)	1
9G8909	COVER-TERMINAL (BLACK)	1
3S6050	TERMINAL AS-BATTERY (NEGATIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
1598050	CABLE (00-GA, BLACK)(183-CM)
3116112	TERMINAL AS-BATTERY	1
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
3519309	TUBE-HEAT SHRINK (32-MM DIA)(4-CM)
3395746	28 BRACKET AS-CLAMP	1
3417395	29 COVER-BATTERY	1
3442271	30 BRACKET AS	2
3464783	31 BRACKET AS	1
3526558	32 PLATE AS	1
3526571	33 BAR-BUS	1
3611595	34 PLATE	1
4187713	35 CABLE AS (POSITIVE)	1
8N0869	COVER-TERMINAL (RED)	1
8N1725	COVER AS-TERMINAL (RED)	1
8L8413	STRAP-CABLE (WHITE)	1
3S6049	TERMINAL AS-BATTERY (POSITIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
1598049	CABLE (00-GA, RED)(403-CM)
3116112	TERMINAL AS-BATTERY	2
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
3519309	TUBE-HEAT SHRINK (32-MM DIA)(4-CM)
4187715	36 BRACKET AS	1
1028704	PLATE-WELD	3
1788507	PLATE-WELD	2
4187716	37 CABLE AS	1
1598050	CABLE (00-GA, BLACK)(346-CM)
2767278	TERMINAL-RING	1
3116112	TERMINAL AS-BATTERY	1
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
3519309	TUBE-HEAT SHRINK (32-MM DIA)(4-CM)
4287341	38 CABLE AS	1
6V2369	CABLE (4-GA, BLACK)(3.5-M)
3299931	HOSE (127-IN)
8T8799	BOOT (RED)	1
1257876	TUBE-HEAT SHRINK (17.78-MM DIA)(1-CM)
5P3454	TERMINAL-RING (4-GA, 5/16-IN SCREW)	2
4287342	39 CABLE AS (GROUND)	1
1598050	CABLE (00-GA, BLACK)(135-CM)
3482315	TERMINAL AS-RING	2
1355010	TUBE-HEAT SHRINK (52-MM DIA)(5-CM)
2767278	TERMINAL-RING	1
4287343	40 CABLE AS	1
1598050	CABLE (00-GA, BLACK)(29-CM)
3482315	TERMINAL AS-RING	2
1355010	TUBE-HEAT SHRINK (52-MM DIA)(5-CM)
2767278	TERMINAL-RING	1
4287344	41 CABLE AS-GROUND	1
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
1598050	CABLE (00-GA, BLACK)(76-CM)
3150180	TERMINAL-RING (00-GA, 3/8-IN SCREW)	1
4428773	42 BRACKET AS	1
6V9632	NUT-WELD (M6X1-THD)	4
7T1099	LINK	1
1028704	PLATE-WELD	1
1305300	CLIP	1
1788505	PLATE	1
4499652	43 HARNESS AS-POWER	1
4526892	44 SWITCH GP-DISCONNECT (BATTERY)	1
0993649	45 BOLT (M8X1.25X40-MM)	1
1285531	46 CLAMP-HALF	6
1305300	47 CLIP	4
1563618	48 CLAMP-HALF	16
1565306	49 CLAMP-HALF	32
1907971	50 WASHER-HARD (11X64X6-MM THK)	1
1908250	51 BOLT (M10X1.5X295-MM)	1
1974103	52 CLAMP-HALF	2
1G9960	53 CLAMP	2
1H3244	54 LOCKWASHER	4
3371807	55 CLAMP-HALF	8
4P7581	56 CLIP (LADDER)	2
4V6440	57 SPACER (18.9X26.7X50-MM THK)	2
5C2890	58 NUT (M6X1-THD)	4
5C7261	59 NUT (M8X1.25-THD)	8
5P4116	60 WASHER-HARD (8.8X20.5X2-MM THK)	2
6V7687	61 LOCKNUT (M12X1.75-THD)	1
7K1181	62 STRAP-CABLE	3
7V5626	63 CLAMP	4
7X2533	64 BOLT (M6X1X35-MM)	6
7X2534	65 BOLT (M6X1X50-MM)	2
7X2537	66 BOLT (M8X1.25X35-MM)	12
7X2550	67 BOLT (M12X1.75X110-MM)	2
7X2552	68 BOLT (M16X2X30-MM)	1
7X2555	69 BOLT (M16X2X80-MM)	2
7X7729	70 WASHER (11X25X3-MM THK)	4
8C8451	71 BOLT (M6X1X40-MM)	6
8T3647	72 BOLT (M8X1.25X80-MM)	3
8T4121	73 WASHER-HARD (11X21X2.5-MM THK)	4
8T4123	74 WASHER (22X35X3.5-MM THK)	1
8T4136	75 BOLT (M10X1.5X25-MM)	1
8T4137	76 BOLT (M10X1.5X20-MM)	1
8T4138	77 BOLT (M6X1X20-MM)	2
8T4179	78 BOLT (M12X1.75X20-MM)	3
8T4189	79 BOLT (M8X1.25X20-MM)	2
8T4191	80 BOLT (M10X1.5X16-MM)	1
8T4195	81 BOLT (M10X1.5X30-MM)	4
8T4197	82 BOLT (M8X1.25X40-MM)	1
8T4205	83 WASHER-HARD (7.2X14.5X2-MM THK)	4
8T4223	84 WASHER-HARD (13.5X25.5X3-MM THK)	7
8T4224	85 WASHER-HARD (8.8X16X2-MM THK)	12
8T4244	86 NUT (M12X1.75-THD)	1
8T4908	87 BOLT (M8X1.25X25-MM)	2
2643617	88 LOCKWASHER	4
9X8256	89 WASHER (6.6X12X2-MM THK)	4
9X8257	90 WASHER (17.5X30X3.5-MM THK)	3
1032543	91 SEAL (2.5-CM EACH)
8T4200	92 BOLT (M8X1.25X16-MM)	4
6V8523	93 HOSE (3.5-CM EACH)
