System And Components

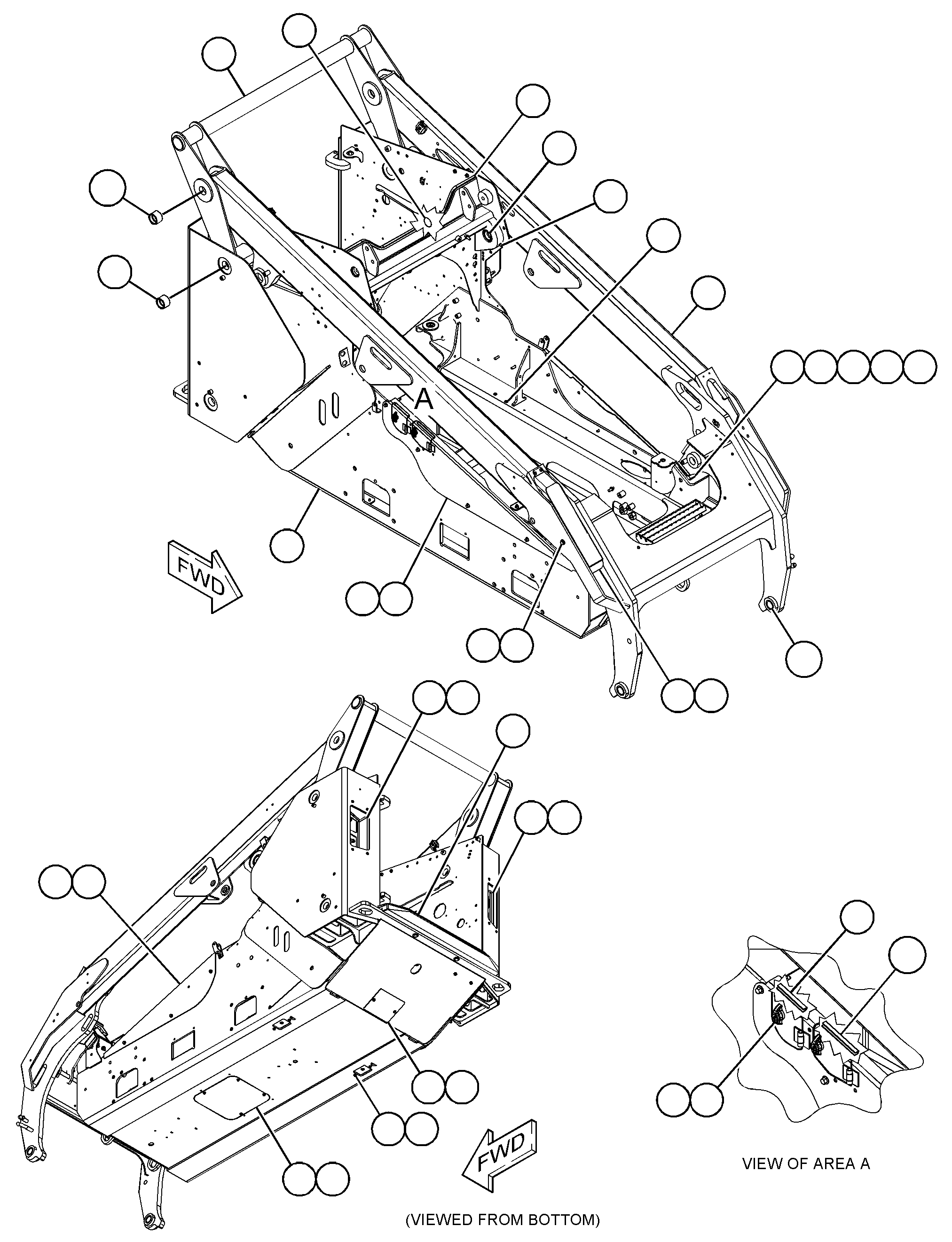

435-8775 FRAME & MTG GP-MACHINES/N BY4138-UP; DX9216-UP
Group No: 435-8775
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3J7283 | 1 FITTING-GREASE (1/8-27 PTF) | 2 | |
| 2467853 | 2 NUT-SPECIAL (M8X1.25-THD) | 2 | |
| 2583312 | 3 PLATE | 1 | |
| 2750572 | 4 LATCH AS | 2 | |
| 2874218 | 5 PLATE | 2 | |
| 2874220 | 6 SHIM (2-MM THK) | 3 | |
| 5123963 | 7 PLATE AS | 1 | |
| 5123964 | 8 PLATE AS | 1 | |
| 1599539 | NUT-WELD (M6X1-THD) | 2 | |
| 8X4245 | BOSS (M6X1X18-MM) | 2 | |
| 3887992 | 9 LINK AS | 1 | |
| 4K4709 | 9A BUSHING | 4 | |
| 4198315 | 10 COVER AS | 1 | |
| 5165798 | 11 ARM AS-LIFT | 1 | |
| 4K4709 | 11A BUSHING | 4 | |
| 6K4148 | 11B BUSHING | 4 | |
| 2398534 | PLATE-WELD | 1 | |
| 7T1099 | LINK | 1 | |
| 4359045 | 12 PLATE | 2 | |
| 4359230 | 13 PLATE AS | 1 | |
| 4539094 | 14 BUMPER GP (REAR) | 1 | |
| 4609540 | 15 COVER AS | 1 | |
| 4615429 | 16 CAM-LATCH | 2 | |
| 4491737 | 17 FILM-IDENTIFICATION (IGNITION SWITCH) | 1 | |
| 4726000 | 18 FRAME AS | 1 | |
| 7T1099 | LINK | 14 | |
| 4749042 | 19 PLATE | 1 | |
| 2663315 | 20 BOLT-FLANGE HEAD (M8X1.25X25.5-MM) | 4 | |
| 2663316 | 21 BOLT-FLANGE HEAD (M10X1.5X25-MM) | 7 | |
| 2Y5829 | 22 NUT (M10X1.5-THD) | 4 | |
| 3429920 | 23 BOLT-FLANGE HEAD (M8X1.25X20-MM) | 2 | |
| 3429922 | 24 BOLT-FLANGE HEAD (M8X1.25X25-MM) | 4 | |
| 4D4431 | 25 BEARING-ALIGNING | 2 | |
| 7X7729 | 26 WASHER (11X25X3-MM THK) | 9 | |
| 8T4185 | 27 BOLT (M10X1.5X50-MM) | 4 | |
| 8T4195 | 28 BOLT (M10X1.5X30-MM) | 1 | |
| 9X2045 | 29 SCREW-TRUSS HEAD (M6X1X20-MM) | 2 | |
| 3866028 | 30 SEAL (97-CM) | ||
| 9X2092 | 31 TRIM-EDGE (9.2-CM) | ||
| 9X2092 | 31A TRIM-EDGE (11.5-CM) | ||
| 3E8020 | 32 SCREW-TRUSS HEAD (M6X1X25-MM) | 8 |
