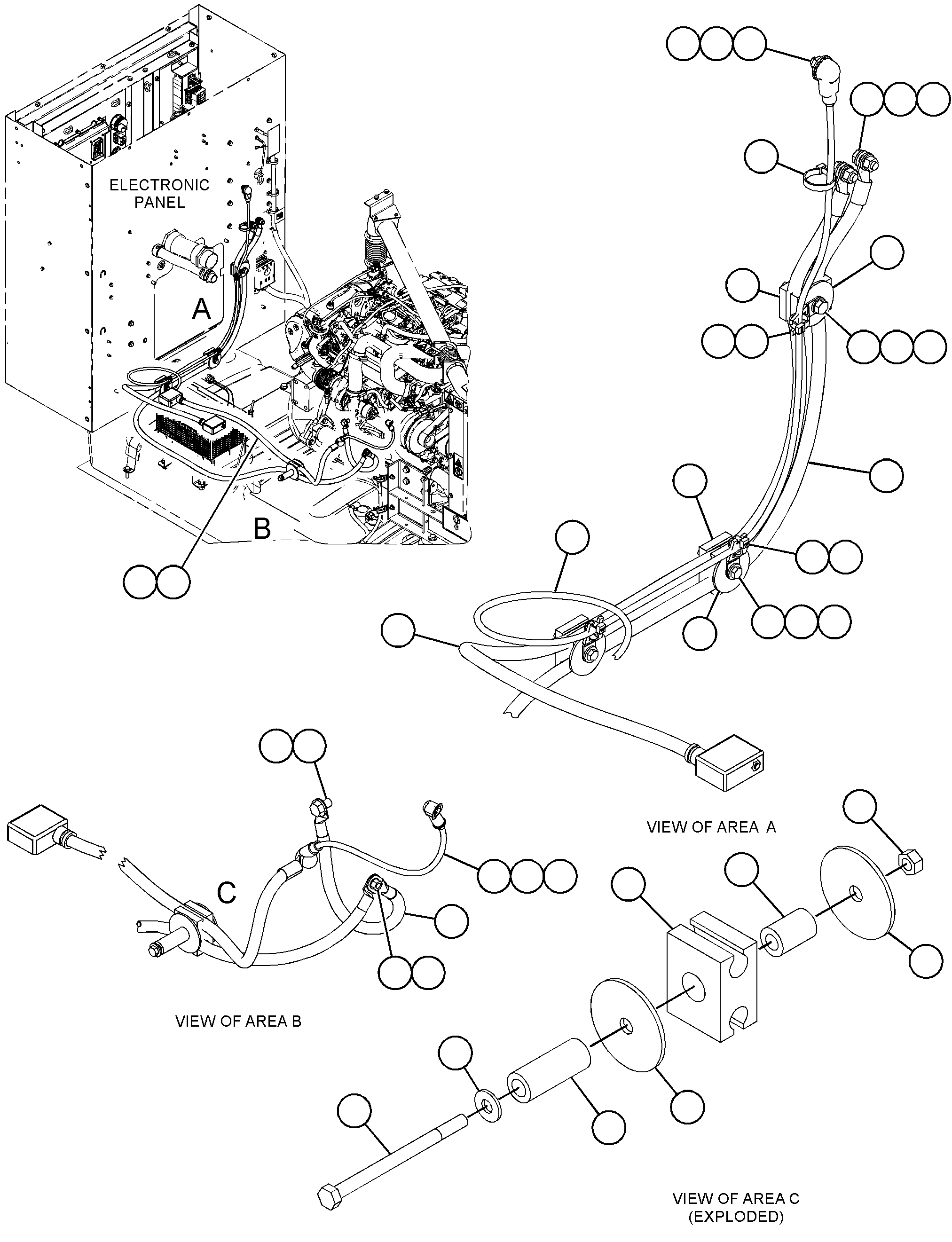

486-9058 BATTERY & WIRING GPS/N CF91-UP; CJ91-UP

Group No: 486-9058
Part NumberPart NameQty
6G22561 CLAMP4
7K11812 STRAP-CABLE4
52144713 WIRE AS1
49170474 WIRE AS1
49170505 CABLE AS1
0301705TERMINAL-CABLE (00-GA, 5/16-IN SCREW)1
1598050CABLE (00-GA, BLACK)(225-CM)
1355010TUBE-HEAT SHRINK (52-MM DIA)(5-CM)
2167790TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
49170516 CABLE AS1
0301705TERMINAL-CABLE (00-GA, 5/16-IN SCREW)1
1598050CABLE (00-GA, BLACK)(33-CM)
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
50902657 CABLE AS1
9G0003COVER AS-TERMINAL (BLACK)1
8L8413STRAP-CABLE (WHITE)1
1598050CABLE (00-GA, BLACK)(163-CM)
1355010TUBE-HEAT SHRINK (52-MM DIA)(5-CM)
2167790TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
1M6120NUT (5/16-18-THD)2
3T3349STUD (5/16-18X0.5-IN, 5/16-18X1.5-IN)1
50902668 CABLE AS1
9G0002COVER AS-TERMINAL (RED)1
8L8413STRAP-CABLE (WHITE)1
1598049CABLE (00-GA, RED)(102-CM)
1355010TUBE-HEAT SHRINK (52-MM DIA)(5-CM)
2167790TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
1M6120NUT (5/16-18-THD)2
3T3349STUD (5/16-18X0.5-IN, 5/16-18X1.5-IN)1
25687959 SPACER (11.7X19.8X50.8-MM THK)1
2G876710 WASHER (10.5X60X3-MM THK)5
344567411 NUT (M8X1.25-THD)1
344567512 NUT (M10X1.5-THD)3
4P758113 CLIP (LADDER)3
5C726114 NUT (M8X1.25-THD)2
5P411615 WASHER-HARD (8.8X20.5X2-MM THK)1
6G226316 SPACER (10.5X19X28.5-MM THK)4
7X253917 BOLT (M8X1.25X110-MM)1
8F724218 WASHER (8.7X15.9X1.6-MM THK)2
8T412119 WASHER-HARD (11X21X2.5-MM THK)10
8T413620 BOLT (M10X1.5X25-MM)3
8T417921 BOLT (M12X1.75X20-MM)1
8T422322 WASHER-HARD (13.5X25.5X3-MM THK)1
8T646623 BOLT (M10X1.5X60-MM)1
8T686924 BOLT (M8X1.25X60-MM)2
