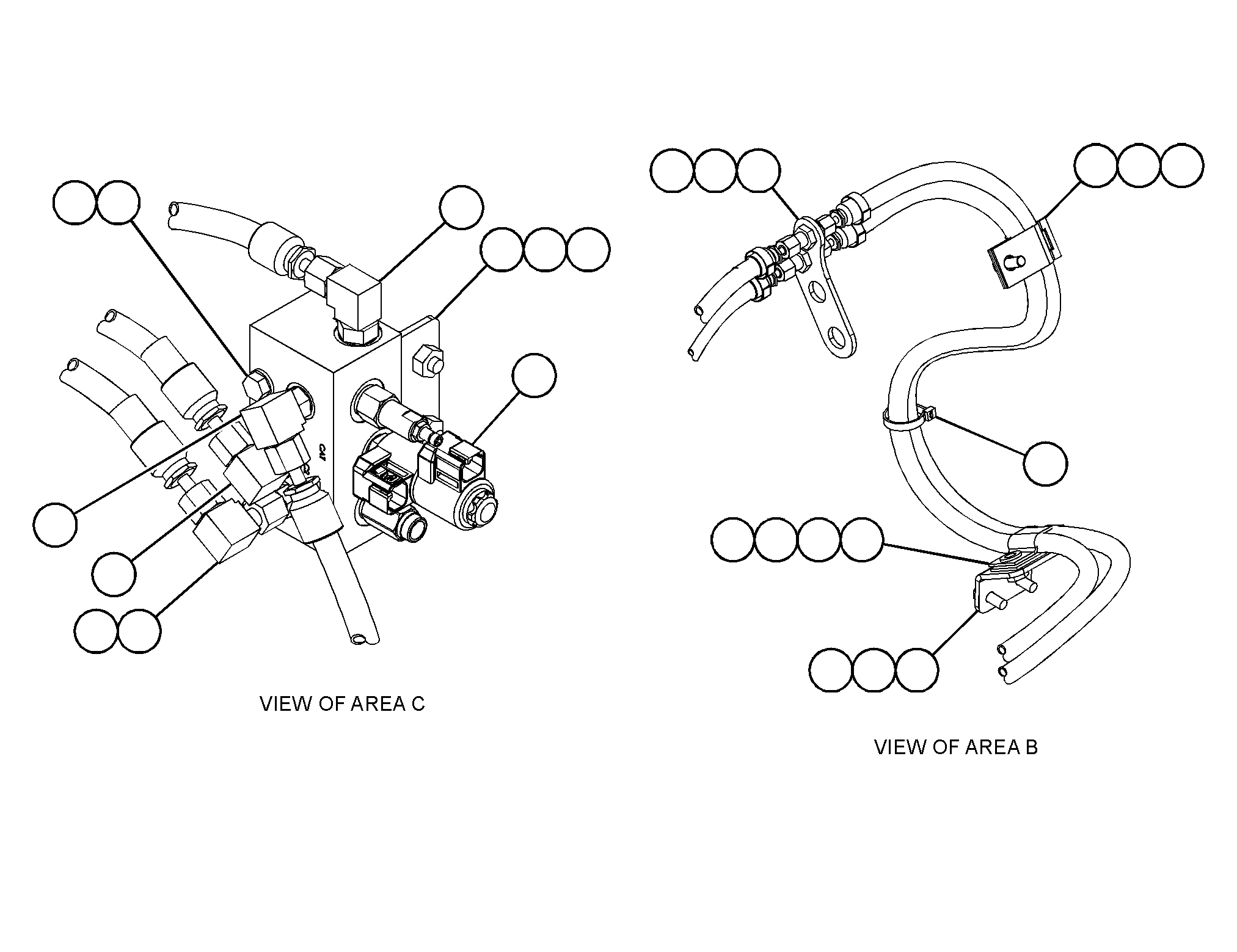

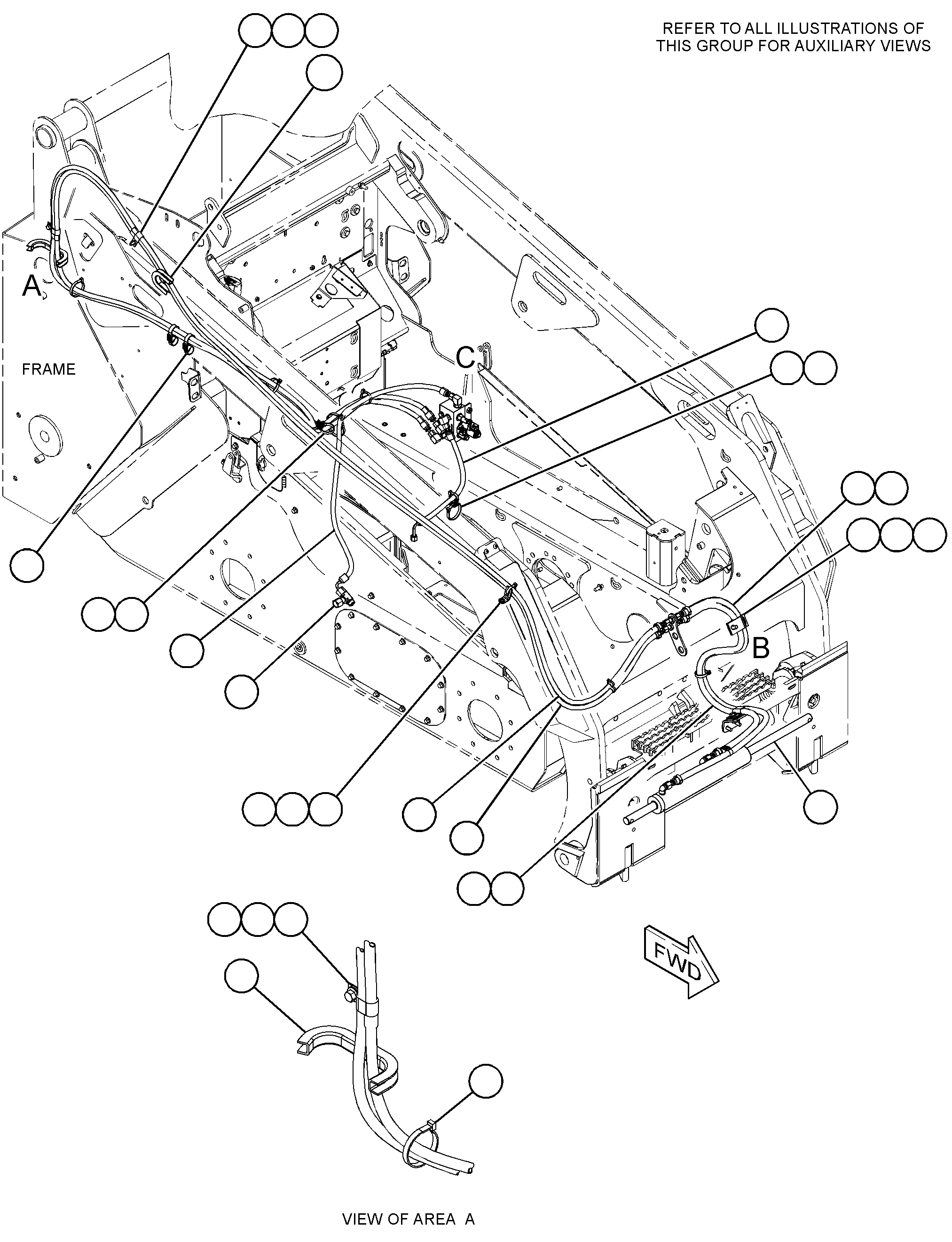

515-7791 LINES GP-COUPLERS/N CW91-6080; MC91-613; TE91-645; TLS1-517

Group No: 515-7791
Part NumberPart NameQty
51545911 CYLINDER GP-COUPLER1
7K11812 STRAP-CABLE10
9X21253 BOLT-LOCKING (M10X1.5X25-MM)1
29055624 MOUNT (DUAL SWIVEL)2
49993295 VALVE & MTG GP-COUPLER1
51553496 BRACKET AS1
51584547 HOSE AS1
51584558 HOSE AS1
51720579 BRACKET AS1
522266310 HOSE AS1
522266411 HOSE AS1
522266512 HOSE AS1
522266613 HOSE AS1
524375514 PLATE1
132578915 CLIP (LADDER)1
148831616 CONNECTOR AS1
3J7354SEAL-O-RING1
4J5477SEAL-O-RING1
6V8647CONNECTOR1
148835117 ELBOW AS1
4J5477SEAL-O-RING1
6V9849ELBOW1
148836818 ELBOW AS1
3J1907SEAL-O-RING1
4J5477SEAL-O-RING1
6V8627ELBOW1
148836919 ELBOW AS2
3J7354SEAL-O-RING1
4J5477SEAL-O-RING1
6V8628ELBOW1
150403720 TEE AS1
6V8398SEAL-O-RING2
6V9844TEE-SWIVEL1
150405221 UNION AS2
4J5477SEAL-O-RING2
6V8993UNION1
178362022 STRAP-DUAL CLAMP3
208929123 BOLT (M10X1.5X20-MM)1
266331624 BOLT-FLANGE HEAD (M10X1.5X25-MM)1
2P127925 LOCKNUT (9/16-18-THD)2
342992026 BOLT-FLANGE HEAD (M8X1.25X20-MM)1
4J547727 SEAL-O-RING2
5P411628 WASHER-HARD (8.8X20.5X2-MM THK)1
6V522029 BOLT (M8X1.25X65-MM)2
7G295030 CLIP (SLOT)2
7G295131 CLIP (TAB)2
8T412132 WASHER-HARD (11X21X2.5-MM THK)4
8T413633 BOLT (M10X1.5X25-MM)2
8T422434 WASHER-HARD (8.8X16X2-MM THK)5
8T490835 BOLT (M8X1.25X25-MM)2
9M499536 CLIP2
8T342537 CHANNEL-TRIM (0.2-M)
8T342537A CHANNEL-TRIM (0.14-M)
