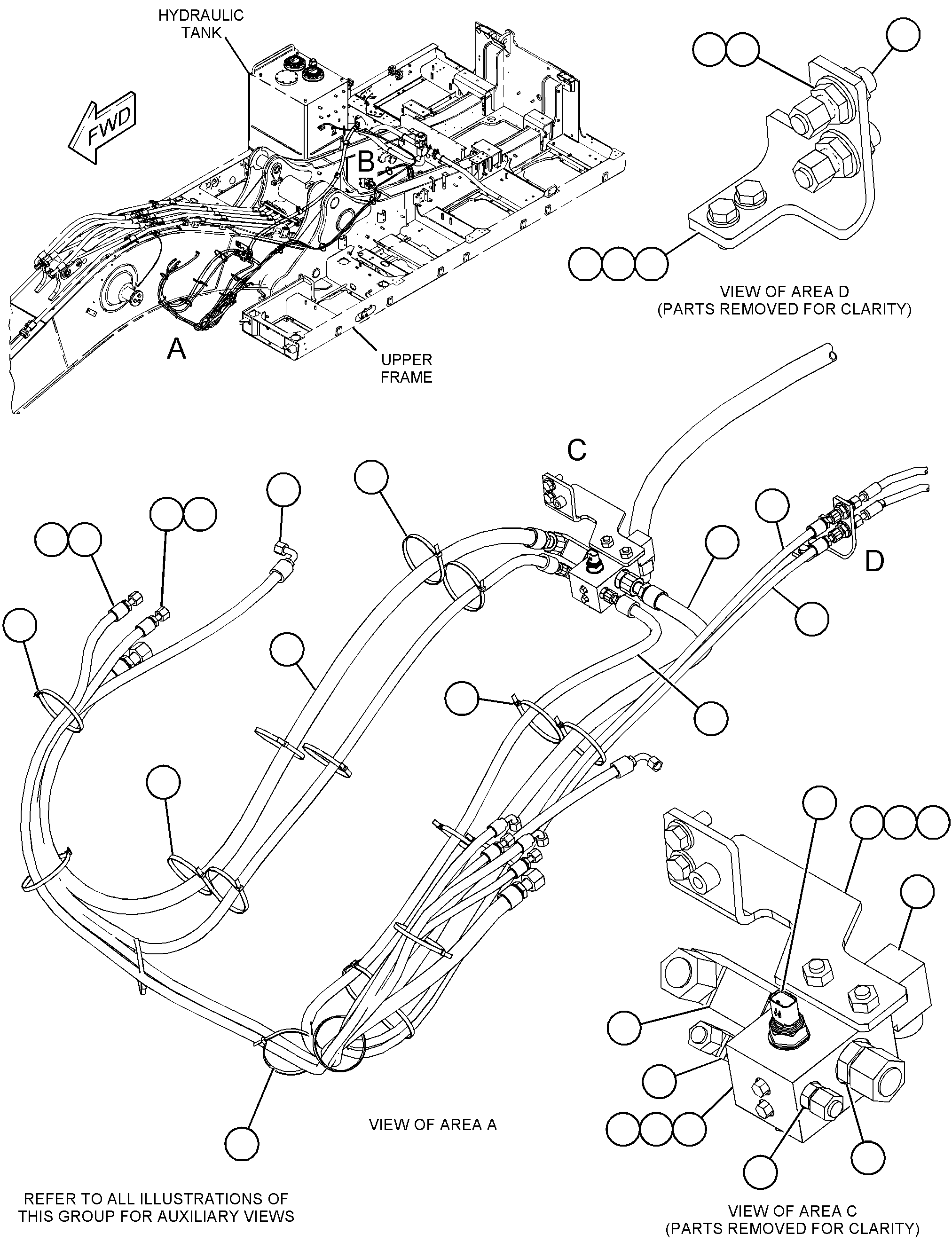

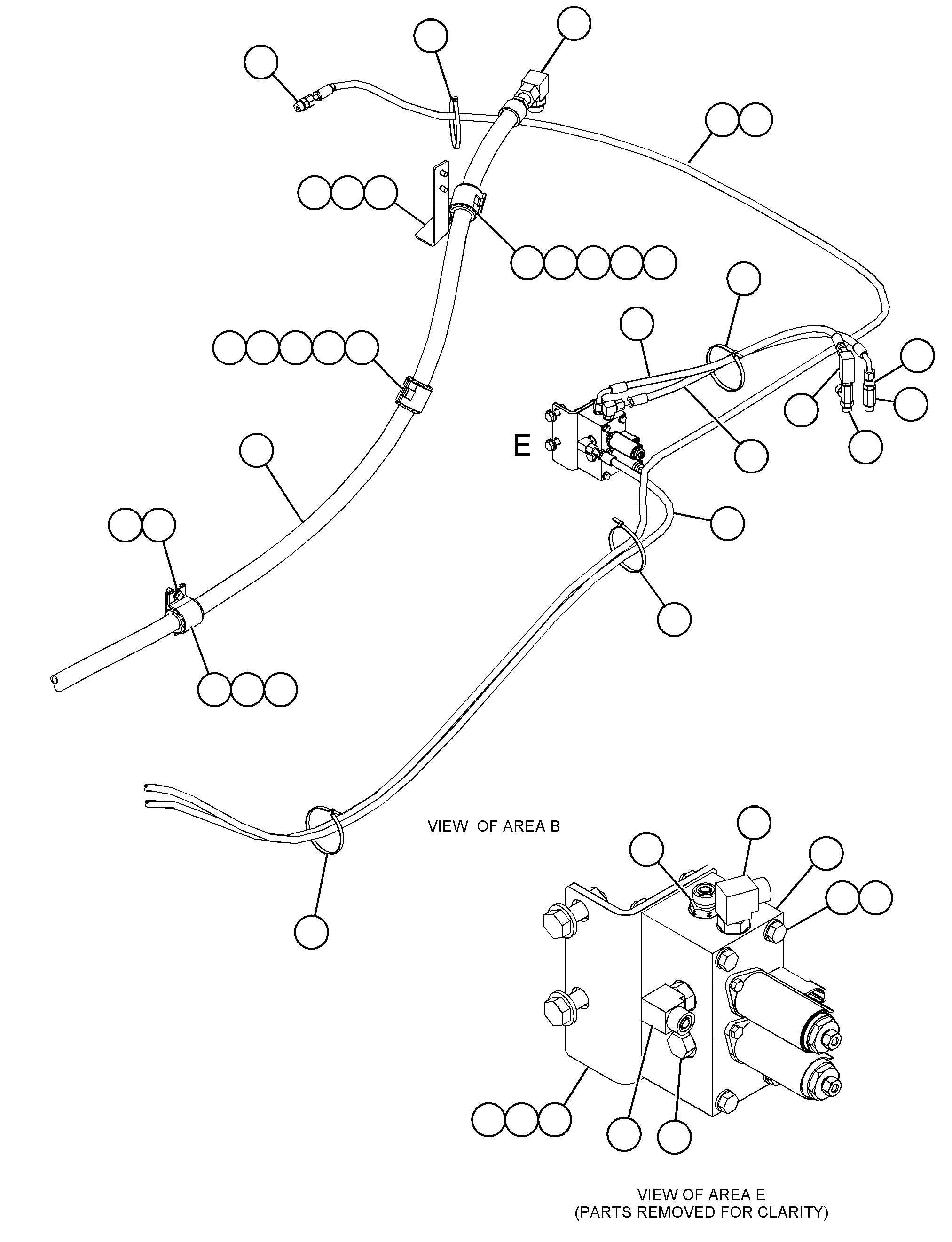

381-2237 LINES GP-PILOT -SMARTBOOM, BOOM LOAD CONTROLS/N HNG1-UP
Group No: 381-2237
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I0821 | 1 HOSE AS | 1 | |
| 4I9521 | 2 BAND-MARKER (RED, L1) | 2 | |
| 4I9522 | 3 BAND-MARKER (YELLOW, L2) | 2 | |
| 7Y4193 | 4 HOSE AS | 1 | |
| 0875766 | 5 HOSE AS | 1 | |
| 1335813 | 6 BAND-MARKER (GRAY, P) | 2 | |
| 1645628 | 7 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1076631 | CONNECTOR-FILTER | 1 | |
| 1794596 | 11 HOSE AS | 1 | |
| 1962036 | 12 TEE AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 9X2492 | TEE | 1 | |
| 2502575 | 13 HOSE AS | 1 | |
| 3350512 | 14 VALVE GP-MANUAL (BOOM LOAD CONTROL) | 1 | |
| 3386971 | 15 SENSOR GP-PRESSURE (BOOM CYLINDER, HEAD END) | 1 | |
| 3481197 | 16 HOSE AS | 1 | |
| 3660907 | 17 HOSE AS | 2 | |
| 3660910 | 18 HOSE AS | 1 | |
| 3660911 | 19 HOSE AS | 1 | |
| 3729744 | 20 HOSE AS | 2 | |
| 3839376 | 21 SUPPORT AS | 1 | |
| 3839381 | 22 HOSE AS | 1 | |
| 3853043 | 23 PLATE | 1 | |
| 3983964 | 24 SUPPORT AS | 1 | |
| 4372506 | 25 SUPPORT AS | 1 | |
| 0997241 | 26 WASHER-HARD (19X34X3-MM THK) | 2 | |
| 1068715 | 27 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 8C8400 | ELBOW | 1 | |
| 1488318 | 28 CONNECTOR AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8634 | CONNECTOR | 1 | |
| 1488327 | 29 CONNECTOR AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8637 | CONNECTOR | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488336 | 30 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488357 | 31 ELBOW AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9008 | ELBOW (90-DEG) | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488362 | 32 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 8T6684 | ELBOW (90-DEG) | 1 | |
| 1488378 | 33 ELBOW AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488407 | 34 PLUG AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1488415 | 35 REDUCER AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8936 | REDUCER | 1 | |
| 1495452 | 36 UNION AS (STRAIGHT) | 2 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8994 | UNION (STRAIGHT) | 1 | |
| 1503036 | 37 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T1905 | ELBOW | 1 | |
| 1648908 | 38 CONNECTOR AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8T0077 | CONNECTOR | 1 | |
| 5P7468 | 39 CLIP (SLOT) | 3 | |
| 5P7469 | 40 CLIP (TAB) | 3 | |
| 5P8444 | 41 GROMMET (37-MM ID) | 3 | |
| 6V9168 | 42 NUT (11/16-16-THD) | 2 | |
| 7K1181 | 44 STRAP-CABLE | 22 | |
| 8T4121 | 45 WASHER-HARD (11X21X2.5-MM THK) | 7 | |
| 8T4136 | 46 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4137 | 47 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4139 | 48 BOLT (M12X1.75X30-MM) | 2 | |
| 8T4176 | 49 BOLT (M12X1.75X90-MM) | 2 | |
| 8T4177 | 50 BOLT (M8X1.25X90-MM) | 4 | |
| 8T4183 | 51 BOLT (M12X1.75X40-MM) | 2 | |
| 8T4195 | 52 BOLT (M10X1.5X30-MM) | 3 | |
| 8T4223 | 53 WASHER-HARD (13.5X25.5X3-MM THK) | 6 | |
| 8T4224 | 54 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 5115855 | 55 MANIFOLD & VALVE GP | 1 |
