System And Components

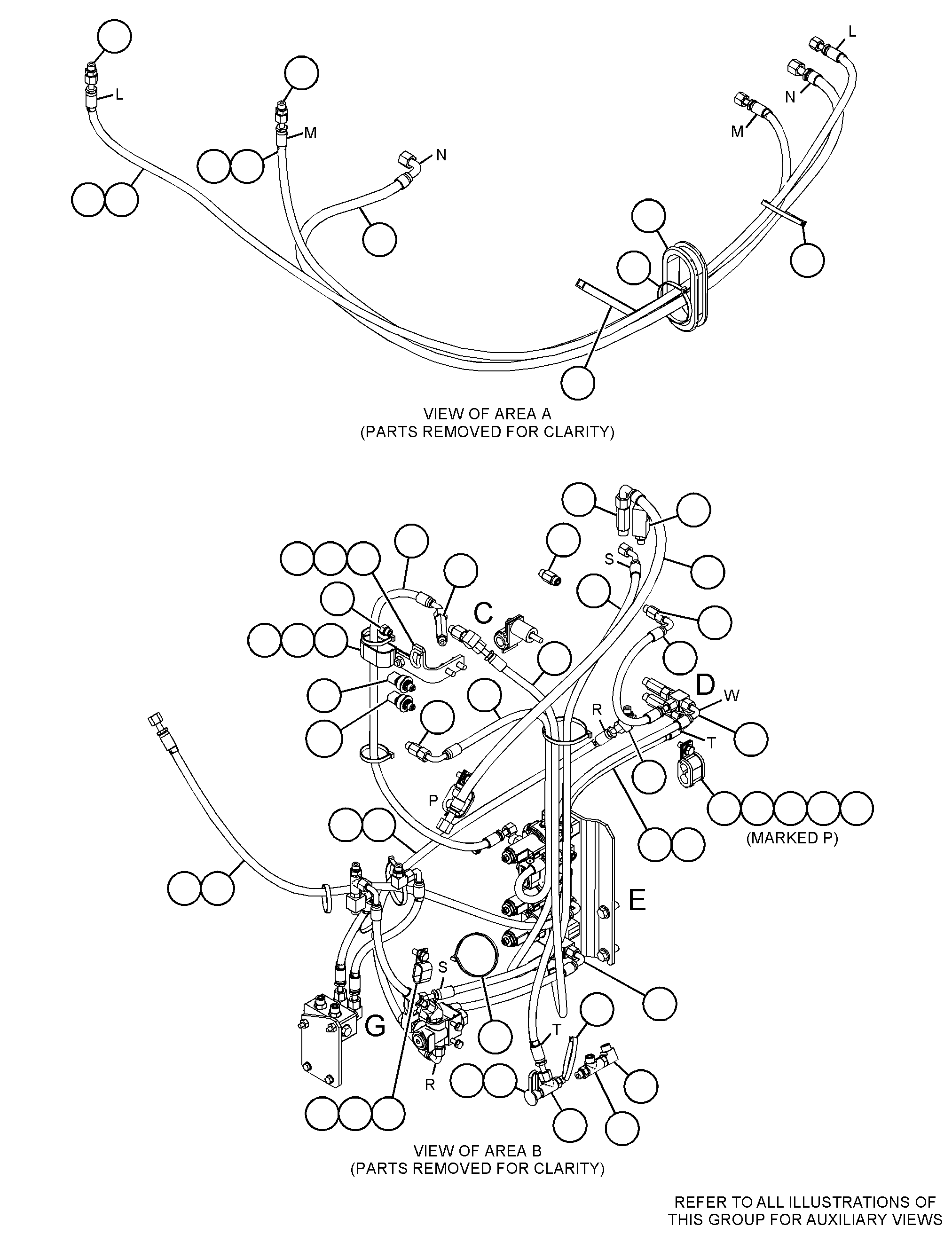

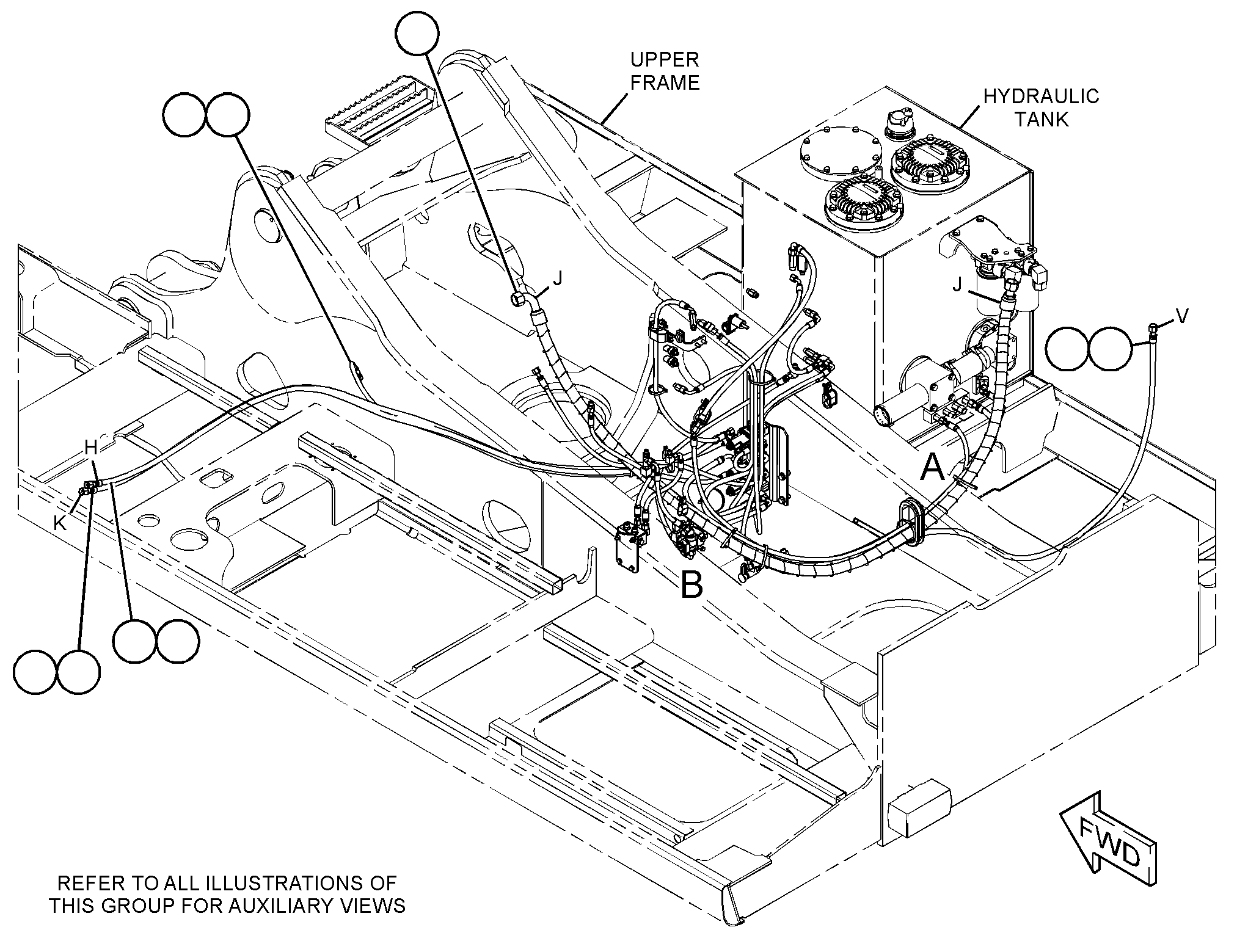

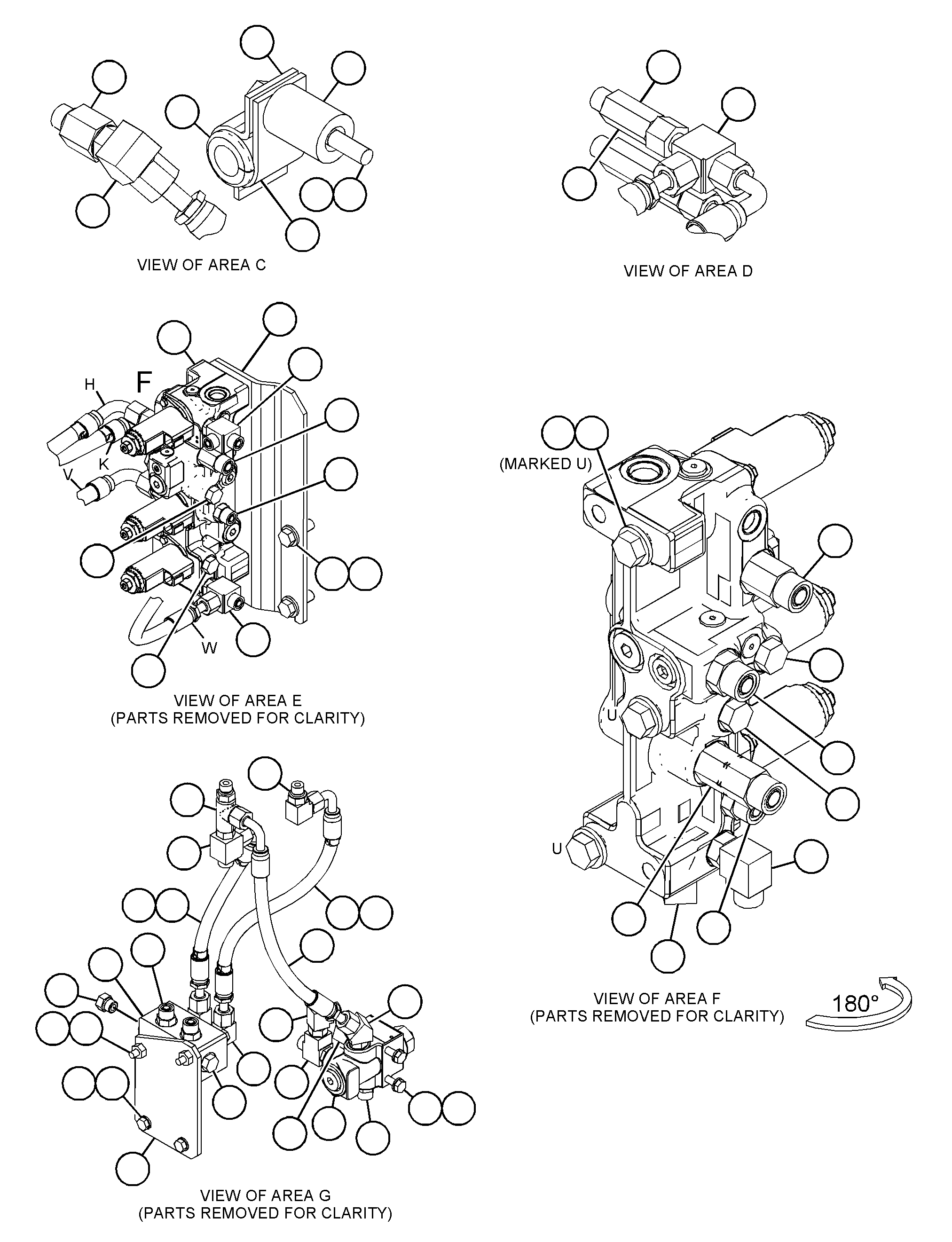

424-9523 LINES GP-PILOT -CONTROL VALVES/N WYA1-UP
Group No: 424-9523
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I1704 | 1 HOSE AS | 1 | |
| 4I1739 | 2 HOSE AS | 2 | |
| 4I3573 | 3 HOSE AS | 1 | |
| 4I9521 | 4 BAND-MARKER (RED, L1) | 8 | |
| 4I9522 | 5 BAND-MARKER (YELLOW, L2) | 4 | |
| 4I9523 | 6 BAND-MARKER (BLUE, L3) | 4 | |
| 4I9524 | 7 BAND-MARKER (BROWN, L4) | 4 | |
| 4I9525 | 8 BAND-MARKER (ORANGE, R1) | 4 | |
| 5I4396 | 9 HOSE AS | 2 | |
| 7I8252 | 10 HOSE AS | 1 | |
| 0875761 | 11 HOSE AS | 1 | |
| 0875770 | 12 HOSE AS | 1 | |
| 0875772 | 13 HOSE AS | 1 | |
| 1048973 | 14 HOSE AS | 1 | |
| 1295959 | 15 HOSE AS | 1 | |
| 1504044 | 16 CONNECTOR AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T1779 | CONNECTOR | 1 | |
| 1764791 | 17 BLOCK | 1 | |
| 2155037 | 18 MANIFOLD GP-CONTROL (PILOT OIL SUPPLY) | 1 | |
| 2214882 | 19 HOSE AS | 1 | |
| 2363204 | 20 HOSE AS | 1 | |
| 2489469 | 21 HOSE AS | 1 | |
| 2751442 | 22 CLIP (TAB) | 2 | |
| 2751443 | 23 CLIP (SLOT) | 2 | |
| 2751444 | 24 GROMMET | 2 | |
| 2792961 | 25 GUARD | 1 | |
| 2927180 | 26 GROMMET | 1 | |
| 3075126 | 27 HOSE AS | 1 | |
| 3075245 | 28 HOSE AS | 1 | |
| 3174884 | 29 HOSE AS | 1 | |
| 3258987 | 30 BOSS | 1 | |
| 3337102 | 31 PLATE | 1 | |
| 3337105 | 32 SUPPORT AS | 1 | |
| 3386262 | 33 HOSE AS | 1 | |
| 3386971 | 34 SENSOR GP-PRESSURE (HYDRAULIC OIL)(PUMP 1) | 1 | |
| 3386971 | 34A SENSOR GP-PRESSURE (HYDRAULIC OIL)(PUMP 2) | 1 | |
| 3507335 | 35 SUPPORT AS | 1 | |
| 3527065 | 36 VALVE GP-PRESSURE REDUCING (BOOM PRIORITY) | 1 | |
| 3543673 | 37 HOSE AS | 1 | |
| 3619023 | 38 HOSE AS | 1 | |
| 3636139 | 39 ADAPTER AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 3636122 | ADAPTER-FILTER | 1 | |
| 3853085 | 40 HOSE AS | 1 | |
| 1488310 | 41 ADAPTER AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 8T0151 | ADAPTER | 1 | |
| 1488336 | 42 CONNECTOR AS | 7 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488340 | 43 CONNECTOR AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 1488353 | 44 ELBOW AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488378 | 45 ELBOW AS | 8 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488407 | 46 PLUG AS | 8 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1488433 | 47 TEE AS | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 1488435 | 48 TEE AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8781 | TEE | 1 | |
| 1503036 | 49 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T1905 | ELBOW | 1 | |
| 1504027 | 50 TEE AS | 1 | |
| 3E2310 | TEE | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1645567 | 51 COUPLER AS-QUICK DISCONNECT (MALE) | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1645589 | 52 CONNECTOR AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8C0597 | CONNECTOR | 1 | |
| 1645608 | 53 CONNECTOR AS | 2 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8T1687 | CONNECTOR | 1 | |
| 1649869 | 54 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 9X2297 | CONNECTOR | 1 | |
| 1681968 | 55 TEE AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1266872 | TEE | 1 | |
| 2977927 | 56 CONNECTOR AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1231904 | CONNECTOR | 1 | |
| 5K8451 | 57 CLIP (LOOP) | 1 | |
| 5P7462 | 58 CLIP (SLOT) | 1 | |
| 5P7463 | 59 CLIP (TAB) | 1 | |
| 6V0683 | 60 GROMMET | 1 | |
| 6V0852 | 61 CAP-DUST | 1 | |
| 7K1181 | 62 STRAP-CABLE | 11 | |
| 8T4121 | 63 WASHER-HARD (11X21X2.5-MM THK) | 7 | |
| 8T4136 | 64 BOLT (M10X1.5X25-MM) | 6 | |
| 8T4139 | 65 BOLT (M12X1.75X30-MM) | 3 | |
| 8T4172 | 66 BOLT (M10X1.5X80-MM) | 1 | |
| 8T4223 | 67 WASHER-HARD (13.5X25.5X3-MM THK) | 6 | |
| 8T4224 | 68 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 8T4908 | 69 BOLT (M8X1.25X25-MM) | 4 | |
| 8T4956 | 70 BOLT (M12X1.75X35-MM) | 3 | |
| 8T6870 | 71 BOLT (M8X1.25X70-MM) | 2 | |
| 9D1829 | 72 CLIP | 1 |
