System And Components

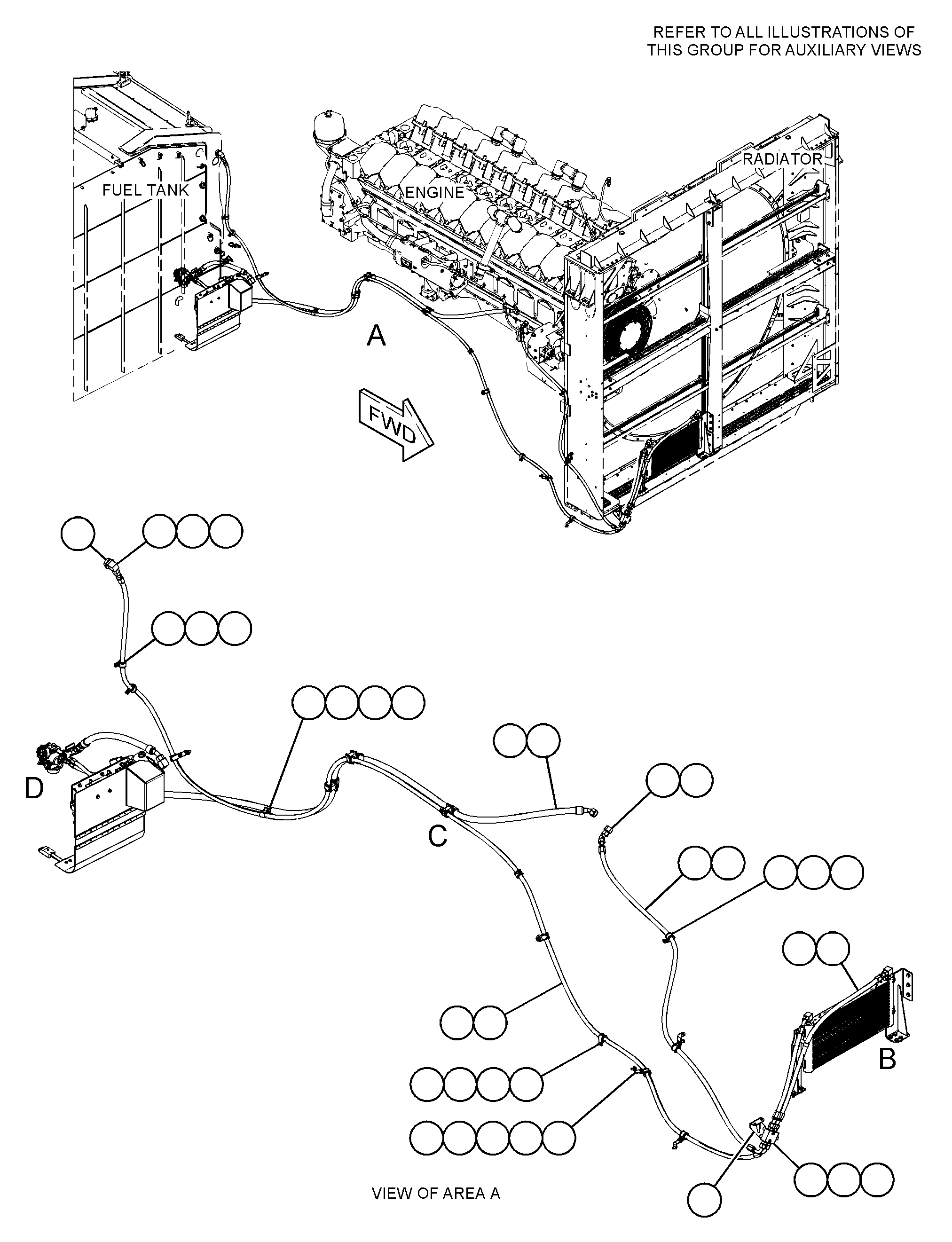

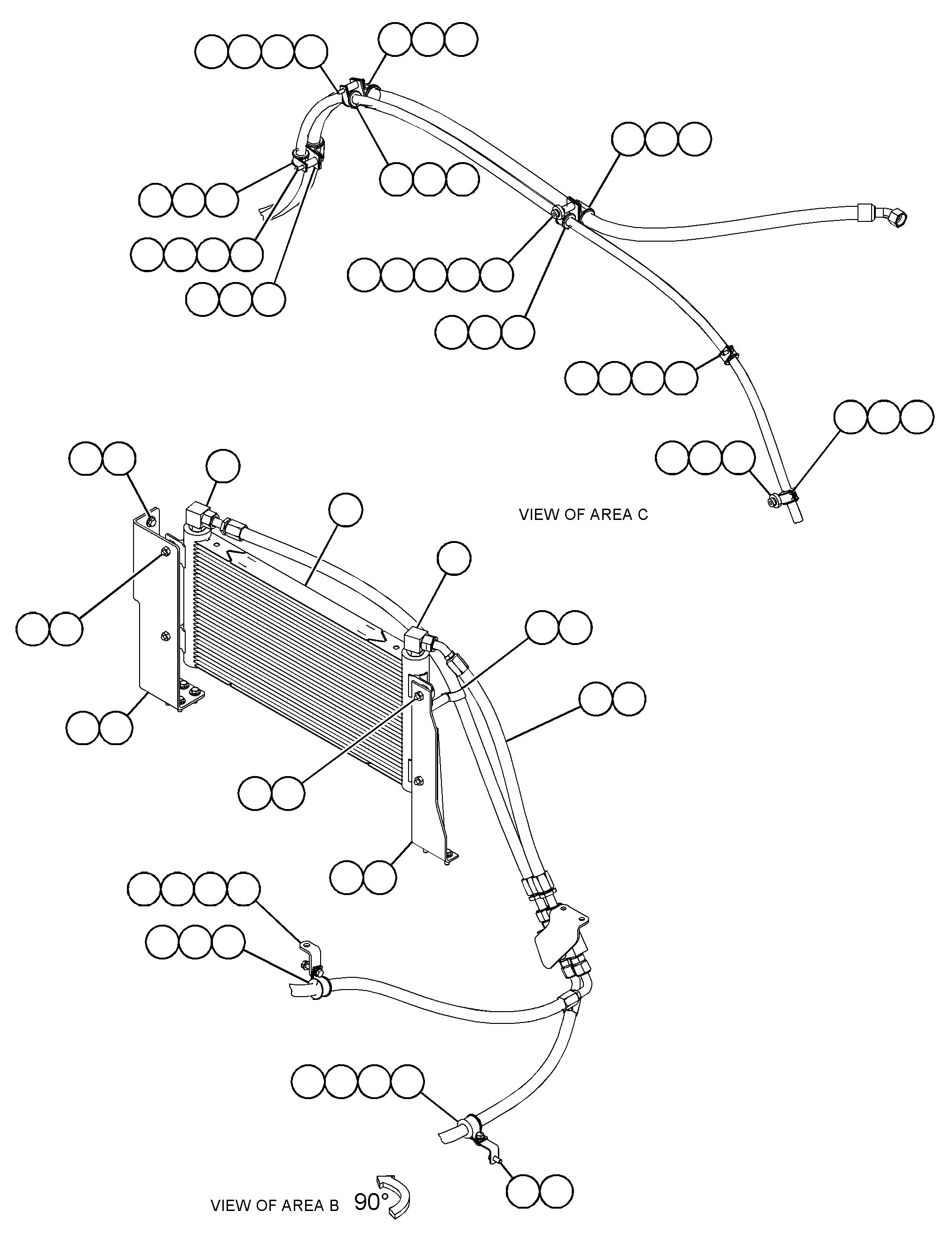

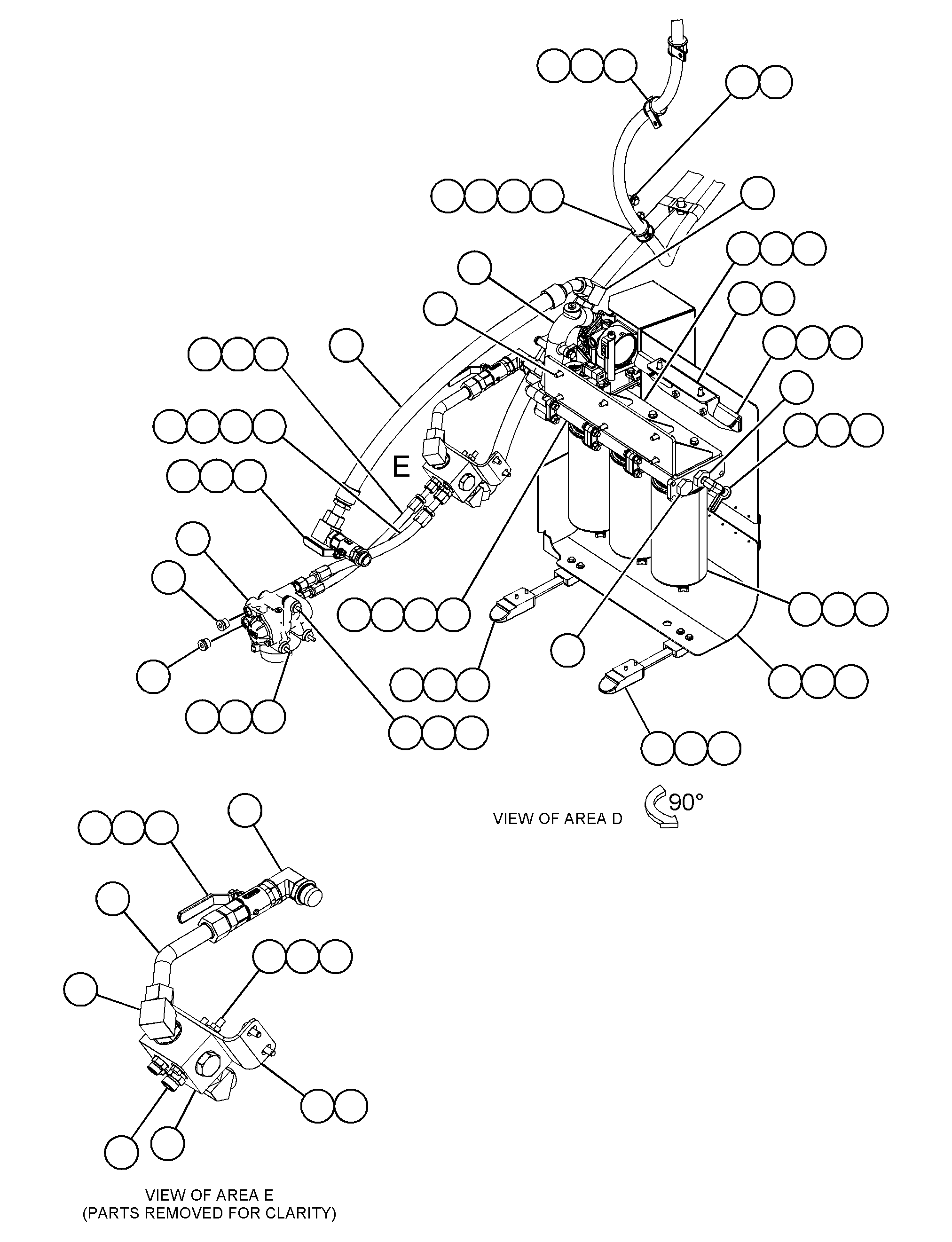

568-0124 LINES GP-FUELS/N SKH1-UP
Group No: 568-0124
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5748146 | 1 BRACKET | 1 | |
| 0673045 | 2 CLIP (LOOP) | 1 | |
| 1314863 | 3 ELBOW | 1 | |
| 1594724 | 4 VALVE-BALL | 2 | |
| 1716723 | 5 ELBOW AS | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 8T8899 | ELBOW | 1 | |
| 1939131 | 6 BRACKET AS | 3 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1984781 | 7 WASHER-HARD (22X40X10-MM THK) | 2 | |
| 2067013 | 8 FASTENER | 2 | |
| 2256948 | 9 SEAL-O-RING | 6 | |
| 2287091 | 10 SEAL-O-RING | 1 | |
| 2287092 | 11 SEAL-O-RING | 1 | |
| 2287093 | 12 SEAL-O-RING | 1 | |
| 2684779 | 13 STUD-TAPERLOCK (M10X1.5X95-MM) | 2 | |
| 2790143 | 14 VALVE | 1 | |
| 2815930 | 15 REDUCER AS | 2 | |
| 6V8946 | REDUCER | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2815937 | 16 ADAPTER AS | 1 | |
| 8T7491 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2287105 | SEAL-O-RING | 1 | |
| 2815978 | 17 CONNECTOR AS | 4 | |
| 6V8640 | CONNECTOR | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 2815979 | 18 ELBOW AS | 2 | |
| 6V9007 | ELBOW | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 2W7940 | 19 BRACKET | 1 | |
| 3095133 | 20 PLUG AS | 1 | |
| 9S4181 | PLUG (1-5/16-12-THD) | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3095137 | 21 CONNECTOR AS | 1 | |
| 6V8635 | CONNECTOR | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3196217 | 22 CONNECTOR AS | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196219 | 23 ELBOW AS | 1 | |
| 6V9005 | ELBOW | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3196220 | 24 ELBOW AS | 3 | |
| 6V9008 | ELBOW (90-DEG) | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3211326 | 25 BASE AS-FILTER | 3 | |
| 3232268 | STUD-HOLLOW | 1 | |
| 3218632 | 26 CONNECTOR AS | 1 | |
| 6V8632 | CONNECTOR | 1 | |
| 2287091 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3218649 | 27 VALVE AS-FLUID SAMPLING | 1 | |
| 8C3446 | VALVE-SAMPLING | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 3295454 | 28 PLUG AS | 1 | |
| 8J0426 | PLUG | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3309726 | 29 PLUG AS | 2 | |
| 2270136 | PLUG | 1 | |
| 2287105 | SEAL-O-RING | 1 | |
| 3445675 | 30 NUT (M10X1.5-THD) | 5 | |
| 3580360 | 31 CORE AS-OIL COOLER | 1 | |
| 3614742 | ISOLATOR | 4 | |
| 3627952 | 32 HOSE AS | 1 | |
| 3696670 | 33 VALVE-CHECK | 1 | |
| 3920800 | 34 ELBOW AS | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2416217 | ELBOW | 1 | |
| 4164703 | 35 PUMP GP-FUEL PRIMING (ELECTRIC) | 1 | |
| 4328127 | 36 BUSHING-PIPE | 1 | |
| 4385386 | 37 FILTER AS-WATER SEP & FUEL (ULTRA HIGH EFFICIENCY) | 3 | |
| 4790856 | FILTER AS-WATER SEP & FUEL | 3 | |
| 4423868 | 38 CATCH AS | 2 | |
| 4423870 | 39 PLATE | 2 | |
| 4597737 | 40 BLOCK | 1 | |
| 4760001 | 41 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 4760012 | 42 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 1273387 | BOSS (M10X1.5X80-MM) | 1 | |
| 4792171 | 43 BOLT AS | 20 | |
| 4792172 | 44 BOLT AS | 6 | |
| 4883974 | 45 BOLT AS | 6 | |
| 5115018 | 46 PUMP GP-FUEL | 1 | |
| 5723017 | 47 HOSE AS | 1 | |
| 5723018 | 48 HOSE AS | 1 | |
| 5723019 | 49 HOSE AS | 1 | |
| 5723021 | 50 HOSE AS | 1 | |
| 5723022 | 51 HOSE AS | 1 | |
| 5723023 | 52 HOSE AS | 1 | |
| 5723024 | 53 HOSE AS | 1 | |
| 5738860 | 54 BRACKET AS | 1 | |
| 5743066 | 55 BRACKET | 1 | |
| 5743600 | 56 TUBE AS | 1 | |
| 5749298 | 57 ELBOW AS | 1 | |
| 1730064 | ELBOW | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 5761500 | 58 BRACKET AS | 1 | |
| 1785457 | BOSS (M8X1.25X40-MM) | 2 | |
| 5761503 | 59 BRACKET AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 2 | |
| 5761504 | 60 COVER AS | 1 | |
| 6K3273 | RIVET-POP | 24 | |
| 5P4115 | 61 WASHER-HARD (7.2X19X2-MM THK) | 4 | |
| 5P4116 | 62 WASHER-HARD (8.8X20.5X2-MM THK) | 2 | |
| 5P7468 | 63 CLIP (SLOT) | 3 | |
| 5P7469 | 64 CLIP (TAB) | 3 | |
| 5P7701 | 65 SEAL-O-RING | 2 | |
| 5P8444 | 66 GROMMET (37-MM ID) | 3 | |
| 5S7349 | 67 BOLT (1/4-20X0.5-IN) | 4 | |
| 5T6374 | 68 SPACER (11X20X40-MM THK) | 3 | |
| 6V0852 | 69 CAP-DUST | 1 | |
| 6V3341 | 70 GROMMET | 13 | |
| 7X2539 | 71 BOLT (M8X1.25X110-MM) | 2 | |
| 7X7729 | 72 WASHER (11X25X3-MM THK) | 11 | |
| 8M2769 | 73 CLIP | 1 | |
| 8T0893 | 74 SCREW-BUTTON HEAD | 8 | |
| 8T1899 | 75 CLIP (SLOT) | 13 | |
| 8T1900 | 76 CLIP (TAB) | 13 | |
| 8T4121 | 77 WASHER-HARD (11X21X2.5-MM THK) | 21 | |
| 8T4133 | 78 NUT (M10X1.5-THD) | 8 | |
| 8T4182 | 79 BOLT (M10X1.5X45-MM) | 12 | |
| 8T4185 | 80 BOLT (M10X1.5X50-MM) | 1 | |
| 8T4189 | 81 BOLT (M8X1.25X20-MM) | 2 | |
| 8T4190 | 82 BOLT (M16X2X25-MM) | 1 | |
| 8T4195 | 83 BOLT (M10X1.5X30-MM) | 3 | |
| 8T4224 | 84 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T5005 | 85 BOLT (M10X1.5X70-MM) | 1 | |
| 8T6685 | 86 BOLT (M10X1.5X110-MM) | 2 | |
| 8T6912 | 87 BOLT (M8X1.25X50-MM) | 2 | |
| 8T7329 | 88 BOLT (M8X1.25X55-MM) | 1 | |
| 8T9655 | 89 MOUNT-ISOLATION | 6 | |
| 9N0869 | 90 WASHER-HARD (8.8X25.5X2-MM THK) | 9 | |
| 9X8257 | 91 WASHER (17.5X30X3.5-MM THK) | 1 | |
| 9X8402 | 92 CLIP | 1 |
