System And Components

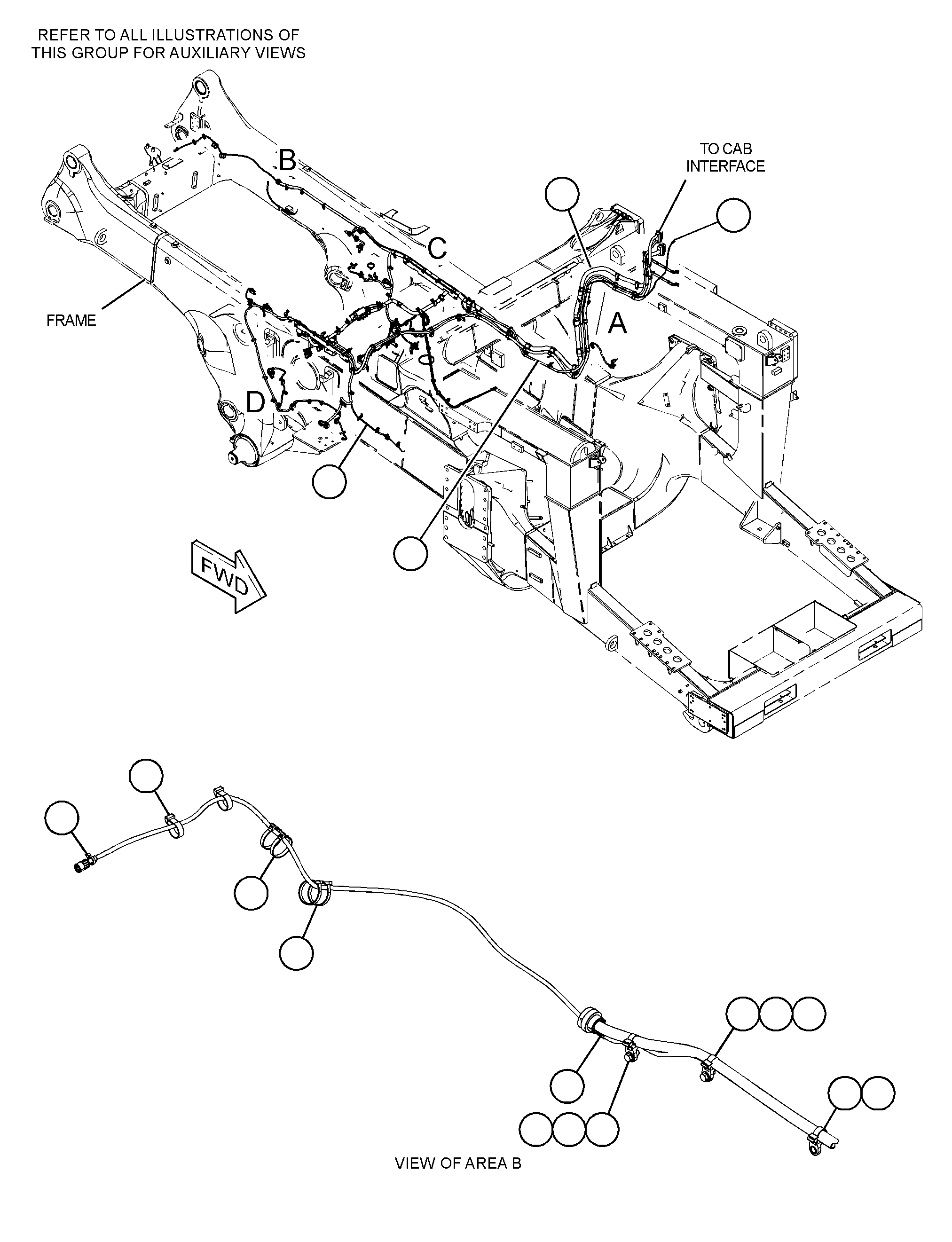

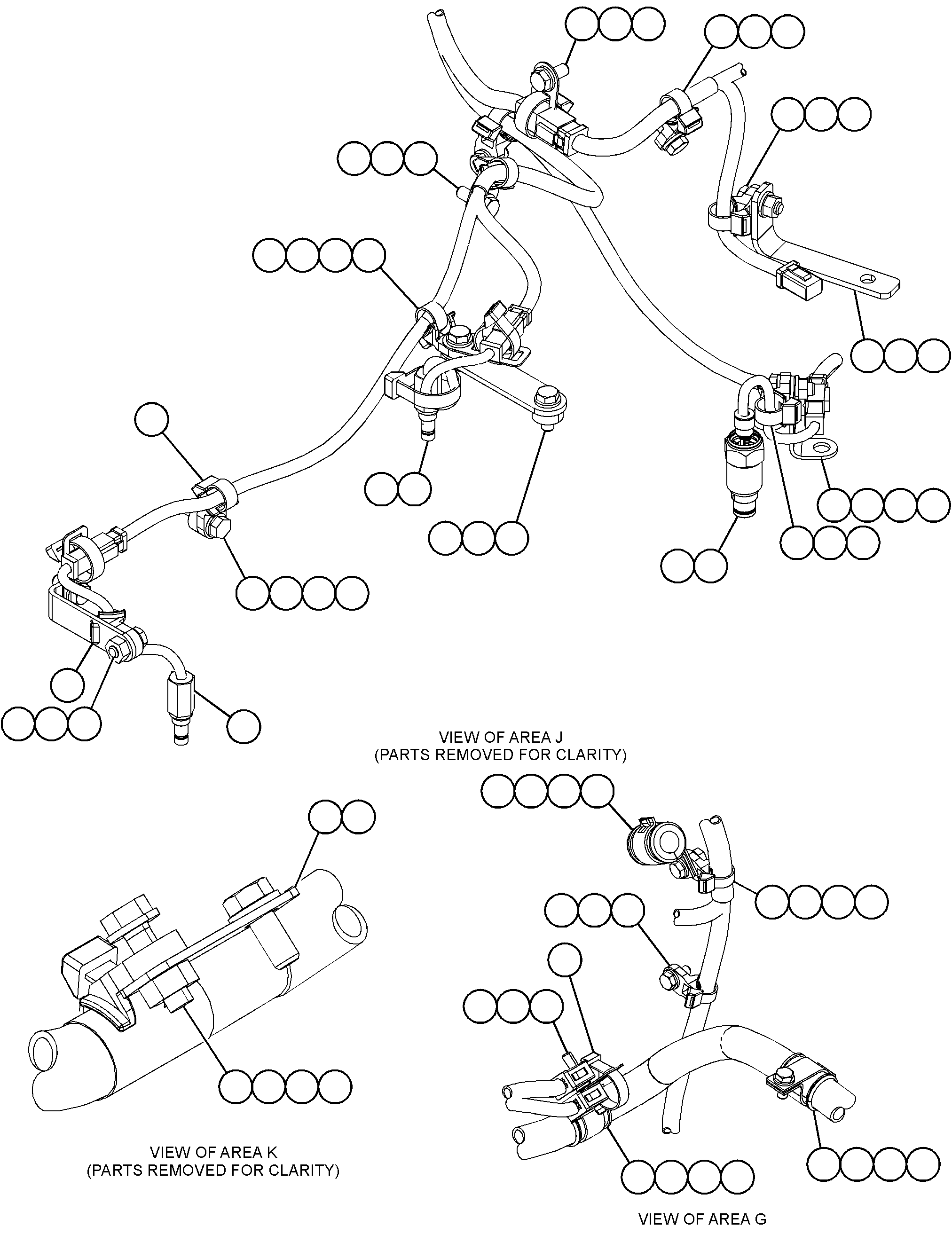

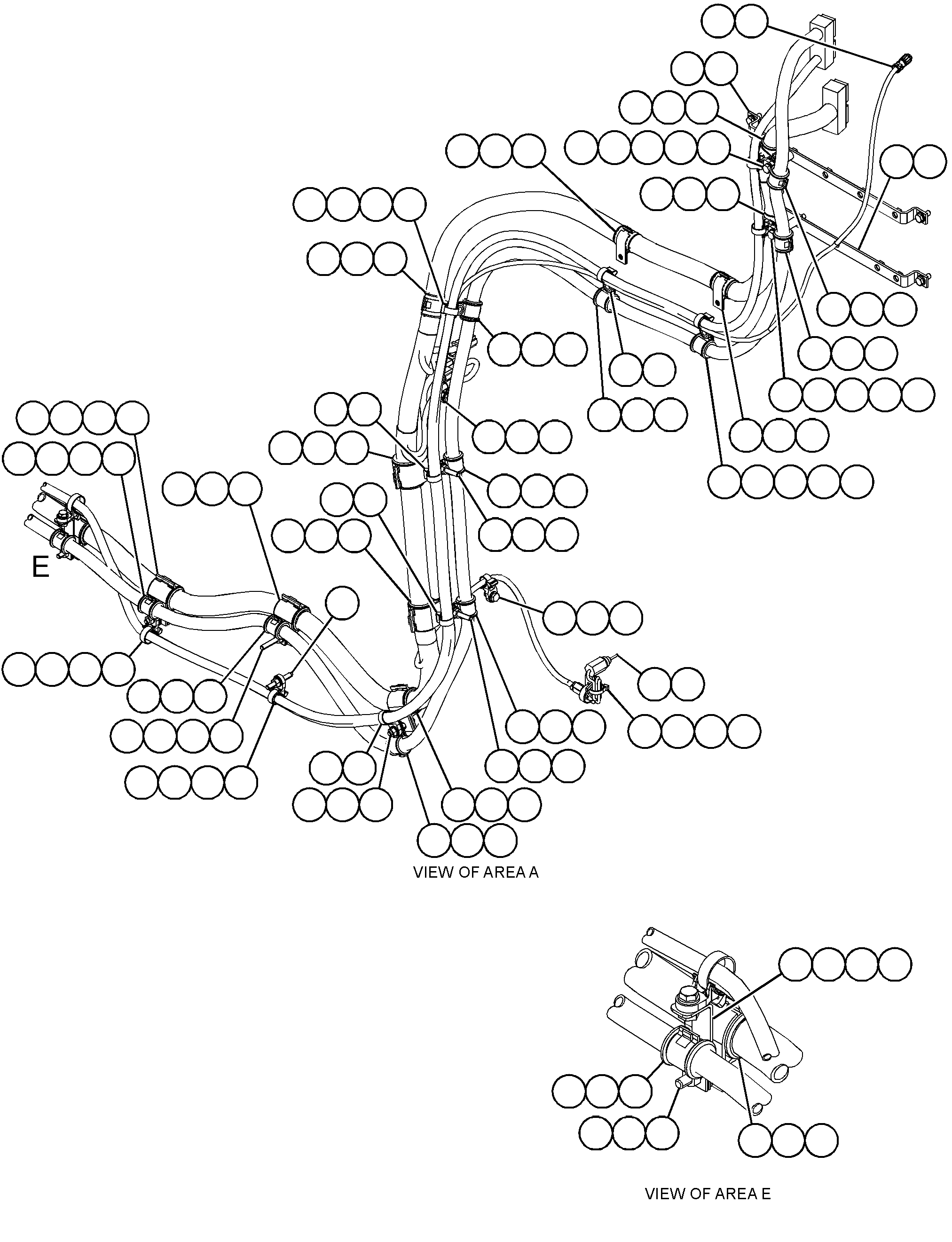

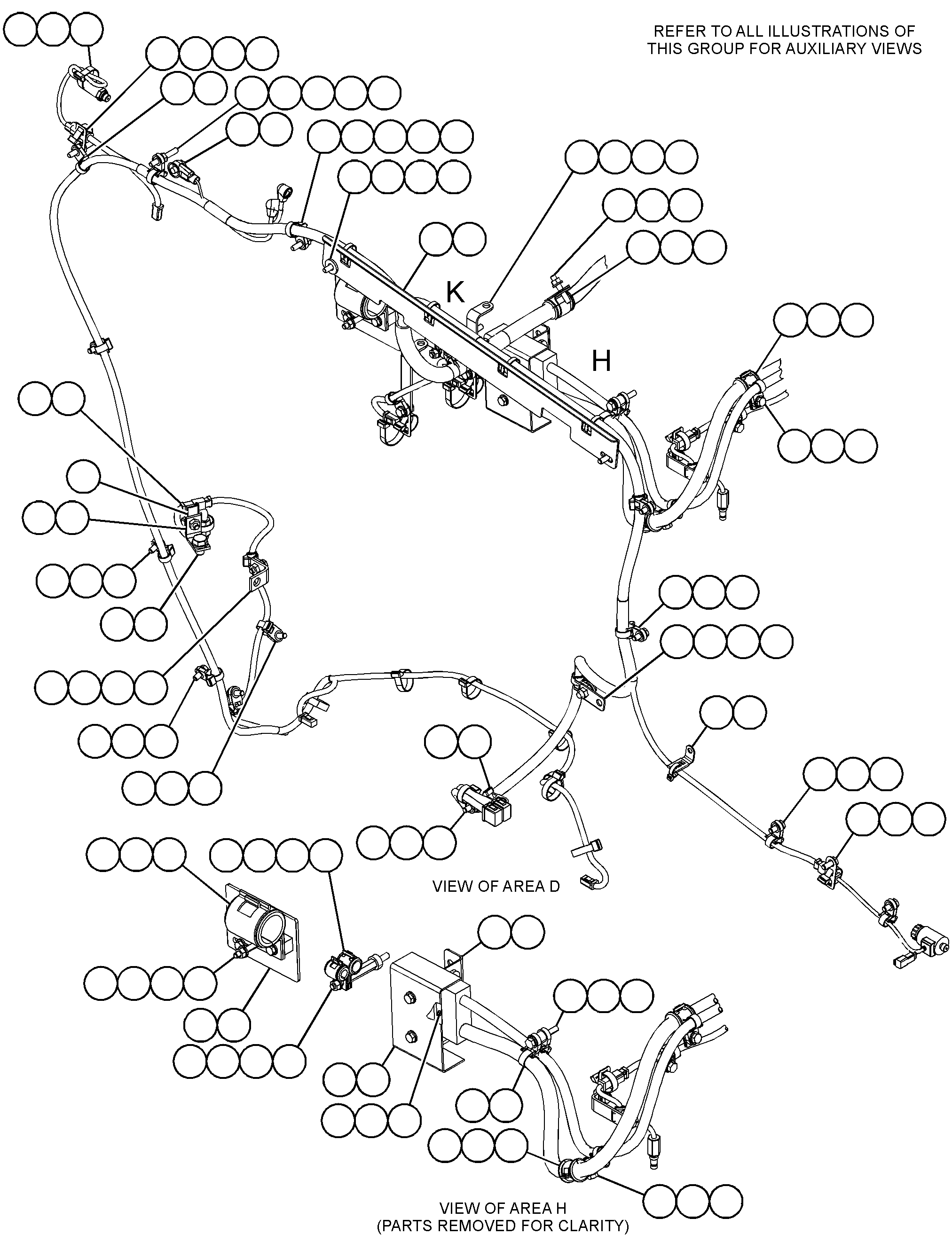

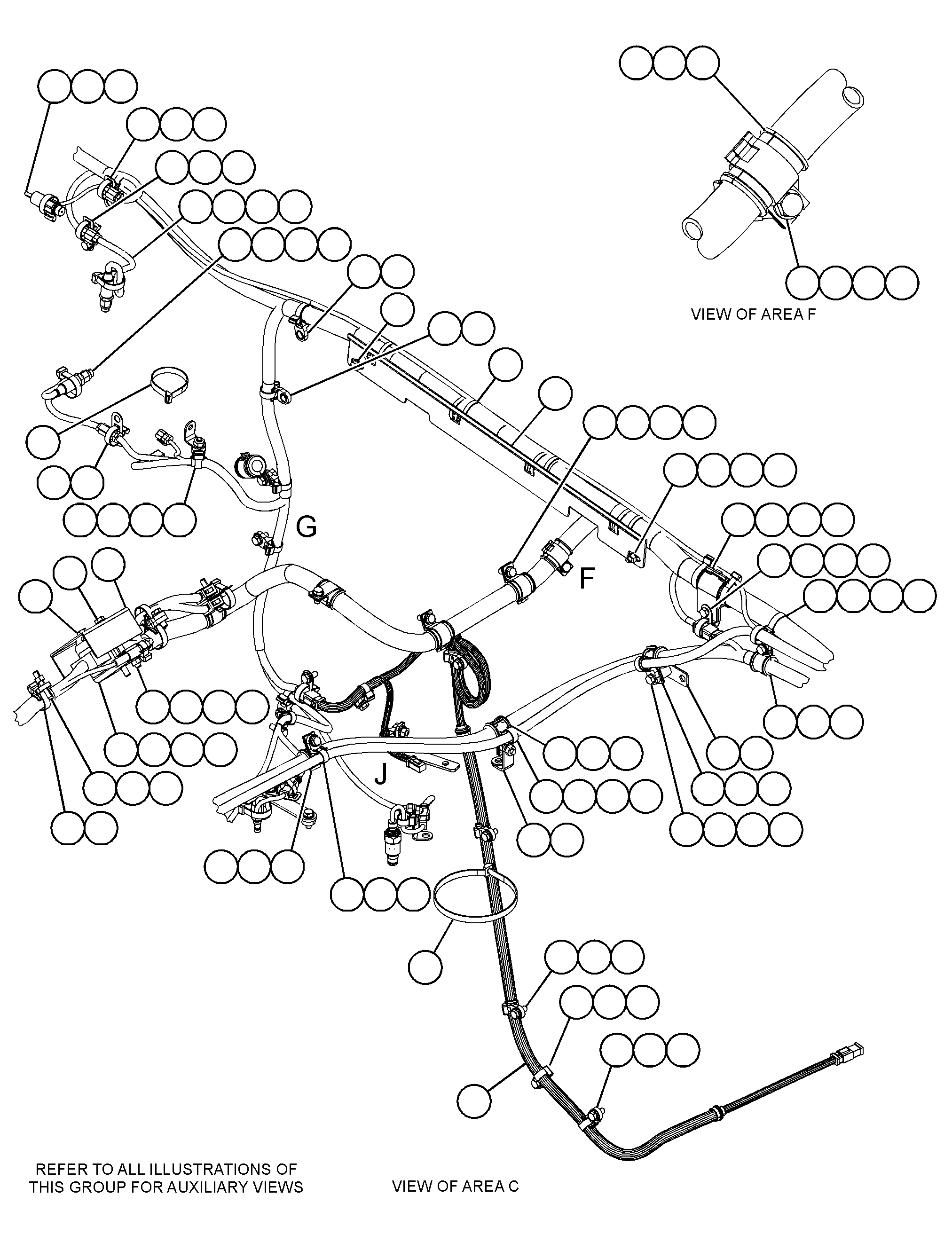

454-9221 WIRING GP-CHASSIS -CENTERS/N RB41-UP
Group No: 454-9221
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3G4005 | 1 LINK | 1 | |
| 4J6303 | 2 TAG-IDENTIFICATION (NUMBER THREE) | 1 | |
| 7K1181 | 3 STRAP-CABLE | 18 | |
| 1160118 | 4 CLIP | 2 | |
| 1243019 | 5 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1258534 | 6 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 5529052 | 7 SWITCH AS-PRESSURE (SERVICE BRAKE) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 9X1813 | SLEEVE (28-CM) | ||
| 1342252 | 8 SENSOR GP-TEMPERATURE (8-VOLT)(BRAKE OIL, LH) | 1 | |
| 1446302 | 9 BRACKET | 1 | |
| 1731583 | 10 BRACKET AS | 2 | |
| 1928958 | 11 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 1928960 | 12 BRACKET | 1 | |
| 1976453 | 13 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 2174590 | 14 BRACKET AS | 1 | |
| 2213410 | 15 SENSOR GP-PRESSURE (PARKING BRAKE RELEASE, RH, LH) | 2 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1945226 | TERMINAL AS (16-GA) | 3 | |
| 1945227 | TERMINAL AS (14-GA) | 3 | |
| 2435821 | 16 BRACKET AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 2467387 | BRACKET | 1 | |
| 2532673 | 17 SWITCH GP-PRESSURE (BRAKE OIL FILTER) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 5F9144 | SEAL-O-RING | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 9X1813 | SLEEVE (14-CM) | ||
| 2830659 | 18 CABLE AS-COAXIAL | 1 | |
| 2875279 | 19 BRACKET AS | 1 | |
| 2909001 | 20 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 2909002 | 21 BRACKET | 1 | |
| 2936308 | 22 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 5693954 | 23 HARNESS AS-SENSOR | 1 | |
| 3501571 | 26 BRACKET AS | 1 | |
| 3524203 | 27 STRAP-CABLE | 2 | |
| 3612206 | 28 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 5 | |
| 4369012 | 32 PLATE | 2 | |
| 4381628 | 33 HARNESS AS-REAR CHASSIS (TRANSMISSION) | 1 | |
| 4381629 | 34 HARNESS AS-CHASSIS (RH) | 1 | |
| 4617381 | 35 PLATE AS | 1 | |
| 4792171 | 36 BOLT AS | 48 | |
| 4792172 | 37 BOLT AS | 17 | |
| 4834287 | 38 PLATE | 14 | |
| 4900663 | 39 INDICATOR AS-PRESSURE (FILTER BYPASS) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 4512763 | SEAL | 1 | |
| 5237503 | 40 HARNESS AS-REAR CHASSIS (ENGINE) | 1 | |
| 0966166 | 41 WASHER-HARD (4.5X9X1-MM THK) | 16 | |
| 1220450 | 42 GROMMET | 17 | |
| 1325789 | 43 CLIP (LADDER) | 1 | |
| 1327551 | 44 SPACER (11X19X6-MM THK) | 2 | |
| 1336934 | 45 SPACER (11X20X25-MM THK) | 1 | |
| 1337810 | 46 STUD-TAPERLOCK (M10X1.5X45-MM) | 2 | |
| 1358575 | 47 BOLT AS | 1 | |
| 1622165 | 48 BOLT-SOCKET HEAD (M4X0.7X16-MM) | 8 | |
| 1905583 | 49 CLIP (SLOT) | 1 | |
| 1905584 | 50 CLIP (TAB) | 1 | |
| 1915285 | 51 GROMMET | 1 | |
| 2048000 | 52 MOUNTING-CABLE TIE | 61 | |
| 1984777 | 53 WASHER-HARD (11X25X10-MM THK) | 5 | |
| 2042281 | 54 STRAP-CABLE | 101 | |
| 2147568 | 55 SEAL-O-RING | 6 | |
| 2213405 | 56 SENSOR GP-PRESSURE (STEERING OIL) | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1945226 | TERMINAL AS (16-GA) | 3 | |
| 1945227 | TERMINAL AS (14-GA) | 3 | |
| 2213525 | 57 GROMMET | 1 | |
| 2276744 | 58 SWITCH GP-PRESSURE (POWER TRAIN OIL FILTER BYPASS) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 5F9144 | SEAL-O-RING | 1 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 9X1813 | SLEEVE (14-CM) | ||
| 2307732 | 59 MOUNTING-CABLE TIE | 6 | |
| 2310336 | 60 STUD-TAPERLOCK (M10X1.5X70-MM) | 8 | |
| 2385080 | 61 SEAL-O-RING | 1 | |
| 2884402 | 62 STUD-TAPERLOCK (M10X1.5X60-MM) | 2 | |
| 2884403 | 63 STUD-TAPERLOCK (M10X1.5X85-MM) | 1 | |
| 2896239 | 64 STUD (M10X1.5-THD) | 1 | |
| 3091905 | 65 STUD-TAPERLOCK (M10X1.5X100-MM) | 3 | |
| 3198800 | 66 ADAPTER | 2 | |
| 3445675 | 67 NUT (M10X1.5-THD) | 22 | |
| 3979301 | 68 WASHER-HARD (11.5X20X15-MM THK) | 1 | |
| 4P7429 | 69 CLIP (LADDER) | 1 | |
| 4S1962 | 70 CLIP (LOOP) | 1 | |
| 5C8312 | 71 NUT (M4X0.7-THD) | 8 | |
| 5G3676 | 72 GROMMET | 1 | |
| 5P1076 | 73 WASHER-HARD (13.5X30X4-MM THK) | 1 | |
| 5P7466 | 74 CLIP (SLOT) | 6 | |
| 5P7467 | 75 CLIP (TAB) | 6 | |
| 5P7468 | 76 CLIP (SLOT) | 1 | |
| 5P7469 | 77 CLIP (TAB) | 1 | |
| 5P8112 | 78 GROMMET | 6 | |
| 6V1249 | 79 GROMMET (22-MM ID) | 1 | |
| 6V2383 | 80 CLIP | 1 | |
| 6V7555 | 81 STRAP-CABLE | 1 | |
| 8M6146 | 82 TUBE | 2 | |
| 8R0721 | 83 SPACER (11X16X35-MM THK) | 1 | |
| 8T1889 | 84 CLIP (SLOT) | 2 | |
| 8T1890 | 85 CLIP (TAB) | 2 | |
| 8T1897 | 86 CLIP (SLOT) | 17 | |
| 8T1898 | 87 CLIP (TAB) | 17 | |
| 8T1899 | 88 CLIP (SLOT) | 12 | |
| 8T1900 | 89 CLIP (TAB) | 12 | |
| 8T2920 | 90 GROMMET (27-MM ID) | 11 | |
| 8T4121 | 91 WASHER-HARD (11X21X2.5-MM THK) | 35 | |
| 8T4172 | 92 BOLT (M10X1.5X80-MM) | 1 | |
| 8T4178 | 93 BOLT (M10X1.5X90-MM) | 1 | |
| 8T4179 | 94 BOLT (M12X1.75X20-MM) | 1 | |
| 8T4186 | 95 BOLT (M10X1.5X40-MM) | 2 | |
| 8T4196 | 96 BOLT (M10X1.5X35-MM) | 3 | |
| 8T4223 | 97 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T6466 | 98 BOLT (M10X1.5X60-MM) | 2 | |
| 8T7087 | 99 GROMMET (34-MM ID) | 1 | |
| 8T4190 | 100 BOLT (M16X2X25-MM) | 1 | |
| 3332101 | 101 BRACKET AS | 2 | |
| 9X8257 | 102 WASHER (17.5X30X3.5-MM THK) | 1 |
