System And Components

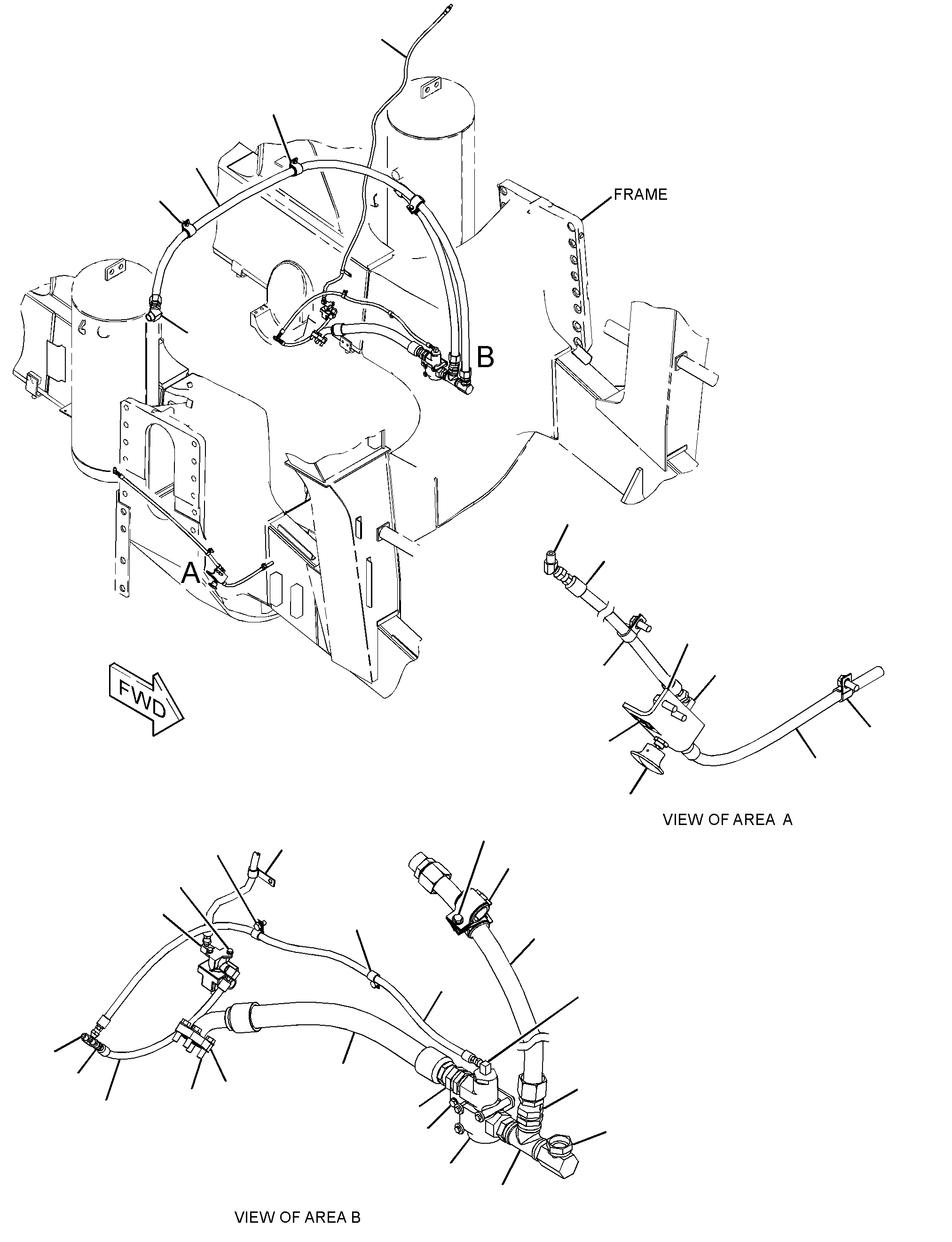

344-3011 CONTROL GP-AIR STARTINGS/N AX71-UP
Group No: 344-3011
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1L0766 | 1 ELBOW | 1 | |
| 1L1722 | 2 CONNECTOR-PIPE | 2 | |
| 1L2782 | 3 TEE-PIPE | 1 | |
| 3D7587 | 5 ELBOW | 1 | |
| 3R4825 | 6 VALVE GP-AIR CONTROL (AIR TANK DRAIN) | 1 | |
| 2K3455 | PIN-SPRING | 1 | |
| 3H0442 | SEAL-O-RING | 1 | |
| 3R5862 | BUTTON | 1 | |
| 4D1135 | SEAT-SPRING | 1 | |
| 4D1138 | VALVE-INLET | 1 | |
| 4J3957 | SPRING | 1 | |
| 4J6302 | 7 TAG-IDENTIFICATION (NUMBER TWO) | 2 | |
| 1159190 | 8 VALVE GP-RELAY (AIR STARTING MOTOR) | 1 | |
| 1722404 | 9 FILM-INSTRUCTION (AIR TANK WATER DRAIN) | 1 | |
| 2219576 | 10 VALVE GP-SOLENOID (24-VOLT)(AIR STARTING) | 1 | |
| 2219577 | COIL AS (24-VOLT) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 5D5569 | CONNECTOR | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 2343544 | 11 SEAL-O-RING | 1 | |
| 2755513 | 12 HOSE AS | 1 | |
| 2933516 | 13 HOSE AS | 1 | |
| 3012185 | 14 PLATE | 1 | |
| 3512811 | 16 PLATE AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 3 | |
| 3527460 | 17 HOSE AS | 1 | |
| 3527461 | 18 HOSE AS | 1 | |
| 3527462 | 19 HOSE AS | 1 | |
| 4521795 | 20 HOSE AS | 1 | |
| 4445261 | 21 HOSE AS | 1 | |
| 3854828 | 22 HOSE AS | 1 | |
| 1095605 | 23 ADAPTER-PIPE | 1 | |
| 2458842 | 25 CLIP (LOOP) | 1 | |
| 3B6552 | 26 ELBOW-PIPE | 1 | |
| 3D8884 | 27 ELBOW | 1 | |
| 4D2560 | 28 CONNECTOR-PIPE | 1 | |
| 4H6147 | 29 CONNECTOR | 1 | |
| 4S7606 | 30 ELBOW | 1 | |
| 5H4778 | 31 ELBOW | 3 | |
| 5P7468 | 32 CLIP (SLOT) | 4 | |
| 5P7469 | 33 CLIP (TAB) | 4 | |
| 8T8919 | 34 BOLT (1/2-13X1.75-IN) | 4 | |
| 6L5955 | 35 ELBOW | 1 | |
| 7X0613 | 37 WASHER-HARD (8.8X25.5X5-MM THK) | 3 | |
| 7X2539 | 38 BOLT (M8X1.25X110-MM) | 3 | |
| 6V0545 | 39 GROMMET | 4 | |
| 8T4121 | 40 WASHER-HARD (11X21X2.5-MM THK) | 9 | |
| 8T4136 | 41 BOLT (M10X1.5X25-MM) | 3 | |
| 8T4137 | 42 BOLT (M10X1.5X20-MM) | 4 | |
| 8T4183 | 43 BOLT (M12X1.75X40-MM) | 1 | |
| 8T4184 | 44 BOLT (M12X1.75X45-MM) | 2 | |
| 8T4195 | 45 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4205 | 46 WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 8T4223 | 47 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 8T4244 | 48 NUT (M12X1.75-THD) | 1 | |
| 8T9364 | 49 BOLT (1/4-20X0.625-IN) | 2 | |
| 9M8406 | 50 CLIP (LOOP) | 2 | |
| 1P4579 | 51 FLANGE-HALF | 2 | |
| 4K8864 | 52 CLIP (LOOP) | 2 | |
| 1778847 | KIT-SEAL (RELAY VALVE) | 1 | |
| 2219578 | KIT-VALVE | 1 |
