System And Components

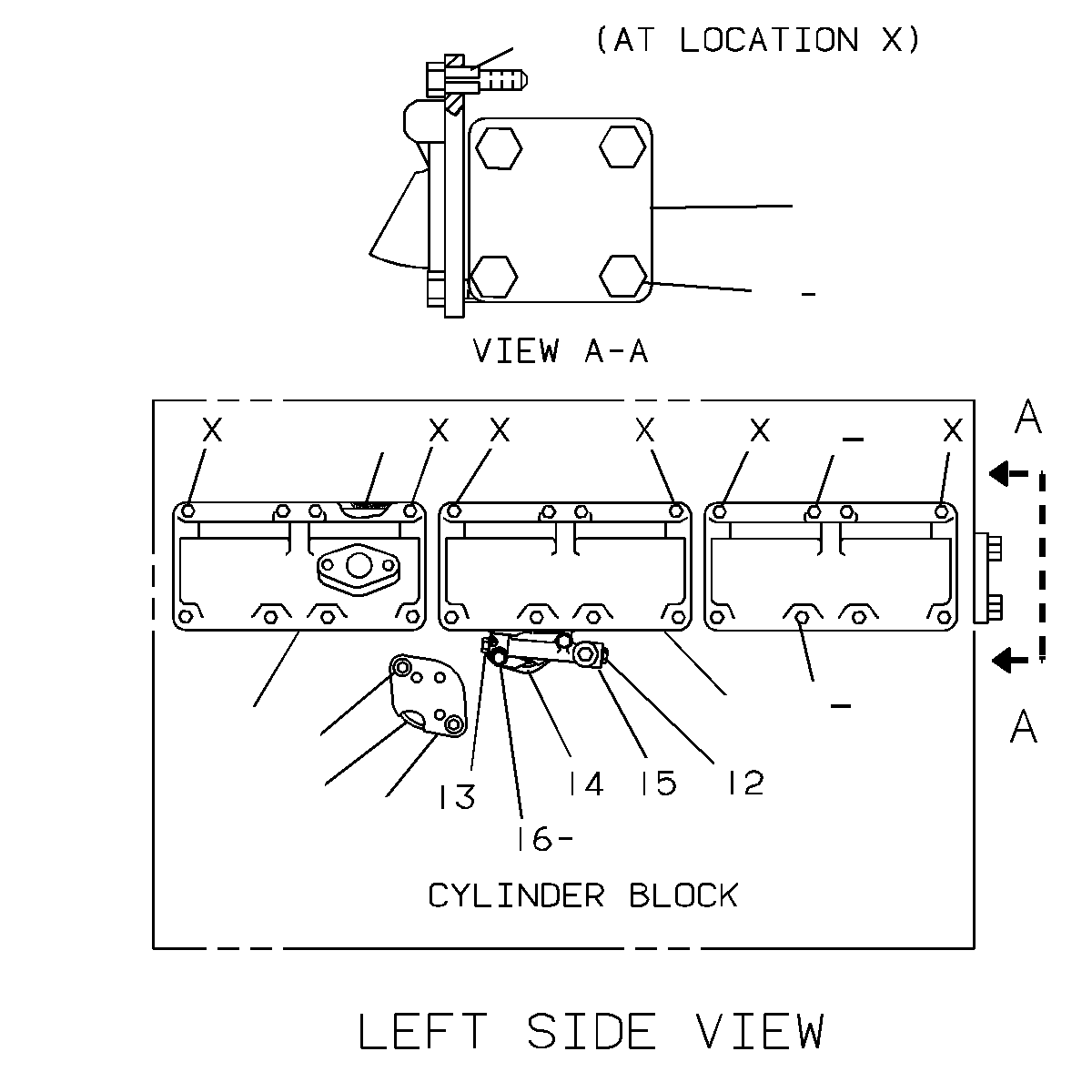

7E-7908 COVER GP-CYLINDER BLOCKFOR USE WITH SIDE COVER OPENING
Group No: 7E-7908
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V2317 | 1 BOLT (M8X1.25X30-MM) | 12 | |
| 8T4224 | 2 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 7W3872 | 3 SLEEVE | 6 | |
| 7W3871 | 4 COVER-SIDE | 2 | |
| 7W9699 | 5 GASKET | 3 | |
| 7W9395 | 6 COVER-SIDE | 1 | |
| 8T4189 | 7 BOLT (M8X1.25X20-MM) | 4 | |
| 2W6544 | 8 COVER | 1 | |
| 7W2426 | GASKET | 1 | |
| 7E7515 | 9 COVER | 1 | |
| 8T1159 | 10 BOLT-SOCKET HEAD (M10X1.5X25-MM) | 2 | |
| 3V2431 | WASHER (10.2X16X2-MM THK) | 2 | |
| 4F9653 | 11 SEAL-O-RING | 1 | |
| 5M6213 | 12 PLUG-PIPE | 2 | |
| 9S4182 | 13 PLUG (7/16-20-THD) | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4F9029 | 14 SEAL | 1 | |
| 9Y8082 | 15 MANIFOLD-OIL | 1 | |
| 7X0818 | 16 BOLT (M8X1.25X45-MM) | 2 | |
| 6V5217 | 17 BOLT (M8X1.25X20-MM) | 11 | |
| 9M1974 | 18 WASHER-HARD (8.8X16X2-MM THK) | 23 |
