System And Components

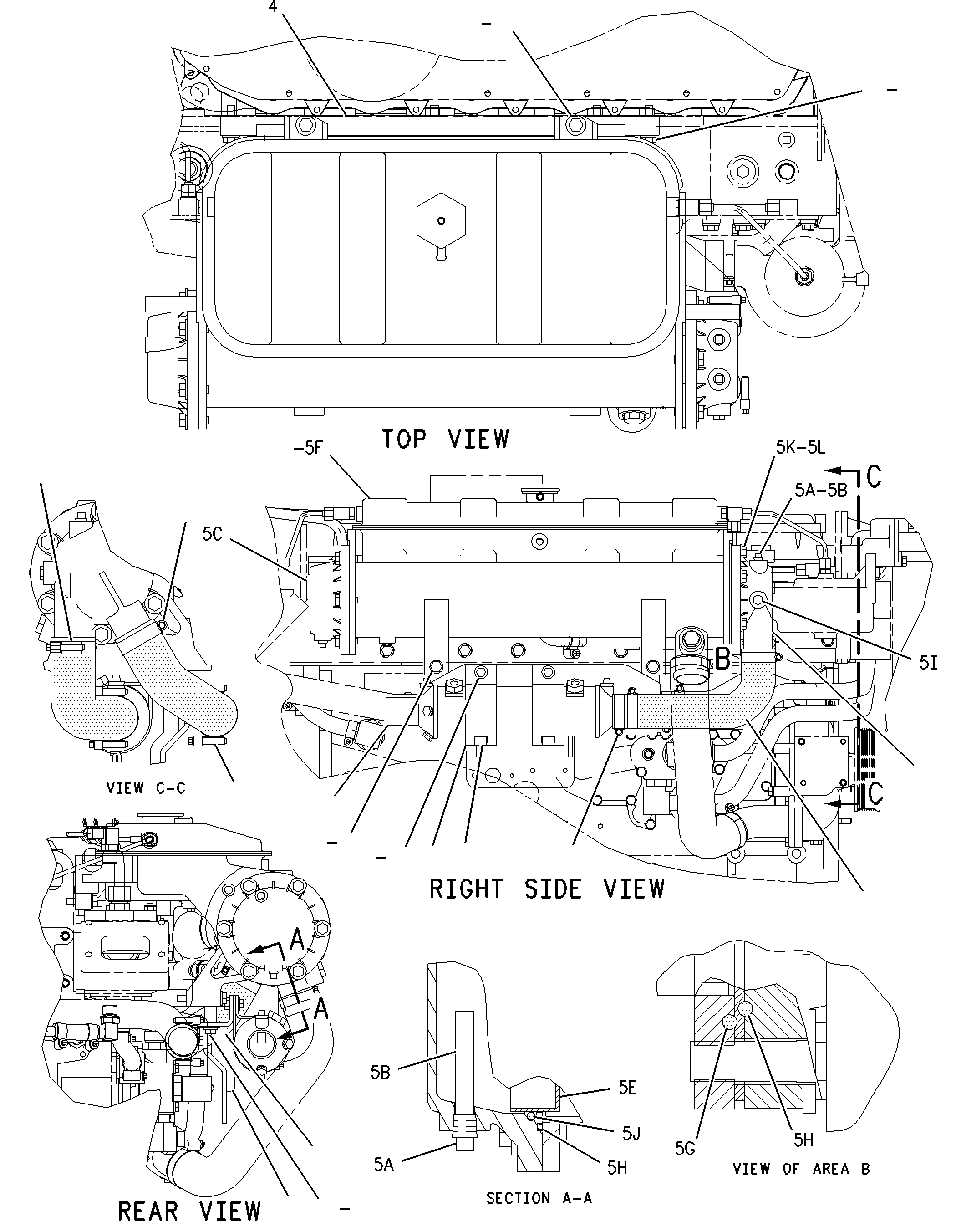

178-8059 HEAT EXCHANGER GP-SEA WATERSINGLE COOLER, RIGHT & LEFT HAND SERVICE.
Group No: 178-8059
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8T6703 | 1 CLAMP-HOSE | 6 | |
| 1645583 | 2 COOLER GP-MARINE XMSN OIL | 1 | |
| 5B7890 | PLUG-PIPE | 2 | |
| 6L2279 | PLUG-PIPE | 2 | |
| 6L2280 | ROD-ZINC (AFTERCOOLER) | 2 | |
| 1773658 | 3 HOSE | 1 | |
| 1777889 | 4 ADAPTER | 1 | |
| 1788111 | 5 TANK AS-EXPANSION | 1 | |
| 6L2282 | 5A PLUG-PIPE | 3 | |
| 6L2283 | 5B ROD-ZINC (HEAT EXCHANGER) | 3 | |
| 1035820 | 5C BONNET-EXCHANGER | 1 | |
| 1035822 | 5D BONNET AS | 1 | |
| 1L3583 | DOWEL | 1 | |
| 1777523 | 5E BUNDLE AS-TUBE | 1 | |
| 1788112 | 5F TANK AS-EXPANSION | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 5M6214 | PLUG (1/8-27 PTF) | 3 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 1255274 | CAP-RADIATOR (SEA WATER HEAT EXCHANGER) | 1 | |
| 3F5792 | 5G SEAL-O-RING | 1 | |
| 5F3999 | 5H SEAL-O-RING | 2 | |
| 5B7890 | 5I PLUG-PIPE | 1 | |
| 6V5504 | 5J SEAL-O-RING | 1 | |
| 7X7729 | 5K WASHER (11X25X3-MM THK) | 12 | |
| 8T4195 | 5L BOLT (M10X1.5X30-MM) | 12 | |
| 1789966 | 6 BRACKET AS | 1 | |
| 1789967 | 7 HOSE | 1 | |
| 1966723 | 8 BOLT (M10X1.5X70-MM) | 2 | |
| 5P4116 | 9 WASHER-HARD (8.8X20.5X2-MM THK) | 2 | |
| 6V1867 | 10 CLIP (SLOT) | 2 | |
| 6V1868 | 11 CLIP (TAB) | 2 | |
| 7X7729 | 12 WASHER (11X25X3-MM THK) | 2 | |
| 8T4121 | 13 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 8T4136 | 14 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4137 | 15 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4186 | 16 BOLT (M10X1.5X40-MM) | 4 | |
| 8T7547 | 17 BOLT (M8X1.25X30-MM) | 2 |
