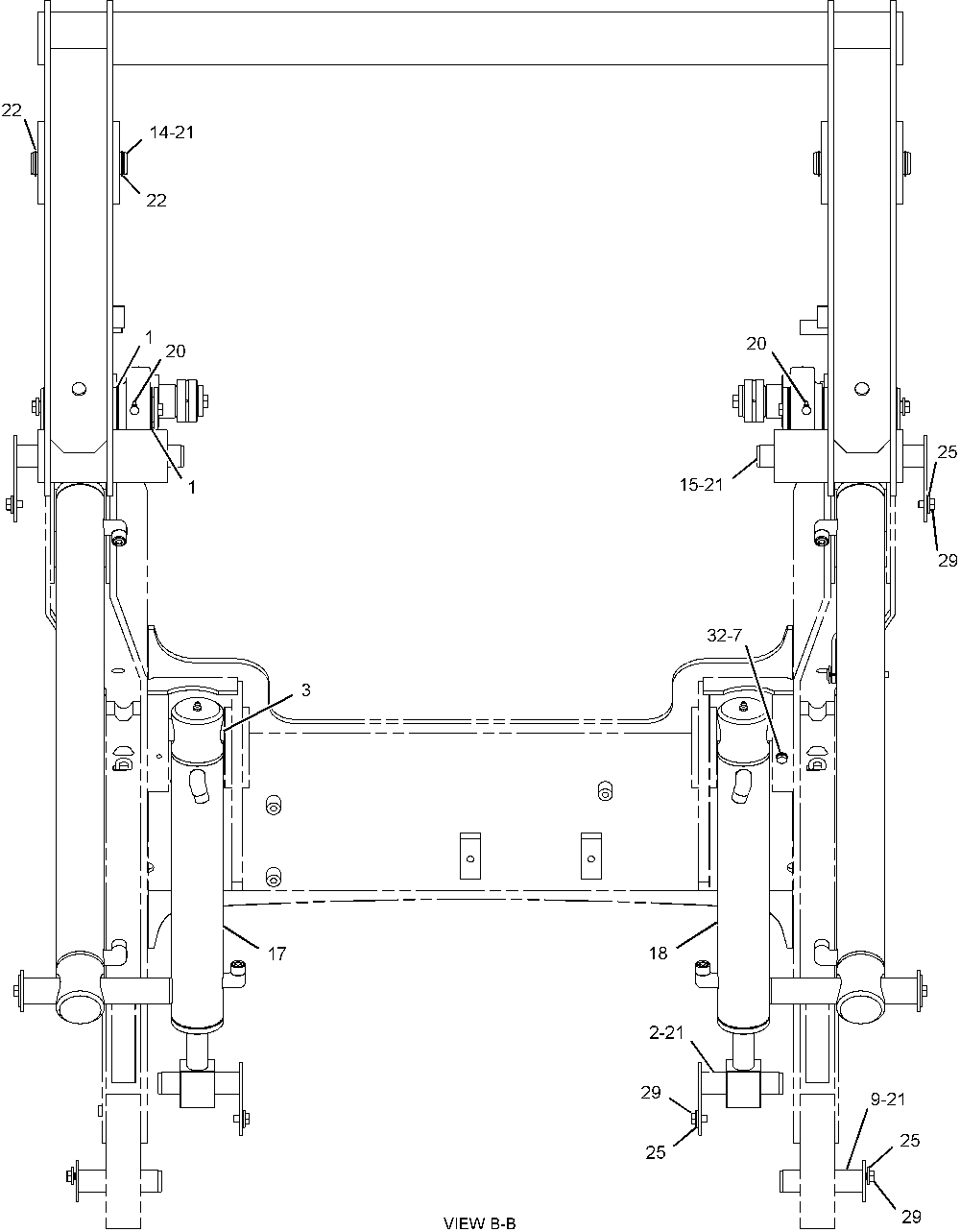

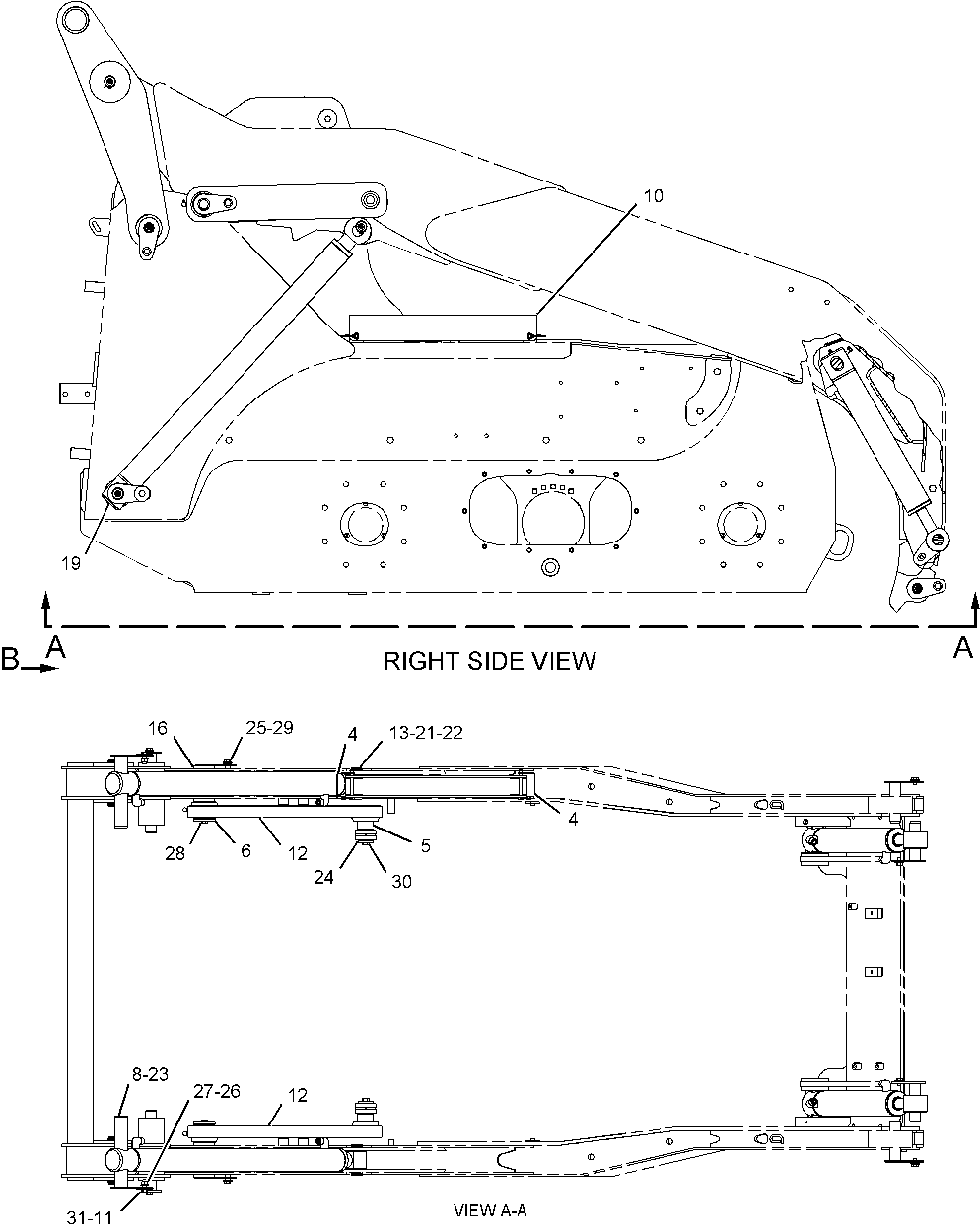

218-6899 CYLINDER & MTG GP-LIFT ARMS/N SLK1-1816

Group No: 218-6899
Part NumberPart NameQty
11945941 WASHER (41X64X1-MM THK)10
14287912 PIN AS2
14287933 PIN2
14288324 PIN AS2
19079675 SPACER (38.35X48.35X23.5-MM THK)2
19079716 WASHER-HARD (11X64X6-MM THK)2
19079797 BOLT (M8X1.25X80-MM)2
19080388 PIN AS2
19195889 PIN AS2
191958910 SUPPORT AS1
8T422611 WASHER-PLATED (10.5X45X3-MM THK)2
191959512 LINK AS2
1919633BUSHING2
1919634PIN1
191963513 PIN2
191963614 PIN2
191963715 PIN AS2
191963816 PIN AS2
230368417 CYLINDER GP-TILT (LH)1
230369418 CYLINDER GP-TILT (RH)1
230370319 CYLINDER GP-LIFT2
3B848820 FITTING-GREASE (1/8-27 PTF)2
3B848921 FITTING-GREASE (1/8-27 PTF)10
4M528522 RING-RETAINING8
5B065123 FITTING-STRAIGHT2
7X059024 WASHER-HARD (13.5X44.5X6-MM THK)2
7X772925 WASHER (11X25X3-MM THK)8
8T412126 WASHER-HARD (11X21X2.5-MM THK)2
8T413327 NUT (M10X1.5-THD)2
8T418628 BOLT (M10X1.5X40-MM)2
8T419129 BOLT (M10X1.5X16-MM)8
8T419430 BOLT (M12X1.75X50-MM)2
8T419531 BOLT (M10X1.5X30-MM)2
8T422432 WASHER-HARD (8.8X16X2-MM THK)2
