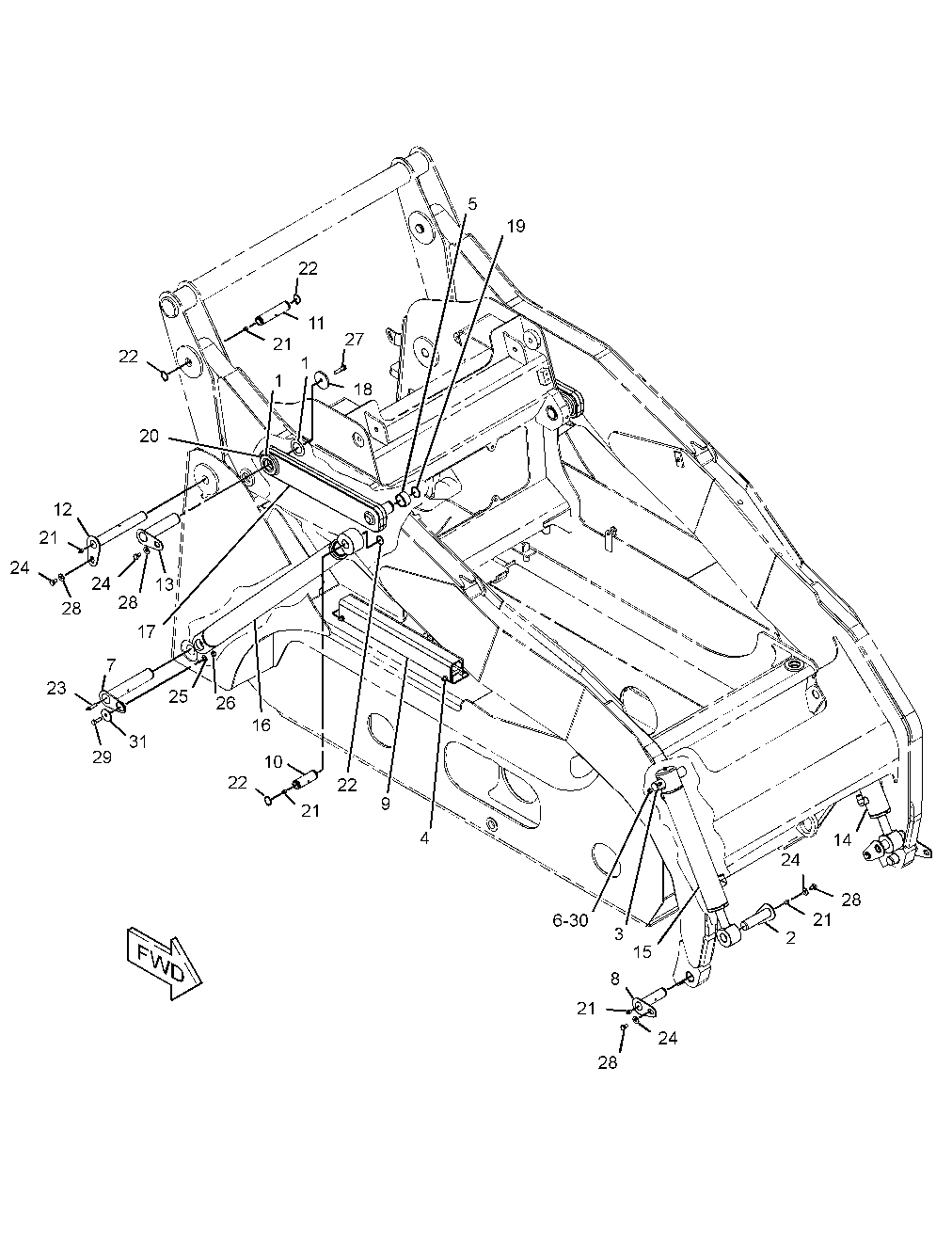

Assembly
100%

218-6899 CYLINDER & MTG GP-LIFT ARMS/N SLK1817-4417

Group No: 218-6899
Part NumberPart NameQty
11945941 WASHER (41X64X1-MM THK)10
14287912 PIN AS2
14287933 PIN2
14288324 PIN AS2
19079675 SPACER (38.35X48.35X23.5-MM THK)2
19079796 BOLT (M8X1.25X80-MM)2
19080387 PIN AS2
19195888 PIN AS2
19195899 SUPPORT AS1
191963510 PIN2
191963611 PIN2
191963712 PIN AS2
191963813 PIN AS2
230368414 CYLINDER GP-TILT (LH)1
230369415 CYLINDER GP-TILT (RH)1
230370316 CYLINDER GP-LIFT2
238772017 LINK AS2
1919633BUSHING2
190797118 WASHER-HARD (11X64X6-MM THK)2
2K596419 RING-RETAINING2
3B848820 FITTING-GREASE (1/8-27 PTF)2
3B848921 FITTING-GREASE (1/8-27 PTF)10
4M528522 RING-RETAINING8
5B065123 FITTING-STRAIGHT2
7X772924 WASHER (11X25X3-MM THK)8
8T412125 WASHER-HARD (11X21X2.5-MM THK)2
8T413326 NUT (M10X1.5-THD)2
8T418627 BOLT (M10X1.5X40-MM)2
8T419128 BOLT (M10X1.5X16-MM)8
8T419529 BOLT (M10X1.5X30-MM)2
8T422430 WASHER-HARD (8.8X16X2-MM THK)2
8T422631 WASHER-PLATED (10.5X45X3-MM THK)2
