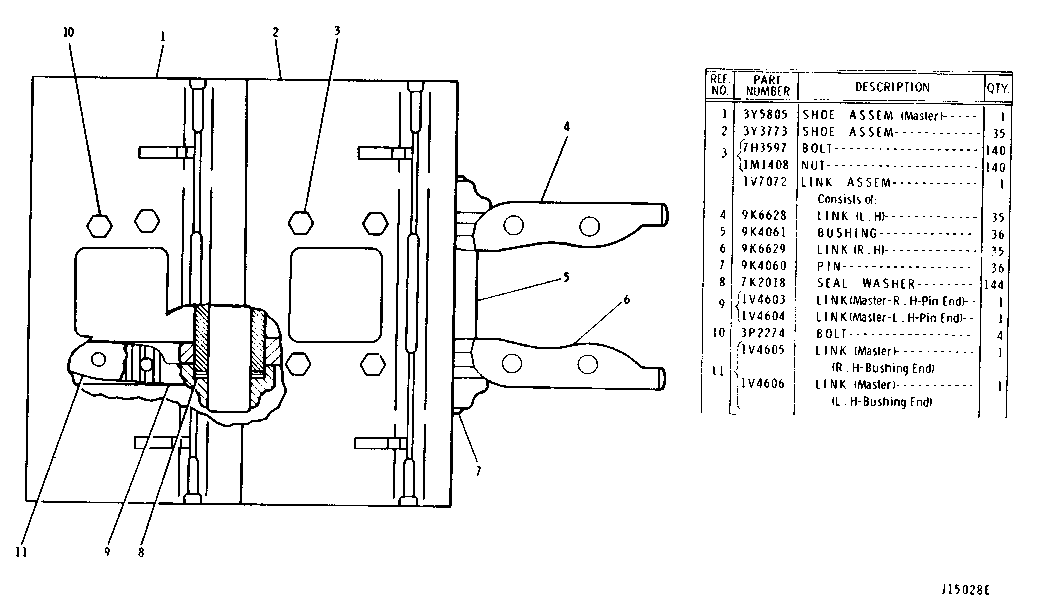

Assembly
100%

3Y5804 TRACK GROUP--406mm Snow and Ice Shoe--2 Groups RequiredAN ATTACHMENT

Group No: 3Y5804
Part NumberPart NameQty
3Y58051 SHOE ASSEM (Master)1
3Y37732 SHOE ASSEM35
7H35973 BOLT140
1M1408NUT140
1V7072LINK ASSEM1
9K66284 LINK (L.H)35
9K40615 BUSHING36
9K66296 LINK (R.H)35
9K40607 PIN36
7K20188 SEAL WASHER144
1V46039 LINK (Master-R.H-Pin End)1
1V4604LINK (Master-L.H-Pin End)1
3P227410 BOLT4
1V460511 LINK (Master)1
1V4606LINK (Master)1
